Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TCSD-05-D-02.36-01-N-RIDC SOCKET CABLE ASSEMBLIES, 2.0 |
1,158 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket, Reversed | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.197' (59.94mm, 2.36") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-11-D-10.00-01-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
3,360 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 22 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.833' (254.00mm, 10.00") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
H3BKH-5036GIDC CBL - HHSR50H/AE50G/HHPK50H |
4,326 |
|
Datasheet |
- | Bulk | Discontinued at Digi-Key | Socket to Plug | 50 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Strain Relief (Socket); Polarizing Key (Plug) | Gray, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
C3BES-1006GIDC CABLE - CSR10S/AE10G/CCE10S |
2,551 |
|
Datasheet |
- | Bulk | Active | Socket to Card Edge | 10 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | Strain Relief | Gray, Ribbon | Unshielded | - | IDC | Tin | 100.0µin (2.54µm) |
|
C3DES-1006GIDC CABLE - CKR10S/AE10G/CCE10S |
2,779 |
|
Datasheet |
- | Bulk | Active | Socket to Card Edge | 10 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | Polarizing Key, Strain Relief | Gray, Ribbon | Unshielded | Board In | IDC | Tin | 100.0µin (2.54µm) |
|
A3CCB-1636MIDC CABLE- AKC16B/AE16M/AKC16B |
1,243 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key | Multiple, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-05-D-02.40-01-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
4,878 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.200' (60.96mm, 2.40") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-13-D-03.25-01-F-N-R2MM DOUBLE ROW FEMALE IDC ASSEMB |
3,663 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket, Reversed | 26 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.271' (82.55mm, 3.25") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCMD-05-D-19.50-012MM DOUBLE ROW MALE IDC ASSEMBLY |
2,679 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Plug to Plug | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
T1PDT-04-28-GF-02.0-A-T3CBL 1MM 8POS PNL MNT M TO F |
1,407 |
|
- |
Micro Mate™ T1PDT | Bulk | Active | Socket to Plug | 8 | 2 | 0.039" (1.00mm) | - | 0.167' (50.80mm, 2.00") | - | Blue, Individual | Unshielded | - | Crimp | Gold | 3.00µin (0.076µm) |
|
|
SMSD-05-26-L-10.00-D-K-KDX.100" MINI MATE UNIVERSAL DOUBLE |
1,999 |
|
Datasheet |
Mini Mate® SMSD | Bulk | Active | Socket to Socket | 10 | 2 | 0.100" (2.54mm) | - | - | Polarizing Key | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
TFSD-05-30-H-11.82-S.050" TIGER EYE DOUBLE ROW DISCR |
4,773 |
|
Datasheet |
Tiger Eye™ TFSD | Bulk | Active | Plug to Individual Wire Leads | 10 | 2 | 0.050" (1.27mm) | - | 0.985' (300.23mm, 11.82") | - | Black, Individual | Unshielded | - | Crimp | Gold | 30.0µin (0.76µm) |
|
|
SFSD-07-28C-G-21.00-DR-NDXDOUBLE ROW DISCRETE WIRE ASSEMBL |
4,868 |
|
Datasheet |
Tiger Eye™ SFSD | Bag | Active | Socket to Socket | 14 | 2 | 0.050" (1.27mm) | - | - | - | Multiple, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
TFSD-05-28-H-11.82-S.050" TIGER EYE DOUBLE ROW DISCR |
1,021 |
|
Datasheet |
Tiger Eye™ TFSD | Bulk | Active | Plug to Individual Wire Leads | 10 | 2 | 0.050" (1.27mm) | - | 0.985' (300.23mm, 11.82") | - | Black, Individual | Unshielded | - | Crimp | Gold | 30.0µin (0.76µm) |
|

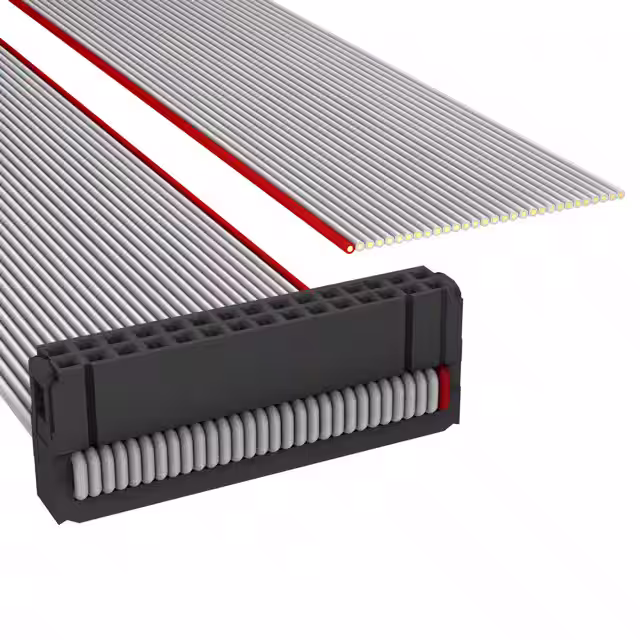

A1BXH-3036GIDC CABLE - ASR30H/AE30G/X |
1,504 |
|
Datasheet |
- | Bulk | Active | Socket to Cable | 30 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Strain Relief | Gray, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
|
A3BRB-2406GIDC CABLE - ASR24B/AE24G/APR24B |
3,458 |
|
Datasheet |
- | Bulk | Discontinued at Digi-Key | Socket to Plug | 24 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | Strain Relief (Socket); Polarizing Key, Strain Relief (Plug) | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
A2MXS-6006MADM60S/AE60M/X |
3,776 |
|
Datasheet |
- | Bulk | Active | DIP to Cable | 60 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | - | Multiple, Ribbon | Unshielded | Socket (0.1"), Board In | IDC | Tin | 100.0µin (2.54µm) |
|
C3CCS-6006MIDC CABLE - CKC60S/AE60M/CKC60S |
3,509 |
|
Datasheet |
- | Bulk | Discontinued at Digi-Key | Socket to Socket | 60 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | Polarizing Key | Multiple, Ribbon | Unshielded | Board In | IDC | Tin | 100.0µin (2.54µm) |
|
H3AAH-6418MIDC CBL - HHSC64H/AE64M/HHSC64H |
1,218 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 64 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | - | Multiple, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
|
FFMD-04-T-06.00-01.050 CABLE PLUG |
2,563 |
|
- |
Tiger Eye™ FFMD | Bulk | Active | Socket to Plug | 8 | 2 | 0.050" (1.27mm) | 0.025" (0.64mm) | 0.500' (152.40mm, 6.00") | - | Gray, Ribbon | Unshielded | - | IDC | Tin | - |
