Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TCSD-05-D-16.00-01-F-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
2,311 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 1.33' (406.40mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCSD-05-D-16.00-01-F-N-R2MM DOUBLE ROW FEMALE IDC ASSEMB |
4,894 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket, Reversed | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 1.33' (406.40mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCSD-10-S-19.99-01-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
4,537 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 20 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 1.66' (507.75mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-10-S-20.00-012MM DOUBLE ROW FEMALE IDC ASSEMB |
3,002 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 20 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 1.67' (508.00mm) | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-10-S-20.00-01-N-RW2MM DOUBLE ROW FEMALE IDC ASSEMB |
4,402 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 20 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 1.67' (508.00mm) | Polarizing Key, Reverse Wiring | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-13-S-10.00-012MM DOUBLE ROW FEMALE IDC ASSEMB |
4,004 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 26 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.833' (254.00mm, 10.00") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCMD-12-D-06.00-01-RW2MM DOUBLE ROW MALE IDC ASSEMBLY |
1,813 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Plug to Plug | 24 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
TCMD-12-D-06.00-01-R2MM DOUBLE ROW MALE IDC ASSEMBLY |
4,053 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Plug to Plug, Reversed | 24 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
TFSST-15-28-G-05.00-S.050" TIGER EYE SINGLE ROW DISCR |
1,827 |
|
Datasheet |
Tiger Eye™ TFSST | Bulk | Active | Plug to Individual Wire Leads | 15 | 1 | 0.050" (1.27mm) | - | 0.417' (127.00mm, 5.00") | - | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
TCSD-06-D-07.00-01-LIDC SOCKET CABLE ASSEMBLIES, 2.0 |
3,976 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 12 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.583' (177.80mm, 7.00") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
TCSD-17-S-12.40-01-F-NIDC SOCKET CABLE ASSEMBLIES, 2.0 |
1,399 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 34 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
C6PPG-1418MDIP CABLE - CDP14G/AE14M/CDP14G |
2,069 |
|
Datasheet |
- | Bulk | Active | DIP to DIP | 14 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | - | Multiple, Ribbon | Unshielded | Socket (0.3"), Board In | IDC | Gold | 10.0µin (0.25µm) |
|
C8PPG-1418MDIP CABLE - CDP14G/AE14M/CDP14G |
1,146 |
|
Datasheet |
- | Bulk | Active | DIP to DIP, Reversed | 14 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | - | Multiple, Ribbon | Unshielded | Socket (0.3"), Board In | IDC | Gold | 10.0µin (0.25µm) |
|
C0PPG-1418MDIP CABLE - CDP14G/AE14M/CDP14G |
2,525 |
|
Datasheet |
- | Bulk | Active | DIP to DIP, Reversed | 14 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | - | Multiple, Ribbon | Unshielded | Socket (0.3"), Board In | IDC | Gold | 10.0µin (0.25µm) |
|

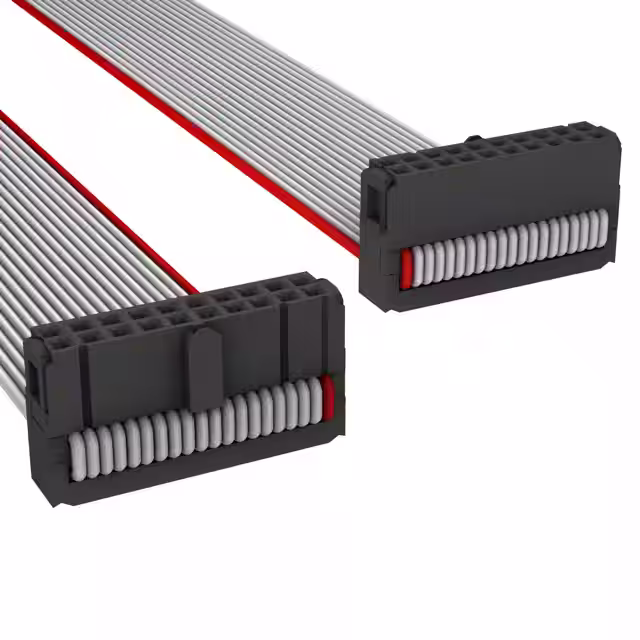

A3DDH-2036GIDC CABLE - AKR20H/AE20G/AKR20H |
4,189 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 20 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key, Strain Relief | Gray, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|

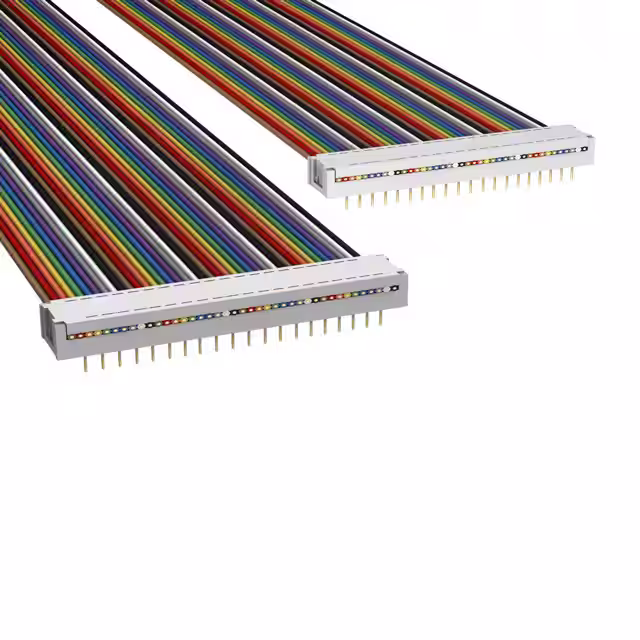

H6PPS-4036MDIP CABLE - HDP40S/AE40M/HDP40S |
4,371 |
|
Datasheet |
- | Bulk | Active | DIP to DIP | 40 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Multiple, Ribbon | Unshielded | Socket (0.6"), Board In | IDC | Tin | - |
|
|
H8PPS-4036MDIP CABLE - HDP40S/AE40M/HDP40S |
4,289 |
|
Datasheet |
- | Bulk | Active | DIP to DIP, Reversed | 40 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Multiple, Ribbon | Unshielded | Socket (0.6"), Board In | IDC | Tin | - |
|
|
H0PPS-4036MDIP CABLE - HDP40S/AE40M/HDP40S |
3,331 |
|
Datasheet |
- | Bulk | Active | DIP to DIP, Reversed | 40 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Multiple, Ribbon | Unshielded | Socket (0.6"), Board In | IDC | Tin | - |
|

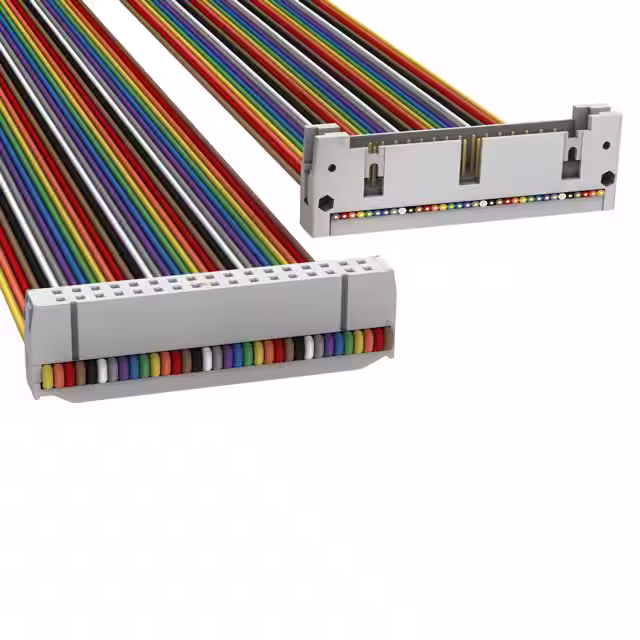

H3BKH-3436MIDC CBL - HHSR34H/AE34M/HHPK34H |
2,790 |
|
Datasheet |
- | Bulk | Active | Socket to Plug | 34 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Strain Relief (Socket); Polarizing Key (Plug) | Multiple, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|

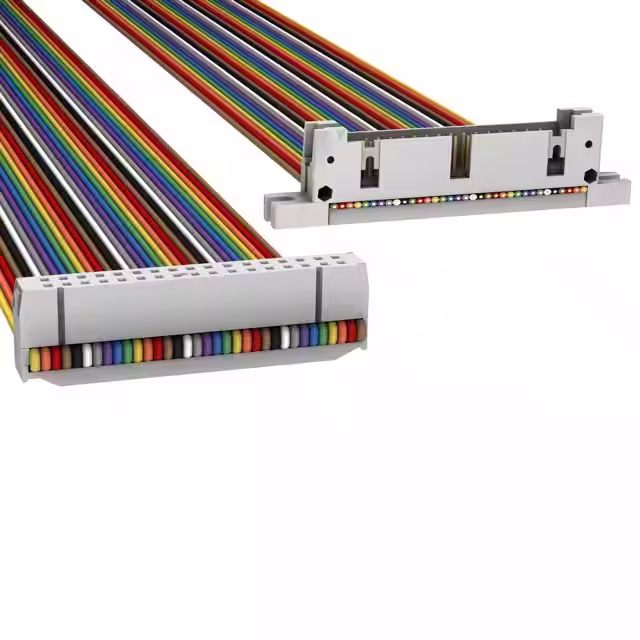

H3BWH-3436MIDC CBL - HHSR34H/AE34M/HHPL34H |
2,958 |
|
Datasheet |
- | Bulk | Active | Socket to Plug | 34 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Strain Relief (Socket); Flange, Polarizing Key (Plug) | Multiple, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
