Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TCSD-10-D-08.50-01-F-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
1,515 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 20 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.708' (215.90mm, 8.50") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCSD-10-D-08.50-01-F-N-R2MM DOUBLE ROW FEMALE IDC ASSEMB |
3,375 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket, Reversed | 20 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.708' (215.90mm, 8.50") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCSD-17-S-12.00-01-F-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
3,332 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 34 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 1.00' (304.80mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCSD-18-S-04.00-01-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
1,534 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 36 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.333' (101.60mm, 4.00") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
MMSS-06-20-L-20.00-D-K-MDSMINI-MATE CABLE ASSEMBLY, 0.100" |
4,675 |
|
Datasheet |
Mini Mate® MMSS | Bulk | Active | Socket to Socket | 6 | 1 | 0.100" (2.54mm) | - | - | Latch Lock, Polarizing Key | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
H3DDS-6436GIDC CBL - HHKR64S/AE64G/HHKR64S |
1,774 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 64 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key, Strain Relief | Gray, Ribbon | Unshielded | - | IDC | Tin | - |
|
H1WXH-4036MIDC CBL - HHPL40H/AE40M/X |
1,844 |
|
Datasheet |
- | Bulk | Active | Plug to Cable | 40 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Flange, Polarizing Key | Multiple, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
A1BXB-3036GIDC CABLE- ASR30B/AE30G/X |
2,901 |
|
Datasheet |
- | Bulk | Active | Socket to Cable | 30 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Strain Relief | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
A3AAB-3006GIDC CABLE- ASC30B/AE30G/ASC30B |
3,973 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 30 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-08-D-10.50-01-F-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
2,162 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 16 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.875' (266.70mm, 10.50") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCSD-07-D-12.00-01-F-P032MM DOUBLE ROW FEMALE IDC ASSEMB |
1,891 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 14 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 1.00' (304.80mm) | - | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCMD-12-T-02.30-01-N-R2MM DOUBLE ROW MALE IDC ASSEMBLY |
1,971 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Socket to Plug, Reversed | 24 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
MMSD-10-22-L-04.50-D-K-LDXMINI-MATE CABLE ASSEMBLY, 0.100" |
3,183 |
|
Datasheet |
Mini Mate® MMSD | Bulk | Active | Socket to Socket | 20 | 2 | 0.100" (2.54mm) | - | - | Latch Lock, Polarizing Key | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
SFSD-07-28C-G-03.25-DL-NDXDOUBLE ROW DISCRETE WIRE ASSEMBL |
4,999 |
|
Datasheet |
Tiger Eye™ SFSD | Bulk | Active | Socket to Socket | 14 | 2 | 0.050" (1.27mm) | - | - | - | Multiple, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
SFSD-07-28C-G-03.25-DL-NUSDOUBLE ROW DISCRETE WIRE ASSEMBL |
2,450 |
|
Datasheet |
Tiger Eye™ SFSD | Bulk | Active | Socket to Socket | 14 | 2 | 0.050" (1.27mm) | - | - | - | Multiple, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
S1SST-16-28-GF-08.00-L1MICRO MATE SINGLE ROW DISCRETE T |
4,254 |
|
Datasheet |
Micro Mate™ S1SST | Bulk | Active | Socket to Socket | 16 | 1 | 0.039" (1.00mm) | - | - | Latch Lock | Blue, Individual | Unshielded | - | Crimp | Gold | 3.00µin (0.076µm) |
|
C1BXG-1436GIDC CABLE - CSR14G/AE14G/X |
4,919 |
|
Datasheet |
- | Bulk | Active | Socket to Cable | 14 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Strain Relief | Gray, Ribbon | Unshielded | - | IDC | Gold | 10.0µin (0.25µm) |
|
C1DXG-1436GIDC CABLE - CKR14G/AE14G/X |
2,834 |
|
Datasheet |
- | Bulk | Active | Socket to Cable | 14 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key, Strain Relief | Gray, Ribbon | Unshielded | - | IDC | Gold | 10.0µin (0.25µm) |
|

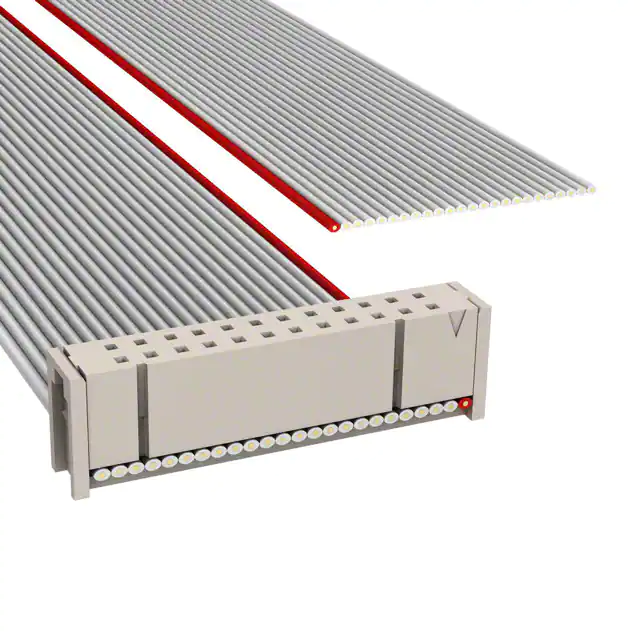

M1AXA-2436JIDC CABLE - MSC24A/MC24G/X |
2,415 |
|
Datasheet |
- | Bulk | Active | Socket to Cable | 24 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
A3AAH-3406MIDC CABLE - ASC34H/AE34M/ASC34H |
2,573 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 34 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | - | Multiple, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
