Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TCMD-19-S-12.00-012MM DOUBLE ROW MALE IDC ASSEMBLY |
3,848 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Plug to Cable | 38 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
T1PDT-05-28-GF-12.0-A-T3CBL 1MM 10POS PNL MNT M TO F |
4,316 |
|
- |
Micro Mate™ T1PDT | Bulk | Active | Socket to Plug | 10 | 2 | 0.039" (1.00mm) | - | 1.00' (304.80mm) | - | Blue, Individual | Unshielded | - | Crimp | Gold | 3.00µin (0.076µm) |
|
|
IDSD-10-D-07.80SLIM BODY DOUBLE-ROW IDC SOCKET |
1,035 |
|
Datasheet |
IDSD | Bulk | Active | Socket to Socket | 20 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | - | - | Multiple, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
MMSD-15-20-L-30.00-S-KMINI-MATE CABLE ASSEMBLY, 0.100" |
3,226 |
|
Datasheet |
Mini Mate® MMSD | Bulk | Active | Socket to Individual Wire Leads | 30 | 2 | 0.100" (2.54mm) | - | - | Latch Lock, Polarizing Key | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
TFSD-03-28-G-10.00-T-NDS.050" TIGER EYE DOUBLE ROW DISCR |
4,026 |
|
Datasheet |
Tiger Eye™ TFSD | Bulk | Active | Socket to Plug | 6 | 2 | 0.050" (1.27mm) | - | 0.833' (254.00mm, 10.00") | - | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
TFSD-05-30-G-22.00-S.050" TIGER EYE DOUBLE ROW DISCR |
1,453 |
|
Datasheet |
Tiger Eye™ TFSD | Bulk | Active | Plug to Individual Wire Leads | 10 | 2 | 0.050" (1.27mm) | - | 1.83' (558.80mm) | - | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
MMSD-08-24-L-32.50-S-K-MMINI-MATE CABLE ASSEMBLY, 0.100" |
2,187 |
|
Datasheet |
Mini Mate® MMSD | Bulk | Active | Socket to Individual Wire Leads | 16 | 2 | 0.100" (2.54mm) | - | - | Latch Lock, Polarizing Key | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
1M A0 36-026-3365-007.5-00-AB-01-0MOLDED ASSEMBLY 1M A0 36-026-336 |
1,575 |
|
- |
1M | Bulk | Active | Socket to PCB | 26 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.625' (190.50mm, 7.50") | - | Gray, Ribbon | Unshielded | - | IDC | - | - |
|
|
A3AAG-3018GIDC CABLE-ASC30G/ AE34G / ASC30G |
4,316 |
|
Datasheet |
- | Bulk | Obsolete | Socket to Socket | 30 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
A3AAH-1636MIDC CABLE - ASC16H/AE16M/ASC16H |
3,857 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Multiple, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
TCSD-20-S-02.00-01-NCABLE ASSEM 2MM 40POS SGL END 2" |
1,336 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 40 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.167' (50.80mm, 2.00") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
C3AAS-2606MIDC CABLE - CSC26S/AE26M/CSC26S |
2,108 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 26 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | - | Multiple, Ribbon | Unshielded | - | IDC | Tin | 100.0µin (2.54µm) |
|
C3CCS-2606MIDC CABLE - CKC26S/AE26M/CKC26S |
1,535 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 26 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | Polarizing Key | Multiple, Ribbon | Unshielded | Board In | IDC | Tin | 100.0µin (2.54µm) |
|

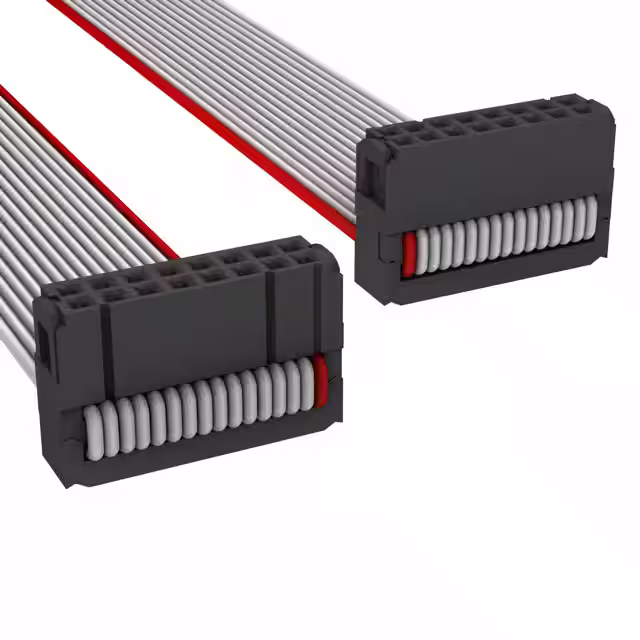

A3BBB-1636GIDC CABLE- ASR16B/AE16G/ASR16B |
4,352 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Strain Relief | Gray, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
|
TCSD-04-D-18.00-01-F2MM DOUBLE ROW FEMALE IDC ASSEMB |
4,153 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 8 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 1.50' (457.20mm) | - | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCMD-07-D-16.00-012MM DOUBLE ROW MALE IDC ASSEMBLY |
2,711 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Plug to Plug | 14 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
SFSD-10-28-G-04.50-DR-NUSDOUBLE ROW DISCRETE WIRE ASSEMBL |
4,096 |
|
Datasheet |
Tiger Eye™ SFSD | Bulk | Active | Socket to Socket | 20 | 2 | 0.050" (1.27mm) | - | - | - | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
T1SD-10-28-GF-12.01.00 MM MICRO MATE DOUBLE ROW DI |
3,346 |
|
Datasheet |
Micro Mate™ T1SD | Bulk | Active | Socket to Plug | 20 | 2 | 0.039" (1.00mm) | - | - | - | Black, Individual | Unshielded | - | Crimp | Gold | 3.00µin (0.076µm) |
|
|
FFMD-05-S-20.00-01-F.050" TIGER EYE IDC RIBBON CABLE |
3,444 |
|
Datasheet |
Tiger Eye™ FFMD | Bulk | Active | Plug to Cable | 10 | 2 | 0.050" (1.27mm) | 0.025" (0.64mm) | 1.67' (508.00mm) | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
TCSD-04-D-18.00-01-F-NIDC SOCKET CABLE ASSEMBLIES, 2.0 |
2,184 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 8 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 1.50' (457.20mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
