Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HCSS-15-S-02.25-01-ST8IDC SOCKET AND TERMINAL CABLE AS |
3,270 |
|
Datasheet |
HCS | Bulk | Active | Socket to Cable | 15 | 1 | 0.100" (2.54mm) | 0.050" (1.27mm) | - | - | Multiple, Ribbon | Unshielded | - | IDC | Gold | 10.0µin (0.25µm) |
|
|
HCMD-05-T-14.00-01-TIDC SOCKET AND TERMINAL CABLE AS |
1,713 |
|
Datasheet |
HCM | Bulk | Active | Socket to Plug | 10 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | - | - | Multiple, Ribbon | Unshielded | - | IDC | Tin | - |
|
|
HCSS-15-S-02.25-01-ST4IDC SOCKET AND TERMINAL CABLE AS |
1,756 |
|
Datasheet |
HCS | Bulk | Active | Socket to Cable | 15 | 1 | 0.100" (2.54mm) | 0.050" (1.27mm) | - | - | Multiple, Ribbon | Unshielded | - | IDC | Gold | 10.0µin (0.25µm) |
|
|
TCMD-08-T-03.87-01-N-R2.00 MM IDC RIBBON CABLE ASSEMBL |
2,641 |
|
Datasheet |
Tiger Eye™ TCMD | Bulk | Active | Socket to Plug, Reversed | 16 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
TCMD-06-D-12.60-012.00 MM IDC RIBBON CABLE ASSEMBL |
2,938 |
|
Datasheet |
Tiger Eye™ TCMD | Bulk | Active | Plug to Plug | 12 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
HCSD-05-D-10.00-01-GIDC SOCKET AND TERMINAL CABLE AS |
1,768 |
|
Datasheet |
HCS | Bulk | Active | Socket to Socket | 10 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 10.0µin (0.25µm) |
|
|
TCSD-10-D-03.00-01-F-P11IDC SOCKET CABLE ASSEMBLIES, 2.0 |
3,025 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 20 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.250' (76.20mm, 3.00") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
A3CCB-1418MIDC CABLE- AKC14B/AE14M/AKC14B |
4,822 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 14 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | Polarizing Key | Multiple, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|

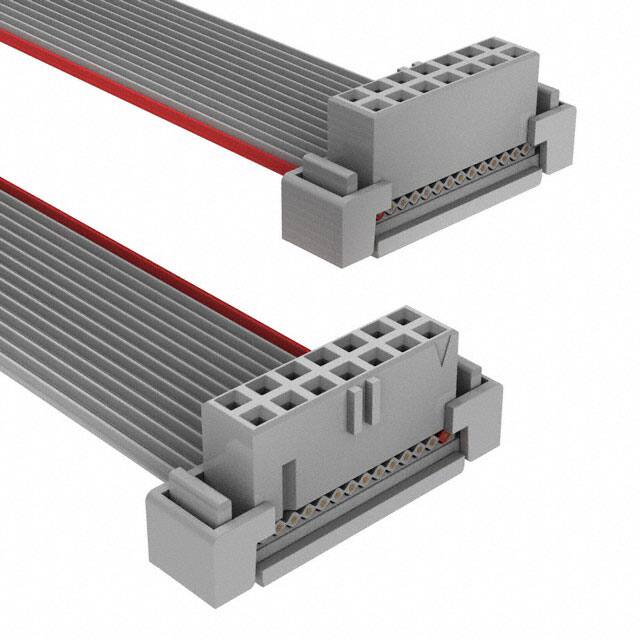

158214-0220-3625/14-D-6CABLE 14POS SOCKET TO SOCKET 6" |
2,034 |
|
Datasheet |
158 | Bulk | Obsolete | Socket to Socket | 14 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.500' (152.40mm, 6.00") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-03-S-24.00-012MM DOUBLE ROW FEMALE IDC ASSEMB |
2,707 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 6 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 2.00' (609.60mm) | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-08-D-05.90-01-F-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
2,432 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 16 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.492' (149.86mm, 5.90") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCSD-08-S-16.00-012MM DOUBLE ROW FEMALE IDC ASSEMB |
3,040 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 16 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 1.33' (406.40mm) | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-08-S-16.00-01-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
2,905 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 16 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 1.33' (406.40mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-10-D-04.00-01-F2MM DOUBLE ROW FEMALE IDC ASSEMB |
4,404 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 20 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.333' (101.60mm, 4.00") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCSD-10-D-04.00-01-F-N-R2MM DOUBLE ROW FEMALE IDC ASSEMB |
4,307 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket, Reversed | 20 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.333' (101.60mm, 4.00") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCSD-10-D-04.00-01-F-N-RW2MM DOUBLE ROW FEMALE IDC ASSEMB |
3,324 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 20 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.333' (101.60mm, 4.00") | Polarizing Key, Reverse Wiring | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCSD-10-D-04.00-01-F-R2MM DOUBLE ROW FEMALE IDC ASSEMB |
2,699 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket, Reversed | 20 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.333' (101.60mm, 4.00") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCSD-10-D-04.00-01-F-RN22MM DOUBLE ROW FEMALE IDC ASSEMB |
2,523 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 20 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.333' (101.60mm, 4.00") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCMD-07-T-02.00-01-SR2MM DOUBLE ROW MALE IDC ASSEMBLY |
3,520 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Socket to Plug | 14 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
TCMD-10-S-25.00-012MM DOUBLE ROW MALE IDC ASSEMBLY |
1,029 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Plug to Cable | 20 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
