Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TCSD-13-S-12.00-01-F2MM DOUBLE ROW FEMALE IDC ASSEMB |
1,942 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 26 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 1.00' (304.80mm) | - | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCSD-13-S-12.00-01-F-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
4,907 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 26 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 1.00' (304.80mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCSD-15-S-02.00-01-N-SR2MM DOUBLE ROW FEMALE IDC ASSEMB |
1,706 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 30 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.167' (50.80mm, 2.00") | Polarizing Key, Strain Relief | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-05-D-06.00-01-F-N-SR2MM DOUBLE ROW FEMALE IDC ASSEMB |
4,812 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.500' (152.40mm, 6.00") | Polarizing Key, Strain Relief | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCSD-05-D-06.00-01-F-SR2MM DOUBLE ROW FEMALE IDC ASSEMB |
1,942 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.500' (152.40mm, 6.00") | Strain Relief | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCMD-09-T-03.00-012MM DOUBLE ROW MALE IDC ASSEMBLY |
2,275 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Socket to Plug | 18 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
S1SST-10-28-GF-15.00-L1MICRO MATE SINGLE ROW DISCRETE T |
4,551 |
|
Datasheet |
Micro Mate™ S1SST | Bulk | Active | Socket to Socket | 10 | 1 | 0.039" (1.00mm) | - | - | Latch Lock | Blue, Individual | Unshielded | - | Crimp | Gold | 3.00µin (0.076µm) |
|
|
HCMD-05-S-08.00-02-SIDC SOCKET AND TERMINAL CABLE AS |
2,929 |
|
Datasheet |
HCM | Bulk | Active | Plug to Cable | 10 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | - | - | Multiple, Ribbon | Unshielded | - | IDC | Gold | 10.0µin (0.25µm) |
|
|
HCSS-14-D-08.00-01-T-GIDC SOCKET AND TERMINAL CABLE AS |
3,995 |
|
Datasheet |
HCS | Bulk | Active | Socket to Socket | 14 | 1 | 0.100" (2.54mm) | 0.050" (1.27mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Tin | 150.0µin (3.81µm) |
|
|
TFSD-10-30-F-06.01-S.050" TIGER EYE DOUBLE ROW DISCR |
2,185 |
|
Datasheet |
Tiger Eye™ TFSD | Bulk | Active | Plug to Individual Wire Leads | 20 | 2 | 0.050" (1.27mm) | - | 0.501' (152.65mm, 6.01") | - | Black, Individual | Unshielded | - | Crimp | Gold | 3.00µin (0.076µm) |
|
|
HCMS-06-T-11.85-02-SIDC SOCKET AND TERMINAL CABLE AS |
1,944 |
|
Datasheet |
HCM | Bulk | Active | Socket to Plug | 12 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | - | - | Multiple, Ribbon | Unshielded | - | IDC | Gold | 10.0µin (0.25µm) |
|
M3AAA-1636RIDC CABLE - MSC16A/MC16M/MSC16A |
2,162 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Multiple, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
M3CCA-1636RIDC CABLE - MKC16A/MC16M/MKC16A |
3,980 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key | Multiple, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
A1DXG-3036GIDC CABLE-AKR30G/ AE34G / X |
4,414 |
|
Datasheet |
- | Bulk | Obsolete | Socket to Cable | 30 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key, Strain Relief | Gray, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
A3CCH-1418MIDC CABLE - AKC14H/AE14M/AKC14H |
1,132 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 14 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | Polarizing Key | Multiple, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|

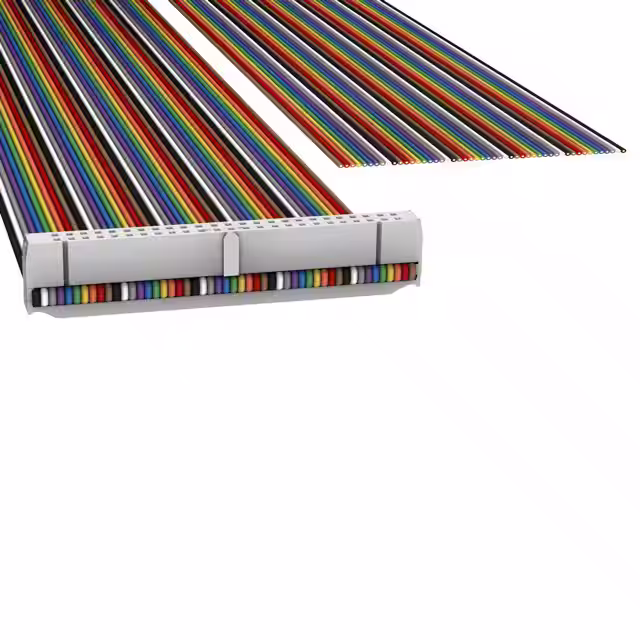

H1DXH-5036MIDC CBL - HKR50H/AE50M/X |
3,419 |
|
Datasheet |
- | Bulk | Active | Socket to Cable | 50 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key, Strain Relief | Multiple, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
|
TCSD-05-S-19.68-01-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
4,697 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 1.64' (499.87mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-05-S-19.69-01-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
4,228 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 1.64' (500.00mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
SFSD-20-28-G-03.94-S.050 SOCKET DISCRETE CABLE ASSEM |
2,052 |
|
Datasheet |
Tiger Eye™ SFSD | Bulk | Active | Socket to Individual Wire Leads | 40 | 2 | 0.050" (1.27mm) | - | 0.328' (100.00mm, 3.94") | Polarizing Key | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
TCMD-10-D-07.00-012MM DOUBLE ROW MALE IDC ASSEMBLY |
4,574 |
|
Datasheet |
Tiger Eye™ TCMD | Bulk | Active | Plug to Plug | 20 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
