Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TCMD-20-S-07.87-012.00 MM IDC RIBBON CABLE ASSEMBL |
1,961 |
|
Datasheet |
Tiger Eye™ TCMD | Bulk | Active | Plug to Cable | 40 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|

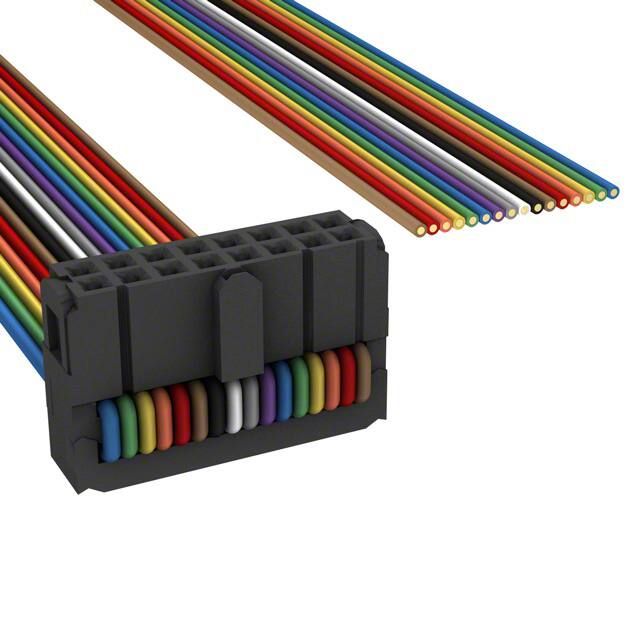

A1DXH-1636MIDC CABLE - AKR16H/AE16M/X |
1,207 |
|
Datasheet |
- | Bulk | Active | Socket to Cable | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key, Strain Relief | Multiple, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
C3APS-1018MIDC CABLE - CSC10S/AE10M/CPC10S |
3,613 |
|
Datasheet |
- | Bulk | Active | Socket to PCB | 10 | 2, 4 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | - | Multiple, Ribbon | Unshielded | Board In | IDC | Tin | 100.0µin (2.54µm) |
|
C3CPS-1018MIDC CABLE - CKC10S/AE10M/CPC10S |
3,184 |
|
Datasheet |
- | Bulk | Active | Socket to PCB | 10 | 2, 4 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | Polarizing Key | Multiple, Ribbon | Unshielded | Board In | IDC | Tin | 100.0µin (2.54µm) |
|
|
A1DXB-1636MIDC CABLE- AKR16B/AE16M/X |
4,078 |
|
Datasheet |
- | Bulk | Active | Socket to Cable | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key, Strain Relief | Multiple, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-08-D-04.30-01-F-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
1,839 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 16 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.358' (109.22mm, 4.30") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCSD-10-D-02.35-01-F-N-R2MM DOUBLE ROW FEMALE IDC ASSEMB |
3,964 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket, Reversed | 20 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.196' (59.69mm, 2.35") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCSD-10-D-02.36-01-F-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
1,303 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 20 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.197' (59.94mm, 2.36") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCSD-10-D-02.38-01-F-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
1,622 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 20 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.198' (60.45mm, 2.38") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCMD-07-T-05.00-012MM DOUBLE ROW MALE IDC ASSEMBLY |
3,203 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Socket to Plug | 14 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
TCMD-07-T-05.00-01-N2MM DOUBLE ROW MALE IDC ASSEMBLY |
2,148 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Socket to Plug | 14 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
TCMD-08-T-02.25-01-R2MM DOUBLE ROW MALE IDC ASSEMBLY |
4,131 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Socket to Plug, Reversed | 16 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
TCMD-25-S-02.00-01-SR2MM DOUBLE ROW MALE IDC ASSEMBLY |
1,213 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Plug to Cable | 50 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
TFSD-04-28-H-08.00-S.050" TIGER EYE DOUBLE ROW DISCR |
4,670 |
|
Datasheet |
Tiger Eye™ TFSD | Bulk | Active | Plug to Individual Wire Leads | 8 | 2 | 0.050" (1.27mm) | - | 0.667' (203.20mm, 8.00") | - | Black, Individual | Unshielded | - | Crimp | Gold | 30.0µin (0.76µm) |
|
|
TCSD-10-D-02.37-01-F-NIDC SOCKET CABLE ASSEMBLIES, 2.0 |
2,715 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 20 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.197' (60.20mm, 2.37") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
S1SDT-08-28-GF-05.90-LMICRO MATE DOUBLE ROW DISCRETE T |
2,564 |
|
Datasheet |
Micro Mate™ S1SDT | Bulk | Active | Socket to Individual Wire Leads | 16 | 2 | 0.039" (1.00mm) | - | - | Latch Lock | Blue, Individual | Unshielded | - | Crimp | Gold | 3.00µin (0.076µm) |
|
|
HCSD-05-D-06.50-01-NIDC SOCKET AND TERMINAL CABLE AS |
3,673 |
|
Datasheet |
HCS | Bulk | Active | Socket to Socket | 10 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | - | Polarizing Key | Multiple, Ribbon | Unshielded | - | IDC | Gold | 10.0µin (0.25µm) |
|
|
TFSD-07-28-G-05.91-S.050" TIGER EYE DOUBLE ROW DISCR |
1,677 |
|
Datasheet |
Tiger Eye™ TFSD | Bulk | Active | Plug to Individual Wire Leads | 14 | 2 | 0.050" (1.27mm) | - | 0.492' (150.00mm, 5.91") | - | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
TCMD-07-T-05.00-01-RW2.00 MM IDC RIBBON CABLE ASSEMBL |
4,365 |
|
Datasheet |
Tiger Eye™ TCMD | Bulk | Active | Socket to Plug | 14 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
TCMD-07-T-05.00-01-P14-RW2.00 MM IDC RIBBON CABLE ASSEMBL |
3,795 |
|
Datasheet |
Tiger Eye™ TCMD | Bulk | Active | Socket to Plug | 14 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
