Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TCSD-06-D-08.00-01-F2MM DOUBLE ROW FEMALE IDC ASSEMB |
1,690 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 12 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.667' (203.20mm, 8.00") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCSD-06-D-08.00-01-F-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
4,720 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 12 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.667' (203.20mm, 8.00") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCSD-10-D-02.30-01-F-R2MM DOUBLE ROW FEMALE IDC ASSEMB |
1,531 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket, Reversed | 20 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.192' (58.42mm, 2.30") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCSD-06-D-08.00-01-F-R2MM DOUBLE ROW FEMALE IDC ASSEMB |
4,494 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket, Reversed | 12 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.667' (203.20mm, 8.00") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCMD-10-T-08.00-01-F-N2MM DOUBLE ROW MALE IDC ASSEMBLY |
4,880 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Socket to Plug | 20 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
HCSD-03-D-10.00-01-N-P04IDC SOCKET AND TERMINAL CABLE AS |
1,916 |
|
Datasheet |
HCS | Bulk | Active | Socket to Socket | 6 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | - | Polarizing Key | Multiple, Ribbon | Unshielded | - | IDC | Gold | 10.0µin (0.25µm) |
|
|
HCSD-03-D-10.00-01-N-P04-RIDC SOCKET AND TERMINAL CABLE AS |
1,943 |
|
Datasheet |
HCS | Bulk | Active | Socket to Socket, Reversed | 6 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | - | Polarizing Key | Multiple, Ribbon | Unshielded | - | IDC | Gold | 10.0µin (0.25µm) |
|
|
TCMD-04-T-06.00-01-SR2.00 MM IDC RIBBON CABLE ASSEMBL |
2,967 |
|
Datasheet |
Tiger Eye™ TCMD | Bulk | Active | Socket to Plug | 8 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
TCSD-06-D-08.00-01-F-N-RWIDC SOCKET CABLE ASSEMBLIES, 2.0 |
4,008 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 12 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.667' (203.20mm, 8.00") | Polarizing Key, Reverse Wiring | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
06-006-156CABLE 6POS .100 JUMPER 6 INCH |
2,139 |
|
Datasheet |
156 | Bulk | Active | Plug to Cable | 6 | 1 | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.500' (152.40mm, 6.00") | - | Multiple, Ribbon | Unshielded | - | Solder | Gold | 10.0µin (0.25µm) |
|

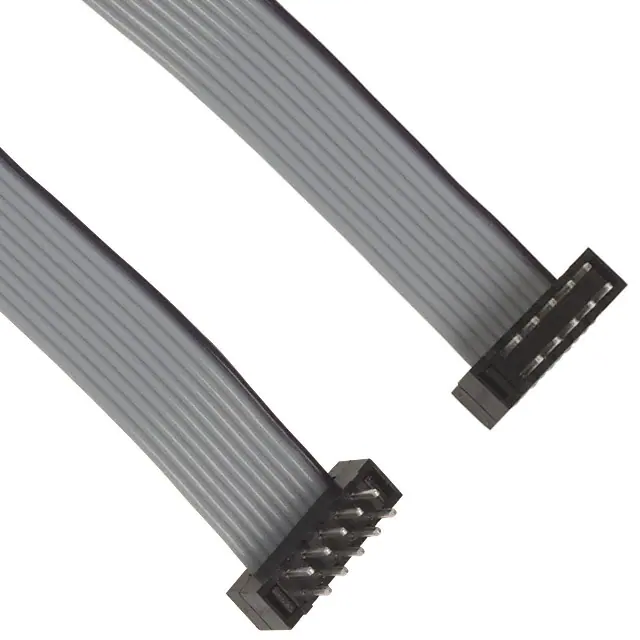

TCMD-05-D-12.00-01CABLE ASSEM 2MM 10POS M-M 12" |
1,672 |
|
Datasheet |
Tiger Eye™ TCMD | Bulk | Active | Plug to Plug | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 1.00' (304.80mm) | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|

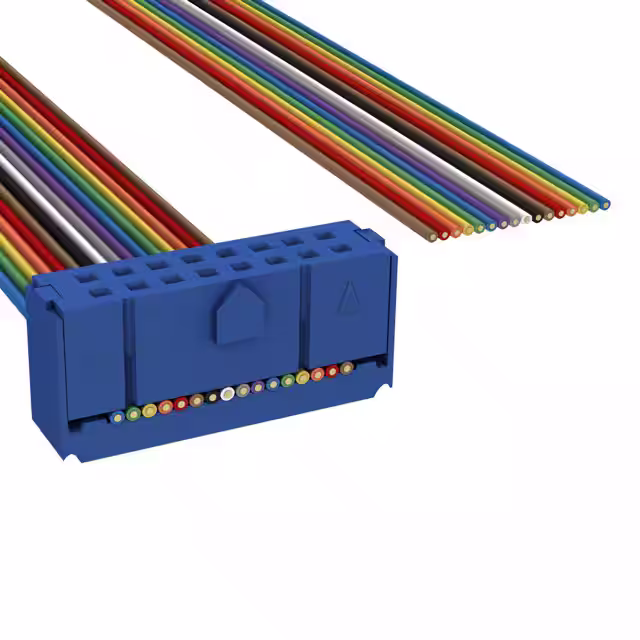

C1CXS-1636MIDC CABLE - CKC16S/AE16M/X |
4,944 |
|
Datasheet |
- | Bulk | Active | Socket to Cable | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key | Multiple, Ribbon | Unshielded | Board In | IDC | Tin | 100.0µin (2.54µm) |
|
|
M6MMH-2006JIDC CABLE - MDM20H/MC20G/MDM20H |
2,703 |
|
- |
- | Bulk | Obsolete | PCB to PCB | 20 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | - | Gray, Ribbon | Unshielded | Board In | IDC | Gold | 15.0µin (0.38µm) |
|
|
TCSD-07-D-06.70-01-F-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
1,684 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 14 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.558' (170.18mm, 6.70") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCSD-25-S-03.00-01-F2MM DOUBLE ROW FEMALE IDC ASSEMB |
3,309 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 50 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.250' (76.20mm, 3.00") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCSD-25-S-03.00-01-F-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
2,497 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 50 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.250' (76.20mm, 3.00") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCMD-08-T-02.20-012MM DOUBLE ROW MALE IDC ASSEMBLY |
1,556 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Socket to Plug | 16 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
TCMD-05-D-12.00-01-R2MM DOUBLE ROW MALE IDC ASSEMBLY |
3,291 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Plug to Plug, Reversed | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
TCMD-05-T-03.00-01-SR2MM DOUBLE ROW MALE IDC ASSEMBLY |
2,787 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Socket to Plug | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
0511100850-02-A-6-Z8 CIRC CABLE ASSY 2" Z |
3,065 |
|
Datasheet |
Milli-Grid 51110 | Bulk | Active | Socket to Socket | 8 | 2 | 0.079" (2.00mm) | - | 0.167' (50.80mm, 2.00") | - | Multiple, Individual | Unshielded | - | Crimp | Gold | 15.0µin (0.38µm) |
