Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TCSD-10-S-18.00-01-F-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
3,037 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 20 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 1.50' (457.20mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCMD-05-T-04.75-01-N-R2MM DOUBLE ROW MALE IDC ASSEMBLY |
3,135 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Socket to Plug, Reversed | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
TCMD-06-D-08.00-012MM DOUBLE ROW MALE IDC ASSEMBLY |
1,564 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Plug to Plug | 12 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
TCMD-07-T-02.00-012MM DOUBLE ROW MALE IDC ASSEMBLY |
1,417 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Socket to Plug | 14 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
TCMD-25-S-03.00-012MM DOUBLE ROW MALE IDC ASSEMBLY |
1,395 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Plug to Cable | 50 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
T1SD-05-28-GF-12.0-T11.00 MM MICRO MATE DOUBLE ROW DI |
1,721 |
|
Datasheet |
Micro Mate™ T1SD | Bulk | Active | Socket to Plug | 10 | 2 | 0.039" (1.00mm) | - | - | - | Black, Individual | Unshielded | - | Crimp | Gold | 3.00µin (0.076µm) |
|
|
MMSD-05-22C-L-186.3-S-KMINI-MATE CABLE ASSEMBLY, 0.100" |
3,421 |
|
Datasheet |
Mini Mate® MMSD | Bulk | Active | Socket to Individual Wire Leads | 10 | 2 | 0.100" (2.54mm) | - | - | Latch Lock, Polarizing Key | Multiple, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
HCSS-12-D-02.00-01-GIDC SOCKET AND TERMINAL CABLE AS |
2,943 |
|
Datasheet |
HCS | Bulk | Active | Socket to Socket | 12 | 1 | 0.100" (2.54mm) | 0.050" (1.27mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 10.0µin (0.25µm) |
|
|
TFSST-05-28-G-24.00-S.050" TIGER EYE SINGLE ROW DISCR |
3,452 |
|
Datasheet |
Tiger Eye™ TFSST | Bulk | Active | Plug to Individual Wire Leads | 5 | 1 | 0.050" (1.27mm) | - | 2.00' (609.60mm) | - | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
TFSD-05-28C-G-03.00-S.050" TIGER EYE DOUBLE ROW DISCR |
3,432 |
|
Datasheet |
Tiger Eye™ TFSD | Bulk | Active | Plug to Individual Wire Leads | 10 | 2 | 0.050" (1.27mm) | - | 0.250' (76.20mm, 3.00") | - | Multiple, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|

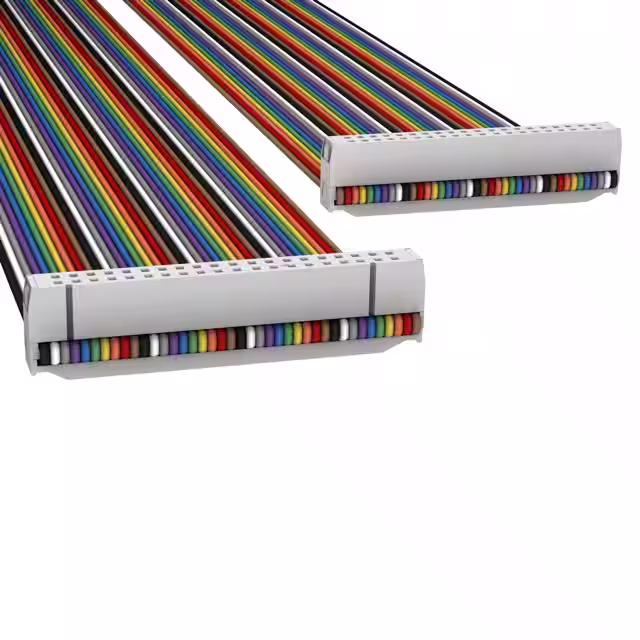

H3BBH-4036MIDC CBL - HHSR40H/AE40M/HHSR40H |
1,805 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 40 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Strain Relief | Multiple, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
|
M6MMH-1018JIDC CABLE - MDM10H/MC10G/MDM10H |
1,730 |
|
- |
- | Bulk | Obsolete | PCB to PCB | 10 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | - | Gray, Ribbon | Unshielded | Board In | IDC | Gold | 15.0µin (0.38µm) |
|
|
M8MMH-1018JIDC CABLE - MDM10H/MC10G/MDM10H |
2,234 |
|
- |
- | Bulk | Obsolete | PCB to PCB, Reversed | 10 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | - | Gray, Ribbon | Unshielded | Board In | IDC | Gold | 15.0µin (0.38µm) |
|
|
TCSD-05-D-06.40-01-F-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
4,980 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.533' (162.56mm, 6.40") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCMD-05-T-04.80-01-N-R2MM DOUBLE ROW MALE IDC ASSEMBLY |
1,199 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Socket to Plug, Reversed | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
IDSD-09-D-02.00INSULATION DISPLACEMENT TERMINAL |
2,057 |
|
- |
IDSD | Bulk | Active | Socket to Socket | 18 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.167' (50.80mm, 2.00") | - | Multiple, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
IDMS-14-T-03.50-RSLIM BODY SINGLE-ROW IDC MALE AS |
1,689 |
|
Datasheet |
IDMS | Bulk | Active | Socket to Plug, Reversed | 14 | 1 | 0.100" (2.54mm) | 0.100" (2.54mm) | - | - | Multiple, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
S1SD-02-28-GF-50.00-L1MICRO MATE DOUBLE ROW DISCRETE W |
1,272 |
|
Datasheet |
Micro Mate™ S1SD | Bulk | Active | Socket to Socket | 4 | 2 | 0.039" (1.00mm) | - | - | Latch Lock | Black, Individual | Unshielded | - | Crimp | Gold | 3.00µin (0.076µm) |
|
|
TCMD-04-T-07.84-01-R2.00 MM IDC RIBBON CABLE ASSEMBL |
4,295 |
|
Datasheet |
Tiger Eye™ TCMD | Bulk | Active | Socket to Plug, Reversed | 8 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
2153272083MINIFIT JR DR P-P 8 CIRCUIT 600M |
4,659 |
|
Datasheet |
Mini-Fit Jr 215327 | Bag | Active | Plug to Plug | 8 | 2 | 0.165" (4.19mm) | - | 1.97' (600.00mm) | - | Black, Individual | Unshielded | - | Crimp | Gold | 30.0µin (0.76µm) |
