Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TCSD-13-S-04.00-01-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
3,883 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 26 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.333' (101.60mm, 4.00") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-20-S-04.53-01-F-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
4,805 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 40 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.378' (115.06mm, 4.53") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCMD-10-D-02.40-012MM DOUBLE ROW MALE IDC ASSEMBLY |
3,379 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Plug to Plug | 20 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
TCMD-05-D-09.00-012MM DOUBLE ROW MALE IDC ASSEMBLY |
1,478 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Plug to Plug | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
TCMD-05-T-04.70-012MM DOUBLE ROW MALE IDC ASSEMBLY |
4,255 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Socket to Plug | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
TCMD-06-T-03.48-01-N2MM DOUBLE ROW MALE IDC ASSEMBLY |
3,843 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Socket to Plug | 12 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
TCMD-06-T-03.50-01-N-R2MM DOUBLE ROW MALE IDC ASSEMBLY |
1,447 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Socket to Plug, Reversed | 12 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
TCMD-10-D-06.00-01-RF2MM DOUBLE ROW MALE IDC ASSEMBLY |
2,709 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Plug to Plug | 20 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
IDMD-08-T-04.00-A-G-RSLIM BODY DOUBLE-ROW IDC MALE AS |
4,204 |
|
Datasheet |
IDMD | Bulk | Active | Socket to Plug, Reversed | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold, Tin | - |
|
|
MMSD-06-22-L-05.00-S-K-MMINI-MATE CABLE ASSEMBLY, 0.100" |
3,895 |
|
Datasheet |
Mini Mate® MMSD | Bulk | Active | Socket to Individual Wire Leads | 12 | 2 | 0.100" (2.54mm) | - | - | Latch Lock, Polarizing Key | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
S2SDT-05-24-L-07.87-SR2.00 MM TIGER EYE DOUBLE ROW DIS |
1,862 |
|
Datasheet |
Tiger Eye™ S2SDT | Bulk | Active | Socket to Individual Wire Leads | 10 | 2 | 0.079" (2.00mm) | - | - | - | Blue, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
TCMD-05-T-04.72-012.00 MM IDC RIBBON CABLE ASSEMBL |
4,627 |
|
Datasheet |
Tiger Eye™ TCMD | Bulk | Active | Socket to Plug | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
0369231803IGRID 18 CIRCUIT 300MM |
4,550 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
M3AAA-1436RIDC CABLE - MSC14A/MC14M/MSC14A |
3,869 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 14 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Multiple, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
M3CCA-1436RIDC CABLE - MKC14A/MC14M/MKC14A |
4,697 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 14 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key | Multiple, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|

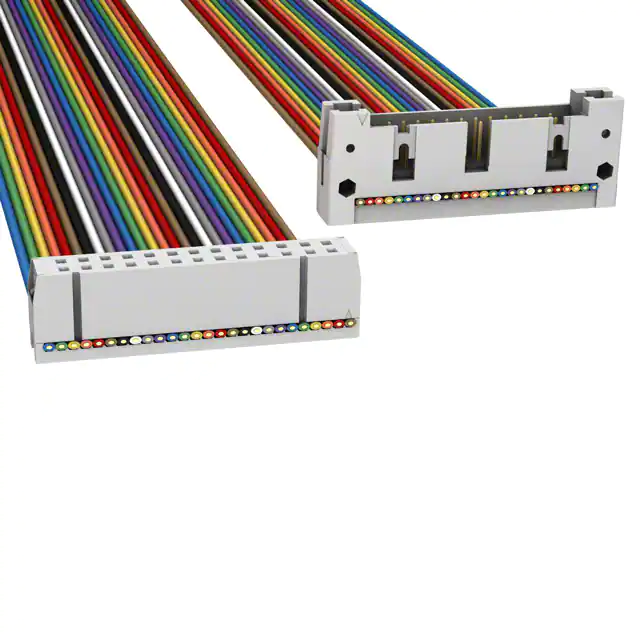

H3AKH-2636MIDC CBL - HHSC26H/AE26M/HHPK26H |
2,879 |
|
Datasheet |
- | Bulk | Active | Socket to Plug | 26 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key | Multiple, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|

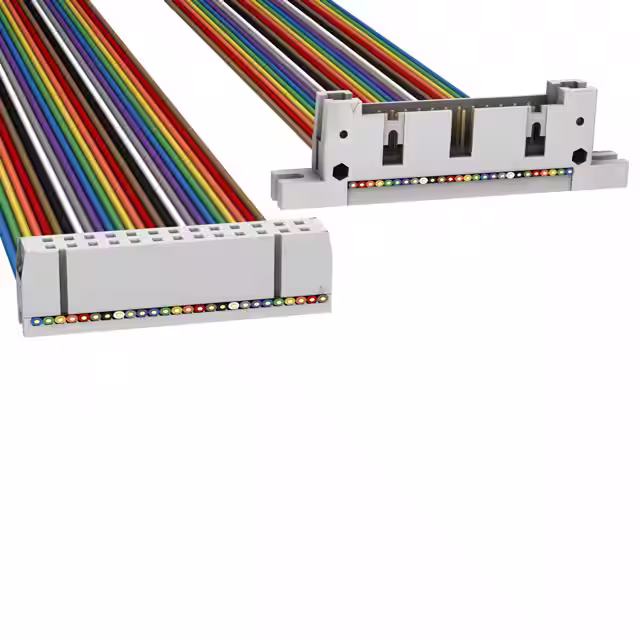

H3AWH-2636MIDC CBL - HHSC26H/AE26M/HHPL26H |
3,302 |
|
Datasheet |
- | Bulk | Active | Socket to Plug | 26 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Flange, Polarizing Key | Multiple, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
C2PXS-2406GDIP CABLE - CDP24S/AE24G/X |
2,873 |
|
Datasheet |
- | Bulk | Active | DIP to Cable | 24 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | - | Gray, Ribbon | Unshielded | Socket (0.6"), Board In | IDC | Tin | 100.0µin (2.54µm) |
|
|
C4PXS-2406GDIP CABLE - CDP24S/AE24G/X |
3,460 |
|
Datasheet |
- | Bulk | Active | DIP to Cable | 24 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | - | Gray, Ribbon | Unshielded | Socket (0.6"), Board In | IDC | Tin | 100.0µin (2.54µm) |
|
|
TCSD-10-S-18.00-01-F2MM DOUBLE ROW FEMALE IDC ASSEMB |
3,684 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 20 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 1.50' (457.20mm) | - | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
