Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IDMD-02-S-10.00-ST8SLIM BODY DOUBLE-ROW IDC MALE AS |
2,482 |
|
Datasheet |
IDMD | Bulk | Active | Plug to Cable | 4 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | - | - | Multiple, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
A1DXA-1436MIDC CABLE- AKP14A/ AE14M / X |
1,069 |
|
Datasheet |
- | Bulk | Obsolete | Socket to Cable | 14 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key, Strain Relief | Multiple, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
M1AXA-2036JIDC CABLE - MSC20A/MC20G/X |
4,898 |
|
Datasheet |
- | Bulk | Active | Socket to Cable | 20 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
M1CXA-2036JIDC CABLE - MKC20A/MC20G/X |
4,282 |
|
Datasheet |
- | Bulk | Active | Socket to Cable | 20 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
A3AAH-1018MIDC CABLE - ASC10H/AE10M/ASC10H |
1,716 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 10 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | - | Multiple, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|

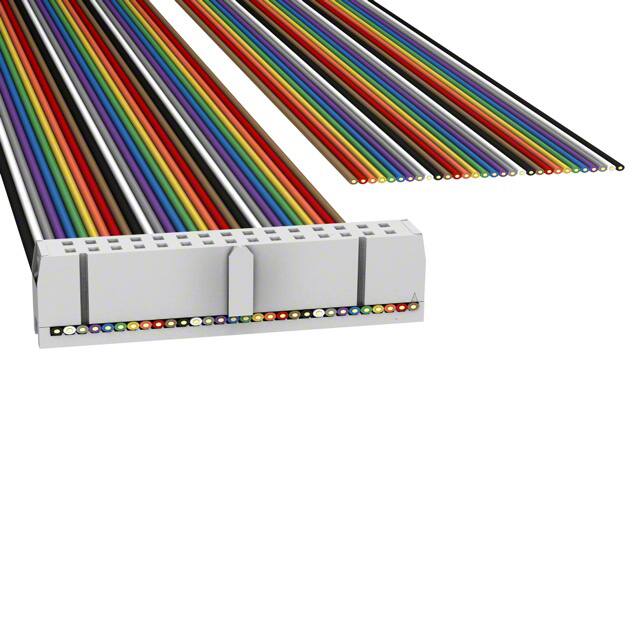

H1CXH-3036MIDC CBL - HHKC30H/AE30M/X |
2,734 |
|
Datasheet |
- | Bulk | Active | Socket to Cable | 30 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key | Multiple, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
H1CXS-3436MIDC CBL - HHKC34S/AE34M/X |
3,525 |
|
Datasheet |
- | Bulk | Active | Socket to Cable | 34 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key | Multiple, Ribbon | Unshielded | - | IDC | Tin | - |
|
H3AWH-4018GIDC CBL - HHSC40H/AE40G/HHPL40H |
4,424 |
|
Datasheet |
- | Bulk | Active | Socket to Plug | 40 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | Flange, Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
TCMD-12-S-06.00-01CABLE ASSEM 2MM 24POS SGL END 6" |
2,543 |
|
Datasheet |
Tiger Eye™ TCMD | Bulk | Active | Plug to Cable | 24 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.500' (152.40mm, 6.00") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
H3BBH-6406GIDC CBL - HHSR64H/AE64G/HHSR64H |
2,443 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 64 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | Strain Relief | Gray, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
A1AXB-1036MIDC CABLE- ASC10B/AE10M/X |
3,588 |
|
Datasheet |
- | Bulk | Active | Socket to Cable | 10 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Multiple, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
A3AAB-1006GIDC CABLE- ASC10B/AE10G/ASC10B |
1,611 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 10 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-05-D-02.00-01-RN22MM DOUBLE ROW FEMALE IDC ASSEMB |
4,290 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.167' (50.80mm, 2.00") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCMD-12-S-06.00-01-RW2MM DOUBLE ROW MALE IDC ASSEMBLY |
3,618 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Plug to Cable | 24 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
S2SDT-02-28-L-18.00-SR2.00 MM TIGER EYE DOUBLE ROW DIS |
4,223 |
|
Datasheet |
Tiger Eye™ S2SDT | Bulk | Active | Socket to Individual Wire Leads | 4 | 2 | 0.079" (2.00mm) | - | - | - | Blue, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
MMSS-05-20-L-04.00-S-K-MMINI-MATE CABLE ASSEMBLY, 0.100" |
1,258 |
|
Datasheet |
Mini Mate® MMSS | Bulk | Active | Socket to Individual Wire Leads | 5 | 1 | 0.100" (2.54mm) | - | - | Latch Lock, Polarizing Key | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
PMSDT-02-24-K-24.00-D-LDS.165" POWER MATE DOUBLE ROW DISC |
4,624 |
|
Datasheet |
Power Mate® PMSDT | Bulk | Active | Socket to Socket | 4 | 2 | 0.165" (4.19mm) | - | - | Polarizing Key | Blue, Individual | Unshielded | - | Crimp | Tin | - |
|
M3CCA-1618JIDC CABLE - MKC16A/MC16G/MKC16A |
2,344 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
A1AXG-3036GIDC CABLE-ASC30G/ AE34G / X |
4,851 |
|
Datasheet |
- | Bulk | Obsolete | Socket to Cable | 30 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
H3AWH-3018GIDC CBL - HHSC30H/AE30G/HHPL30H |
4,221 |
|
Datasheet |
- | Bulk | Active | Socket to Plug | 30 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | Flange, Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
