Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TCSD-05-S-04.82-01-N-P012MM DOUBLE ROW FEMALE IDC ASSEMB |
4,237 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.402' (122.43mm, 4.82") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCMD-10-S-11.00-012MM DOUBLE ROW MALE IDC ASSEMBLY |
4,780 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Plug to Cable | 20 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
IDSD-03-D-09.00-GINSULATION DISPLACEMENT TERMINAL |
2,191 |
|
- |
IDSD | Bulk | Active | Socket to Socket | 6 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.750' (228.60mm, 9.00") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
MMSDT-02-20-L-03.00-S-K-MMINI-MATE CABLE ASSEMBLY, FEP |
3,616 |
|
Datasheet |
Mini Mate® MMSDT | Bulk | Active | Socket to Individual Wire Leads | 4 | 2 | 0.100" (2.54mm) | - | - | Latch Lock, Polarizing Key | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
S1SS-07-28-GF-18.70-L1MICRO MATE SINGLE ROW DISCRETE W |
2,506 |
|
Datasheet |
Micro Mate™ S1SS | Bulk | Active | Socket to Socket | 7 | 1 | 0.039" (1.00mm) | - | - | Latch Lock | Black, Individual | Unshielded | - | Crimp | Gold | 3.00µin (0.076µm) |
|
|
MMSDT-04-20-S-03.25-D-K-LDSMINI-MATE CABLE ASSEMBLY, FEP |
4,684 |
|
Datasheet |
Mini Mate® MMSDT | Bulk | Active | Socket to Socket | 8 | 2 | 0.100" (2.54mm) | - | - | Latch Lock, Polarizing Key | Black, Individual | Unshielded | - | Crimp | Gold | 30.0µin (0.76µm) |
|
|
TFSS-10-28C-F-04.00-S.050" TIGER EYE SINGLE ROW DISCR |
2,903 |
|
Datasheet |
Tiger Eye™ TFSS | Bulk | Active | Plug to Individual Wire Leads | 10 | 1 | 0.050" (1.27mm) | - | 0.333' (101.60mm, 4.00") | - | Multiple, Individual | Unshielded | - | Crimp | Gold | 3.00µin (0.076µm) |
|
C3AAG-1606MIDC CABLE - CSC16G/AE16M/CSC16G |
3,462 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | - | Multiple, Ribbon | Unshielded | - | IDC | Gold | 10.0µin (0.25µm) |
|
|
A3CCA-1618GIDC CABLE - AKN16A/AE16G/AKN16A |
3,602 |
|
Datasheet |
- | Bulk | Obsolete | Socket to Socket | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
M1DXA-1636JIDC CABLE - MKR16A/MC16G/X |
2,625 |
|
Datasheet |
- | Bulk | Active | Socket to Cable | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key, Strain Relief | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
A1AXH-1436GIDC CABLE - ASC14H/AE14G/X |
1,318 |
|
Datasheet |
- | Bulk | Active | Socket to Cable | 14 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
A1BXH-1036MIDC CABLE - ASR10H/AE10M/X |
1,718 |
|
Datasheet |
- | Bulk | Active | Socket to Cable | 10 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Strain Relief | Multiple, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|

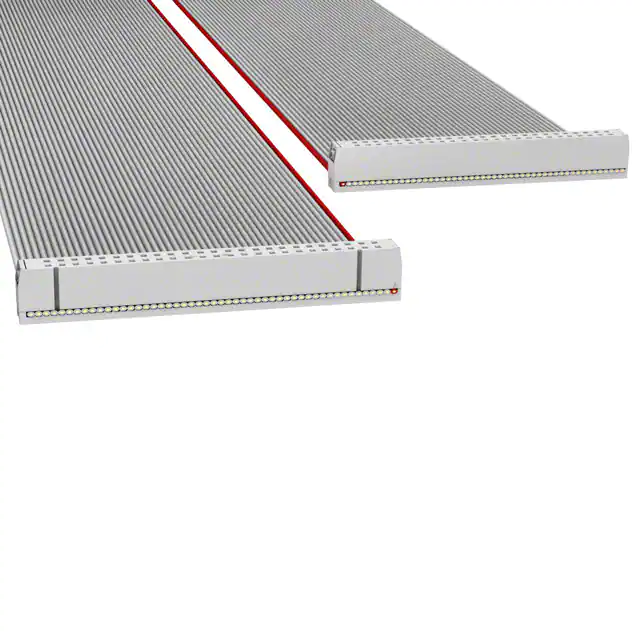

H3AAH-5036GIDC CBL - HHSC50H/AE50G/HHSC50H |
3,636 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 50 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
|
TCSD-03-S-10.00-012MM DOUBLE ROW FEMALE IDC ASSEMB |
4,024 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 6 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.833' (254.00mm, 10.00") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-06-S-12.00-01-F-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
4,214 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 12 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 1.00' (304.80mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCSD-08-S-02.00-012MM DOUBLE ROW FEMALE IDC ASSEMB |
3,996 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 16 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.167' (50.80mm, 2.00") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-08-S-02.00-01-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
2,341 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 16 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.167' (50.80mm, 2.00") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
HCSD-02-S-06.00-01-ST4IDC SOCKET AND TERMINAL CABLE AS |
2,719 |
|
Datasheet |
HCS | Bulk | Active | Socket to Cable | 4 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | - | - | Multiple, Ribbon | Unshielded | - | IDC | Gold | 10.0µin (0.25µm) |
|
|
MMTS-08-20-L-12.00-S.100" MINI MATE SINGLE ROW DISCR |
1,571 |
|
Datasheet |
Mini Mate® MMTS | Bulk | Active | Plug to Individual Wire Leads | 8 | 1 | 0.100" (2.54mm) | - | - | - | Black, Individual | Shielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
HCSD-04-01IDC SOCKET AND TERMINAL CABLE AS |
2,700 |
|
Datasheet |
HCS | Tube | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
