Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2166221032SQUBA 3.6 P-P 3CKT 300MM SN |
3,697 |
|
Datasheet |
Squba 216620 | Bag | Active | Plug to Plug | 3 | 1 | 0.142" (3.60mm) | - | 0.984' (300.00mm, 11.81") | - | Black, Individual | Unshielded | - | Crimp | Tin | 100.0µin (2.54µm) |
|
H3CKH-2636GIDC CBL - HHKC26H/AE26G/HHPK26H |
3,042 |
|
Datasheet |
- | Bulk | Active | Socket to Plug | 26 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|

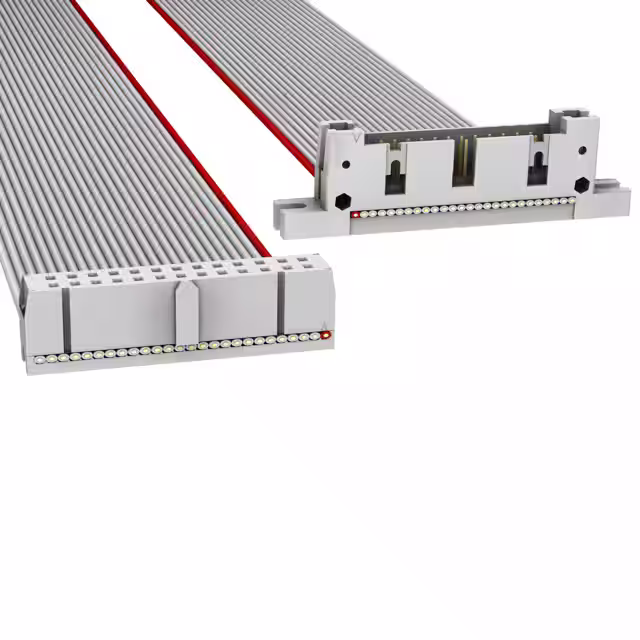

H3CWH-2636GIDC CBL - HHKC26H/AE26G/HHPL26H |
3,118 |
|
Datasheet |
- | Bulk | Active | Socket to Plug | 26 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key (Socket); Flange, Polarizing Key (Plug) | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
TCSD-05-S-06.30-012MM DOUBLE ROW FEMALE IDC ASSEMB |
1,465 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.525' (160.00mm, 6.30") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-13-S-04.50-01-F-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
4,970 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 26 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.375' (114.30mm, 4.50") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCMD-17-S-03.00-012MM DOUBLE ROW MALE IDC ASSEMBLY |
3,458 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Plug to Cable | 34 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
L3CKH-2006NIDC CBL - LKC20H/CN220GR/LPK20H |
1,378 |
|
- |
- | Bulk | Active | Socket to Plug | 20 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
MMSS-07-28C-F-03.25-D-K-LUSMINI-MATE CABLE ASSEMBLY, 0.100" |
3,519 |
|
Datasheet |
Mini Mate® MMSS | Bulk | Active | Socket to Socket | 7 | 1 | 0.100" (2.54mm) | - | - | Latch Lock, Polarizing Key | Multiple, Individual | Unshielded | - | Crimp | Gold | Flash |
|
|
T2SD-04-26-S-03.00-S2.00 MM TIGER EYE DOUBLE ROW DIS |
4,459 |
|
Datasheet |
Tiger Eye™ T2SD | Bulk | Active | Socket to Individual Wire Leads | 8 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | Latch Lock, Polarizing Key | Black, Individual | Unshielded | - | Crimp | Gold | 30.0µin (0.76µm) |
|
|
PMSD-03-18-K-03.87-D-LUS.165" POWER MATE DOUBLE ROW DISC |
2,739 |
|
Datasheet |
Power Mate® PMSD | Bulk | Active | Socket to Socket | 6 | 2 | 0.165" (4.19mm) | - | - | Polarizing Key | Black, Individual | Unshielded | - | Crimp | Tin | - |
|
|
TCSD-07-S-11.80-01-F-NIDC SOCKET CABLE ASSEMBLIES, 2.0 |
3,320 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 14 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.983' (299.72mm, 11.80") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
7010502120MOLDED ASSEMBLY .100 SERIES 1M A |
3,381 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
A2MXS-1406MADM14S/AE14M/X |
1,945 |
|
Datasheet |
- | Bulk | Active | DIP to Cable | 14 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | - | Multiple, Ribbon | Unshielded | Socket (0.1"), Board In | IDC | Tin | 100.0µin (2.54µm) |
|
H3AKH-2636GIDC CBL - HHSC26H/AE26G/HHPK26H |
2,586 |
|
Datasheet |
- | Bulk | Active | Socket to Plug | 26 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
H3AWH-2636GIDC CBL - HHSC26H/AE26G/HHPL26H |
2,092 |
|
Datasheet |
- | Bulk | Active | Socket to Plug | 26 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Flange, Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
H3WWH-1006MIDC CBL - HHPL10H/AE10M/HHPL10H |
1,704 |
|
Datasheet |
- | Bulk | Active | Plug to Plug | 10 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | Flange, Polarizing Key | Multiple, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
|
TCSD-04-S-10.00-01-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
1,244 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 8 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.833' (254.00mm, 10.00") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-10-S-05.00-01-F-N-SR2MM DOUBLE ROW FEMALE IDC ASSEMB |
4,108 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 20 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.417' (127.00mm, 5.00") | Polarizing Key, Strain Relief | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
HCSD-02-D-03.50-01IDC SOCKET AND TERMINAL CABLE AS |
3,807 |
|
Datasheet |
HCS | Bulk | Active | Socket to Socket | 4 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | - | - | Multiple, Ribbon | Unshielded | - | IDC | Gold | 10.0µin (0.25µm) |
|
|
TCMD-04-T-05.00-01-F2.00 MM IDC RIBBON CABLE ASSEMBL |
1,715 |
|
Datasheet |
Tiger Eye™ TCMD | Bulk | Active | Socket to Plug | 8 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
