Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TCSD-05-S-04.00-012MM DOUBLE ROW FEMALE IDC ASSEMB |
2,693 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.333' (101.60mm, 4.00") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-05-S-04.00-01-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
2,255 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.333' (101.60mm, 4.00") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-05-S-04.01-01-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
2,195 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.334' (101.85mm, 4.01") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
SFSD-05-30-G-14.00-D-NDX.050 SOCKET DISCRETE CABLE ASSEM |
3,210 |
|
Datasheet |
Tiger Eye™ SFSD | Bulk | Active | Socket to Socket | 10 | 2 | 0.050" (1.27mm) | - | 1.17' (355.60mm) | Polarizing Key | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
TCMD-06-S-12.00-012MM DOUBLE ROW MALE IDC ASSEMBLY |
4,467 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Plug to Cable | 12 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
L3DKH-1606NIDC CBL - LKR16H/CN219GR/LPK16H |
3,707 |
|
- |
- | Bulk | Active | Socket to Plug | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | Polarizing Key, Strain Relief (Socket); Polarizing Key (Plug) | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
IDSS-03-S-20.00-GSLIM BODY SINGLE-ROW IDC SOCKET |
4,132 |
|
Datasheet |
IDSS | Bulk | Active | Socket to Cable | 3 | 1 | 0.100" (2.54mm) | 0.100" (2.54mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
A22XSR22XSR36R152AJUMPER 22XSR-36S - 22XSR-36S 6" |
4,539 |
|
Datasheet |
XSR | Bulk | Active | Socket to Socket, Reversed | 22 | 1 | 0.024" (0.60mm) | - | 0.500' (152.40mm, 6.00") | - | Red, Individual | - | - | IDC | Tin | - |
|
|
A22XSR22XSR36R152BJUMPER 22XSR-36S - 22XSR-36S 6" |
1,300 |
|
Datasheet |
XSR | Bulk | Active | Socket to Socket | 22 | 1 | 0.024" (0.60mm) | - | 0.500' (152.40mm, 6.00") | - | Red, Individual | - | - | IDC | Tin | - |
|
H3BKH-1418MIDC CBL - HHSR14H/AE14M/HHPK14H |
3,883 |
|
Datasheet |
- | Bulk | Active | Socket to Plug | 14 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | Strain Relief (Socket); Polarizing Key (Plug) | Multiple, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
H3BKH-3406MIDC CBL - HHSR34H/AE34M/HHPK34H |
2,516 |
|
Datasheet |
- | Bulk | Active | Socket to Plug | 34 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | Strain Relief (Socket); Polarizing Key (Plug) | Multiple, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
H3BWH-3406MIDC CBL - HHSR34H/AE34M/HHPL34H |
3,933 |
|
Datasheet |
- | Bulk | Active | Socket to Plug | 34 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | Strain Relief (Socket); Flange, Polarizing Key (Plug) | Multiple, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
|
L1CXH-2036NIDC CBL -LKC20H/CN220GR/X |
3,118 |
|
- |
- | Bulk | Active | Socket to Cable | 20 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
L3DKH-1036NIDC CBL - LKR10H/CN217GR/LPK10H |
2,790 |
|
- |
- | Bulk | Active | Socket to Plug | 10 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key, Strain Relief (Socket); Polarizing Key (Plug) | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCSD-07-S-05.00-01-F-N-SRIDC SOCKET CABLE ASSEMBLIES, 2.0 |
3,598 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 14 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.417' (127.00mm, 5.00") | Polarizing Key, Strain Relief | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
0369231402IGRID 14 CIRCUIT 150MM |
4,621 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
A3CCH-4418GIDC CABLE - AKC44H/AE44G/AKC44H |
3,309 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 44 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
A2MXS-1006MADM10S/AE10M/X |
1,682 |
|
Datasheet |
- | Bulk | Active | DIP to Cable | 10 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | - | Multiple, Ribbon | Unshielded | Socket (0.1"), Board In | IDC | Tin | 100.0µin (2.54µm) |
|

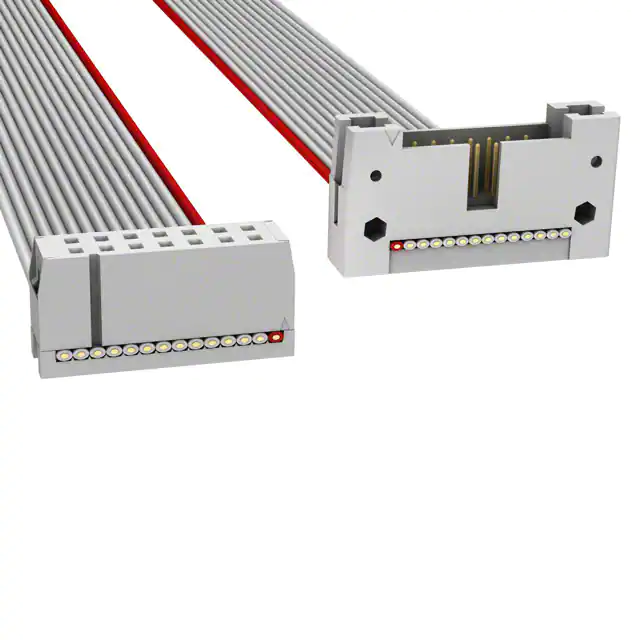

H3AKH-1436GIDC CBL - HHSC14H/AE14G/HHPK14H |
1,485 |
|
Datasheet |
- | Bulk | Active | Socket to Plug | 14 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
H3DKH-1418MIDC CBL - HHKR14H/AE14M/HHPK14H |
1,378 |
|
Datasheet |
- | Bulk | Active | Socket to Plug | 14 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | Polarizing Key, Strain Relief (Socket); Polarizing Key (Plug) | Multiple, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
