Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TCSD-06-S-10.00-01-F-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
4,446 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 12 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.833' (254.00mm, 10.00") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
IDSD-07-D-05.00-T-P01-GINSULATION DISPLACEMENT TERMINAL |
2,349 |
|
- |
IDSD | Bulk | Active | Socket to Socket | 14 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.417' (127.00mm, 5.00") | - | Gray, Ribbon | Unshielded | - | IDC | Tin | - |
|
|
MMSS-03-28C-F-07.00-S-K-MMINI-MATE CABLE ASSEMBLY, 0.100" |
1,407 |
|
Datasheet |
Mini Mate® MMSS | Bulk | Active | Socket to Individual Wire Leads | 3 | 1 | 0.100" (2.54mm) | - | - | Latch Lock, Polarizing Key | Multiple, Individual | Unshielded | - | Crimp | Gold | Flash |
|
|
TCMD-04-T-02.50-01-F-R2.00 MM IDC RIBBON CABLE ASSEMBL |
2,989 |
|
Datasheet |
Tiger Eye™ TCMD | Bulk | Active | Socket to Plug, Reversed | 8 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
T1SDT-05-28-GF-06.01.00 MM MICRO MATE DOUBLE ROW TE |
1,725 |
|
Datasheet |
Micro Mate™ T1SDT | Bulk | Active | Socket to Plug | 10 | 2 | 0.039" (1.00mm) | - | - | - | Blue, Individual | Unshielded | - | Crimp | Gold | 3.00µin (0.076µm) |
|
|
SMSS-12-24C-L-08.00-S-K.100" MINI MATE UNIVERSAL SINGLE |
2,659 |
|
Datasheet |
Mini Mate® SMSS | Bulk | Active | Socket to Socket | 12 | 1 | 0.100" (2.54mm) | - | - | Polarizing Key | Multiple, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
21477002002CKT OVERMOLDED MICROFIT CABLE 1 |
3,121 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 2 | 1 | 0.118" (3.00mm) | - | 0.558' (170.00mm, 6.69") | - | Black, Individual | Unshielded | - | Crimp | Tin | 40.0µin (1.02µm) |
|
|
A6MMT-1436GADM14T/AE14G/ADM14T |
2,629 |
|
Datasheet |
- | Bulk | Obsolete | DIP to DIP | 14 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Gray, Ribbon | Unshielded | Socket (0.1"), Board In | IDC | Tin-Lead | 100.0µin (2.54µm) |
|
|
A8MMT-1436GADM14T/AE14G/ADM14T |
2,782 |
|
Datasheet |
- | Bulk | Obsolete | DIP to DIP, Reversed | 14 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Gray, Ribbon | Unshielded | Socket (0.1"), Board In | IDC | Tin-Lead | 100.0µin (2.54µm) |
|
H3AKH-1418MIDC CBL - HHSC14H/AE14M/HHPK14H |
1,021 |
|
Datasheet |
- | Bulk | Active | Socket to Plug | 14 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | Polarizing Key | Multiple, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
H2MXS-5018MDIP CBL - HHDM50S/AE50M/X |
3,763 |
|
Datasheet |
- | Bulk | Discontinued at Digi-Key | DIP to Cable | 50 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | - | Multiple, Ribbon | Unshielded | Socket (0.1"), Board In | IDC | Tin | - |
|

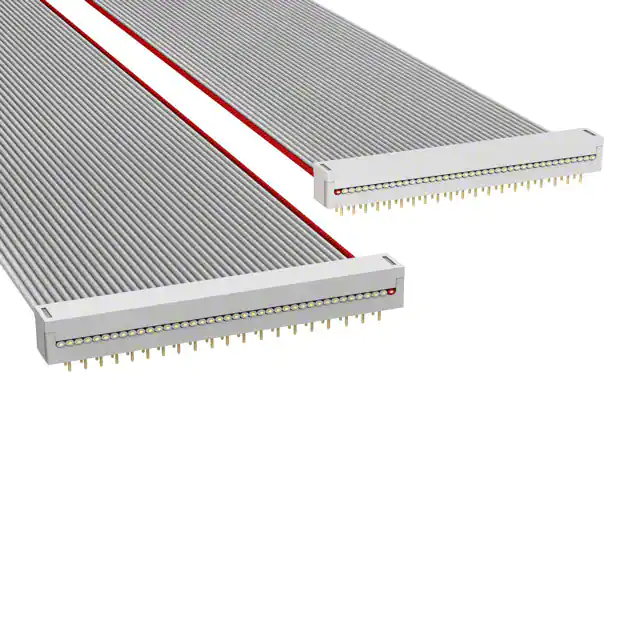

H6MMH-4036GDIP CABLE - HDM40H/AE40G/HDM40H |
2,750 |
|
Datasheet |
- | Bulk | Active | DIP to DIP | 40 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Gray, Ribbon | Unshielded | Socket (0.1"), Board In | IDC | Gold | 30.0µin (0.76µm) |
|

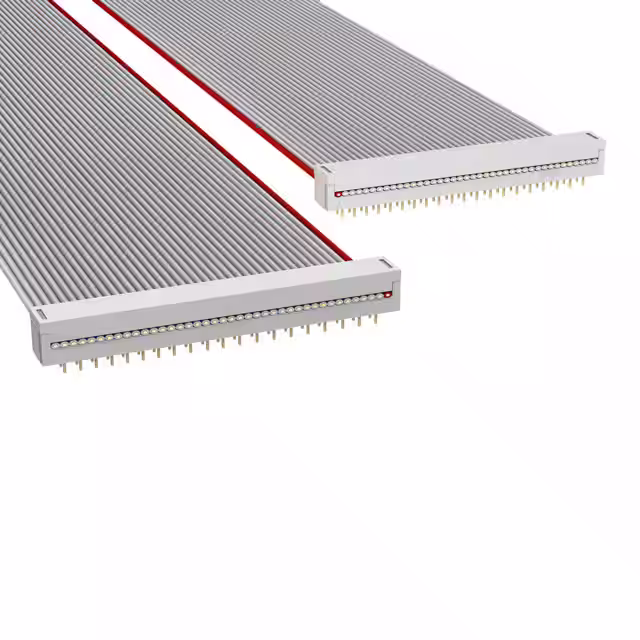

H8MMH-4036GDIP CABLE - HDM40H/AE40G/HDM40H |
1,462 |
|
Datasheet |
- | Bulk | Active | DIP to DIP, Reversed | 40 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Gray, Ribbon | Unshielded | Socket (0.1"), Board In | IDC | Gold | 30.0µin (0.76µm) |
|
H3AWH-3406MIDC CBL - HHSC34H/AE34M/HHPL34H |
2,061 |
|
Datasheet |
- | Bulk | Active | Socket to Plug | 34 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | Flange, Polarizing Key | Multiple, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
H3CWH-3006MIDC CBL - HHKC30H/AE30M/HHPL30H |
4,920 |
|
Datasheet |
- | Bulk | Active | Socket to Plug | 30 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | Polarizing Key (Socket); Flange, Polarizing Key (Plug) | Multiple, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
H3AKH-3406MIDC CBL - HHSC34H/AE34M/HHPK34H |
1,417 |
|
Datasheet |
- | Bulk | Active | Socket to Plug | 34 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | Polarizing Key | Multiple, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
C2RXS-1406MDIP CABLE - CDR14S/AE14M/X |
3,328 |
|
Datasheet |
- | Bulk | Active | DIP to Cable | 14 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | Strain Relief | Multiple, Ribbon | Unshielded | Socket (0.3"), Board In | IDC | Tin | 100.0µin (2.54µm) |
|
|
C4RXS-1406MDIP CABLE - CDR14S/AE14M/X |
3,386 |
|
Datasheet |
- | Bulk | Active | DIP to Cable | 14 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | Strain Relief | Multiple, Ribbon | Unshielded | Socket (0.3"), Board In | IDC | Tin | 100.0µin (2.54µm) |
|
|
TCSD-05-S-03.75-01-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
1,947 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.313' (95.25mm, 3.75") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-03-S-08.00-012MM DOUBLE ROW FEMALE IDC ASSEMB |
2,579 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 6 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.667' (203.20mm, 8.00") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
