Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TCSD-15-S-02.00-01-F-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
1,437 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 30 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.167' (50.80mm, 2.00") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCSD-10-S-07.50-01-F-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
2,052 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 20 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.625' (190.50mm, 7.50") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCSD-05-S-10.00-01-F-N-P012MM DOUBLE ROW FEMALE IDC ASSEMB |
4,949 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.833' (254.00mm, 10.00") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCSD-05-S-10.00-01-F-N-P072MM DOUBLE ROW FEMALE IDC ASSEMB |
1,588 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.833' (254.00mm, 10.00") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCSD-15-S-02.00-01-F2MM DOUBLE ROW FEMALE IDC ASSEMB |
4,092 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 30 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.167' (50.80mm, 2.00") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
SFSD-10-28-G-08.50-SRDOUBLE ROW DISCRETE WIRE ASSEMBL |
2,700 |
|
Datasheet |
Tiger Eye™ SFSD | Bulk | Active | Socket to Individual Wire Leads | 20 | 2 | 0.050" (1.27mm) | - | - | - | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
MMSD-05-24-L-08.00-D-K-LUSMINI-MATE CABLE ASSEMBLY, 0.100" |
4,222 |
|
Datasheet |
Mini Mate® MMSD | Bulk | Active | Socket to Socket | 10 | 2 | 0.100" (2.54mm) | - | - | Latch Lock, Polarizing Key | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
MMSD-05-24-L-08.00-D-K-LUXMINI-MATE CABLE ASSEMBLY, 0.100" |
4,013 |
|
Datasheet |
Mini Mate® MMSD | Bulk | Active | Socket to Socket | 10 | 2 | 0.100" (2.54mm) | - | - | Latch Lock, Polarizing Key | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
S1SST-07-28-GF-10.00-L3MICRO MATE SINGLE ROW DISCRETE T |
2,397 |
|
Datasheet |
Micro Mate™ S1SST | Bulk | Active | Socket to Socket | 7 | 1 | 0.039" (1.00mm) | - | - | Latch Lock | Blue, Individual | Unshielded | - | Crimp | Gold | 3.00µin (0.076µm) |
|
|
1M-1010-034-3365-018.0-00-AB-00-0 RC3M MOLDED ASSEMBLY, 1M SERIES, 1 |
2,946 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
2153261102MINIFIT JR DR R-S 10 CIRCUIT 300 |
2,539 |
|
Datasheet |
Mini-Fit Jr 215327 | Bag | Active | Socket to Cable | 10 | 2 | 0.165" (4.19mm) | - | 0.984' (300.00mm, 11.81") | - | Black, Individual | Unshielded | - | Crimp | Tin | 35.0µin (0.89µm) |
|
33182430200064SEK 10P FE DE FLAT CABLE ASSY,0. |
2,858 |
|
Datasheet |
SEK | Bulk | Active | Socket to Socket | 10 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.656' (200.00mm, 7.87") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
A3AAG-1618MIDC CABLE- ASC16G/ AE16M / ASC16 |
1,673 |
|
Datasheet |
- | Bulk | Obsolete | Socket to Socket | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | - | Multiple, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|

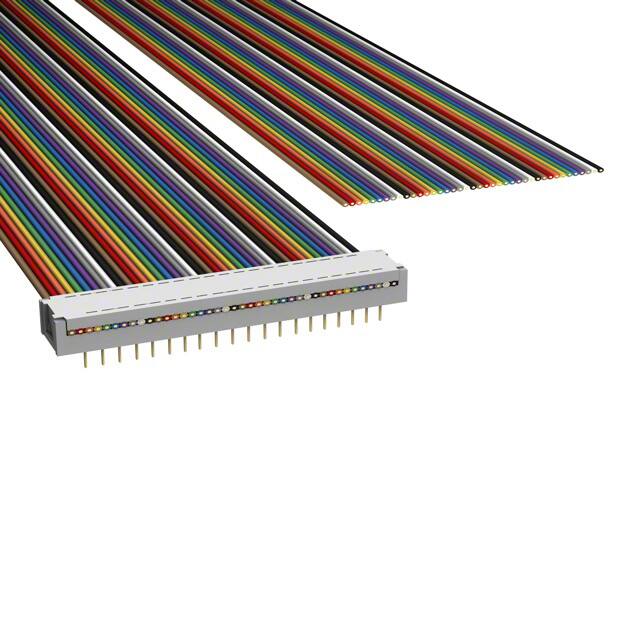

H4PXH-4018MDIP CABLE - HDP40H/AE40M/X |
2,793 |
|
Datasheet |
- | Bulk | Obsolete | DIP to Cable | 40 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | - | Multiple, Ribbon | Unshielded | Socket (0.6"), Board In | IDC | Gold | 30.0µin (0.76µm) |
|

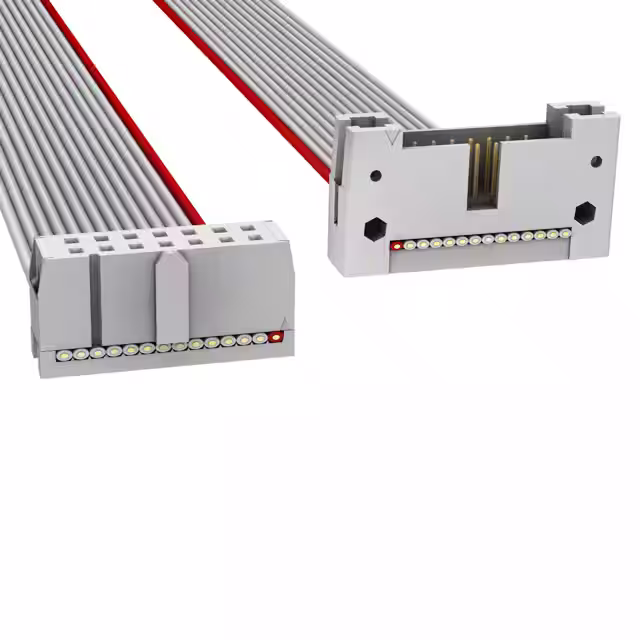

H3CKH-1436GIDC CBL - HHKC14H/AE14G/HHPK14H |
3,944 |
|
Datasheet |
- | Bulk | Active | Socket to Plug | 14 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
H3DKH-3406MIDC CBL - HHKR34H/AE34M/HHPK34H |
2,343 |
|
Datasheet |
- | Bulk | Active | Socket to Plug | 34 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | Polarizing Key, Strain Relief (Socket); Polarizing Key (Plug) | Multiple, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
H3DWH-3406MIDC CBL - HHKR34H/AE34M/HHPL34H |
2,882 |
|
Datasheet |
- | Bulk | Active | Socket to Plug | 34 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | Polarizing Key, Strain Relief (Socket); Flange, Polarizing Key (Plug) | Multiple, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
|
TCSD-05-S-04.13-01-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
2,381 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.344' (104.90mm, 4.13") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
MMSDT-05-20-F-16.00-D-K-LUSMINI-MATE CABLE ASSEMBLY, FEP |
2,259 |
|
Datasheet |
Mini Mate® MMSDT | Bulk | Active | Socket to Socket | 10 | 2 | 0.100" (2.54mm) | - | - | Latch Lock, Polarizing Key | Black, Individual | Unshielded | - | Crimp | Gold | Flash |
|
H1KXH-2636GIDC CBL - HHPK26H/AE26G/X |
3,372 |
|
Datasheet |
- | Bulk | Active | Plug to Cable | 26 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
