Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TCSD-05-S-02.01-01-N-RW2MM DOUBLE ROW FEMALE IDC ASSEMB |
1,619 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.167' (51.00mm, 2.01") | Polarizing Key, Reverse Wiring | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-10-S-05.50-01-F2MM DOUBLE ROW FEMALE IDC ASSEMB |
3,653 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 20 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.458' (139.70mm, 5.50") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCSD-05-S-08.00-01-F-P012MM DOUBLE ROW FEMALE IDC ASSEMB |
4,408 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.667' (203.20mm, 8.00") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
SFSD-05-30-G-03.94-D-NDX.050 SOCKET DISCRETE CABLE ASSEM |
2,079 |
|
Datasheet |
Tiger Eye™ SFSD | Bulk | Active | Socket to Socket | 10 | 2 | 0.050" (1.27mm) | - | 0.328' (100.00mm, 3.94") | Polarizing Key | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
T1PS-10-28-GF-03.5-A-T31.00 MM MICRO MATE SINGLE ROW PA |
4,172 |
|
Datasheet |
Micro Mate™ T1PS | Bulk | Active | Socket to Plug | 10 | 1 | 0.039" (1.00mm) | - | - | - | Black, Individual | Unshielded | - | Crimp | Gold | 3.00µin (0.076µm) |
|
|
TCSD-05-S-08.00-01-F-N-P10IDC SOCKET CABLE ASSEMBLIES, 2.0 |
1,625 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.667' (203.20mm, 8.00") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
PMSD-04-24-K-03.00-S.165" POWER MATE DOUBLE ROW DISC |
2,611 |
|
Datasheet |
Power Mate® PMSD | Bulk | Active | Socket to Individual Wire Leads | 8 | 2 | 0.165" (4.19mm) | - | - | Polarizing Key | Black, Individual | Unshielded | - | Crimp | Tin | - |
|
|
TFSD-02-28-G-15.00-S.050" TIGER EYE DOUBLE ROW DISCR |
3,179 |
|
Datasheet |
Tiger Eye™ TFSD | Bulk | Active | Plug to Individual Wire Leads | 4 | 2 | 0.050" (1.27mm) | - | 1.25' (381.00mm) | - | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
2153262063MINIFIT JR DR R-S 6 CIRCUIT 600M |
3,061 |
|
Datasheet |
Mini-Fit Jr 215327 | Bag | Active | Socket to Cable | 6 | 2 | 0.165" (4.19mm) | - | 1.97' (600.00mm) | - | Black, Individual | Unshielded | - | Crimp | Gold | 30.0µin (0.76µm) |
|
|
A3BBG-1618GIDC CABLE - ASR16G/AE16G/ASR16G |
4,771 |
|
Datasheet |
- | Bulk | Obsolete | Socket to Socket | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | Strain Relief | Gray, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
H3AWH-1636MIDC CBL - HHSC16H/AE16M/HHPL16H |
1,673 |
|
Datasheet |
- | Bulk | Active | Socket to Plug | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Flange, Polarizing Key | Multiple, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
|
TCSD-05-S-09.00-01-F-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
1,051 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.750' (228.60mm, 9.00") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
2153281063MINIFIT JR DR P-S 6 CIRCUIT 600M |
3,237 |
|
Datasheet |
Mini-Fit Jr 215327 | Bag | Active | Plug to Cable | 6 | 2 | 0.165" (4.19mm) | - | 1.97' (600.00mm) | - | Black, Individual | Unshielded | - | Crimp | Tin | 100.0µin (2.54µm) |
|
2162921042STANDARD .093 4 CIRCUIT P TO P 3 |
2,685 |
|
Datasheet |
Standard .093" 216292 | Bag | Active | Socket to Socket | 4 | 1 | 0.264" (6.70mm) | - | 0.984' (300.00mm, 11.81") | - | Black, Individual | Unshielded | - | Crimp | Tin | 20.0µin (0.51µm) |
|
2163301042EDGE LOCK R-R 4CKT 150MM SN |
1,677 |
|
Datasheet |
Edgelock 216330 | Bag | Active | Socket to Socket | 4 | 1 | 0.079" (2.00mm) | - | 0.492' (150.00mm, 5.91") | - | Black, Individual (Round) | Unshielded | - | Crimp | Tin | 39.4µin (1.00µm) |
|
|
A3AAG-1418MIDC CABLE- ASC14G/ AE14M / ASC14 |
4,031 |
|
Datasheet |
- | Bulk | Obsolete | Socket to Socket | 14 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | - | Multiple, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
|
A3BBG-1606MIDC CABLE- ASR16G/ AE16M / ASR16 |
1,444 |
|
Datasheet |
- | Bulk | Obsolete | Socket to Socket | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | Strain Relief | Multiple, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|

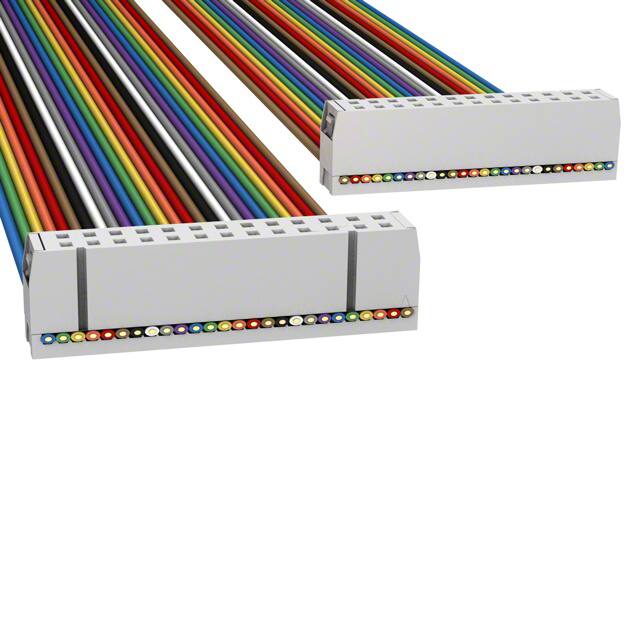

H3AAH-2636MIDC CBL - HHSC26H/AE26M/HHSC26H |
2,129 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 26 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Multiple, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
TCMD-15-S-02.00-01CABLE ASSEM 2MM 30POS SGL END 2" |
1,315 |
|
Datasheet |
Tiger Eye™ TCMD | Bulk | Active | Plug to Cable | 30 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.167' (50.80mm, 2.00") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
C2PXS-1406MDIP CABLE - CDP14S/AE14M/X |
3,186 |
|
Datasheet |
- | Bulk | Active | DIP to Cable | 14 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | - | Multiple, Ribbon | Unshielded | Socket (0.3"), Board In | IDC | Tin | 100.0µin (2.54µm) |
