Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A2MXT-4006GADM40T/AE40G/X |
1,623 |
|
Datasheet |
- | Bulk | Obsolete | DIP to Cable | 40 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | - | Gray, Ribbon | Unshielded | Socket (0.1"), Board In | IDC | Tin-Lead | 100.0µin (2.54µm) |
|
|
M2MXH-3406JIDC CABLE - MDM34H/MC34G/X |
4,425 |
|
Datasheet |
- | Bulk | Obsolete | PCB to Cable | 34 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | - | Gray, Ribbon | Unshielded | Board In | IDC | Gold | 15.0µin (0.38µm) |
|
|
TCSD-03-S-06.00-012MM DOUBLE ROW FEMALE IDC ASSEMB |
4,253 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 6 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.500' (152.40mm, 6.00") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCMD-13-S-03.00-012MM DOUBLE ROW MALE IDC ASSEMBLY |
2,994 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Plug to Cable | 26 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
A20XSR20XSR36R152AJUMPER 20XSR-36S - 20XSR-36S 6" |
1,209 |
|
Datasheet |
XSR | Bulk | Active | Socket to Socket, Reversed | 20 | 1 | 0.024" (0.60mm) | - | 0.500' (152.40mm, 6.00") | - | Red, Individual | - | - | IDC | Tin | - |
|
|
A20XSR20XSR36R152BJUMPER 20XSR-36S - 20XSR-36S 6" |
4,065 |
|
Datasheet |
XSR | Bulk | Active | Socket to Socket | 20 | 1 | 0.024" (0.60mm) | - | 0.500' (152.40mm, 6.00") | - | Red, Individual | - | - | IDC | Tin | - |
|
C2PXS-1606GDIP CABLE - CDP16S/AE16G/X |
3,697 |
|
Datasheet |
- | Bulk | Active | DIP to Cable | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | - | Gray, Ribbon | Unshielded | Socket (0.3"), Board In | IDC | Tin | 100.0µin (2.54µm) |
|
|
C4PXS-1606GDIP CABLE - CDP16S/AE16G/X |
1,293 |
|
Datasheet |
- | Bulk | Active | DIP to Cable | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | - | Gray, Ribbon | Unshielded | Socket (0.3"), Board In | IDC | Tin | 100.0µin (2.54µm) |
|
|
TCSD-04-S-03.95-012MM DOUBLE ROW FEMALE IDC ASSEMB |
2,373 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 8 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.329' (100.33mm, 3.95") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-13-S-02.00-01-F-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
2,987 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 26 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.167' (50.80mm, 2.00") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCSD-13-S-02.00-01-F-N-RW2MM DOUBLE ROW FEMALE IDC ASSEMB |
2,818 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 26 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.167' (50.80mm, 2.00") | Polarizing Key, Reverse Wiring | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCMD-08-S-08.00-012MM DOUBLE ROW MALE IDC ASSEMBLY |
4,129 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Plug to Cable | 16 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
S2SDT-03-24-L-06.00-S2.00 MM TIGER EYE DOUBLE ROW DIS |
3,190 |
|
Datasheet |
Tiger Eye™ S2SDT | Bulk | Active | Socket to Individual Wire Leads | 6 | 2 | 0.079" (2.00mm) | - | - | - | Blue, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
MMTS-04-26-F-03.25-D-TUS.100" MINI MATE SINGLE ROW DISCR |
2,564 |
|
Datasheet |
Mini Mate® MMTS | Bulk | Active | Plug to Plug | 4 | 1 | 0.100" (2.54mm) | - | - | - | Black, Individual | Shielded | - | Crimp | Gold | Flash |
|
|
S1SS-10-30-GF-03.94-D-NUSMICRO MATE SINGLE ROW DISCRETE W |
2,252 |
|
Datasheet |
Micro Mate™ S1SS | Bulk | Active | Socket to Socket | 10 | 1 | 0.039" (1.00mm) | - | - | - | Black, Individual | Unshielded | - | Crimp | Gold | 3.00µin (0.076µm) |
|
2153222052MINIFIT JR SR M-M 5 CIRCUIT 300M |
2,566 |
|
Datasheet |
Mini-Fit Jr 215322 | Bag | Active | Plug to Plug | 5 | 1 | 0.165" (4.19mm) | - | 0.984' (300.00mm, 11.81") | Latch Lock | Black, Individual | Unshielded | - | Crimp | Gold | 30.0µin (0.76µm) |
|
H1CXH-2436MIDC CBL - HHKC24H/AE24M/X |
1,077 |
|
Datasheet |
- | Bulk | Active | Socket to Cable | 24 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key | Multiple, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
H1CXS-2436MIDC CBL - HHKC24S/AE24M/X |
4,688 |
|
Datasheet |
- | Bulk | Active | Socket to Cable | 24 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key | Multiple, Ribbon | Unshielded | - | IDC | Tin | - |
|

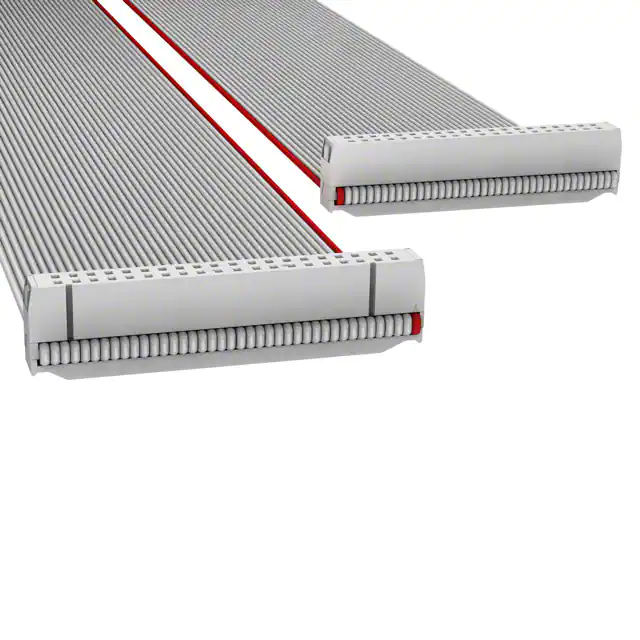

H3BBH-4036GIDC CBL - HHSR40H/AE40G/HHSR40H |
3,209 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 40 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Strain Relief | Gray, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
H2PXS-4018MDIP CABLE - HDP40S/AE40M/X |
4,980 |
|
Datasheet |
- | Bulk | Active | DIP to Cable | 40 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | - | Multiple, Ribbon | Unshielded | Socket (0.6"), Board In | IDC | Tin | - |
