Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2153222043MINIFIT JR SR M-M 4 CIRCUIT 600M |
1,178 |
|
Datasheet |
Mini-Fit Jr 215322 | Bag | Active | Plug to Plug | 4 | 1 | 0.165" (4.19mm) | - | 1.97' (600.00mm) | Latch Lock | Black, Individual | Unshielded | - | Crimp | Gold | 30.0µin (0.76µm) |
|
7010501975MOLDED ASSEMBLY 1M SERIES A0 36- |
4,317 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
M3AAA-1018JIDC CABLE - MSC10A/MC10G/MSC10A |
4,021 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 10 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
M1BXA-1036JIDC CABLE - MSR10A/MC10G/X |
1,053 |
|
Datasheet |
- | Bulk | Active | Socket to Cable | 10 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Strain Relief | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
M1DXA-1036JIDC CABLE - MKR10A/MC10G/X |
3,313 |
|
Datasheet |
- | Bulk | Active | Socket to Cable | 10 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key, Strain Relief | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
H3DKH-3406GIDC CBL - HHKR34H/AE34G/HHPK34H |
4,408 |
|
Datasheet |
- | Bulk | Active | Socket to Plug | 34 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | Polarizing Key, Strain Relief (Socket); Polarizing Key (Plug) | Gray, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
H3DWH-3406GIDC CBL - HHKR34H/AE34G/HHPL34H |
3,101 |
|
Datasheet |
- | Bulk | Active | Socket to Plug | 34 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | Polarizing Key, Strain Relief (Socket); Flange, Polarizing Key (Plug) | Gray, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
H3DWH-4006MIDC CBL - HHKR40H/AE40M/HHPL40H |
1,280 |
|
Datasheet |
- | Bulk | Active | Socket to Plug | 40 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | Polarizing Key, Strain Relief (Socket); Flange, Polarizing Key (Plug) | Multiple, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
|
TCSD-03-S-06.50-012MM DOUBLE ROW FEMALE IDC ASSEMB |
4,098 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 6 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.542' (165.10mm, 6.50") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-07-S-08.00-01-F-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
3,653 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 14 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.667' (203.20mm, 8.00") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
S1SS-12-28-GF-06.00-LMICRO MATE SINGLE ROW DISCRETE W |
4,969 |
|
Datasheet |
Micro Mate™ S1SS | Bulk | Active | Socket to Individual Wire Leads | 12 | 1 | 0.039" (1.00mm) | - | - | Latch Lock | Black, Individual | Unshielded | - | Crimp | Gold | 3.00µin (0.076µm) |
|
|
T1SS-05-28-GF-20.0-D31.00 MM MICRO MATE SINGLE ROW DI |
4,888 |
|
Datasheet |
Micro Mate™ T1SS | Bulk | Active | Socket to Plug | 5 | 1 | 0.039" (1.00mm) | - | - | - | Black, Individual | Unshielded | - | Crimp | Gold | 3.00µin (0.076µm) |
|
|
7100269936MOLDED ASSEMBLY 1M SERIES 1M 16 |
4,533 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
H3AKH-1036MIDC CBL - HHSC10H/AE10M/HHPK10H |
3,001 |
|
Datasheet |
- | Bulk | Active | Socket to Plug | 10 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key | Multiple, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|

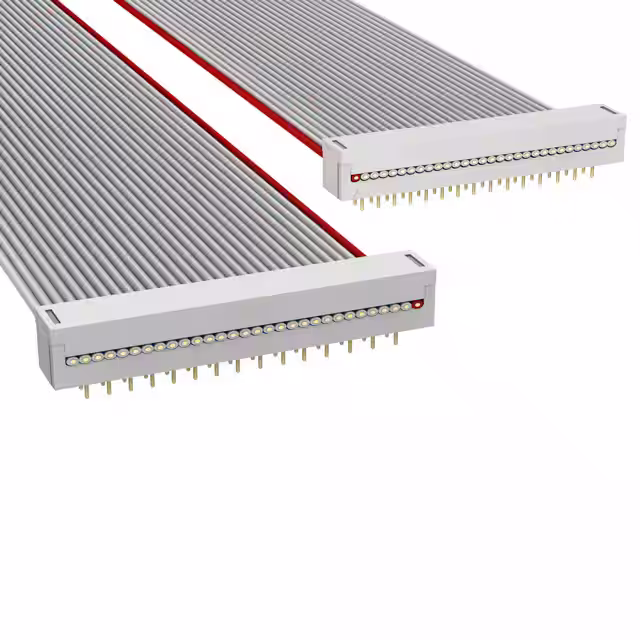

H6MMS-3036GDIP CBL - HHDM30S/AE30G/HHDM30S |
4,406 |
|
Datasheet |
- | Bulk | Active | DIP to DIP | 30 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Gray, Ribbon | Unshielded | Socket (0.1"), Board In | IDC | Tin | - |
|
H6MMH-3036GDIP CABLE - HDM30H/AE30G/HDM30H |
4,029 |
|
Datasheet |
- | Bulk | Active | DIP to DIP | 30 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Gray, Ribbon | Unshielded | Socket (0.1"), Board In | IDC | Gold | 30.0µin (0.76µm) |
|

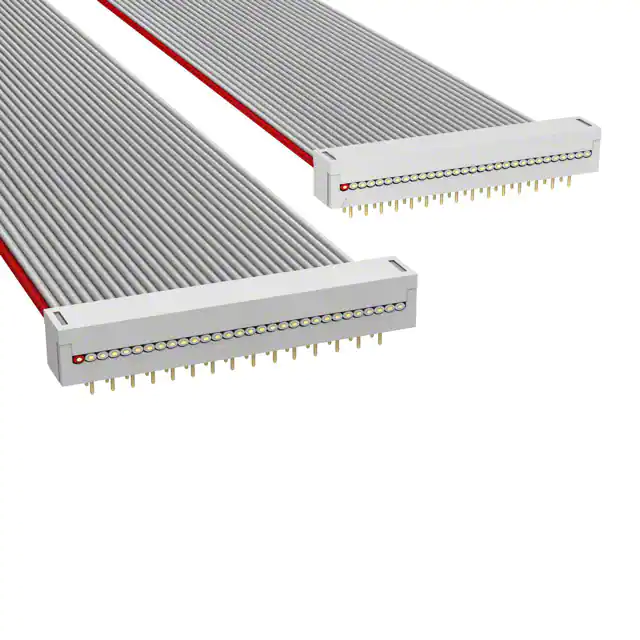

H8MMS-3036GDIP CBL - HHDM30S/AE30G/HHDM30S |
1,926 |
|
Datasheet |
- | Bulk | Active | DIP to DIP, Reversed | 30 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Gray, Ribbon | Unshielded | Socket (0.1"), Board In | IDC | Tin | - |
|
|
H8MMH-3036GDIP CABLE - HDM30H/AE30G/HDM30H |
4,545 |
|
Datasheet |
- | Bulk | Active | DIP to DIP, Reversed | 30 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Gray, Ribbon | Unshielded | Socket (0.1"), Board In | IDC | Gold | 30.0µin (0.76µm) |
|
H3CKH-1036MIDC CBL - HHKC10H/AE10M/HHPK10H |
3,945 |
|
Datasheet |
- | Bulk | Active | Socket to Plug | 10 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key | Multiple, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCSD-03-S-12.00-01-F2MM DOUBLE ROW FEMALE IDC ASSEMB |
1,091 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 6 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 1.00' (304.80mm) | - | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
