Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2166211041SQUBA 3.6 R-S 4CKT 150MM SN |
3,727 |
|
Datasheet |
Squba 216620 | Bag | Active | Socket to Individual Wire Leads | 4 | 1 | 0.142" (3.60mm) | - | 0.492' (150.00mm, 5.91") | - | Black, Individual | Unshielded | - | Crimp | Tin | 100.0µin (2.54µm) |
|
H3BKH-4006GIDC CBL - HHSR40H/AE40G/HHPK40H |
4,771 |
|
Datasheet |
- | Bulk | Active | Socket to Plug | 40 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | Strain Relief (Socket); Polarizing Key (Plug) | Gray, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
H3BWH-2006MIDC CBL - HHSR20H/AE20M/HHPL20H |
3,673 |
|
Datasheet |
- | Bulk | Active | Socket to Plug | 20 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | Strain Relief (Socket); Flange, Polarizing Key (Plug) | Multiple, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
TCMD-12-S-02.00-01CABLE ASSEM 2MM 24POS SGL END 2" |
3,054 |
|
Datasheet |
Tiger Eye™ TCMD | Bulk | Active | Plug to Cable | 24 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.167' (50.80mm, 2.00") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
IDSS-04-D-10.00-G-RSLIM BODY SINGLE-ROW IDC SOCKET |
3,249 |
|
Datasheet |
IDSS | Bulk | Active | Socket to Socket, Reversed | 4 | 1 | 0.100" (2.54mm) | 0.100" (2.54mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
2264291083MICRO-FIT3.0 R-S 8CKT 300MM DISC |
2,085 |
|
- |
Micro-Fit 3.0 226429 | Bulk | Active | Socket to Individual Wire Leads | 8 | 1 | 0.118" (3.00mm) | - | 0.984' (300.00mm, 11.81") | - | Black, Individual | Unshielded | - | Crimp | Tin | 40.0µin (1.02µm) |
|
2153261082MINIFIT JR DR R-S 8 CIRCUIT 300M |
3,679 |
|
Datasheet |
Mini-Fit Jr 215327 | Bag | Active | Socket to Cable | 8 | 2 | 0.165" (4.19mm) | - | 0.984' (300.00mm, 11.81") | - | Black, Individual | Unshielded | - | Crimp | Tin | 35.0µin (0.89µm) |
|

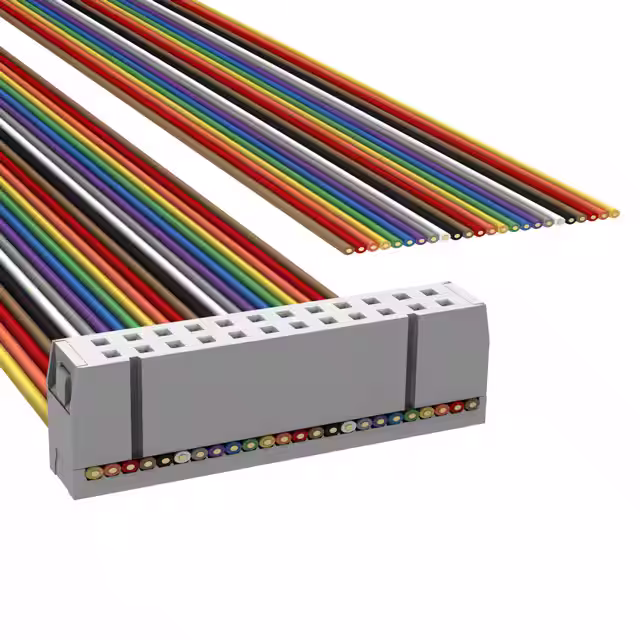

H1AXH-2436MIDC CBL - HHSC24H/AE24M/X |
3,139 |
|
Datasheet |
- | Bulk | Active | Socket to Cable | 24 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Multiple, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
H3BKH-1036GIDC CBL - HHSR10H/AE10G/HHPK10H |
3,657 |
|
Datasheet |
- | Bulk | Active | Socket to Plug | 10 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Strain Relief (Socket); Polarizing Key (Plug) | Gray, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
H3DKH-1036GIDC CBL - HHKR10H/AE10G/HHPK10H |
3,871 |
|
Datasheet |
- | Bulk | Active | Socket to Plug | 10 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key, Strain Relief (Socket); Polarizing Key (Plug) | Gray, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
H3DKH-4006GIDC CBL - HHKR40H/AE40G/HHPK40H |
3,383 |
|
Datasheet |
- | Bulk | Active | Socket to Plug | 40 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | Polarizing Key, Strain Relief (Socket); Polarizing Key (Plug) | Gray, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
|
TCSD-10-S-03.00-01-F2MM DOUBLE ROW FEMALE IDC ASSEMB |
4,303 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 20 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.250' (76.20mm, 3.00") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCSD-10-S-03.00-01-F-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
2,368 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 20 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.250' (76.20mm, 3.00") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
IDSS-14-S-03.50-T-G-ST8SLIM BODY SINGLE-ROW IDC SOCKET |
1,931 |
|
Datasheet |
IDSS | Bulk | Active | Socket to Cable | 14 | 1 | 0.100" (2.54mm) | 0.100" (2.54mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
SMSS-03-24-L-20.00-D-KDS.100" MINI MATE UNIVERSAL SINGLE |
1,550 |
|
Datasheet |
Mini Mate® SMSS | Bulk | Active | Socket to Socket | 3 | 1 | 0.100" (2.54mm) | - | - | Polarizing Key | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
MMSD-08-24-L-06.00-S-KMINI-MATE CABLE ASSEMBLY, 0.100" |
4,957 |
|
Datasheet |
Mini Mate® MMSD | Bulk | Active | Socket to Individual Wire Leads | 16 | 2 | 0.100" (2.54mm) | - | - | Latch Lock, Polarizing Key | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
TFSS-02-30-G-04.00-T-NUS.050" TIGER EYE SINGLE ROW DISCR |
3,135 |
|
Datasheet |
Tiger Eye™ TFSS | Bulk | Active | Socket to Plug | 2 | 1 | 0.050" (1.27mm) | - | 0.333' (101.60mm, 4.00") | - | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
S1SST-09-28-GF-05.15-L1MICRO MATE SINGLE ROW DISCRETE T |
3,804 |
|
Datasheet |
Micro Mate™ S1SST | Bulk | Active | Socket to Socket | 9 | 1 | 0.039" (1.00mm) | - | - | Latch Lock | Blue, Individual | Unshielded | - | Crimp | Gold | 3.00µin (0.076µm) |
|
|
A3AAG-1436GIDC CABLE-ASC14G/ AE14G / ASC14G |
4,615 |
|
Datasheet |
- | Bulk | Obsolete | Socket to Socket | 14 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
|
A3CCA-1036GIDC CABLE-AKN10A/ AE10G / AKN10A |
2,664 |
|
Datasheet |
- | Bulk | Obsolete | Socket to Socket | 10 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
