Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TCMD-04-S-03.00-01-RW-SR2.00 MM IDC RIBBON CABLE ASSEMBL |
1,255 |
|
Datasheet |
Tiger Eye™ TCMD | Bulk | Active | Plug to Cable | 8 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
MMSS-06-22-F-06.00-D-K-LDSMINI-MATE CABLE ASSEMBLY, 0.100" |
4,177 |
|
Datasheet |
Mini Mate® MMSS | Bulk | Active | Socket to Socket | 6 | 1 | 0.100" (2.54mm) | - | - | Latch Lock, Polarizing Key | Black, Individual | Unshielded | - | Crimp | Gold | Flash |
|
2166231041SQUBA 3.6 P-S 4CKT 150MM SN |
4,119 |
|
Datasheet |
Squba 216620 | Bag | Active | Plug to Individual Wire Leads | 4 | 1 | 0.142" (3.60mm) | - | 0.492' (150.00mm, 5.91") | - | Black, Individual | Unshielded | - | Crimp | Tin | 100.0µin (2.54µm) |
|
2153222042MINIFIT JR SR M-M 4 CIRCUIT 300M |
3,067 |
|
Datasheet |
Mini-Fit Jr 215322 | Bag | Active | Plug to Plug | 4 | 1 | 0.165" (4.19mm) | - | 0.984' (300.00mm, 11.81") | Latch Lock | Black, Individual | Unshielded | - | Crimp | Gold | 30.0µin (0.76µm) |
|
H1CXH-2636MIDC CBL - HHKC26H/AE26M/X |
1,976 |
|
Datasheet |
- | Bulk | Active | Socket to Cable | 26 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key | Multiple, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
H3CCH-3436GIDC CBL - HHKC34H/AE34G/HHKC34H |
3,680 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 34 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
D89120-0131HK-3365/20-S-6SINGLE ENDED CABLE ASSEMBLY 20 P |
3,471 |
|
Datasheet |
D89 | Bulk | Active | Socket to Cable | 20 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
|
TCSD-08-S-02.50-01-F-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
1,317 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 16 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.208' (63.50mm, 2.50") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCMD-08-S-04.00-012MM DOUBLE ROW MALE IDC ASSEMBLY |
3,173 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Plug to Cable | 16 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
IDSD-03-S-06.25SLIM BODY DOUBLE-ROW IDC SOCKET |
2,913 |
|
Datasheet |
IDSD | Bulk | Active | Socket to Cable | 6 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | - | - | Multiple, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
S1SS-03-28-GF-40.00-LMICRO MATE SINGLE ROW DISCRETE W |
4,046 |
|
Datasheet |
Micro Mate™ S1SS | Bulk | Active | Socket to Individual Wire Leads | 3 | 1 | 0.039" (1.00mm) | - | - | Latch Lock | Black, Individual | Unshielded | - | Crimp | Gold | 3.00µin (0.076µm) |
|
|
PMSS-05-24-K-06.00-S.165" POWER MATE SINGLE ROW DISC |
2,494 |
|
Datasheet |
Power Mate® PMSS | Bulk | Active | Socket to Individual Wire Leads | 5 | 1 | 0.165" (4.19mm) | - | - | Polarizing Key | Black, Individual | Unshielded | - | Crimp | Tin | - |
|
|
MMSS-10-22-L-10.00-S-KMINI-MATE CABLE ASSEMBLY, 0.100" |
3,333 |
|
Datasheet |
Mini Mate® MMSS | Bulk | Active | Socket to Individual Wire Leads | 10 | 1 | 0.100" (2.54mm) | - | - | Latch Lock, Polarizing Key | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
IDMS-06-D-02.00SLIM BODY SINGLE-ROW IDC MALE AS |
4,182 |
|
Datasheet |
IDMS | Bulk | Active | Plug to Plug | 6 | 1 | 0.100" (2.54mm) | 0.100" (2.54mm) | - | - | Multiple, Ribbon | Unshielded | - | IDC | Gold | - |
|
H3DDH-2036MIDC CBL- HHKR20H/AE20M/HHKR20H |
1,913 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 20 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key, Strain Relief | Multiple, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
H6MMH-2636GDIP CABLE - HDM26H/AE26G/HDM26H |
4,019 |
|
Datasheet |
- | Bulk | Active | DIP to DIP | 26 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Gray, Ribbon | Unshielded | Socket (0.1"), Board In | IDC | Gold | 30.0µin (0.76µm) |
|

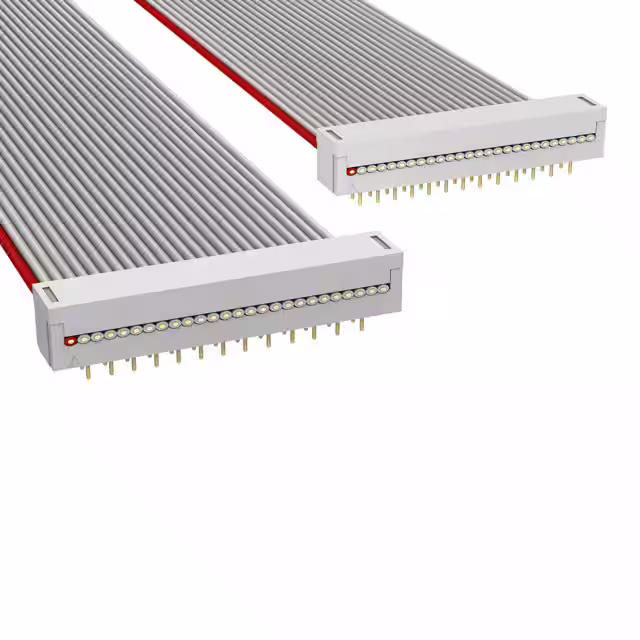

H8MMH-2636GDIP CABLE - HDM26H/AE26G/HDM26H |
1,358 |
|
Datasheet |
- | Bulk | Active | DIP to DIP, Reversed | 26 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Gray, Ribbon | Unshielded | Socket (0.1"), Board In | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-05-S-05.00-01-F2MM DOUBLE ROW FEMALE IDC ASSEMB |
1,734 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.417' (127.00mm, 5.00") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCSD-05-S-05.00-01-F-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
3,594 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.417' (127.00mm, 5.00") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
IDSS-08-S-06.30-ST8INSULATION DISPLACEMENT SOCKET C |
3,770 |
|
- |
IDSS | Bulk | Active | Socket to Cable | 8 | 1 | 0.100" (2.54mm) | 0.100" (2.54mm) | - | - | Multiple, Ribbon | Unshielded | - | IDC | Gold | - |
