Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TFSS-04-30-G-10.00-S.050" TIGER EYE SINGLE ROW DISCR |
3,106 |
|
Datasheet |
Tiger Eye™ TFSS | Bulk | Active | Plug to Individual Wire Leads | 4 | 1 | 0.050" (1.27mm) | - | 0.833' (254.00mm, 10.00") | - | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
TCMD-06-S-06.00-01-RW2.00 MM IDC RIBBON CABLE ASSEMBL |
4,833 |
|
Datasheet |
Tiger Eye™ TCMD | Bulk | Active | Plug to Cable | 12 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
A1DXG-1036MIDC CABLE- AKR10G/ AE10M / X |
1,847 |
|
Datasheet |
- | Bulk | Obsolete | Socket to Cable | 10 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key, Strain Relief | Multiple, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
H6MMH-5006MDIP CABLE - HDM50H/AE50M/HDM50H |
1,737 |
|
Datasheet |
- | Bulk | Active | DIP to DIP | 50 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | - | Multiple, Ribbon | Unshielded | Socket (0.1"), Board In | IDC | Gold | 30.0µin (0.76µm) |
|
H8MMH-5006MDIP CABLE - HDM50H/AE50M/HDM50H |
2,145 |
|
Datasheet |
- | Bulk | Active | DIP to DIP, Reversed | 50 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | - | Multiple, Ribbon | Unshielded | Socket (0.1"), Board In | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-05-S-05.12-01-F-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
4,513 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.427' (130.00mm, 5.12") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
IDMS-05-T-07.00-G-RSLIM BODY SINGLE-ROW IDC MALE AS |
3,132 |
|
Datasheet |
IDMS | Bulk | Active | Socket to Plug, Reversed | 5 | 1 | 0.100" (2.54mm) | 0.100" (2.54mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
2153221062MINIFIT JR SR M-M 6 CIRCUIT 300M |
1,121 |
|
Datasheet |
Mini-Fit Jr 215322 | Bag | Active | Plug to Plug | 6 | 1 | 0.165" (4.19mm) | - | 0.984' (300.00mm, 11.81") | Latch Lock | Black, Individual | Unshielded | - | Crimp | Tin | 100.0µin (2.54µm) |
|

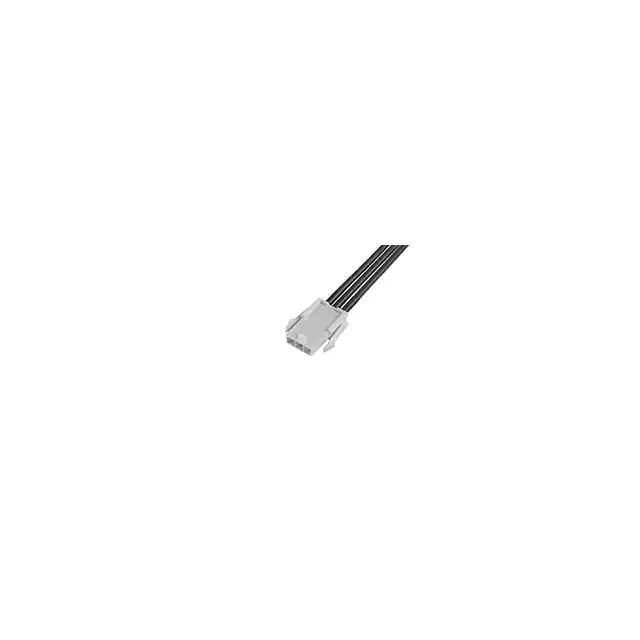

2153232033MINIFIT JR SR M-S 3 CIRCUIT 600M |
3,239 |
|
Datasheet |
Mini-Fit Jr 215323 | Bag | Active | Plug to Individual Wire Leads | 3 | 1 | 0.165" (4.19mm) | - | 1.97' (600.00mm) | Latch Lock | Black, Individual | Unshielded | - | Crimp | Gold | 30.0µin (0.76µm) |
|
2162911042STANDARD .093 4 CIRCUIT R TO S 3 |
4,824 |
|
Datasheet |
Standard .093" 216291 | Bag | Active | Socket to Socket | 4 | 1 | 0.264" (6.70mm) | - | 0.984' (300.00mm, 11.81") | - | Black, Individual | Unshielded | - | Crimp | Tin | 20.0µin (0.51µm) |
|

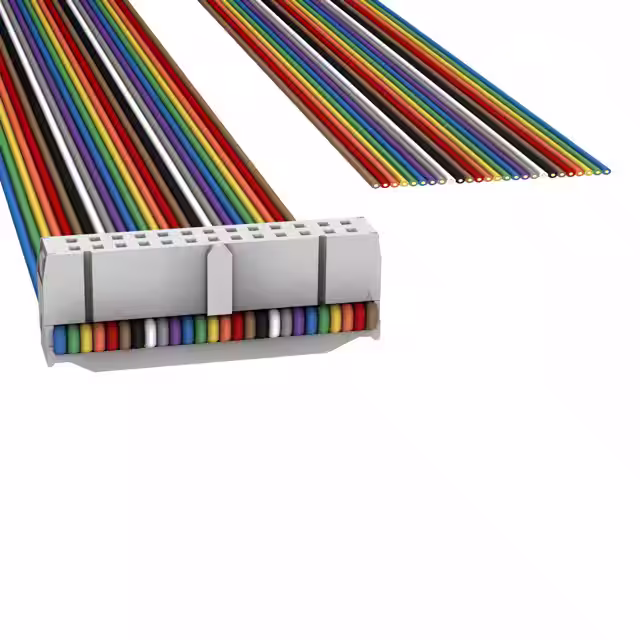

H1DXH-2636MIDC CBL - HHKR26H/AE26M/X |
3,208 |
|
Datasheet |
- | Bulk | Active | Socket to Cable | 26 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key, Strain Relief | Multiple, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
540-0100MICROFIT CBL ASSY 10P 18" MOLEX |
3,680 |
|
Datasheet |
Micro-Fit 3.0 | Bulk | Obsolete | Socket to Individual Wire Leads | 10 | 2 | 0.118" (3.00mm) | - | 1.50' (457.20mm) | Latch Lock | Multiple, Individual | Unshielded | - | Crimp | Tin | 40.0µin (1.02µm) |
|
540-0103MICROFIT CBL ASSY 6P 18" MOLEX |
3,776 |
|
Datasheet |
Micro-Fit 3.0 | Bulk | Obsolete | Socket to Individual Wire Leads | 6 | 2 | 0.118" (3.00mm) | - | 1.50' (457.20mm) | Latch Lock | Multiple, Individual | Unshielded | - | Crimp | Tin | 40.0µin (1.02µm) |
|

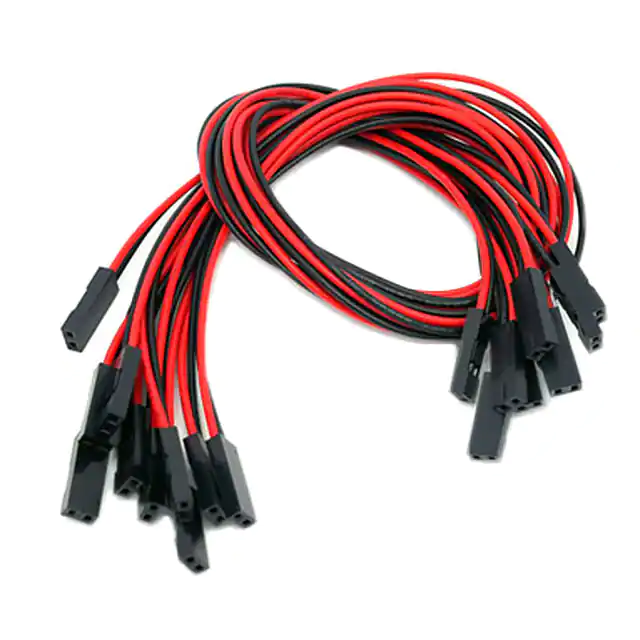

1109900542 PIN DUAL-FEMALE JUMPER WIRE 30 |
2,841 |
|
- |
- | Bulk | Active | Socket to Socket | 2 | 1 | - | - | 0.984' (300.00mm, 11.81") | 10 pcs per pkg | Black, Red, Individual | - | - | Crimp | - | - |
|
|
920-0119-01QTY. 2 FEMALE 2 X 5 IDC SOCKETS |
1,879 |
|
- |
- | Bag | Active | Socket to Socket | 10 | 2 | - | - | 1.00' (304.80mm) | Polarizing Key, Strain Relief | Gray, Ribbon | - | - | IDC | - | - |
|
|
TFSS-05-30-G-06.00-S.050" TIGER EYE SINGLE ROW DISCR |
3,869 |
|
Datasheet |
Tiger Eye™ TFSS | Bulk | Active | Plug to Individual Wire Leads | 5 | 1 | 0.050" (1.27mm) | - | 0.500' (152.40mm, 6.00") | - | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
TFSD-02-28-G-03.00-S.050" TIGER EYE DOUBLE ROW DISCR |
4,712 |
|
Datasheet |
Tiger Eye™ TFSD | Bulk | Active | Plug to Individual Wire Leads | 4 | 2 | 0.050" (1.27mm) | - | 0.250' (76.20mm, 3.00") | - | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
MMSD-06-20-L-30.00-S-KMINI-MATE CABLE ASSEMBLY, 0.100" |
2,952 |
|
Datasheet |
Mini Mate® MMSD | Bulk | Active | Socket to Individual Wire Leads | 12 | 2 | 0.100" (2.54mm) | - | - | Latch Lock, Polarizing Key | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
SFSD-04-30C-G-04.00-SDOUBLE ROW DISCRETE WIRE ASSEMBL |
3,626 |
|
Datasheet |
Tiger Eye™ SFSD | Bulk | Active | Socket to Individual Wire Leads | 8 | 2 | 0.050" (1.27mm) | - | - | - | Multiple, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
HCMD-06-D-03.50-01IDC SOCKET AND TERMINAL CABLE AS |
4,272 |
|
Datasheet |
HCM | Bulk | Active | Plug to Plug | 12 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | - | - | Multiple, Ribbon | Unshielded | - | IDC | Gold | 10.0µin (0.25µm) |
