Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PMSS-02-22-K-48.00-D-LUS.165" POWER MATE SINGLE ROW DISC |
2,131 |
|
Datasheet |
Power Mate® PMSS | Bulk | Active | Socket to Socket | 2 | 1 | 0.165" (4.19mm) | - | - | Polarizing Key | Black, Individual | Unshielded | - | Crimp | Tin | - |
|
|
MMSDT-04-24-F-04.00-D-K-LDSMINI-MATE CABLE ASSEMBLY, FEP |
4,765 |
|
Datasheet |
Mini Mate® MMSDT | Bulk | Active | Socket to Socket | 8 | 2 | 0.100" (2.54mm) | - | - | Latch Lock, Polarizing Key | Black, Individual | Unshielded | - | Crimp | Gold | Flash |
|
|
TFSS-03-28-G-04.00-S.050" TIGER EYE SINGLE ROW DISCR |
4,431 |
|
Datasheet |
Tiger Eye™ TFSS | Bulk | Active | Plug to Individual Wire Leads | 3 | 1 | 0.050" (1.27mm) | - | 0.333' (101.60mm, 4.00") | - | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
TFSS-05-30-G-05.00-S.050" TIGER EYE SINGLE ROW DISCR |
2,863 |
|
Datasheet |
Tiger Eye™ TFSS | Bulk | Active | Plug to Individual Wire Leads | 5 | 1 | 0.050" (1.27mm) | - | 0.417' (127.00mm, 5.00") | - | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
TCSD-04-S-06.00-01-F-N-RWIDC SOCKET CABLE ASSEMBLIES, 2.0 |
4,024 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 8 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.500' (152.40mm, 6.00") | Polarizing Key, Reverse Wiring | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCSD-06-S-04.10-01-F-NIDC SOCKET CABLE ASSEMBLIES, 2.0 |
2,528 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 12 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.342' (104.14mm, 4.10") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
H3DKH-2606MIDC CBL - HHKR26H/AE26M/HHPK26H |
3,571 |
|
Datasheet |
- | Bulk | Active | Socket to Plug | 26 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | Polarizing Key, Strain Relief (Socket); Polarizing Key (Plug) | Multiple, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
H3DWH-2606MIDC CBL - HHKR26H/AE26M/HHPL26H |
1,270 |
|
Datasheet |
- | Bulk | Active | Socket to Plug | 26 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | Polarizing Key, Strain Relief (Socket); Flange, Polarizing Key (Plug) | Multiple, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
|
MMTS-04-24C-F-24.00-S.100" MINI MATE SINGLE ROW DISCR |
2,639 |
|
Datasheet |
Mini Mate® MMTS | Bulk | Active | Plug to Individual Wire Leads | 4 | 1 | 0.100" (2.54mm) | - | - | - | Multiple, Individual | Shielded | - | Crimp | Gold | Flash |
|
|
MMSD-04-26-L-40.00-S-KMINI-MATE CABLE ASSEMBLY, 0.100" |
4,384 |
|
Datasheet |
Mini Mate® MMSD | Bulk | Active | Socket to Individual Wire Leads | 8 | 2 | 0.100" (2.54mm) | - | - | Latch Lock, Polarizing Key | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
A3CCA-1006MIDC CABLE- AKN10A/ AE10M / AKN10 |
1,002 |
|
Datasheet |
- | Bulk | Obsolete | Socket to Socket | 10 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | Polarizing Key | Multiple, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|

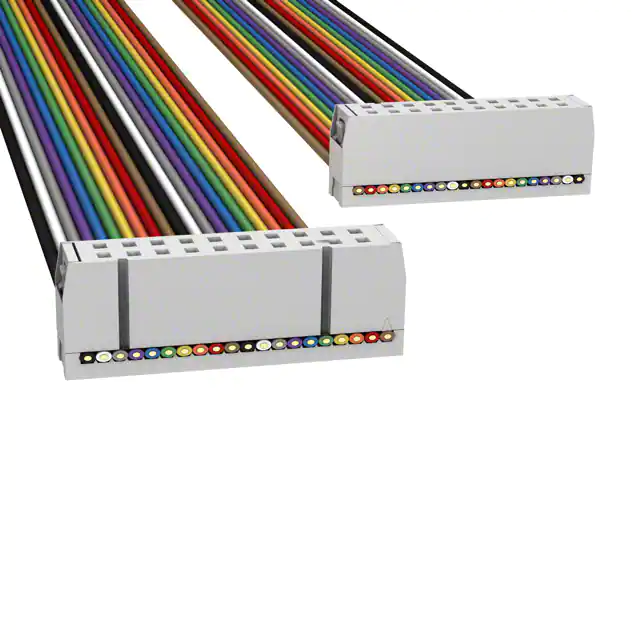

H3AAS-2036MIDC CBL - HHSC20S/AE20M/HHSC20S |
2,862 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 20 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Multiple, Ribbon | Unshielded | - | IDC | Tin | - |
|
H3BKH-2606MIDC CBL - HHSR26H/AE26M/HHPK26H |
2,303 |
|
Datasheet |
- | Bulk | Active | Socket to Plug | 26 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | Strain Relief (Socket); Polarizing Key (Plug) | Multiple, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
H3BWH-2606MIDC CBL - HHSR26H/AE26M/HHPL26H |
1,930 |
|
Datasheet |
- | Bulk | Active | Socket to Plug | 26 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | Strain Relief (Socket); Flange, Polarizing Key (Plug) | Multiple, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
|
TCSD-02-S-06.00-012MM DOUBLE ROW FEMALE IDC ASSEMB |
1,741 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 4 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.500' (152.40mm, 6.00") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
S1SS-06-28C-GF-02.60-L1MICRO MATE SINGLE ROW DISCRETE W |
1,916 |
|
Datasheet |
Micro Mate™ S1SS | Bulk | Active | Socket to Socket | 6 | 1 | 0.039" (1.00mm) | - | - | Latch Lock | Multiple, Individual | Unshielded | - | Crimp | Gold | 3.00µin (0.076µm) |
|
|
T1SS-06-30-GF-05.0-D31.00 MM MICRO MATE SINGLE ROW DI |
3,357 |
|
Datasheet |
Micro Mate™ T1SS | Bulk | Active | Socket to Plug | 6 | 1 | 0.039" (1.00mm) | - | - | - | Black, Individual | Unshielded | - | Crimp | Gold | 3.00µin (0.076µm) |
|
|
S1SS-02-28C-GF-40.00-L1MICRO MATE SINGLE ROW DISCRETE W |
2,037 |
|
Datasheet |
Micro Mate™ S1SS | Bulk | Active | Socket to Socket | 2 | 1 | 0.039" (1.00mm) | - | - | Latch Lock | Multiple, Individual | Unshielded | - | Crimp | Gold | 3.00µin (0.076µm) |
|
0511100850-02-A-6-Y8 CIRC CABLE ASSY 2" Y |
2,198 |
|
Datasheet |
Milli-Grid 51110 | Bulk | Active | Socket to Cable | 8 | 2 | 0.079" (2.00mm) | - | 0.167' (50.80mm, 2.00") | - | Multiple, Individual | Unshielded | - | Crimp | Gold | 15.0µin (0.38µm) |
|
|
A1CXA-2036GIDC CABLE-AKN20A/ AE20G / X |
3,117 |
|
Datasheet |
- | Bulk | Obsolete | Socket to Cable | 20 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
