Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
H2PXS-1436MDIP CABLE - HDP14S/AE14M/X |
4,060 |
|
Datasheet |
- | Bulk | Active | DIP to Cable | 14 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Multiple, Ribbon | Unshielded | Socket (0.3"), Board In | IDC | Tin | - |
|
H2PXS-4018GDIP CABLE - HDP40S/AE40G/X |
1,964 |
|
Datasheet |
- | Bulk | Active | DIP to Cable | 40 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | - | Gray, Ribbon | Unshielded | Socket (0.6"), Board In | IDC | Tin | - |
|
|
H4PXS-1436MDIP CABLE - HDP14S/AE14M/X |
4,639 |
|
Datasheet |
- | Bulk | Active | DIP to Cable | 14 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Multiple, Ribbon | Unshielded | Socket (0.3"), Board In | IDC | Tin | - |
|
|
H4PXS-4018GDIP CABLE - HDP40S/AE40G/X |
4,306 |
|
Datasheet |
- | Bulk | Active | DIP to Cable | 40 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | - | Gray, Ribbon | Unshielded | Socket (0.6"), Board In | IDC | Tin | - |
|
TCSD-04-S-04.00-01-F2MM DOUBLE ROW FEMALE IDC ASSEMB |
2,614 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 8 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.333' (101.60mm, 4.00") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCSD-04-S-04.00-01-F-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
3,151 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 8 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.333' (101.60mm, 4.00") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
IDSS-06-S-02.00-ST8INSULATION DISPLACEMENT SOCKET C |
2,914 |
|
- |
IDSS | Bulk | Active | Socket to Cable | 6 | 1 | 0.100" (2.54mm) | 0.100" (2.54mm) | - | - | Multiple, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
MMSD-02-24C-L-23.63-D-K-LUSMINI-MATE CABLE ASSEMBLY, 0.100" |
4,119 |
|
Datasheet |
Mini Mate® MMSD | Bulk | Active | Socket to Socket | 4 | 2 | 0.100" (2.54mm) | - | - | Latch Lock, Polarizing Key | Multiple, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
T1SST-08-28-GF-06.01.00 MM MICRO MATE SINGLE ROW DI |
2,854 |
|
Datasheet |
Micro Mate™ T1SST | Bulk | Active | Socket to Plug | 8 | 1 | 0.039" (1.00mm) | - | - | - | Blue, Individual | Unshielded | - | Crimp | Gold | 3.00µin (0.076µm) |
|
|
IDSS-06-S-02.75-G-ST4SLIM BODY SINGLE-ROW IDC SOCKET |
4,912 |
|
Datasheet |
IDSS | Bulk | Active | Socket to Cable | 6 | 1 | 0.100" (2.54mm) | 0.100" (2.54mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
T2SD-02-30-L-08.00-S2.00 MM TIGER EYE DOUBLE ROW DIS |
2,997 |
|
Datasheet |
Tiger Eye™ T2SD | Bulk | Active | Socket to Individual Wire Leads | 4 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | Latch Lock, Polarizing Key | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
MMSS-06-20-L-12.00-D-K-LUSMINI-MATE CABLE ASSEMBLY, 0.100" |
3,252 |
|
Datasheet |
Mini Mate® MMSS | Bulk | Active | Socket to Socket | 6 | 1 | 0.100" (2.54mm) | - | - | Latch Lock, Polarizing Key | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|

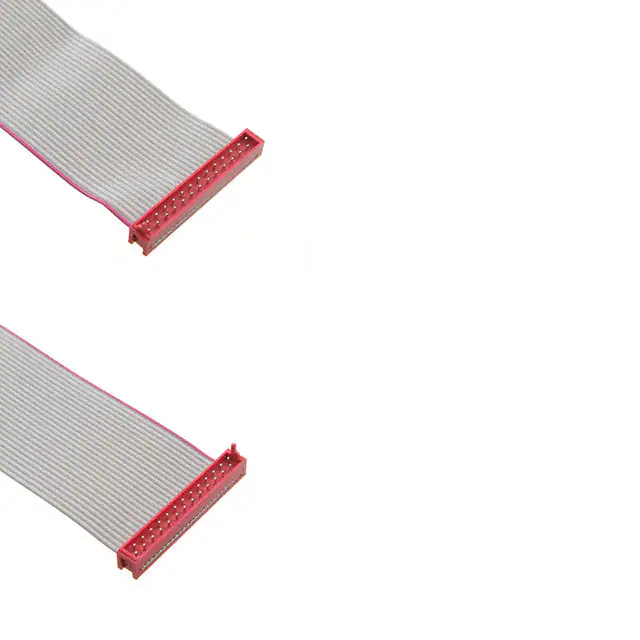

353-28-26-GR-00018CABLE ASSY PLUG IDC 26POS 18" |
2,266 |
|
Datasheet |
- | Bulk | Obsolete | Plug to Plug | 26 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | - | - | - | - | IDC | Tin | - |
|

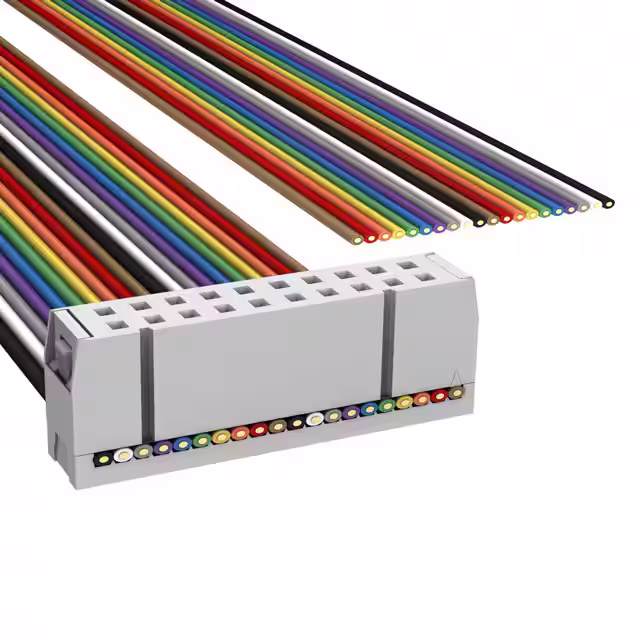

H1AXS-2036MIDC CBL - HHSC20S/AE20M/X |
4,578 |
|
Datasheet |
- | Bulk | Active | Socket to Cable | 20 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Multiple, Ribbon | Unshielded | - | IDC | Tin | - |
|
H1AXH-3436GIDC CBL - HHSC34H/AE34G/X |
3,093 |
|
Datasheet |
- | Bulk | Active | Socket to Cable | 34 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
H1CXS-2036MIDC CBL - HHKC20S/AE20M/X |
4,730 |
|
Datasheet |
- | Bulk | Active | Socket to Cable | 20 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key | Multiple, Ribbon | Unshielded | - | IDC | Tin | - |
|
|
TCMD-05-S-04.00-012MM DOUBLE ROW MALE IDC ASSEMBLY |
1,372 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Plug to Cable | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
SFSS-04-28-G-84.00-SSINGLE ROW DISCRETE WIRE ASSEMBL |
3,670 |
|
Datasheet |
Tiger Eye™ SFSS | Bulk | Active | Socket to Individual Wire Leads | 4 | 1 | 0.050" (1.27mm) | - | 7.00' (2.13m) | - | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
PMSS-03-18-K-06.00-S.165" POWER MATE SINGLE ROW DISC |
1,233 |
|
Datasheet |
Power Mate® PMSS | Bulk | Active | Socket to Individual Wire Leads | 3 | 1 | 0.165" (4.19mm) | - | - | Polarizing Key | Black, Individual | Unshielded | - | Crimp | Tin | - |
|
|
092315204020CKT PICOFLEX 400MM LONG |
2,156 |
|
Datasheet |
Picoflex 92315 | Bag | Obsolete | Socket to Socket | 20 | 1 | 0.050" (1.27mm) | 0.050" (1.27mm) | 1.31' (400.00mm) | - | Gray, Ribbon | Unshielded | - | IDC | Tin | 80.0µin (2.03µm) |
