Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
S1SS-02-28C-GF-11.00-LMICRO MATE SINGLE ROW DISCRETE W |
3,095 |
|
Datasheet |
Micro Mate™ S1SS | Bulk | Active | Socket to Individual Wire Leads | 2 | 1 | 0.039" (1.00mm) | - | - | Latch Lock | Multiple, Individual | Unshielded | - | Crimp | Gold | 3.00µin (0.076µm) |
|
|
2262031064ONEBLADE R-R 6CKT 600MM DISC SN |
4,847 |
|
- |
OneBlade 226203 | Bulk | Active | Socket to Socket | 6 | 1 | 0.039" (1.00mm) | - | 1.97' (600.00mm) | - | Black, Individual | Unshielded | - | Crimp | Tin | 39.4µin (1.00µm) |
|
|
2262071064MINI-SPOX R-R 6CKT 600MM DISC SN |
1,947 |
|
- |
Mini-Spox 226207 | Bulk | Active | Socket to Socket | 6 | 1 | 0.098" (2.50mm) | - | 1.97' (600.00mm) | - | Black, Individual | Unshielded | - | Crimp | Tin | 35.0µin (0.89µm) |
|
|
T1SS-04-28-GF-09.501.00 MM MICRO MATE SINGLE ROW DI |
2,197 |
|
Datasheet |
Micro Mate™ T1SS | Bulk | Active | Socket to Plug | 4 | 1 | 0.039" (1.00mm) | - | - | - | Black, Individual | Unshielded | - | Crimp | Gold | 3.00µin (0.076µm) |
|
|
S1SS-05-28-GF-01.81-D-NUSMICRO MATE SINGLE ROW DISCRETE W |
4,144 |
|
Datasheet |
Micro Mate™ S1SS | Bulk | Active | Socket to Socket | 5 | 1 | 0.039" (1.00mm) | - | - | - | Black, Individual | Unshielded | - | Crimp | Gold | 3.00µin (0.076µm) |
|
|
353-28-22-GR-00012CABLE ASSY PLUG IDC 22POS 12" |
1,130 |
|
Datasheet |
- | Bulk | Obsolete | Plug to Plug | 22 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.00' (304.80mm) | - | - | - | - | IDC | Tin | - |
|

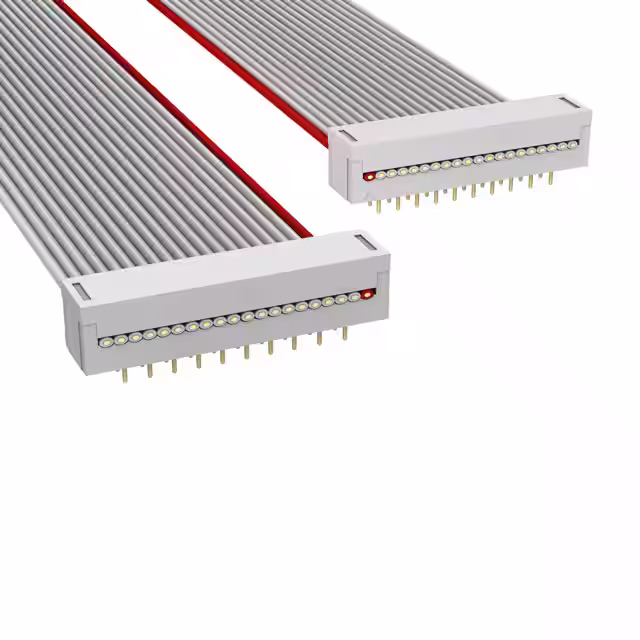

H6MMS-2036GDIP CBL - HHDM20S/AE20G/HHDM20S |
4,216 |
|
Datasheet |
- | Bulk | Active | DIP to DIP | 20 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Gray, Ribbon | Unshielded | Socket (0.1"), Board In | IDC | Tin | - |
|
H8MMS-2036GDIP CBL - HHDM20S/AE20G/HHDM20S |
4,692 |
|
Datasheet |
- | Bulk | Active | DIP to DIP, Reversed | 20 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Gray, Ribbon | Unshielded | Socket (0.1"), Board In | IDC | Tin | - |
|
|
H3DDH-2618MIDC CBL - HHKR26H/AE26M/HHKR26H |
1,814 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 26 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | Polarizing Key, Strain Relief | Multiple, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
|
Q15796846CCUSTOM ASSEMBLY SEE CNO |
1,994 |
|
- |
- | Bulk | Active | Socket to Socket | 34 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.70' (518.16mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
T1SST-04-28-GF-06.01.00 MM MICRO MATE SINGLE ROW DI |
3,526 |
|
Datasheet |
Micro Mate™ T1SST | Bulk | Active | Socket to Plug | 4 | 1 | 0.039" (1.00mm) | - | - | - | Blue, Individual | Unshielded | - | Crimp | Gold | 3.00µin (0.076µm) |
|
|
S1SS-05-30-GF-02.00-SMICRO MATE SINGLE ROW DISCRETE W |
2,650 |
|
Datasheet |
Micro Mate™ S1SS | Bulk | Active | Socket to Individual Wire Leads | 5 | 1 | 0.039" (1.00mm) | - | - | - | Black, Individual | Unshielded | - | Crimp | Gold | 3.00µin (0.076µm) |
|
|
S1SS-05-28-GF-09.00-SMICRO MATE SINGLE ROW DISCRETE W |
1,674 |
|
Datasheet |
Micro Mate™ S1SS | Bulk | Active | Socket to Individual Wire Leads | 5 | 1 | 0.039" (1.00mm) | - | - | - | Black, Individual | Unshielded | - | Crimp | Gold | 3.00µin (0.076µm) |
|
|
MMSD-02-20C-F-03.00-S-PMINI-MATE CABLE ASSEMBLY, 0.100" |
3,421 |
|
Datasheet |
Mini Mate® MMSD | Bulk | Active | Socket to Individual Wire Leads | 4 | 2 | 0.100" (2.54mm) | - | - | Latch Lock, Polarizing Key | Multiple, Individual | Unshielded | - | Crimp | Gold | Flash |
|

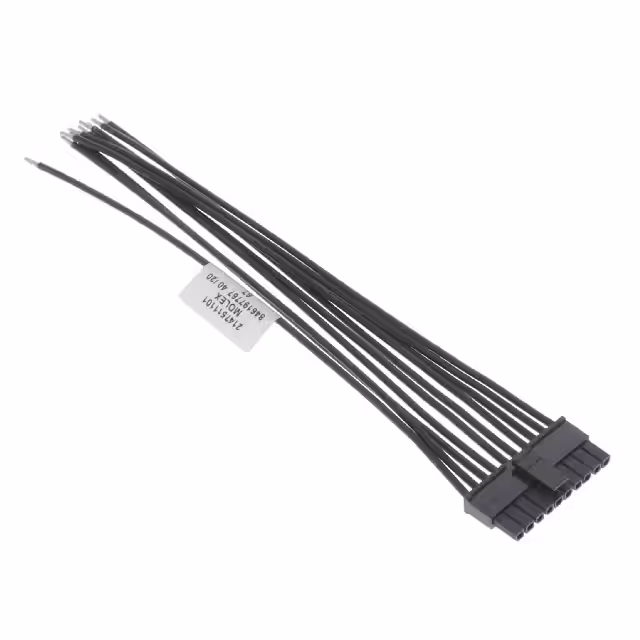

2147511101MICROFIT 3.0 SR R-S 10CKT 150 MM |
3,084 |
|
Datasheet |
Micro-Fit 3.0 214751 | Bulk | Active | Socket to Individual Wire Leads | 10 | 1 | 0.118" (3.00mm) | - | 0.492' (150.00mm, 5.91") | - | Black, Individual | Unshielded | - | Crimp | Tin | 40.0µin (1.02µm) |
|
|
A22XSR22XSR36R51AJUMPER 22XSR-36S - 22XSR-36S 2" |
4,157 |
|
Datasheet |
XSR | Bulk | Active | Socket to Socket, Reversed | 22 | 1 | 0.024" (0.60mm) | - | 0.167' (50.80mm, 2.00") | - | Red, Individual | - | - | IDC | Tin | - |
|
|
A22XSR22XSR36R51BJUMPER 22XSR-36S - 22XSR-36S 2" |
2,533 |
|
Datasheet |
XSR | Bulk | Active | Socket to Socket | 22 | 1 | 0.024" (0.60mm) | - | 0.167' (50.80mm, 2.00") | - | Red, Individual | - | - | IDC | Tin | - |
|
C2PXG-1618MDIP CABLE - CDP16G/AE16M/X |
3,194 |
|
Datasheet |
- | Bulk | Active | DIP to Cable | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | - | Multiple, Ribbon | Unshielded | Socket (0.3"), Board In | IDC | Gold | 10.0µin (0.25µm) |
|

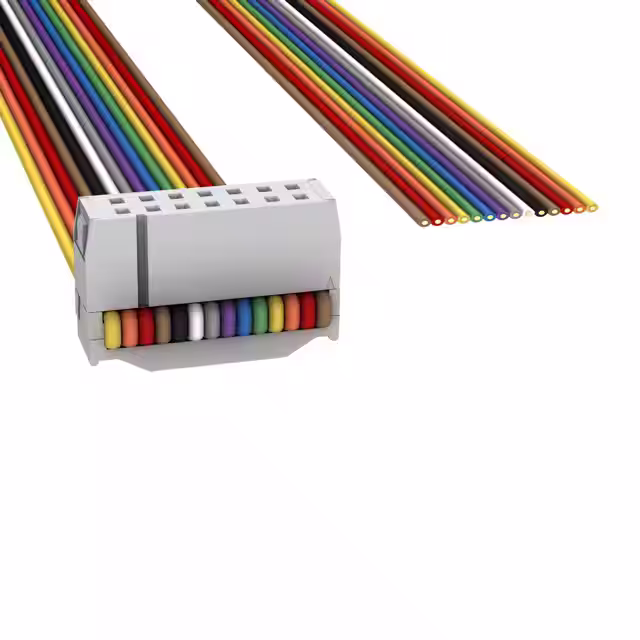

H1BXH-1436MIDC CBL - HHSR14H/AE14M/X |
3,370 |
|
Datasheet |
- | Bulk | Active | Socket to Cable | 14 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Strain Relief | Multiple, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|

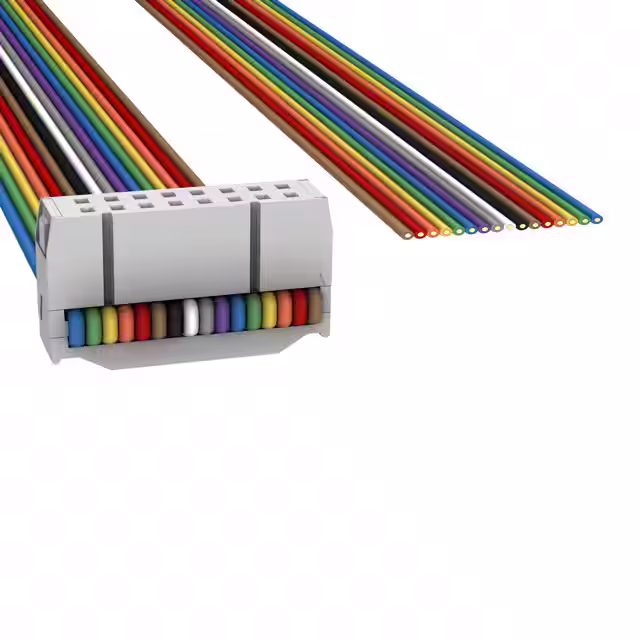

H1BXH-1636MIDC CBL - HHSR16H/AE16M/X |
2,269 |
|
Datasheet |
- | Bulk | Active | Socket to Cable | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Strain Relief | Multiple, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
