Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
H0PPH-1606MDIP CABLE - HDP16H/AE16M/HDP16H |
4,547 |
|
Datasheet |
- | Bulk | Obsolete | DIP to DIP, Reversed | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | - | Multiple, Ribbon | Unshielded | Socket (0.3"), Board In | IDC | Gold | 30.0µin (0.76µm) |
|
H3DDS-4018GIDC CBL - HHKR40S/AE40G/HHKR40S |
2,274 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 40 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | Polarizing Key, Strain Relief | Gray, Ribbon | Unshielded | - | IDC | Tin | - |
|

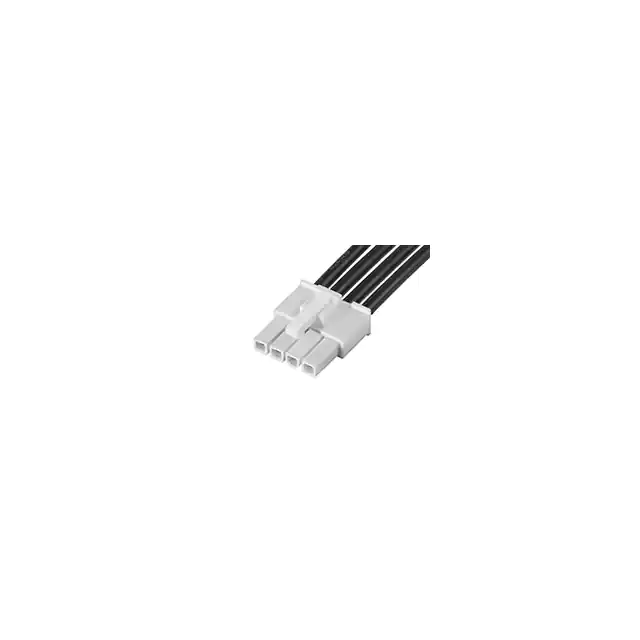

2153221042MINIFIT JR SR M-M 4 CIRCUIT 300M |
4,730 |
|
Datasheet |
Mini-Fit Jr 215322 | Bag | Active | Plug to Plug | 4 | 1 | 0.165" (4.19mm) | - | 0.984' (300.00mm, 11.81") | Latch Lock | Black, Individual | Unshielded | - | Crimp | Tin | 100.0µin (2.54µm) |
|

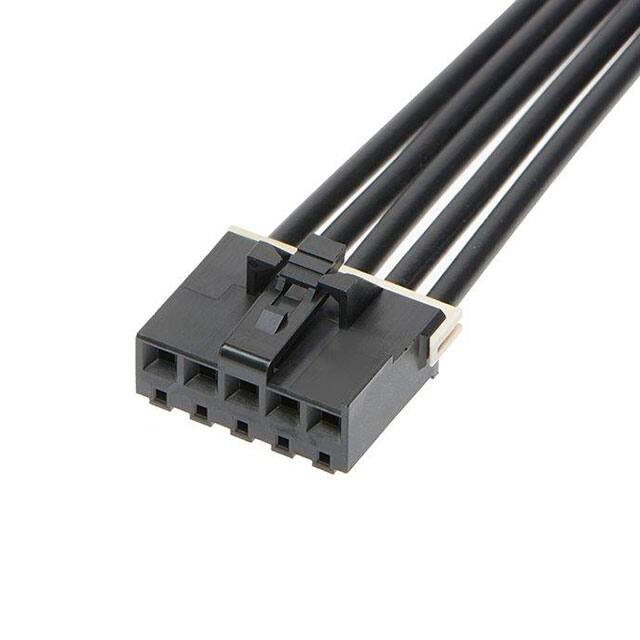

0369210502L1NK 396 5 CIRCUIT 150MM |
3,827 |
|
Datasheet |
L1nk 396 36921 | Bag | Active | Socket to Socket | 5 | 1 | 0.156" (3.96mm) | - | 0.492' (150.00mm, 5.91") | Latch Lock | Black, Individual | Unshielded | - | Crimp | Tin | 200.0µin (5.08µm) |
|
H3BBS-2618MIDC CBL - HHSR26S/AE26M/HHSR26S |
3,946 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 26 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | Strain Relief | Multiple, Ribbon | Unshielded | - | IDC | Tin | - |
|
PMSS-02-18-K-15.81-S.165" POWER MATE SINGLE ROW DISC |
3,249 |
|
Datasheet |
Power Mate® PMSS | Bulk | Active | Socket to Individual Wire Leads | 2 | 1 | 0.165" (4.19mm) | - | - | Polarizing Key | Black, Individual | Unshielded | - | Crimp | Tin | - |
|
|
HCSS-02-S-04.00-01-GIDC SOCKET AND TERMINAL CABLE AS |
3,407 |
|
Datasheet |
HCS | Bulk | Active | Socket to Cable | 2 | 1 | 0.100" (2.54mm) | 0.050" (1.27mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 10.0µin (0.25µm) |
|
|
355-28-16-GR-00018CABLE ASSY DIP IDC 16POS 18" |
2,290 |
|
Datasheet |
- | Bulk | Obsolete | Ribbon Cable, DIP Header | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | - | - | - | - | IDC | Tin | - |
|
A1AXG-1636GIDC CABLE - ASC16G/AE16G/X |
4,227 |
|
Datasheet |
- | Bulk | Obsolete | Socket to Cable | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|

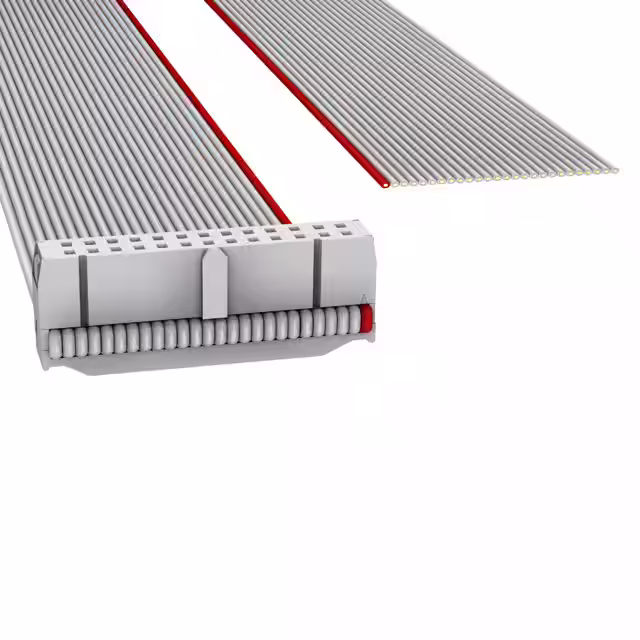

H1DXH-2636GIDC CBL - HHKR26H/AE26G/X |
1,267 |
|
Datasheet |
- | Bulk | Active | Socket to Cable | 26 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key, Strain Relief | Gray, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
C3PPS-1018GIDC CABLE - CPC10S/AE10G/CPC10S |
4,656 |
|
Datasheet |
- | Bulk | Active | PCB to PCB | 10 | 4 | 0.050" (1.27mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | - | Gray, Ribbon | Unshielded | Board In | IDC | Tin-Lead | 100.0µin (2.54µm) |
|
|
PMSS-02-18-K-16.10-S.165" POWER MATE SINGLE ROW DISC |
2,478 |
|
Datasheet |
Power Mate® PMSS | Bulk | Active | Socket to Individual Wire Leads | 2 | 1 | 0.165" (4.19mm) | - | - | Polarizing Key | Black, Individual | Unshielded | - | Crimp | Tin | - |
|
|
PMSS-02-22-K-18.00-S.165" POWER MATE SINGLE ROW DISC |
1,424 |
|
Datasheet |
Power Mate® PMSS | Bulk | Active | Socket to Individual Wire Leads | 2 | 1 | 0.165" (4.19mm) | - | - | Polarizing Key | Black, Individual | Unshielded | - | Crimp | Tin | - |
|

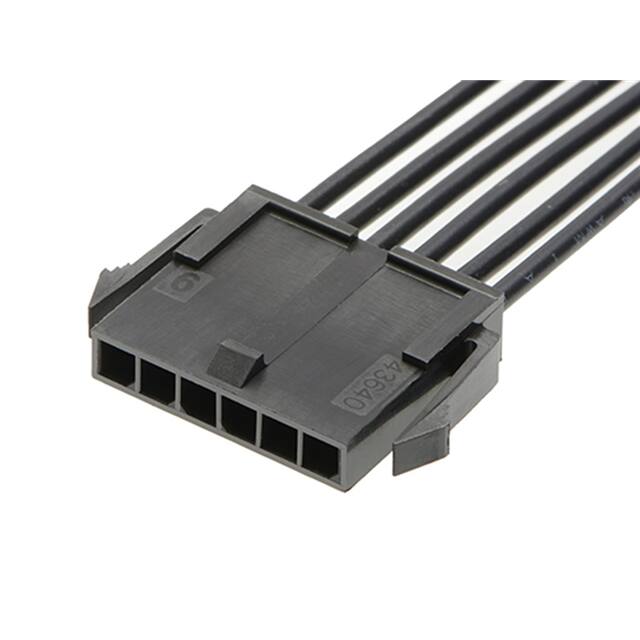

2147522061MICROFIT 3.0 SR P-P 6CKT 150 MM |
2,684 |
|
Datasheet |
Micro-Fit 3.0 214752 | Bulk | Active | Plug to Plug | 6 | 1 | 0.118" (3.00mm) | - | 0.492' (150.00mm, 5.91") | - | Black, Individual | Unshielded | - | Crimp | Gold | 30.0µin (0.76µm) |
|
|
H3BBS-2036GIDC CBL - HHSR20S/AE20G/HHSR20S |
4,148 |
|
Datasheet |
- | Bulk | Discontinued at Digi-Key | Socket to Socket | 20 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Strain Relief | Gray, Ribbon | Unshielded | - | IDC | Tin | - |
|
|
H3BBS-2018GIDC CBL - HHSR20S/AE20G/HHSR20S |
3,691 |
|
Datasheet |
- | Bulk | Discontinued at Digi-Key | Socket to Socket | 20 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | Strain Relief | Gray, Ribbon | Unshielded | - | IDC | Tin | - |
|
|
S1SST-02-28-GF-25.00-LMICRO MATE SINGLE ROW DISCRETE T |
1,010 |
|
Datasheet |
Micro Mate™ S1SST | Bulk | Active | Socket to Individual Wire Leads | 2 | 1 | 0.039" (1.00mm) | - | - | Latch Lock | Blue, Individual | Unshielded | - | Crimp | Gold | 3.00µin (0.076µm) |
|
|
T1SS-02-28-GF-04.0-T31.00 MM MICRO MATE SINGLE ROW DI |
4,979 |
|
Datasheet |
Micro Mate™ T1SS | Bulk | Active | Socket to Plug | 2 | 1 | 0.039" (1.00mm) | - | - | - | Black, Individual | Unshielded | - | Crimp | Gold | 3.00µin (0.076µm) |
|
|
MMSD-02-24-L-24.00-S-PMINI-MATE CABLE ASSEMBLY, 0.100" |
4,865 |
|
Datasheet |
Mini Mate® MMSD | Bulk | Active | Socket to Individual Wire Leads | 4 | 2 | 0.100" (2.54mm) | - | - | Latch Lock, Polarizing Key | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
MMSDT-03-28-L-12.00-S-KMINI-MATE CABLE ASSEMBLY, FEP |
4,387 |
|
Datasheet |
Mini Mate® MMSDT | Bulk | Active | Socket to Individual Wire Leads | 6 | 2 | 0.100" (2.54mm) | - | - | Latch Lock, Polarizing Key | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
