Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2147531101MICROFIT 3.0 SR P-S 10CKT 150 MM |
2,342 |
|
Datasheet |
Micro-Fit 3.0 214753 | Bulk | Active | Plug to Individual Wire Leads | 10 | 1 | 0.118" (3.00mm) | - | 0.492' (150.00mm, 5.91") | - | Black, Individual | Unshielded | - | Crimp | Tin | 40.0µin (1.02µm) |
|
H1AXH-1436MIDC CBL - HHSC14H/AE14M/X |
1,551 |
|
Datasheet |
- | Bulk | Active | Socket to Cable | 14 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Multiple, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
H1AXH-1636MIDC CBL - HHSC16H/AE16M/X |
3,726 |
|
Datasheet |
- | Bulk | Active | Socket to Cable | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Multiple, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|

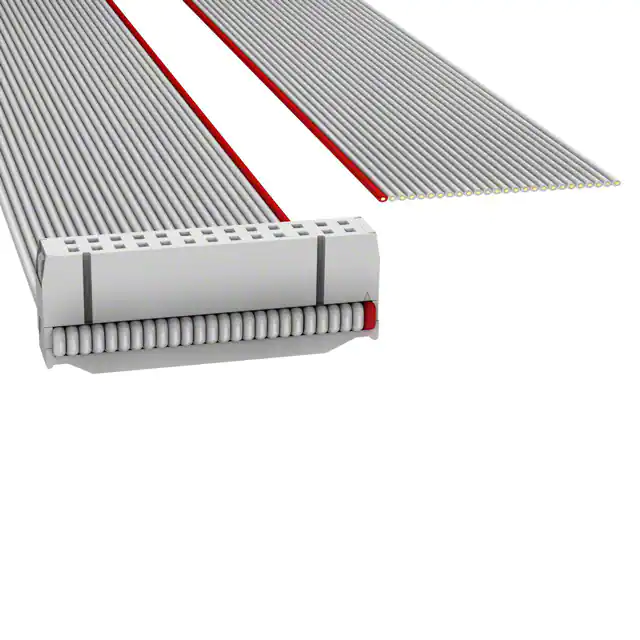

H1BXH-2636GIDC CBL - HHSR26H/AE26G/X |
4,981 |
|
Datasheet |
- | Bulk | Active | Socket to Cable | 26 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Strain Relief | Gray, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|

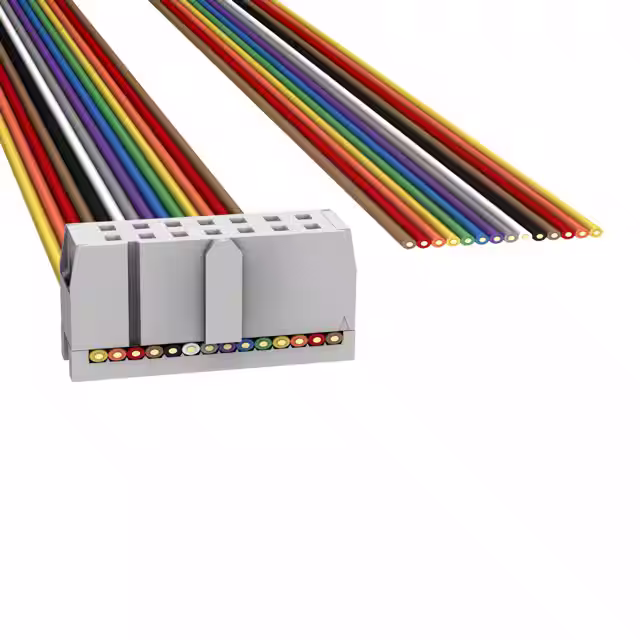

H1CXH-1436MIDC CBL - HHKC14H/AE14M/X |
4,726 |
|
Datasheet |
- | Bulk | Active | Socket to Cable | 14 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key | Multiple, Ribbon | Unshielded | - | IDC | Gold | Flash |
|

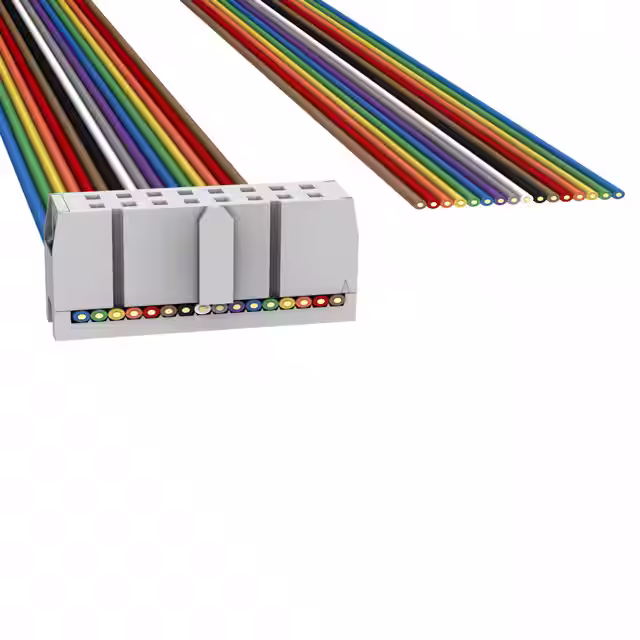

H1CXS-1636MIDC CBL - HHKC16S/AE16M/X |
3,686 |
|
Datasheet |
- | Bulk | Active | Socket to Cable | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key | Multiple, Ribbon | Unshielded | - | IDC | Tin | - |
|
MMSS-03-28C-F-12.00-D-K-LUSMINI-MATE CABLE ASSEMBLY, 0.100" |
3,254 |
|
Datasheet |
Mini Mate® MMSS | Bulk | Active | Socket to Socket | 3 | 1 | 0.100" (2.54mm) | - | - | Latch Lock, Polarizing Key | Multiple, Individual | Unshielded | - | Crimp | Gold | Flash |
|
|
SFSD-03-28-G-03.25-SDOUBLE ROW DISCRETE WIRE ASSEMBL |
4,211 |
|
Datasheet |
Tiger Eye™ SFSD | Bulk | Active | Socket to Individual Wire Leads | 6 | 2 | 0.050" (1.27mm) | - | - | - | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
0151350803CLICKMATE 8CIRCUIT 300MM |
2,296 |
|
Datasheet |
CLIK-MATE 15135 | Bag | Active | Plug to Plug | 8 | 1 | 0.059" (1.50mm) | - | 0.984' (300.00mm, 11.81") | Latch Lock | Black, Individual | - | - | Crimp | Tin | 16.0µin (0.41µm) |
|

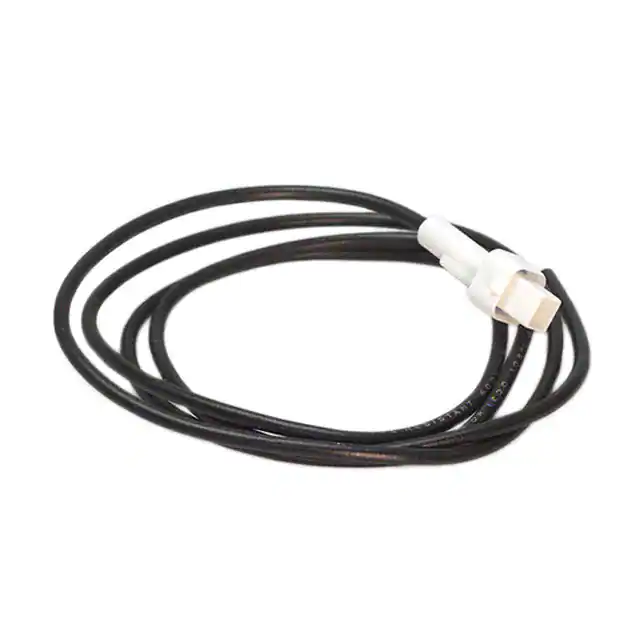

568-001-734-100ASSEMBLY PLUG 1POS WATERPROOF |
1,846 |
|
Datasheet |
568 | Bulk | Active | Plug to Cable | 1 | 1 | - | - | 0.328' (100.00mm, 3.94") | Waterproof | Black, Individual | Unshielded | - | Crimp | Tin | - |
|
|
H1CXH-1636MIDC CBL - HHKC16H/AE16M/X |
1,341 |
|
Datasheet |
- | Bulk | Active | Socket to Cable | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key | Multiple, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
S1SS-04-28-GF-04.50-LMICRO MATE SINGLE ROW DISCRETE W |
4,169 |
|
Datasheet |
Micro Mate™ S1SS | Bulk | Active | Socket to Individual Wire Leads | 4 | 1 | 0.039" (1.00mm) | - | - | Latch Lock | Black, Individual | Unshielded | - | Crimp | Gold | 3.00µin (0.076µm) |
|
|
T1SST-05-30-GF-03.51.00 MM MICRO MATE SINGLE ROW DI |
3,821 |
|
Datasheet |
Micro Mate™ T1SST | Bulk | Active | Socket to Plug | 5 | 1 | 0.039" (1.00mm) | - | - | - | Blue, Individual | Unshielded | - | Crimp | Gold | 3.00µin (0.076µm) |
|
|
A22KRW22KRW26E51CJUMPER ASSEMBLY SKT-SKT 22POS 2" |
1,599 |
|
Datasheet |
KRW | Bulk | Obsolete | Socket to Socket | 22 | 2 | 0.079" (2.00mm) | - | 0.167' (50.80mm, 2.00") | - | Blue, Individual | Unshielded | Adapter, Extension | IDC | - | - |
|
|
A22KRW22KRW26E51DJUMPER ASSEMBLY SKT-SKT 22POS 2" |
3,531 |
|
Datasheet |
KRW | Bulk | Obsolete | Socket to Socket | 22 | 2 | 0.079" (2.00mm) | - | 0.167' (50.80mm, 2.00") | - | Blue, Individual | Unshielded | Adapter, Extension | IDC | - | - |
|

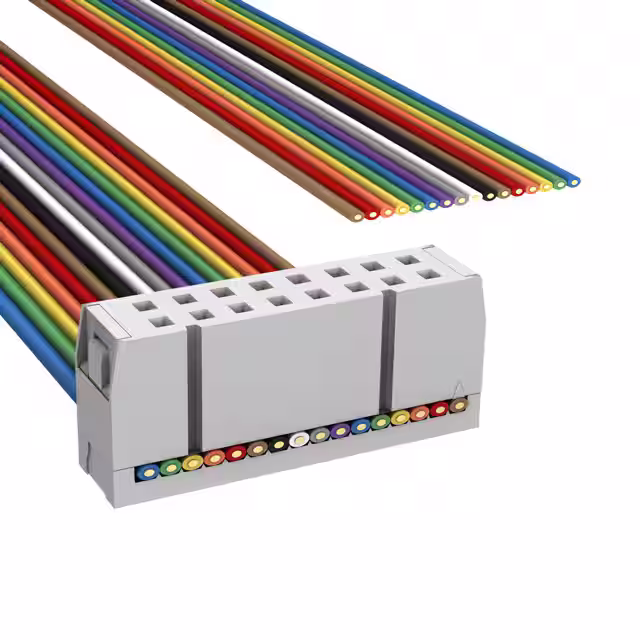

H1AXS-1636MIDC CBL - HHSC16S/AE16M/X |
3,861 |
|
Datasheet |
- | Bulk | Active | Socket to Cable | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Multiple, Ribbon | Unshielded | - | IDC | Tin | - |
|

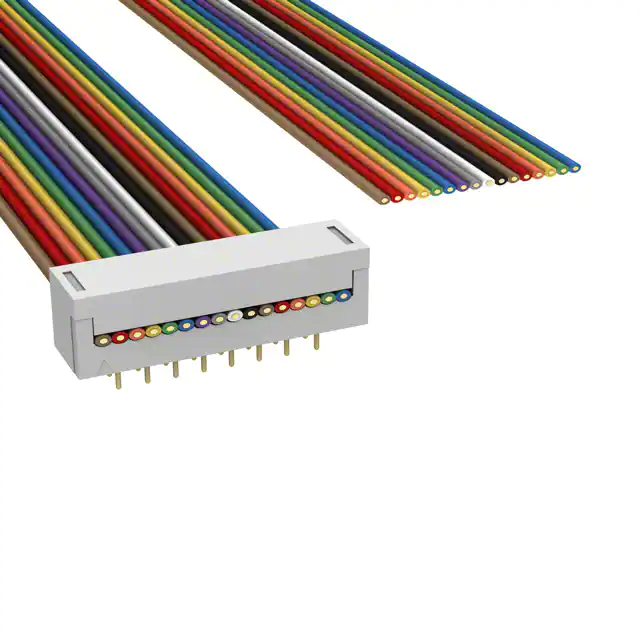

H2MXS-1636MDIP CBL - HHDM16S/AE16M/X |
3,713 |
|
Datasheet |
- | Bulk | Active | DIP to Cable | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Multiple, Ribbon | Unshielded | Socket (0.1"), Board In | IDC | Tin | - |
|
H6MMH-2036GDIP CABLE - HDM20H/AE20G/HDM20H |
1,980 |
|
Datasheet |
- | Bulk | Active | DIP to DIP | 20 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Gray, Ribbon | Unshielded | Socket (0.1"), Board In | IDC | Gold | 30.0µin (0.76µm) |
|
H8MMH-2036GDIP CABLE - HDM20H/AE20G/HDM20H |
1,763 |
|
Datasheet |
- | Bulk | Active | DIP to DIP, Reversed | 20 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Gray, Ribbon | Unshielded | Socket (0.1"), Board In | IDC | Gold | 30.0µin (0.76µm) |
|
|
SMSS-03-24-F-12.00-S.100" MINI MATE UNIVERSAL SINGLE |
1,877 |
|
Datasheet |
Mini Mate® SMSS | Bulk | Active | Socket to Individual Wire Leads | 3 | 1 | 0.100" (2.54mm) | - | - | - | Black, Individual | Unshielded | - | Crimp | Gold | - |
