Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
831704C2.ELSWITCH SNAP ACTION SPDT 5A 250V |
1,301 |
|
Datasheet |
83170 | Bulk | Active | SPDT | On-Mom | 5A (AC) | 250 V | - | Lever, Roller | Chassis Mount | Solder Lug | - | Actuator Mounted Left Side | 20gf | 3.500gf | 0.606" (15.4mm) | - | 0.018" (0.45mm) | 0.060" (1.5mm) | -20°C ~ 130°C |
|
TFCGK6VP005BCSWITCH SNAP ACTION SPDT 11A 227V |
3,232 |
|
Datasheet |
TF | Bulk | Active | SPDT | On-Mom | 11A (AC), 250mA (DC) | 227 V | 125 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 75gf | 15gf | 0.575" (14.6mm) | 0.470" (11.9mm) | 0.010" (0.25mm) | 0.050" (1.27mm) | -40°C ~ 85°C |
|
|
ZW50F92AW1SWITCH SNAP ACTION SPDT 6A 125V |
3,256 |
|
- |
ZW | Box | Obsolete | SPDT | On-Mom | 6A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 203gf | - | - | - | - | - | -40°C ~ 120°C |
|
DS2D7AQ3SWITCH SNAP ACTION DPDT 16A 125V |
1,587 |
|
Datasheet |
DS | Bulk | Active | DPDT | On-Mom | 16A (AC) | 125 V | - | Round (Pin Plunger) | Panel Mount, Snap-In | Quick Connect - 0.250" (6.3mm) | - | - | 680gf | - | 0.350" (8.9mm) | - | - | 0.125" (3.2mm) | -40°C ~ 85°C |
|
|
ABV1624403SWITCH SNAP ACT SPST-NC 3A 250V |
1,164 |
|
Datasheet |
ABV | Bulk | Active | SPST-NC | On-Mom | 3A (AC) | 250 V | - | Lever, Simulated Roller | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 60gf | 10gf | 0.728" (18.49mm) | 0.125" (3.2mm) | 0.047" (1.2mm) | 0.047" (1.20mm) | -40°C ~ 85°C |
|
TMCGF5SA1040CSWITCH SNAP ACTION SPDT 1A 125V |
4,061 |
|
Datasheet |
TM | Bulk | Active | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 90gf | 28gf | 0.812" (20.6mm) | 0.071" (1.8mm) | 0.013" (0.33mm) | 0.035" (0.9mm) | -55°C ~ 150°C |
|
|
V15W-DZ200A05-AW1SWITCH SNAP ACT SPDT 0.1A 125V |
3,813 |
|
Datasheet |
V15W | Tray | Obsolete | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 48 V | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 240gf | 40gf | 0.812" (20.6mm) | 0.063" (1.6mm) | 0.016" (0.4mm) | 0.030" (0.76mm) | -40°C ~ 85°C |
|
V7-3S17D8-048SWITCH SNAP ACT SPDT 100MA 125V |
1,881 |
|
Datasheet |
V7 | Bulk | Active | SPDT | On-Mom | 100mA (AC) | 125 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 16gf | 0.510gf | 0.602" (15.3mm) | 0.236" (6.0mm) | 0.050" (1.3mm) | 0.118" (3.0mm) | -40°C ~ 85°C |
|
|
V7-1S18D8-263SWITCH SNAP ACT SPDT 100MA 125V |
4,967 |
|
Datasheet |
V7 | Bulk | Active | SPDT | On-Mom | 100mA (AC) | 125 V | - | Lever, Simulated Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 90gf | 9.000gf | 0.730" (18.5mm) | 0.110" (2.8mm) | 0.030" (0.76mm) | 0.075" (1.9mm) | -40°C ~ 85°C |
|
|
ABV1216403SWITCH SNAP ACTION SPDT 3A 250V |
2,194 |
|
Datasheet |
ABV | Bulk | Active | SPDT | On-Mom | 3A (AC) | 250 V | - | Lever, Roller | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | IP50 - Dust Protected | - | 60gf | 10gf | 0.815" (20.7mm) | 0.125" (3.2mm) | 0.047" (1.2mm) | 0.047" (1.2mm) | -40°C ~ 85°C |
|
|
ABS1612503SWITCH SNAP ACTION SPDT 2A 125V |
3,067 |
|
Datasheet |
ABS | Bulk | Active | SPDT | On-Mom | 2A (AC/DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 55gf | 3.467gf | 0.346" (8.80mm) | 0.110" (2.8mm) | 0.031" (0.80mm) | 0.047" (1.20mm) | -40°C ~ 85°C |
|
|
ABS1614503SWITCH SNAP ACTION SPDT 2A 125V |
3,756 |
|
Datasheet |
ABS | Bulk | Active | SPDT | On-Mom | 2A (AC/DC) | 125 V | 30 V | Lever, Simulated Roller | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 55gf | 3.467gf | 0.459" (11.65mm) | 0.110" (2.8mm) | 0.031" (0.80mm) | 0.047" (1.20mm) | -40°C ~ 85°C |
|

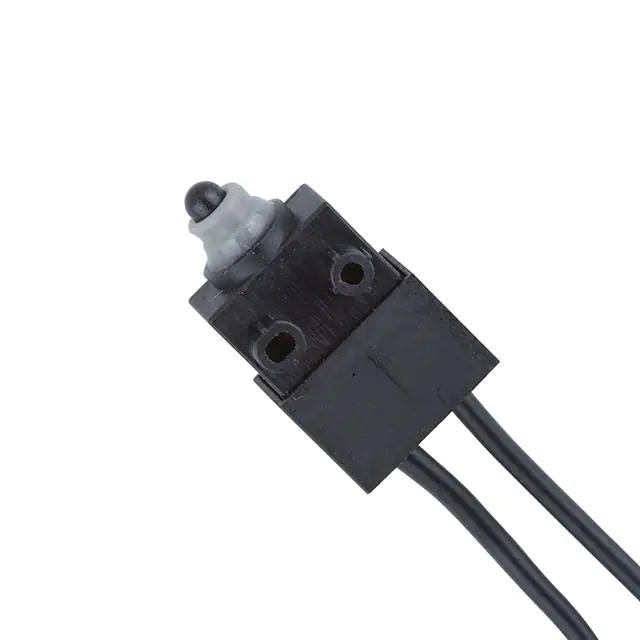

HD110V01A12ARSWITCH SNAP ACT SPST-NO 0.1A 12V |
4,580 |
|
Datasheet |
HD1 | Box | Active | SPST-NO | Off-Mom | 100mA (DC) | - | 12 V | Round (Pin Plunger) | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 200gf | - | 0.280" (7.1mm) | 0.040" (1.0mm) | - | 0.045" (1.1mm) | -20°C ~ 85°C |
|
|
C3006BRSWITCH DETECT SPST-NO 0.2A 125V |
2,629 |
|
Datasheet |
3005 | Bulk | Active | SPST-NO | Off-Mom | 200mA (AC) | 125 V | - | Angled Toggle (Detector) | Panel Mount, Snap-In | Quick Connect - 0.250" (6.3mm) | Splash Proof | - | - | - | - | - | - | - | - |
|

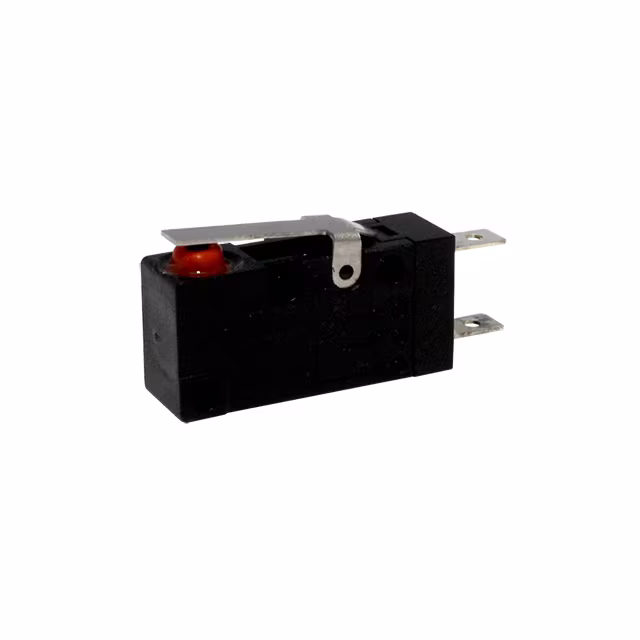

VM3SBGF3002L04SWITCH LIMIT SPST-NC 10A 125V |
2,409 |
|
Datasheet |
VM3S | Tray | Active | SPST-NC | On-Mom | 10A (AC), 6A (DC) | 125 V | 36 V | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP67 - Dust Tight, Waterproof | - | 300gf | 250gf | 0.591" (15.00mm) | 0.080" (2.0mm) | 0.040" (1.0mm) | 0.020" (0.5mm) | -40°C ~ 120°C |
|
VM3SAGF3002L04SWITCH LIMIT SPST-NO 10A 125V |
3,158 |
|
Datasheet |
VM3S | Tray | Active | SPST-NO | Off-Mom | 10A (AC), 6A (DC) | 125 V | 36 V | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP67 - Dust Tight, Waterproof | - | 300gf | 250gf | 0.591" (15.00mm) | 0.080" (2.0mm) | 0.040" (1.0mm) | 0.020" (0.5mm) | -40°C ~ 120°C |
|
|
83163142SWITCH SNAP ACTION SPDT 16A 250V |
3,561 |
|
Datasheet |
83161 | Bulk | Active | SPDT | On-Mom | 16A (AC) | 250 V | - | Lever, Simulated Roller | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 45gf | 11gf | 0.806" (20.5mm) | - | 0.025" (0.6mm) | 0.085" (2.16mm) | -20°C ~ 125°C |
|
TFCJJ6ST1440CSWITCH SNAP ACTION SPDT 15A 277V |
3,334 |
|
Datasheet |
TF | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 277 V | 125 V | Lever, Simulated Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 90gf | 10gf | 0.730" (18.5mm) | 0.100" (2.5mm) | 0.030" (0.76mm) | 0.060" (1.5mm) | -40°C ~ 85°C |
|
|
E3101AAWAEXSWITCH DETECTOR SPST-NO 5A 250V |
4,985 |
|
Datasheet |
3100 | Bulk | Active | SPST-NO | Off-Mom | 5A (AC) | 250 V | - | Angled Toggle (Detector) | Panel Mount, Snap-In | Quick Connect - 0.187" (4.7mm) | Splash Proof | - | - | - | - | - | - | - | - |
|
|
E3101AABAEXSWITCH DETECTOR SPST-NO 5A 250V |
1,925 |
|
Datasheet |
3100 | Bulk | Active | SPST-NO | Off-Mom | 5A (AC) | 250 V | - | Angled Toggle (Detector) | Panel Mount, Snap-In | Quick Connect - 0.187" (4.7mm) | Splash Proof | - | - | - | - | - | - | - | - |
