Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
83161431SWITCH SNAP ACTION SPDT 10A 250V |
2,113 |
|
Datasheet |
83161 | Bulk | Active | SPDT | On-Mom | 10A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Solder Lug | - | - | 51gf | 10gf | 0.579" (14.7mm) | - | 0.014" (0.35mm) | 0.047" (1.2mm) | -20°C ~ 125°C |
|
ZW50F92AW3SWITCH SNAP ACT SPST-NO 5A 125V |
3,657 |
|
Datasheet |
ZW | Bulk | Obsolete | SPST-NO | Off-Mom | 5A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 203gf | 50gf | 0.330" (8.4mm) | 0.047" (1.2mm) | 0.008" (0.2mm) | 0.025" (0.6mm) | -40°C ~ 105°C |
|
|
V7-1X2AD8-750SWITCH SNAP ACT SPST-NO 6A 125V |
2,946 |
|
Datasheet |
V7 | Bulk | Obsolete | SPST-NO | Off-Mom | 6A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 79gf | 6.000gf | 0.602" (15.3mm) | 0.100" (2.5mm) | 0.0008" (0.020mm) | 0.057" (1.45mm) | -40°C ~ 177°C |
|

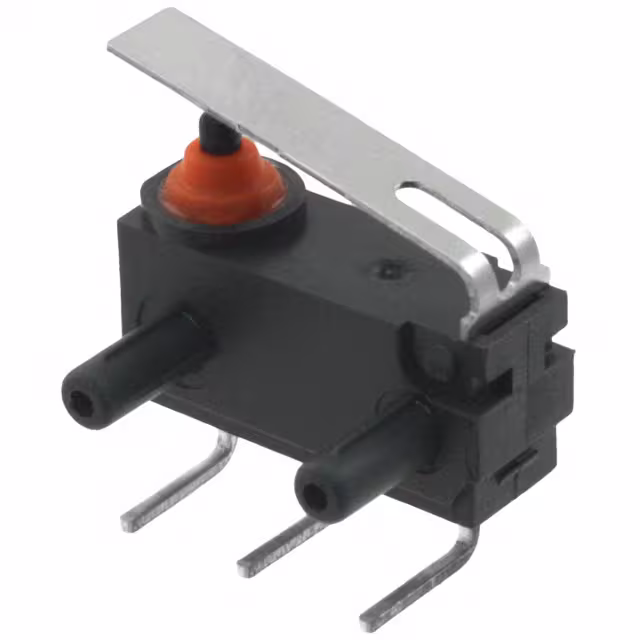

ZD30S60C02-ZSWITCH SNAP ACT SPDT 0.1A 125V |
2,761 |
|
Datasheet |
ZD | Tray | Obsolete | SPDT | On-Mom | 100mA (AC), 3A (DC) | 125 V | 12 V | Lever, Straight | Through Hole, Right Angle | PC Pin | IP00 | Support Posts | 195gf | 25gf | 0.291" (7.4mm) | 0.138" (3.5mm) | 0.025" (0.6mm) | 0.053" (1.35mm) | -40°C ~ 120°C |
|

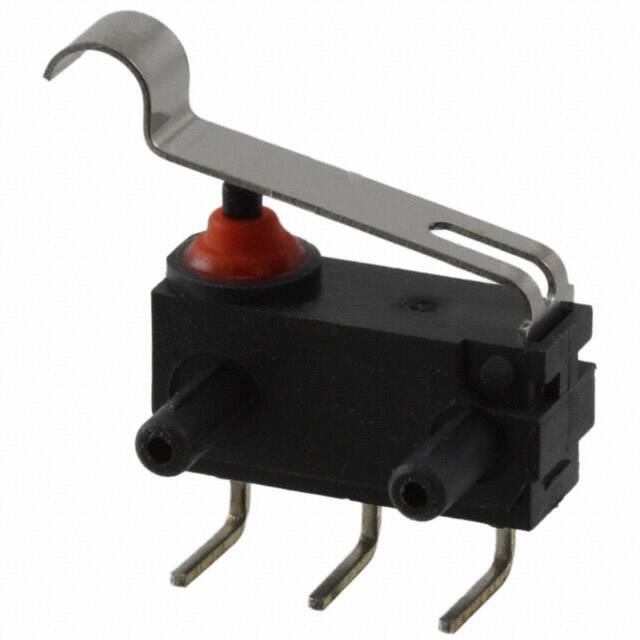

ZD30S60H02-ZSWITCH SNAP ACT SPDT 0.1A 125V |
3,966 |
|
Datasheet |
ZD | Tray | Obsolete | SPDT | On-Mom | 100mA (AC), 3A (DC) | 125 V | 12 V | Lever, Simulated Roller | Through Hole, Right Angle | PC Pin | IP00 | Support Posts | 180gf | 20gf | 0.420" (10.7mm) | 0.150" (3.8mm) | 0.027" (0.7mm) | 0.060" (1.5mm) | -40°C ~ 120°C |
|
|
V15W-DZ200A06-W2SWITCH SNAP ACTION SPDT 5A 125V |
2,546 |
|
Datasheet |
V15W | Tray | Obsolete | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 120gf | 20gf | 0.812" (20.6mm) | 0.125" (3.2mm) | 0.047" (1.2mm) | 0.051" (1.3mm) | -40°C ~ 85°C |
|
|
ABS463350SWITCH SNAP ACT SPST-NO 2A 125V |
3,834 |
|
Datasheet |
ABS | Bulk | Active | SPST-NO | Off-Mom | 2A (AC/DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 45gf | 2.957gf | 0.346" (8.80mm) | 0.138" (3.5mm) | 0.040" (1.0mm) | 0.063" (1.6mm) | -40°C ~ 85°C |
|
|
ZW10F20AD1SWITCH SNAP ACT SPDT 100MA 125V |
2,533 |
|
Datasheet |
ZW | Bulk | Obsolete | SPDT | On-Mom | 100mA (AC) | 125 V | - | Round (Pin Plunger) | Through Hole | PC Pin | IP00 | - | 203gf | 50gf | 0.330" (8.4mm) | 0.047" (1.2mm) | 0.008" (0.2mm) | 0.025" (0.6mm) | -40°C ~ 120°C |
|
|
ABJ261460SWITCH SNAP ACTION SPDT 2A 125V |
4,164 |
|
Datasheet |
ABJ | Bulk | Active | SPDT | On-Mom | 2A (AC/DC) | 125 V | 30 V | Lever, Simulated Roller | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 65gf | 5.000gf | 0.445" (11.3mm) | 0.118" (3.0mm) | 0.020" (0.5mm) | 0.020" (0.5mm) | -40°C ~ 85°C |
|
|
V15W-EP200A05-AW1SWITCH BASIC |
4,220 |
|
- |
* | Tray | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
V7-1C17D8-000-3V BASIC SWITCH |
3,610 |
|
- |
V7 | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | - | - | - | - | - | - | -40°C ~ 85°C |
|

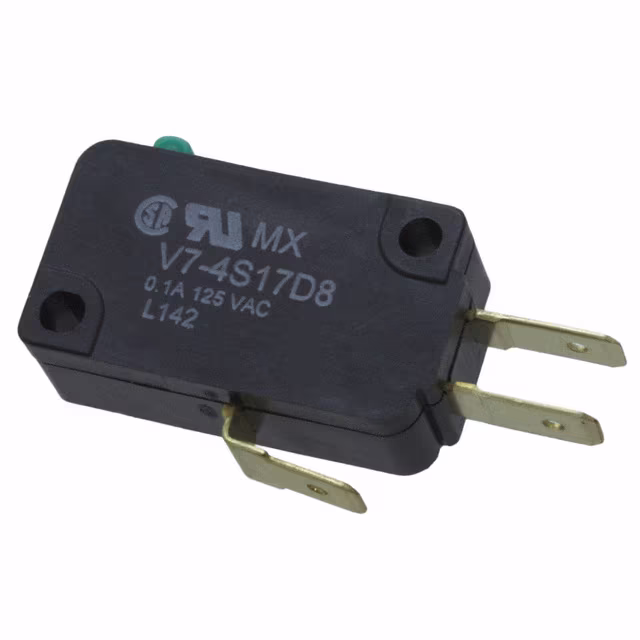

V7-4S17D8SWITCH SNAP ACT SPDT 0.1A 125V |
4,390 |
|
Datasheet |
V7 | Bulk | Active | SPDT | On-Mom | 100mA (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 25gf | - | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.010" (0.25mm) | 0.050" (1.27mm) | -40°C ~ 85°C |
|
|
83170443SWITCH SNAP ACTION SPDT 5A 250V |
2,119 |
|
Datasheet |
83170 | Bulk | Active | SPDT | On-Mom | 5A (AC) | 250 V | - | Lever, Simulated Roller | Chassis Mount | Solder Lug | - | Actuator Mounted Left Side | 20gf | 3.500gf | 0.512" (13.0mm) | - | 0.018" (0.45mm) | 0.060" (1.5mm) | -20°C ~ 130°C |
|
83170809SWITCH SNAP ACT SPDT 0.1A 250V |
4,425 |
|
Datasheet |
83170 | Bulk | Active | SPDT | On-Mom | 100mA (AC) | 250 V | - | Round (Pin Plunger) | Through Hole | PC Pin | - | - | 153gf | 31gf | 0.330" (8.4mm) | - | 0.006" (0.15mm) | 0.020" (0.5mm) | -20°C ~ 125°C |
|
V-10G5-1B5-KSWITCH SNAP ACTION SPDT 10A 250V |
2,771 |
|
Datasheet |
V | Tray | Obsolete | SPDT | On-Mom | 10A (AC), 100mA (DC) | 250 V | 125 V | Lever, Roller | Chassis Mount | Screw Terminal | IP40 | - | 240gf | 50gf | 0.815" (20.7mm) | 0.063" (1.6mm) | 0.025" (0.6mm) | 0.030" (0.76mm) | -25°C ~ 80°C |
|
|
ABV1612403SWITCH SNAP ACTION SPDT 3A 250V |
3,578 |
|
Datasheet |
ABV | Bulk | Active | SPDT | On-Mom | 3A (AC) | 250 V | - | Lever, Straight | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 60gf | 10gf | 0.602" (15.3mm) | 0.125" (3.2mm) | 0.047" (1.2mm) | 0.047" (1.2mm) | -40°C ~ 85°C |
|
|
ABJ263040SWITCH SNAP ACT SPST-NO 1A 125V |
4,577 |
|
Datasheet |
ABJ | Bulk | Active | SPST-NO | Off-Mom | 1A (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 125gf | 15gf | 0.276" (7.0mm) | 0.024" (0.6mm) | 0.005" (0.13mm) | 0.010" (0.25mm) | -40°C ~ 85°C |
|
|
H3005CB-BLACKSWITCH DETECT SPST-NC 0.2A 125V |
3,153 |
|
Datasheet |
3005 | Bulk | Active | SPST-NC | On-Mom | 200mA (AC) | 125 V | - | Angled Toggle (Detector) | Panel Mount, Snap-In | Quick Connect - 0.187" (4.7mm) | Splash Proof | - | - | - | - | - | - | - | - |
|
|
V15W-EZ200-W3SWITCH SNAP ACTION SPDT 10A 125V |
1,033 |
|
Datasheet |
V15W | Tray | Obsolete | SPDT | On-Mom | 10A (AC), 500mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 200gf | 50gf | 0.579" (14.7mm) | 0.063" (1.6mm) | 0.016" (0.4mm) | 0.030" (0.76mm) | -40°C ~ 85°C |
|
|
V-165-2A6SWITCH SNAP ACT SPST-NC 21A 250V |
2,706 |
|
Datasheet |
V | Bulk | Active | SPST-NC | On-Mom | 21A (AC), 600mA (DC) | 250 V | 125 V | Lever, Roller | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | IP40 | - | 400gf | 50gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.016" (0.4mm) | 0.039" (1.0mm) | -25°C ~ 105°C |
