Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
095-850-189-006COAX CBL BNC TO HD-BNC |
2,833 |
|
Datasheet |
- | Bag | Active | BNC to HD-BNC | BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | Belden 4855R | - | - | 75 Ohms | 12 GHz | Black | Shielded | - | - | - |
|
095-902-475-024COAX CBL SMA TO SMA |
2,219 |
|
Datasheet |
- | Bag | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | LMR 195 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | Shielded | - | - | - |
|
ASMA300R058L13COAX CBL SMA TO N-TYPE |
4,643 |
|
Datasheet |
- | Bulk | Active | SMA to N-Type | SMA Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 118.1" (3.0m) 9.8' | LLC200A | - | - | 50 Ohms | 6 GHz | Black | - | - | - | - |
|
095-902-451-003COAX CBL SMA TO SMA |
1,304 |
|
Datasheet |
- | Bag | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 3.000" (76.20mm) | TFlex-405 | - | - | 50 Ohms | 18 GHz | Blue | Shielded | - | - | - |
|
135108-02-36.00COAX CBL SMA TO SMA |
2,689 |
|
Datasheet |
- | Bulk | Active | SMA to SMA | SMA Jack | Female | Free Hanging (In-Line) | - | SMA Jack | Female | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-174 | 50 Ohms | - | 50 Ohms | 3 GHz | Black | Shielded | - | - | - |
|
047-6SMP+COAX CBL SMP TO SMP |
1,324 |
|
Datasheet |
047 SMP+ | Bag | Active | SMP to SMP | SMP Jack | Female | Free Hanging (In-Line) | - | SMP Jack | Female | Free Hanging (In-Line) | - | 6.000" (152.40mm) | Hand Formable .047 | - | - | 50 Ohms | 18 GHz | Blue | - | -45°C ~ 85°C | - | - |
|
|
CA-FJFJ-ZZ00150COAX CBL FAKRA TO FAKRA |
3,764 |
|
Datasheet |
CA | Bag | Active | Fakra to Fakra | Fakra Jack | Female | Free Hanging (In-Line) | - | Fakra Jack | Female | Free Hanging (In-Line) | - | 196.9" (5.0m) 16.4' | RG-174 | 50 Ohms | - | 50 Ohms | - | Black | - | -40°C ~ 105°C | - | - |
|

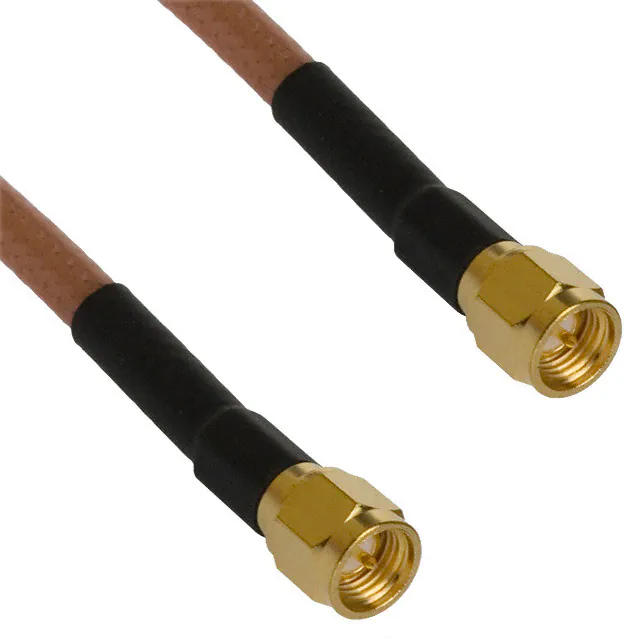

415-0043-036COAX CBL SMA TO SMA |
1,622 |
|
Datasheet |
- | Bulk | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-142 | 50 Ohms | 50 Ohms | 50 Ohms | 12.4 GHz | Copper | Shielded | - | - | - |
|
|
CC59A-25COAX CBL BNC TO BNC |
1,281 |
|
Datasheet |
- | Bag | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 300.0" (7.6m) 25.0' | RG-59 | 75 Ohms | 75 Ohms | 75 Ohms | - | Black | - | - | - | - |
|
135103-07-18.00COAX CBL SMA TO SMA |
1,953 |
|
Datasheet |
- | Bag | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 18.00" (457.20mm) | RG-142 | 50 Ohms | - | 50 Ohms | 12.4 GHz | Copper | Shielded | - | - | - |
|
135101-07-24.00COAX CBL SMA TO SMA |
2,852 |
|
Datasheet |
- | Bag | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-142 | 50 Ohms | - | 50 Ohms | 12.4 GHz | Copper | Shielded | - | - | - |
|
2249-E-240COAX CBL BNC TO BNC |
4,117 |
|
Datasheet |
- | Bulk | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 240.0" (6.1m) 20.0' | RG-59B | 75 Ohms | - | 75 Ohms | - | Black | Shielded | - | - | - |
|
095-902-530-018COAX CBL SMA TO N-TYPE |
3,972 |
|
Datasheet |
- | Bag | Active | SMA to N-Type | SMA Plug | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 18.00" (457.20mm) | RG-142 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | Shielded | - | - | - |
|
|
095-850-189-012COAX CBL BNC TO HD-BNC |
4,546 |
|
Datasheet |
- | Bag | Active | BNC to HD-BNC | BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | Belden 4855R | - | - | 75 Ohms | 12 GHz | Black | Shielded | - | - | - |
|
135110-04-144COAX CBL SMA TO SMA |
4,603 |
|
Datasheet |
- | Bulk | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug | Male | Free Hanging (In-Line) | - | 144.0" (3.7m) 12.0' | RG-58 | 50 Ohms | - | 50 Ohms | 1 GHz | Black | Shielded | - | - | - |
|
095-850-187M200COAX CBL BNC TO BNC |
1,882 |
|
Datasheet |
- | Bulk | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 78.7" (2.0m) 6.6' | Belden 4855R | - | - | 75 Ohms | 12 GHz | Black | Shielded | - | - | - |
|
ASMA300B174L13COAX CBL SMA TO SMA |
2,350 |
|
Datasheet |
- | Bulk | Active | SMA to SMA | SMA Jack | Female | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 118.1" (3.0m) 9.8' | LLC100A | - | - | 50 Ohms | 6 GHz | Black | - | - | - | - |
|
095-850-130M100COAX CBL BNC TO HD-BNC |
1,106 |
|
Datasheet |
- | Bag | Active | BNC to HD-BNC | BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | Belden 1855A | - | - | 75 Ohms | 3 GHz | Black | Shielded | -30°C ~ 75°C | - | - |
|
|
CA-RSPNFBCN19COAX CBL RP-SMA TO N-TYPE |
1,707 |
|
Datasheet |
- | Bag | Active | RP-SMA to N-Type | RP-SMA Plug | Female | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 19.000" (482.60mm) | - | - | - | 50 Ohms | - | Black | - | - | - | - |
|
115104-15-12.00COAX CBL BNC TO BNC |
1,434 |
|
Datasheet |
- | Bag | Active | BNC to BNC | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-59 | 75 Ohms | - | 75 Ohms | - | Black | Shielded | - | - | - |
