Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
141-6NM+COAX CBL N-TYPE TO N-TYPE |
2,011 |
|
Datasheet |
141 NM+ | Bag | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | Hand Formable .141 | - | - | 50 Ohms | 18 GHz | Blue | - | -55°C ~ 105°C | - | - |
|
|
141-10NM+COAX CBL N-TYPE TO N-TYPE |
2,378 |
|
Datasheet |
141 NM+ | Bag | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 10.000" (254.00mm) | Hand Formable .141 | - | - | 50 Ohms | 18 GHz | Blue | - | -55°C ~ 105°C | - | - |
|
145101-01-M0.75COAX CBL SMB TO SMB |
3,330 |
|
Datasheet |
- | Bag | Active | SMB to SMB | SMB Plug | Female | Free Hanging (In-Line) | - | SMB Plug | Female | Free Hanging (In-Line) | - | 29.53" (750.00mm) | RG-316 | 50 Ohms | - | 50 Ohms | - | Copper | Shielded | - | - | - |
|
415-0032-018COAX CBL SMA TO SMA |
3,916 |
|
Datasheet |
- | Bulk | Active | SMA to SMA | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 18.00" (457.20mm) | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 12.4 GHz | Copper | Shielded | - | - | - |
|
245101-04-M2.00COAX CBL BNC TO SMA |
3,661 |
|
Datasheet |
- | Bag | Active | BNC to SMA | BNC Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 78.7" (2.0m) 6.6' | RG-58 | 50 Ohms | - | 50 Ohms | 1 GHz | Black | Shielded | - | - | - |
|
415-0070-012COAX CBL SMA TO MMCX |
4,403 |
|
Datasheet |
- | Bulk | Active | SMA to MMCX | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MMCX Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-178 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | White | Shielded | - | - | - |
|
|
095-850-304-012COAX CBL BNC TO MCX |
1,492 |
|
Datasheet |
- | Bag | Active | BNC to MCX | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MCX Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-316 | 50 Ohms | - | 50 Ohms | 6 GHz | Copper | - | - | - | - |
|
2249-K-24COAX CBL BNC TO BNC |
3,718 |
|
Datasheet |
- | Bulk | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-174 | 50 Ohms | - | 50 Ohms | - | Black | Shielded | - | - | - |
|

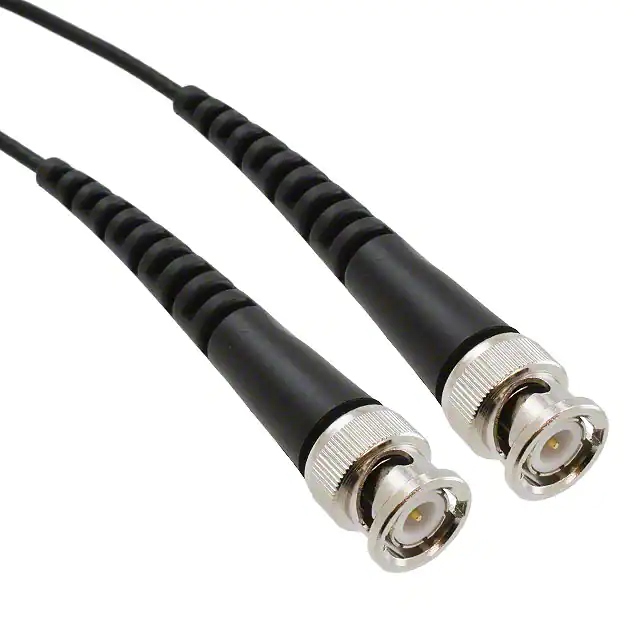

2249-K-36COAX CBL BNC TO BNC |
4,539 |
|
Datasheet |
- | Bulk | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-174 | 50 Ohms | - | 50 Ohms | - | Black | Shielded | - | - | - |
|
135101-R1-08.00COAX CBL SMA TO SMA |
1,730 |
|
Datasheet |
- | Bag | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 8.000" (203.20mm) | Hand Formable .085 | - | - | 50 Ohms | 12.4 GHz | Gray | - | - | - | - |
|
|
141-36SM+COAX CBL SMA TO SMA |
4,724 |
|
Datasheet |
141 | Bag | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | Hand Formable .141 | - | - | 50 Ohms | 18 GHz | Blue | - | -55°C ~ 105°C | - | - |
|
|
141-40SM+COAX CBL SMA TO SMA |
2,138 |
|
Datasheet |
141 SM+ | Bag | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | Hand Formable .141 | - | - | 50 Ohms | 18 GHz | Blue | - | -55°C ~ 105°C | - | - |
|
2249-E-120COAX CBL BNC TO BNC |
4,698 |
|
Datasheet |
- | Bulk | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 120.0" (3.0m) 10.0' | RG-59B | 75 Ohms | - | 75 Ohms | - | Black | Shielded | - | - | - |
|
|
095-850-301-012COAX CBL BNC TO MMCX |
2,935 |
|
Datasheet |
- | Bag | Active | BNC to MMCX | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-316 | 50 Ohms | - | 50 Ohms | 6 GHz | Copper | - | - | - | - |
|
095-902-570-024COAX CBL SMA TO SMA |
4,080 |
|
Datasheet |
- | Bag | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Copper | - | -65°C ~ 165°C | - | - |
|
145101-01-36.00COAX CBL SMB TO SMB |
2,683 |
|
Datasheet |
- | Bulk | Active | SMB to SMB | SMB Plug | Female | Free Hanging (In-Line) | - | SMB Plug | Female | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-316 | 50 Ohms | - | 50 Ohms | - | Copper | Shielded | - | - | - |
|
415-0082-004COAX CBL SMA TO SMA |
3,563 |
|
Datasheet |
- | Bag | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 4.000" (101.60mm) | Hand Formable .141 | - | 50 Ohms | 50 Ohms | 18 GHz | Gray | Shielded | - | - | - |
|
|
141-8SMNB+COAX CBL SMA TO N-TYPE |
2,167 |
|
Datasheet |
141 SMNB+ | Bag | Active | SMA to N-Type | SMA Plug | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Free Hanging (In-Line) | - | 8.000" (203.20mm) | Hand Formable .141 | - | - | 50 Ohms | 18 GHz | Blue | - | -55°C ~ 105°C | - | - |
|
095-902-530-006COAX CBL SMA TO N-TYPE |
1,744 |
|
Datasheet |
- | Bag | Active | SMA to N-Type | SMA Plug | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 6.000" (152.40mm) | RG-142 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | Shielded | - | - | - |
|
115101-20-M5.00COAX CBL BNC TO BNC |
2,935 |
|
Datasheet |
- | Bag | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 196.9" (5.0m) 16.4' | RG-59 | 75 Ohms | - | 75 Ohms | - | Black | - | -40°C ~ 80°C | - | - |
