Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

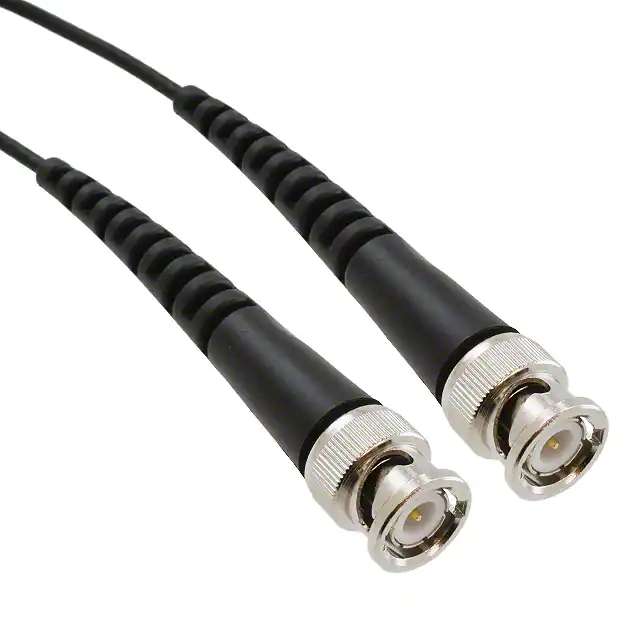

2249-K-48COAX CBL BNC TO BNC |
2,985 |
|
Datasheet |
- | Bulk | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | RG-174 | 50 Ohms | - | 50 Ohms | - | Black | Shielded | - | - | - |
|
2249-Y-36COAX CBL BNC TO BNC |
4,147 |
|
Datasheet |
- | Bulk | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-223 DS | 50 Ohms | - | 50 Ohms | - | Black | Shielded | - | - | - |
|
135101-R2-10.00COAX CBL SMA TO SMA |
3,376 |
|
Datasheet |
- | Bag | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 10.000" (254.00mm) | Hand Formable .141 | - | - | 50 Ohms | 12.4 GHz | Copper | - | - | - | - |
|
135101-07-12.00COAX CBL SMA TO SMA |
2,538 |
|
Datasheet |
- | Bag | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-142 | 50 Ohms | - | 50 Ohms | 12.4 GHz | Copper | Shielded | - | - | - |
|
FL141-6SMNM+COAX CBL SMA TO N-TYPE |
4,098 |
|
Datasheet |
FL141 SMNM+ | Bag | Active | SMA to N-Type | SMA Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | Hand Formable .141 | - | - | 50 Ohms | 18 GHz | Blue | - | -55°C ~ 105°C | - | - |
|
415-0061-036COAX CBL SMA TO N-TYPE |
3,977 |
|
Datasheet |
- | Bulk | Active | SMA to N-Type | SMA Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-142 | 50 Ohms | 50 Ohms | 50 Ohms | 12.4 GHz | Black | Shielded | - | - | - |
|
095-850-210-100COAX CBL U.FL AMC TO BNC |
1,933 |
|
Datasheet |
- | Bag | Active | U.FL (UMCC), AMC to BNC | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.937" (100.00mm) | RG-178 | 50 Ohms | - | 50 Ohms | 4 GHz | Copper | Shielded | - | - | - |
|
ASMA300B058L13COAX CBL SMA TO SMA |
3,228 |
|
Datasheet |
- | Bulk | Active | SMA to SMA | SMA Jack | Female | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 118.1" (3.0m) 9.8' | LLC200A | - | - | 50 Ohms | 6 GHz | Black | Shielded | - | - | - |
|
|
135101-R2-11.00COAX CBL SMA TO SMA |
3,165 |
|
Datasheet |
- | Bag | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 11.000" (279.40mm) | Hand Formable .141 | - | - | 50 Ohms | 12.4 GHz | Copper | - | - | - | - |
|
135101-R1-12.00COAX CBL SMA TO SMA |
2,201 |
|
Datasheet |
- | Bag | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | Hand Formable .085 | - | - | 50 Ohms | 12.4 GHz | Gray | - | - | - | - |
|
|
095-850-243-012COAX CBL BNC TO MCX |
4,208 |
|
Datasheet |
- | Bag | Active | BNC to MCX | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MCX Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | Belden 4855R | - | - | 75 Ohms | 12 GHz | Black | Shielded | - | - | - |
|
245103-02-36.00COAX CBL BNC TO SMB |
2,109 |
|
Datasheet |
- | Bag | Active | BNC to SMB | BNC Plug | Male | Free Hanging (In-Line) | - | SMB Plug, Right Angle | Female | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-174 | 50 Ohms | - | 50 Ohms | 1 GHz | Black | Shielded | - | - | - |
|
095-850-236-072COAX CBL BNC TO SMB |
1,416 |
|
Datasheet |
- | Bag | Active | BNC to SMB | BNC Plug | Male | Free Hanging (In-Line) | - | SMB Plug | Female | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | RG-174 | 50 Ohms | - | 50 Ohms | 1 GHz | Black | Shielded | - | - | - |
|
095-850-249-072COAX CBL BNC TO SMA |
3,705 |
|
Datasheet |
- | Bag | Active | BNC to SMA | BNC Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | RG-174 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | Shielded | - | - | - |
|
|
RF316-01RP1-06BJ2-0152COAX CBL N-TYPE TO SMA |
4,743 |
|
Datasheet |
RF316 | Bag | Active | N-Type to SMA | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 5.984" (152.00mm) | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Amber | - | -50°C ~ 165°C | - | - |
|
|
047-3SMPSM+COAX CBL SMA TO SMP |
3,001 |
|
Datasheet |
047-SMPSM+ | Bag | Active | SMA to SMP | SMA Plug | Male | Free Hanging (In-Line) | - | SMP Jack | Female | Free Hanging (In-Line) | - | 3.000" (76.20mm) | Hand Formable .047 | - | - | 50 Ohms | 18 GHz | Blue | - | -45°C ~ 85°C | - | - |
|
|
047-6SMPSM+COAX CBL SMA TO SMP |
3,349 |
|
Datasheet |
047-SMPSM+ | Bag | Active | SMA to SMP | SMA Plug | Male | Free Hanging (In-Line) | - | SMP Jack | Female | Free Hanging (In-Line) | - | 6.000" (152.40mm) | Hand Formable .047 | - | - | 50 Ohms | 18 GHz | Blue | - | -45°C ~ 85°C | - | - |
|
4964-SS-72COAX CBL BNC TO BNC |
4,083 |
|
Datasheet |
- | Bulk | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | 4.95mm OD Coaxial Cable | - | - | 50 Ohms | 10 kHz | Black | Shielded | 50°C | - | - |
|
265104-01-48.00COAX CBL MMCX TO MMCX |
1,117 |
|
Datasheet |
- | Bag | Active | MMCX to MMCX | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | RG-316 | 50 Ohms | - | 50 Ohms | - | Copper | Shielded | - | - | - |
|
|
135101-R2-12.00COAX CBL SMA TO SMA |
4,691 |
|
Datasheet |
- | Bag | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | Hand Formable .141 | - | - | 50 Ohms | 12.4 GHz | Copper | - | - | - | - |
