Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
135103-01-M0.75COAX CBL SMA TO SMA |
2,435 |
|
Datasheet |
- | Bag | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 29.53" (750.00mm) | RG-316 | 50 Ohms | - | 50 Ohms | 3 GHz | Copper | Shielded | - | - | - |
|
135103-01-36.00COAX CBL SMA TO SMA |
2,270 |
|
Datasheet |
- | Bulk | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-316 | 50 Ohms | - | 50 Ohms | 3 GHz | Copper | Shielded | - | - | - |
|
CA-AM01ZJ-AM01ZJ-1MCOAX CBL MINI FAKRA-MINI FAKRA |
2,346 |
|
Datasheet |
- | Bag | Active | Mini Fakra to Mini Fakra | Fakra Mini Jack | Female | Free Hanging (In-Line) | - | Fakra Mini Jack | Female | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | 0.130" OD Coaxial Cable | - | - | 50 Ohms | - | Black | - | -40°C ~ 105°C | - | - |
|
|
CA-FJFM-ZZ00210WPCOAX CBL FAKRA TO FAKRA |
1,581 |
|
Datasheet |
- | Bag | Active | Fakra to Fakra | Fakra Jack | Female | Free Hanging (In-Line) | - | Fakra Jack | Female | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | RG-316 | 50 Ohms | - | - | - | Brown | - | - | - | - |
|
CO-316RASMAX2-001COAX CBL SMA TO SMA |
4,407 |
|
Datasheet |
- | Bag | Active | SMA to SMA | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-316 | 50 Ohms | - | - | - | Brown | Shielded | 200°C | - | - |
|
BNC-C-48COAX CBL BNC TO BNC |
2,136 |
|
Datasheet |
- | Bulk | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | RG-58C | 50 Ohms | - | 50 Ohms | - | Black | Shielded | 80°C | - | - |
|
|
BNC-C-60COAX CBL BNC TO BNC |
4,610 |
|
Datasheet |
- | Bulk | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | RG-58C | 50 Ohms | - | 50 Ohms | - | Black | Shielded | 80°C | - | - |
|
|
CAB-21740COAX CBL SMA TO TNC |
1,508 |
|
- |
- | Box | Active | SMA to TNC | SMA Plug | Male | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 393.7" (10.0m) 32.8' | RG-58 | 50 Ohms | - | - | - | Black | - | - | - | - |
|

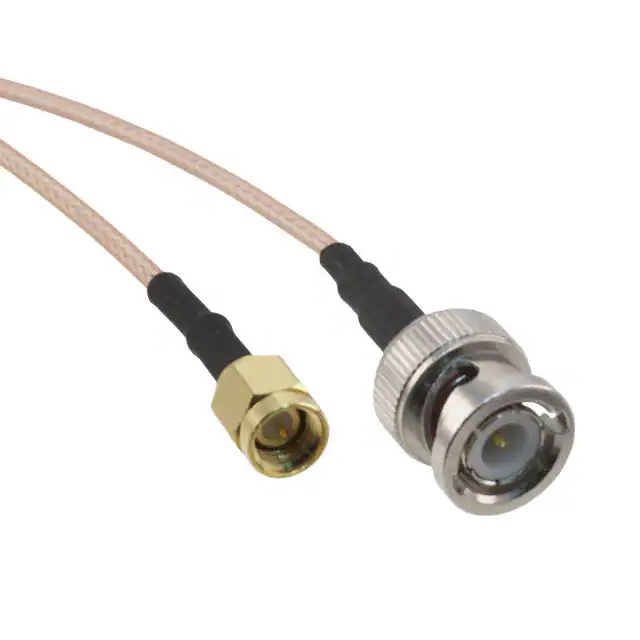

245101-01-36.00COAX CBL BNC TO SMA |
2,173 |
|
Datasheet |
- | Bag | Active | BNC to SMA | BNC Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-316 | 50 Ohms | - | 50 Ohms | - | Copper | Shielded | - | - | - |
|
RF179-72SP1-74SP3-1000COAX CBL BNC TO MCX |
2,103 |
|
Datasheet |
RF179 | Bag | Active | BNC to MCX | BNC Plug | Male | Free Hanging (In-Line) | - | MCX Plug | Male | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | RG-179 | 75 Ohms | 75 Ohms | 75 Ohms | 4 GHz | Amber | Shielded | -50°C ~ 165°C | - | - |
|
59-180-1MCOAX CBL BNC TO BNC |
3,701 |
|
Datasheet |
- | Bulk | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 180.0" (4.6m) 15.0' | RG-59 | 75 Ohms | - | 75 Ohms | - | Black | Shielded | 80°C | - | - |
|
095-850-246M050COAX CBL BNC TO SMA |
2,204 |
|
Datasheet |
- | Bag | Active | BNC to SMA | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug | Male | Free Hanging (In-Line) | - | 19.69" (500.00mm) | RG-58 | 50 Ohms | - | 50 Ohms | 3 GHz | Black | - | - | - | - |
|
115101-35-24.00COAX CBL BNC TO BNC |
2,104 |
|
Datasheet |
- | Bag | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | Belden 179DT | 75 Ohms | 75 Ohms | 75 Ohms | 4 GHz | Black | Shielded | - | - | - |
|
245130-01-24.00COAX CBL SMA TO MCX |
1,945 |
|
Datasheet |
- | Bag | Active | SMA to MCX | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-316 | 50 Ohms | - | 50 Ohms | - | Copper | Shielded | - | - | - |
|
336203-12-0100COAX CBL U.FL AMC TO TNC |
2,884 |
|
Datasheet |
- | Bulk | Active | U.FL (UMCC), AMC to TNC | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 3.937" (100.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | - | - | - |
|
135101-R1-04.00COAX CBL SMA TO SMA |
1,599 |
|
Datasheet |
- | Bag | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 4.000" (101.60mm) | Hand Formable .085 | - | - | 50 Ohms | 12.4 GHz | Gray | - | - | - | - |
|
|
095-902-589M025COAX CBL SMA TO SMA |
2,180 |
|
Datasheet |
- | Bag | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 9.843" (250.00mm) | LMR 100A | 50 Ohms | - | 50 Ohms | 6 GHz | Copper | - | - | - | - |
|
095-850-277M100COAX CBL BNC TO BNC |
2,887 |
|
Datasheet |
BNC | Bag | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | LMR 195 | 50 Ohms | - | 50 Ohms | 3 GHz | Black | - | -40°C ~ 85°C | - | - |
|
095-850-249M100COAX CBL BNC TO SMA |
4,636 |
|
Datasheet |
- | Bag | Active | BNC to SMA | BNC Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | RG-174 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | Shielded | - | - | - |
|
095-902-531-006COAX CBL SMA TO N-TYPE |
1,333 |
|
Datasheet |
- | Bag | Active | SMA to N-Type | SMA Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-316 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | Shielded | - | - | - |
