Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
415-0198-036COAX CBL BNC TO BNC |
3,759 |
|
Datasheet |
- | Bag | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-174 | 50 Ohms | 50 Ohms | 50 Ohms | 1 GHz | Black | Shielded | -40°C ~ 80°C | - | - |
|
BU-4150028012COAX CBL BNC TO SMA |
2,592 |
|
Datasheet |
BU | Bulk | Active | BNC to SMA | BNC Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 3 GHz | Copper | Shielded | -65°C ~ 150°C | - | - |
|
CABLE 197 RF-150-A-4COAX CBL MHF1 TO RP-SMA |
2,194 |
|
Datasheet |
Nautilus | Bag | Active | I-PEX MHF1 to RP-SMA | RP-SMA Jack | Male | Panel Mount | Bulkhead - Rear Side Nut | I-PEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 5.906" (150.00mm) | RG-178 | 50 Ohms | - | 50 Ohms | 3 GHz | Brown | IP Rated Unmated | -40°C ~ 90°C | - | - |
|
CO-058BNCX200-000.6COAX CBL BNC TO BNC |
1,131 |
|
Datasheet |
- | Bag | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-58 | 50 Ohms | - | - | 4 GHz | Black | Shielded | -40°C ~ 85°C | - | - |
|

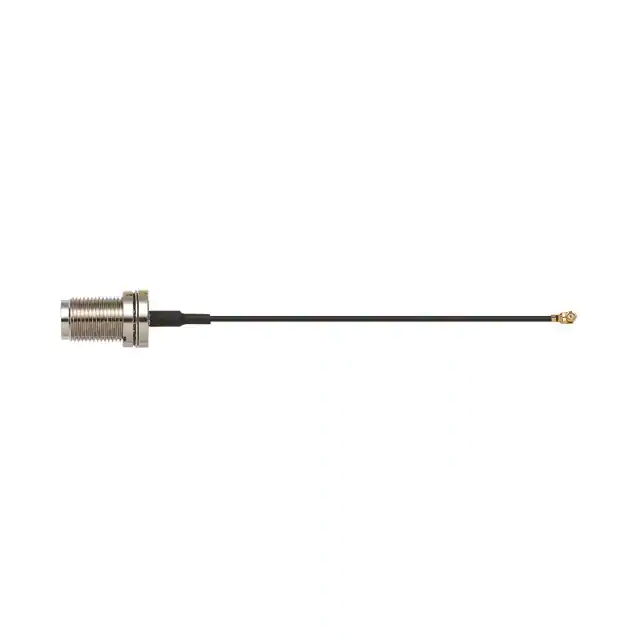

CAB.6009COAX CBL U.FL MHF1 TO TNC |
3,423 |
|
Datasheet |
- | Bag | Active | U.FL (UMCC), I-PEX MHF1 to TNC | U.FL (UMCC), I-PEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 3.937" (100.00mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | 1.3 GHz | Black | Shielded | 105°C | - | - |
|
CO-174BNCX200-002COAX CBL BNC TO BNC |
2,272 |
|
Datasheet |
- | Bag | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-174 | 50 Ohms | - | - | 6 GHz | Black | Shielded | -40°C ~ 85°C | - | - |
|
0732305303COAX CBL SMA TO SMA |
2,369 |
|
Datasheet |
73230 | Bulk | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug | Male | Free Hanging (In-Line) | - | 18.00" (457.20mm) | RG-174 | 50 Ohms | - | - | - | - | - | - | - | - |
|
0732305313COAX CBL SMA TO SMA |
2,751 |
|
Datasheet |
73230 | Bulk | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 18.00" (457.20mm) | RG-316 | 50 Ohms | - | - | - | - | - | - | - | - |
|

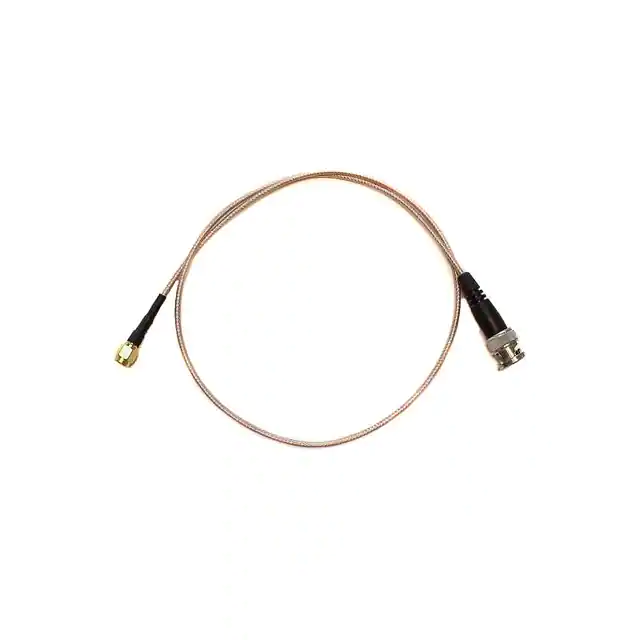

BU-4150028024COAX CBL BNC TO SMA |
4,164 |
|
Datasheet |
BU | Bulk | Active | BNC to SMA | BNC Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 3 GHz | Copper | Shielded | -65°C ~ 150°C | - | - |
|

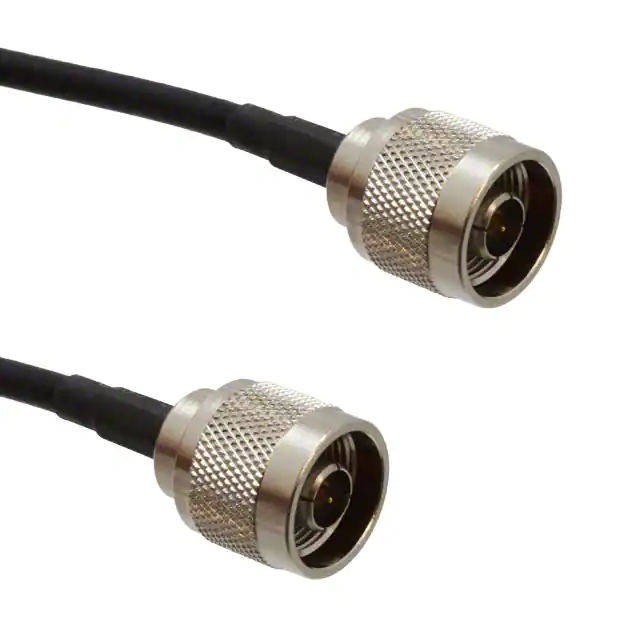

CBA-NM-NM1COAX CBL N-TYPE TO N-TYPE |
4,454 |
|
Datasheet |
- | Bulk | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | RG-58 | 50 Ohms | - | 50 Ohms | - | Black | Shielded | - | - | - |
|
135100-01-06.00COAX CBL SMA TO CABLE |
4,879 |
|
Datasheet |
- | Bulk | Active | SMA to Cable | SMA Plug | Male | Free Hanging (In-Line) | - | Cable (Round) | - | - | - | 6.000" (152.40mm) | RG-316 | 50 Ohms | - | 50 Ohms | - | Copper | Shielded | - | - | - |
|
BU-4150028036COAX CBL BNC TO SMA |
3,656 |
|
Datasheet |
BU | Bulk | Active | BNC to SMA | BNC Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 3 GHz | Copper | Shielded | -65°C ~ 150°C | - | - |
|
|
CO-174BNCX200-003COAX CBL BNC TO BNC |
3,075 |
|
Datasheet |
- | Bag | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-174 | 50 Ohms | - | - | 6 GHz | Black | Shielded | -40°C ~ 85°C | - | - |
|
CA-BNC-P-P-02-610LCOAX CBL BNC TO BNC |
1,206 |
|
Datasheet |
CA | Bag | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-174 | 50 Ohms | - | 50 Ohms | - | Black | - | - | - | - |
|
CCSMA2-MM-RG174-6COAX CBL SMA TO SMA |
4,313 |
|
Datasheet |
CCSMA2 | Bulk | Active | SMA to SMA | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-174 | 50 Ohms | - | 50 Ohms | - | Black | Shielded | -40°C ~ 85°C | - | - |
|
ASMA020X174S11COAX CBL SMA TO SMA |
1,612 |
|
Datasheet |
- | Bag | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug | Male | Free Hanging (In-Line) | - | 7.874" (200.00mm) | RG-174 | 50 Ohms | - | - | 6 GHz | Black | Shielded | - | - | - |
|
BU-4150028048COAX CBL BNC TO SMA |
1,363 |
|
Datasheet |
BU | Bulk | Active | BNC to SMA | BNC Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 3 GHz | Copper | Shielded | -65°C ~ 150°C | - | - |
|
CCSMA1-MM-RG174-24COAX CBL SMA TO SMA |
4,792 |
|
Datasheet |
CCSMA1 | Bulk | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-174 | 50 Ohms | - | 50 Ohms | - | Black | Shielded | -40°C ~ 85°C | - | - |
|
CA100-NM-MMCX-12COAX CBL MMCX TO N-TYPE |
3,018 |
|
Datasheet |
CA178 | Box | Active | MMCX to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | LMR 100 | 50 Ohms | - | - | 6 GHz | Copper | Shielded | - | - | - |
|
CCMX2-MM-RG316-18COAX CBL MMCX TO MMCX |
2,644 |
|
Datasheet |
CCMX2 | Bag | Active | MMCX to MMCX | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 18.00" (457.20mm) | RG-316 | 50 Ohms | - | 50 Ohms | 6 GHz | Copper | Shielded | -40°C ~ 85°C | - | - |
