Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SF102E/11SK/11SK/914MMCOAX CBL 2.92MM TO 2.92MM |
4,630 |
|
Datasheet |
Sucoflex® 100 | Bag | Active | 2.92mm to 2.92mm | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | 4.00mm OD Coaxial Cable | 50 Ohms | - | - | 40 GHz | Blue | - | -40°C ~ 85°C | - | - |
|
TM40-0158-00COAX CBL SMA TO HC2 |
3,072 |
|
Datasheet |
CoreHC | Bag | Active | SMA to HC2 | SMA Jack (8) | Female | Free Hanging (In-Line) | - | HC2 | - | Free Hanging (In-Line) | - | 8.268" (210.00mm) | 1.98mm OD Coaxial Cable | - | - | 50 Ohms | 26 GHz | Black | Protective Cap | -65°C ~ 150°C | - | - |
|
|
PMASF570S/11PC185/11PC185/24INCOAX CBL 1.85MM TO 1.85MM |
1,564 |
|
Datasheet |
Sucoflex® 500 | Bag | Active | 1.85mm to 1.85mm | 1.85mm Plug | Male | Free Hanging (In-Line) | - | 1.85mm Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | 5.80mm OD Coaxial Cable | 50 Ohms | - | - | 70 GHz | Blue | - | -55°C ~ 125°C | - | - |
|
|
CAB-22034COAX CBL SMA TO SMA |
1,147 |
|
Datasheet |
- | Box | Active | SMA to SMA | SMA Jack | Female | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 9.843" (250.00mm) | RG-174 | 50 Ohms | - | - | - | Black | - | - | - | - |
|
CA-DKCA0-152L1-ALI0-OCOAX CBL U.FL MHF1 TO RP-SMA |
100 |
|
Datasheet |
CA | Bag | Active | U.FL (UMCC), I-PEX MHF1 to RP-SMA | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC), I-PEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 5.984" (152.00mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | - | - | - |
|
MH113-MH1RP-MH1RP-0100COAX CBL U.FL MHF1 TO U.FL MHF1 |
3,079 |
|
Datasheet |
MH113 | Bag | Active | U.FL (UMCC), I-PEX MHF1 to U.FL (UMCC), I-PEX MHF1 | U.FL (UMCC), I-PEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC), I-PEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.937" (100.00mm) | 1.13mm OD Coaxial Cable | 50 Ohms | - | 50 Ohms | 6 GHz | Gray | Shielded | -40°C ~ 90°C | - | - |
|

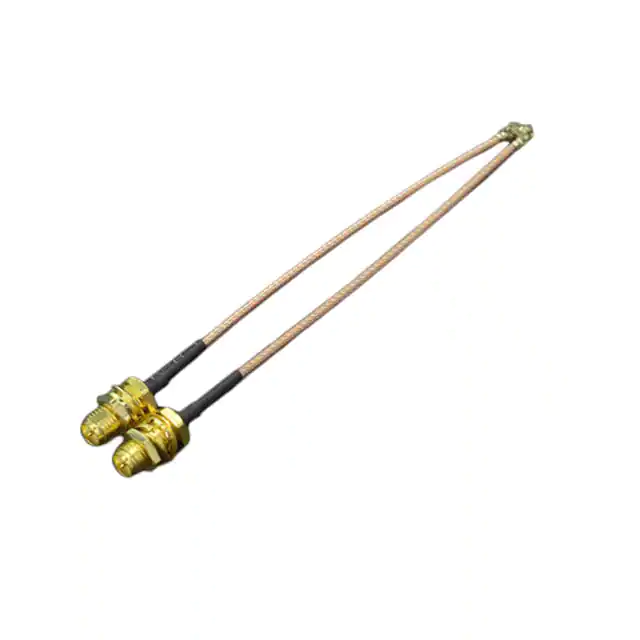

FIT0872COAX CBL U.FL TO SMA |
3,515 |
|
- |
- | Bulk | Active | U.FL (UMCC), I-PEX to SMA | U.FL (UMCC), I-PEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | RP-SMA Plug | Male | Panel Mount | Bulkhead - Front Side Nut | 3.937" (100.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | - | 2 pcs per pkg, Shielded | - | - | - |
|

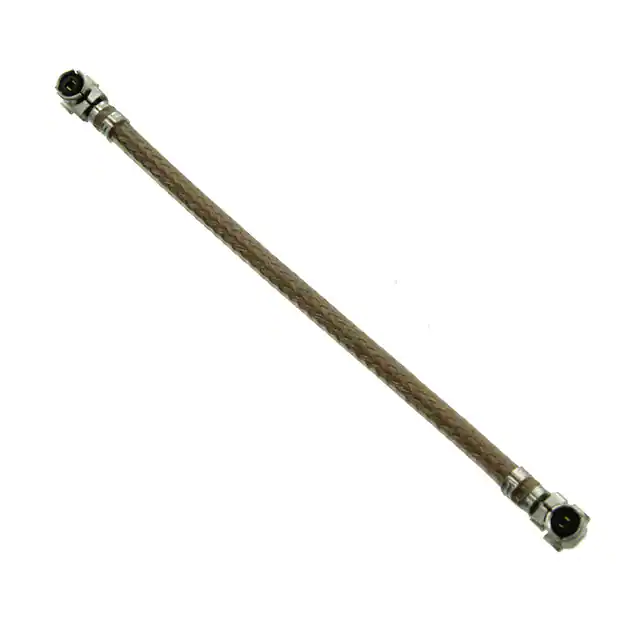

A-1PA-178-050N2COAX CBL U.FL AMC-U.FL AMC |
1,627 |
|
Datasheet |
- | Bag | Active | U.FL (UMCC), AMC to U.FL (UMCC), AMC | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 1.969" (50.00mm) | RG-178 | 50 Ohms | - | 50 Ohms | 3 GHz | Natural | Shielded | -40°C ~ 90°C | - | - |
|

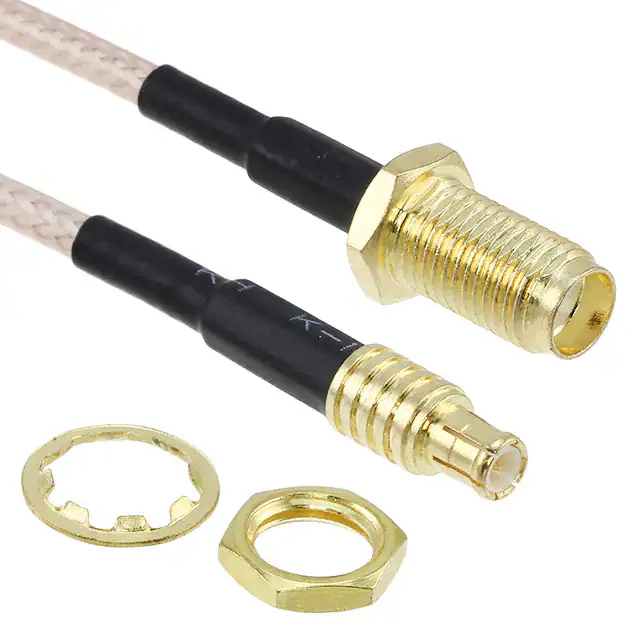

CBA-SMAF-MCXMCOAX CBL SMA TO MCX |
3,873 |
|
Datasheet |
- | Bag | Active | SMA to MCX | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MCX Plug | Male | Free Hanging (In-Line) | - | 7.874" (200.00mm) | RG-174 | 50 Ohms | - | 50 Ohms | - | Copper | - | - | - | - |
|
CBA-SMAF-MCXMRCOAX CBL SMA TO MCX |
1,365 |
|
Datasheet |
- | Bag | Active | SMA to MCX | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 7.874" (200.00mm) | RG-174 | 50 Ohms | - | 50 Ohms | - | Black | - | - | - | - |
|
A-1PA-113-125B2COAX CBL U.FL AMC-U.FL AMC |
2,374 |
|
Datasheet |
- | Bulk | Active | U.FL (UMCC), AMC to U.FL (UMCC), AMC | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 4.902" (124.50mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | Shielded | -40°C ~ 90°C | - | - |
|
CSI-RGFI-300-UFFRCOAX CBL U.FL TO RP-SMA |
3,029 |
|
Datasheet |
- | Bulk | Active | U.FL (UMCC) to RP-SMA | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 11.811" (300.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 3 GHz | Gray | - | - | - | - |
|
|
A-1PA-113-279B2COAX CBL U.FL AMC-U.FL AMC |
1,417 |
|
Datasheet |
- | Bulk | Active | U.FL (UMCC), AMC to U.FL (UMCC), AMC | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 11.000" (279.40mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | Shielded | -40°C ~ 90°C | - | - |
|
A-1PA-137-040B2COAX CBL U.FL AMC-U.FL AMC |
1,771 |
|
Datasheet |
- | Bulk | Active | U.FL (UMCC), AMC to U.FL (UMCC), AMC | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 1.575" (40.00mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | Shielded | -40°C ~ 90°C | - | - |
|
|
CASI248-100COAX CBL MHF1 TO SMA |
4,216 |
|
Datasheet |
- | Bag | Active | I-PEX MHF1 to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | I-PEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.937" (100.00mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | -55°C ~ 155°C | - | - |
|
CCSMA-MFB-RG174-12COAX CBL SMA TO SMA |
3,768 |
|
Datasheet |
CCSMA | Bag | Active | SMA to SMA | SMA Jack | Female | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-174 | 50 Ohms | - | 50 Ohms | - | Black | Shielded | -40°C ~ 85°C | - | - |
|

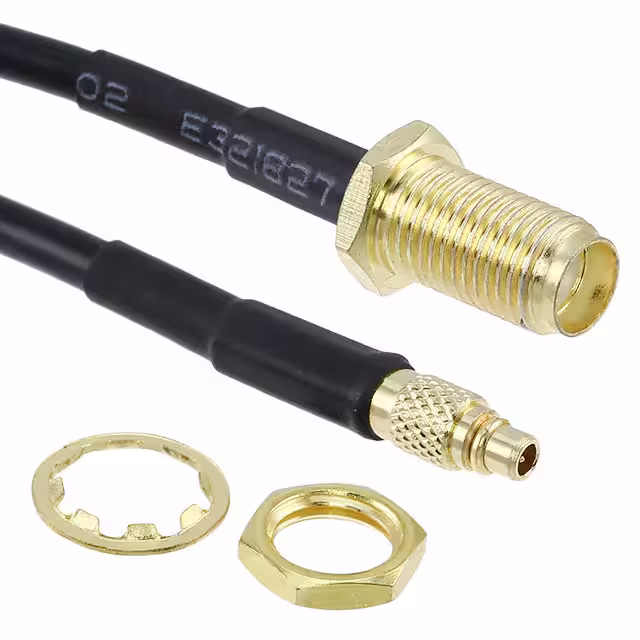

CBA-SMAF-MMCXMCOAX CBL SMA TO MMCX |
2,393 |
|
Datasheet |
- | Bag | Active | SMA to MMCX | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MMCX Plug | Male | Free Hanging (In-Line) | - | 7.874" (200.00mm) | RG-174 | 50 Ohms | - | 50 Ohms | - | Black | - | - | - | - |
|
CCSMX-FBM-RG316-6COAX CBL SMA TO MMCX |
4,391 |
|
Datasheet |
CCSMX | Bag | Active | SMA to MMCX | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MMCX Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-316 | 50 Ohms | - | 50 Ohms | 6 GHz | Copper | Shielded | -40°C ~ 85°C | - | - |
|
|
CAB-21281COAX CBL SMA TO SMA |
2,916 |
|
Datasheet |
- | Bulk | Active | SMA to SMA | SMA Jack | Female | Free Hanging (In-Line) | - | SMA Plug | Male | Panel Mount | Bulkhead - Front Side Nut | 393.7" (10.0m) 32.8' | RG-58 | 50 Ohms | - | 50 Ohms | - | Black | - | - | - | - |
|
415-0096-250COAX CBL U.FL TO SMA |
4,622 |
|
Datasheet |
- | Bulk | Active | U.FL (UMCC) to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 9.843" (250.00mm) | 0.81mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | Shielded | -40°C ~ 90°C | - | - |
