Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

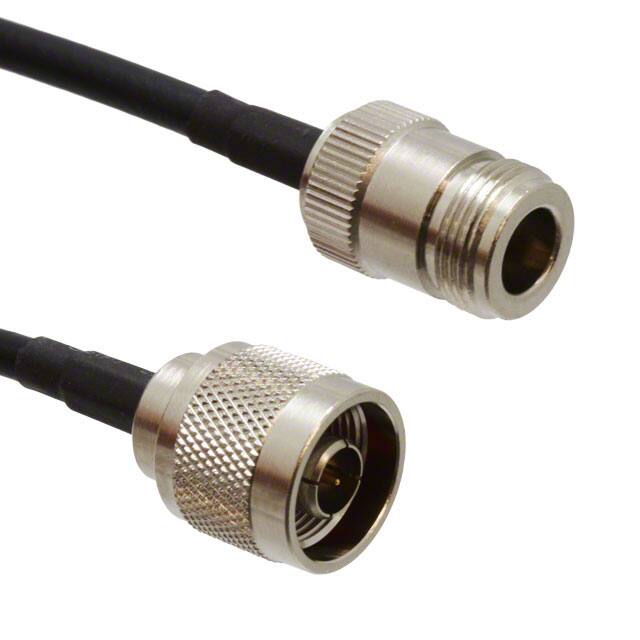

CBA-NF-NM1COAX CBL N-TYPE TO N-TYPE |
3,765 |
|
Datasheet |
- | Bulk | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | RG-58 | 50 Ohms | - | - | - | Black | Shielded | - | - | - |
|
CCMX2-MM-RG316-6COAX CBL MMCX TO MMCX |
2,447 |
|
Datasheet |
CCMX2 | Bag | Active | MMCX to MMCX | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-316 | 50 Ohms | - | 50 Ohms | 6 GHz | Copper | Shielded | -40°C ~ 85°C | - | - |
|
BC55COAX CBL BNC TO CABLE |
2,924 |
|
Datasheet |
- | Bag | Active | BNC to Cable | BNC Jack | Female | Free Hanging (In-Line) | - | Cable (Round) | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

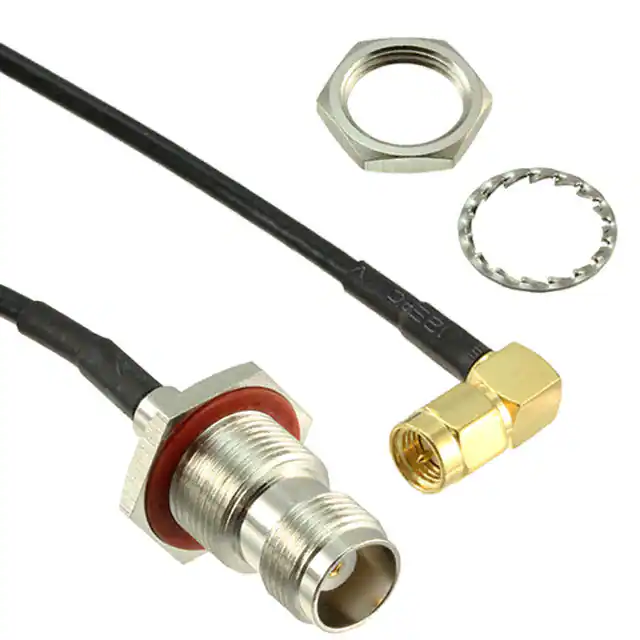

CBA-TNCF-SMAMRCOAX CBL SMA TO TNC |
1,319 |
|
Datasheet |
- | Bag | Active | SMA to TNC | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 7.874" (200.00mm) | RG-174 | 50 Ohms | - | 50 Ohms | - | Black | - | - | - | - |
|
415-0037-MM250COAX CBL BNC TO SMA |
3,702 |
|
Datasheet |
- | Bulk | Active | BNC to SMA | BNC Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 9.843" (250.00mm) | RG-58 | 50 Ohms | 50 Ohms | 50 Ohms | 4 GHz | Black | Shielded | - | - | - |
|

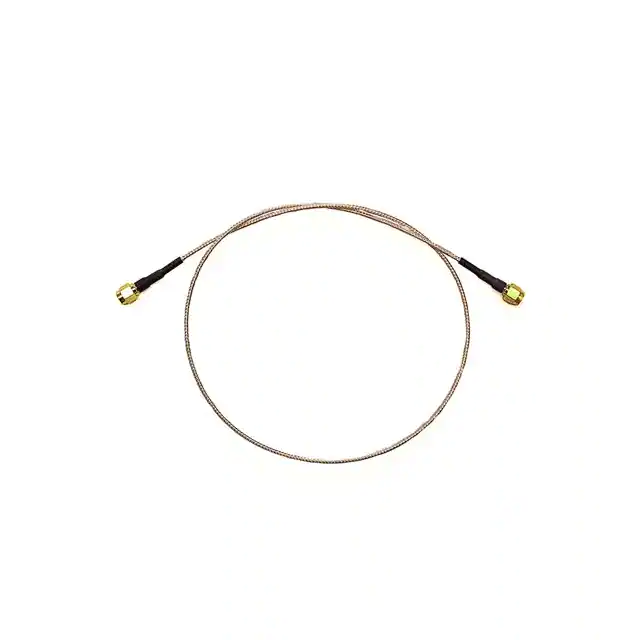

BU-4150029006COAX CBL SMA TO SMA |
2,269 |
|
Datasheet |
BU | Bulk | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 3 GHz | Copper | Shielded | -65°C ~ 150°C | - | - |
|
A-1PA-178-500N2COAX CBL U.FL AMC-U.FL AMC |
3,908 |
|
Datasheet |
- | Bag | Active | U.FL (UMCC), AMC to U.FL (UMCC), AMC | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 19.69" (500.00mm) | RG-178 | 50 Ohms | - | 50 Ohms | 3 GHz | Natural | Shielded | -40°C ~ 90°C | - | - |
|
59-012-1MCOAX CBL BNC TO BNC |
4,590 |
|
Datasheet |
- | Bulk | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-59 | 75 Ohms | - | 75 Ohms | - | Black | Shielded | 80°C | - | - |
|
415-0033-MM250COAX CBL SMA TO SMA |
4,298 |
|
Datasheet |
- | Bulk | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 9.843" (250.00mm) | RG-316 DS | 50 Ohms | 50 Ohms | 50 Ohms | 12.4 GHz | Gray | Shielded | - | - | - |
|
ASML010L178S11COAX CBL MMCX TO MMCX |
4,774 |
|
Datasheet |
- | Bag | Active | MMCX to MMCX | MMCX Plug | Male | Free Hanging (In-Line) | - | MMCX Plug | Male | Free Hanging (In-Line) | - | 3.937" (100.00mm) | RG-178 | 50 Ohms | - | - | 6 GHz | Beige | - | - | - | - |
|
CCMX1-MM-RG178-12COAX CBL MMCX TO MMCX |
1,877 |
|
Datasheet |
CCMX1 | Bag | Active | MMCX to MMCX | MMCX Plug | Male | Free Hanging (In-Line) | - | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-178 | 50 Ohms | - | 50 Ohms | 6 GHz | Copper | Shielded | -40°C ~ 85°C | - | - |
|
BU-P5697-36COAX CBL BNC TO BNC |
3,874 |
|
Datasheet |
- | Bag | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-58C | 50 Ohms | - | 50 Ohms | - | Black | Shielded | -40°C ~ 85°C | - | - |
|
|
BU-P5697-6COAX CBL BNC TO BNC |
3,029 |
|
Datasheet |
- | Bag | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-58C | 50 Ohms | - | 50 Ohms | - | Black | Shielded | -40°C ~ 85°C | - | - |
|
|
BU-P5697-12COAX CBL BNC TO BNC |
2,747 |
|
Datasheet |
- | Bag | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-58C | 50 Ohms | - | 50 Ohms | - | Black | Shielded | -40°C ~ 85°C | - | - |
|
|
CAB-22038COAX CBL RP-SMA TO RP-SMA |
1,622 |
|
Datasheet |
- | Box | Active | RP-SMA to RP-SMA | RP-SMA Jack | Male | Free Hanging (In-Line) | - | RP-SMA Plug | Female | Free Hanging (In-Line) | - | 393.7" (10.0m) 32.8' | RG-58 | 50 Ohms | - | - | - | Black | - | - | - | - |
|

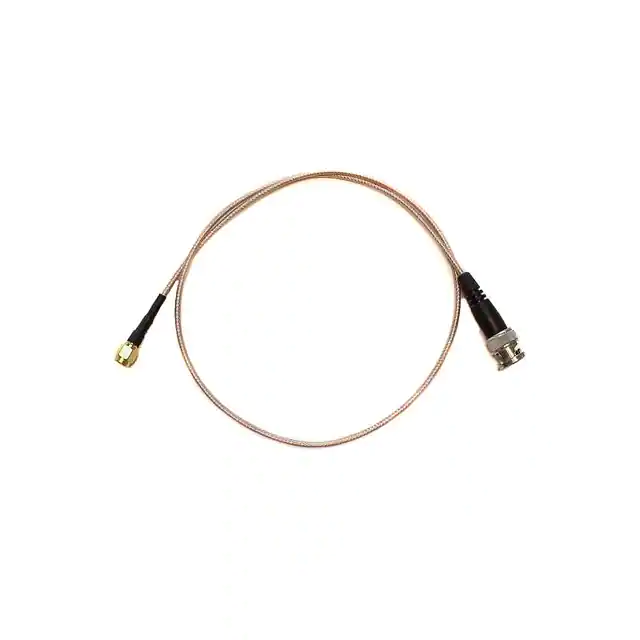

BU-4150028006COAX CBL BNC TO SMA |
4,732 |
|
Datasheet |
BU | Bulk | Active | BNC to SMA | BNC Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 3 GHz | Copper | Shielded | -65°C ~ 150°C | - | - |
|
|
BU-P5697-48COAX CBL BNC TO BNC |
3,881 |
|
Datasheet |
- | Bag | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | RG-58C | 50 Ohms | - | 50 Ohms | - | Black | Shielded | -40°C ~ 85°C | - | - |
|
0732305320COAX CBL MCX TO MCX |
1,855 |
|
Datasheet |
73230 | Bulk | Active | MCX to MCX | MCX Plug | Male | Free Hanging (In-Line) | - | MCX Plug | Male | Free Hanging (In-Line) | - | 63.6" (1.6m) 5.3' | RG-174 | 50 Ohms | - | - | - | - | - | - | - | - |
|
|
CCMX2-MM-RG316-12COAX CBL MMCX TO MMCX |
3,561 |
|
Datasheet |
CCMX2 | Bag | Active | MMCX to MMCX | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-316 | 50 Ohms | - | 50 Ohms | 6 GHz | Copper | Shielded | -40°C ~ 85°C | - | - |
|
CCMX-MM-RG178-12COAX CBL MMCX TO MMCX |
3,130 |
|
Datasheet |
CCMX | Bag | Active | MMCX to MMCX | MMCX Plug | Male | Free Hanging (In-Line) | - | MMCX Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-178 | 50 Ohms | - | 50 Ohms | 6 GHz | Copper | Shielded | -40°C ~ 85°C | - | - |
