Heat Sinks
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Package Cooled | Attachment Method | Shape | Length | Width | Diameter | Fin Height | Power Dissipation @ Temperature Rise | Thermal Resistance @ Forced Air Flow | Thermal Resistance @ Natural | Material | Material Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ATS-55450K-C0-R0HEATSINK 45X45X14.5MM W/OUT TIM |
1,664 |
|
- |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Not Included) | Square, Pin Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.571" (14.50mm) | - | 4.50°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
AER35-35-28CB/A01HEATSINK FORGED BLK ANO TOP MNT |
4,233 |
|
Datasheet |
AER | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Included) | Square, Fins | 1.362" (34.60mm) | 1.362" (34.60mm) | - | 1.087" (27.60mm) | - | 2.02°C/W @ 200 LFM | 8.70°C/W | Aluminum Alloy | Black Anodized |
|
|
AER35-35-33CB/A01HEATSINK FORGED BLK ANO TOP MNT |
3,172 |
|
Datasheet |
AER | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Included) | Square, Fins | 1.362" (34.60mm) | 1.362" (34.60mm) | - | 1.283" (32.60mm) | - | 1.82°C/W @ 200 LFM | 8.00°C/W | Aluminum Alloy | Black Anodized |
|

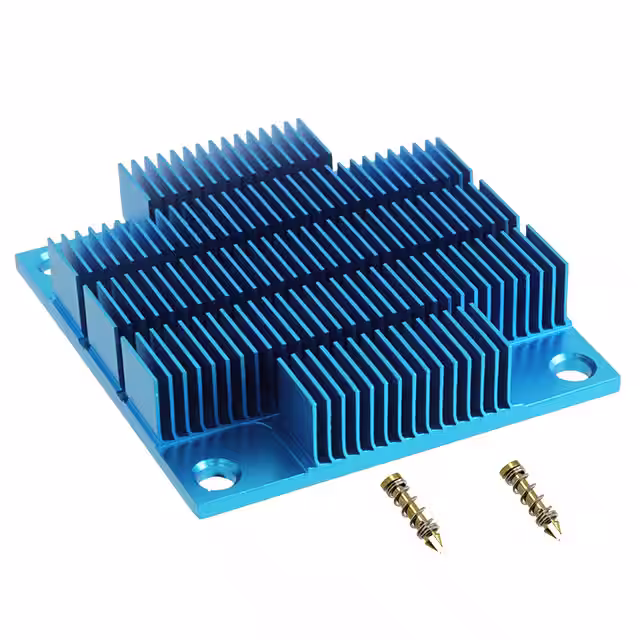

ATS-P2-105-C3-R1HEATSINK 45.00MM X 45.00MM ALUM |
2,160 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.374" (9.50mm) | - | 28.32°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-P2-129-C3-R0HEATSINK 60X60X10MM XCUT T412 |
4,284 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.362" (60.00mm) | 2.362" (60.00mm) | - | 0.394" (10.00mm) | - | 8.71°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-54330R-C0-R0HEATSINK 33X33X19.5MM W/OUT TIM |
1,943 |
|
- |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Not Included) | Square, Fins | 1.299" (32.99mm) | 1.299" (32.99mm) | - | 0.768" (19.50mm) | - | 4.10°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
|
ATS-55270R-C0-R0HEATSINK 27X27X19.5MM W/OUT TIM |
3,865 |
|
- |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Not Included) | Square, Pin Fins | 1.063" (27.00mm) | 1.063" (27.00mm) | - | 0.768" (19.50mm) | - | 5.80°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
|
ATS-20E-21-C3-R0HEATSINK 60X60X10MM XCUT T412 |
4,493 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.362" (60.00mm) | 2.362" (60.00mm) | - | 0.394" (10.00mm) | - | 16.33°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-21E-21-C3-R0HEATSINK 60X60X10MM XCUT T412 |
1,873 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.362" (60.00mm) | 2.362" (60.00mm) | - | 0.394" (10.00mm) | - | 16.33°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-01F-21-C3-R0HEATSINK 60X60X10MM XCUT T412 |
2,886 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.362" (60.00mm) | 2.362" (60.00mm) | - | 0.394" (10.00mm) | - | 16.33°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-02F-21-C3-R0HEATSINK 60X60X10MM XCUT T412 |
3,812 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.362" (60.00mm) | 2.362" (60.00mm) | - | 0.394" (10.00mm) | - | 16.33°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-03F-21-C3-R0HEATSINK 60X60X10MM XCUT T412 |
1,402 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.362" (60.00mm) | 2.362" (60.00mm) | - | 0.394" (10.00mm) | - | 16.33°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-04F-21-C3-R0HEATSINK 60X60X10MM XCUT T412 |
2,575 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.362" (60.00mm) | 2.362" (60.00mm) | - | 0.394" (10.00mm) | - | 16.33°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-05F-21-C3-R0HEATSINK 60X60X10MM XCUT T412 |
3,669 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.362" (60.00mm) | 2.362" (60.00mm) | - | 0.394" (10.00mm) | - | 16.33°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-06F-21-C3-R0HEATSINK 60X60X10MM XCUT T412 |
1,622 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.362" (60.00mm) | 2.362" (60.00mm) | - | 0.394" (10.00mm) | - | 16.33°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-08F-21-C3-R0HEATSINK 60X60X10MM XCUT T412 |
4,101 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.362" (60.00mm) | 2.362" (60.00mm) | - | 0.394" (10.00mm) | - | 16.33°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-09F-21-C3-R0HEATSINK 60X60X10MM XCUT T412 |
2,639 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.362" (60.00mm) | 2.362" (60.00mm) | - | 0.394" (10.00mm) | - | 16.33°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-10F-21-C3-R0HEATSINK 60X60X10MM XCUT T412 |
3,892 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.362" (60.00mm) | 2.362" (60.00mm) | - | 0.394" (10.00mm) | - | 16.33°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-11F-21-C3-R0HEATSINK 60X60X10MM XCUT T412 |
2,547 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.362" (60.00mm) | 2.362" (60.00mm) | - | 0.394" (10.00mm) | - | 16.33°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-12F-21-C3-R0HEATSINK 60X60X10MM XCUT T412 |
4,056 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.362" (60.00mm) | 2.362" (60.00mm) | - | 0.394" (10.00mm) | - | 16.33°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
