Heat Sinks
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Package Cooled | Attachment Method | Shape | Length | Width | Diameter | Fin Height | Power Dissipation @ Temperature Rise | Thermal Resistance @ Forced Air Flow | Thermal Resistance @ Natural | Material | Material Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
ATS012012019-SF-2RHEATSINK 12X12X19MM |
4,529 |
|
Datasheet |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Not Included) | Square, Fins | 0.472" (12.00mm) | 0.472" (12.00mm) | - | 0.748" (19.00mm) | - | 12.20°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-FPX054054013-110-C2-R1HEATSINK 54X54X12.7MM XCUT SFP |
3,626 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount, Skived | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.126" (54.00mm) | 2.126" (54.00mm) | - | 0.500" (12.70mm) | - | 26.99°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

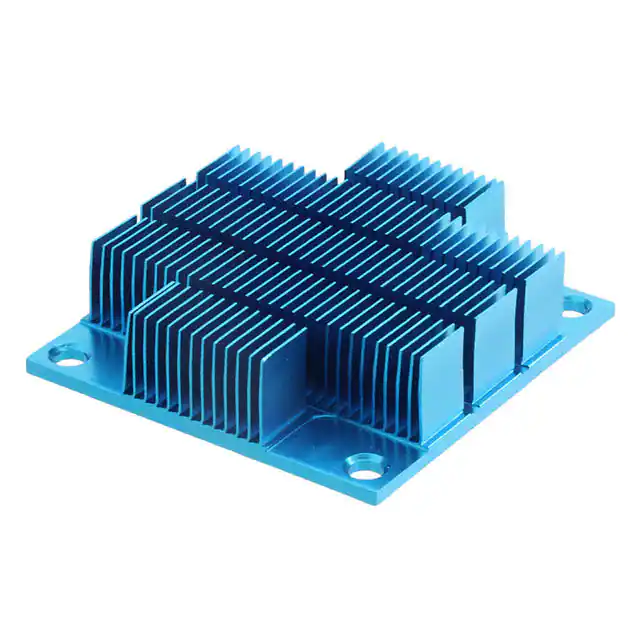

ATS-FPX045045013-106-C2-R1HEATSINK 45X45X12.7MM XCUT SFP |
2,185 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount, Skived | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.500" (12.70mm) | - | 26.60°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS019019009-PF-6HCROSS CUT HEATSINK 19X19X9MM |
3,499 |
|
Datasheet |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Not Included) | Square, Pin Fins | 0.748" (19.00mm) | 0.748" (19.00mm) | - | 0.354" (9.00mm) | - | 16.05°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|

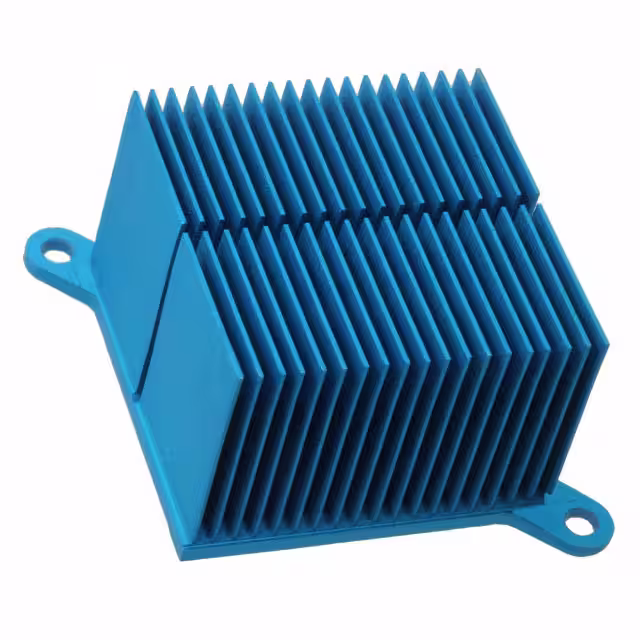

ATS-FPX045045030-71-C2-R0HEATSINK 45X45X30MM L-TAB FP |
1,689 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 1.181" (30.00mm) | - | 6.69°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

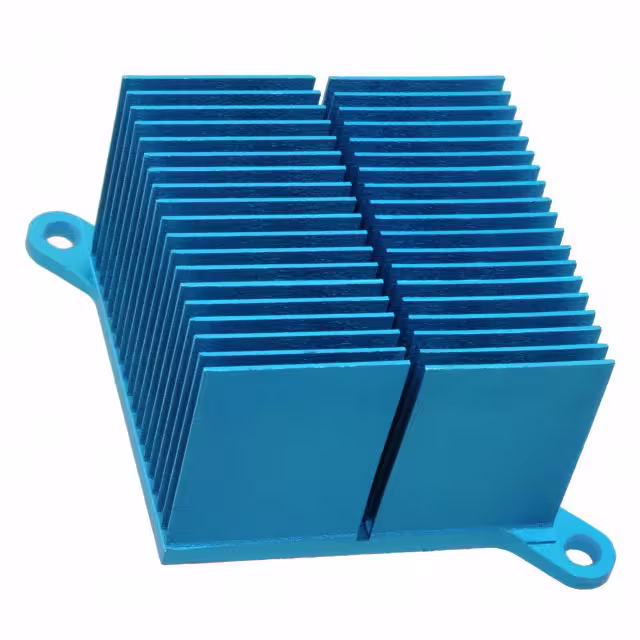

ATS-FPX045045030-101-C2-R0HEATSINK 45X45X30MM R-TAB FP |
4,231 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 1.181" (30.00mm) | - | 6.69°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-P2-04-C2-R0HEATSINK 40X40X20MM XCUT T766 |
2,471 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.790" (20.00mm) | - | 11.58°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS031031003-PF-10BCROSS CUT HEATSINK 31X31X3MM |
1,091 |
|
Datasheet |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Not Included) | Square, Pin Fins | 1.220" (31.00mm) | 1.220" (31.00mm) | - | 0.118" (3.00mm) | - | 46.49°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
|
ATS031031013-SF-10LHEATSINK 31X31X13MM |
4,012 |
|
Datasheet |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Not Included) | Square, Fins | 1.220" (31.00mm) | 1.220" (31.00mm) | - | 0.512" (13.00mm) | - | 6.41°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-P2-05-C2-R0HEATSINK 40X40X25MM XCUT T766 |
2,243 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.984" (25.00mm) | - | 8.72°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-FPX045045035-102-C2-R0HEATSINK 45X45X35MM R-TAB FP |
1,450 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 1.378" (35.00mm) | - | 5.24°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

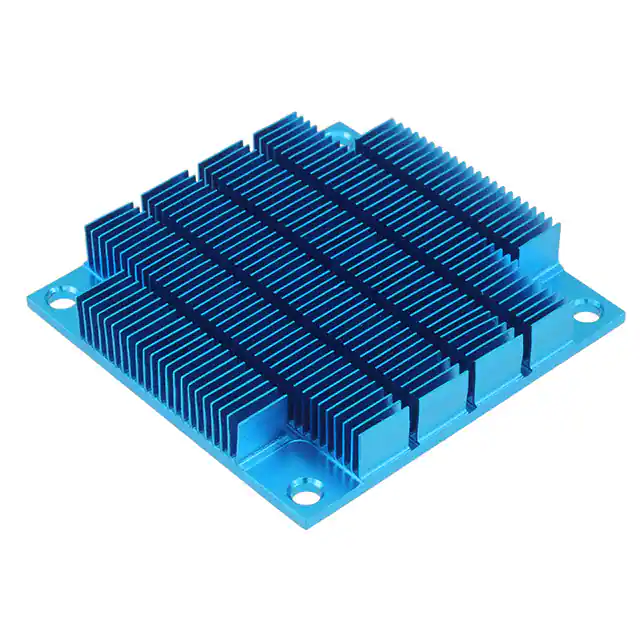

ATS-FPX054054010-109-C2-R1HEATSINK 54X54X9.5MM XCUT SFP |
4,736 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount, Skived | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.126" (54.00mm) | 2.126" (54.00mm) | - | 0.374" (9.50mm) | - | 27.70°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-P2-08-C2-R0HEATSINK 45X45X15MM XCUT T766 |
1,448 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.590" (15.00mm) | - | 14.61°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS014014016-PF-3OHEAT SINK 14MM X 14MM X 16MM |
4,822 |
|
Datasheet |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Not Included) | Square, Pin Fins | 0.551" (14.00mm) | 0.551" (14.00mm) | - | 0.630" (16.00mm) | - | 12.91°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-P2-09-C2-R0HEATSINK 45X45X20MM XCUT T766 |
2,922 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.790" (20.00mm) | - | 10.58°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS031031005-PF-10DCROSS CUT HEATSINK 31X31X5MM |
100 |
|
Datasheet |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Not Included) | Square, Pin Fins | 1.220" (31.00mm) | 1.220" (31.00mm) | - | 0.197" (5.00mm) | - | 18.66°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-P1-18-C2-R0HEATSINK 54X54X15MM XCUT T766 |
100 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.126" (54.00mm) | 2.126" (54.00mm) | - | 0.590" (15.00mm) | - | 13.38°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

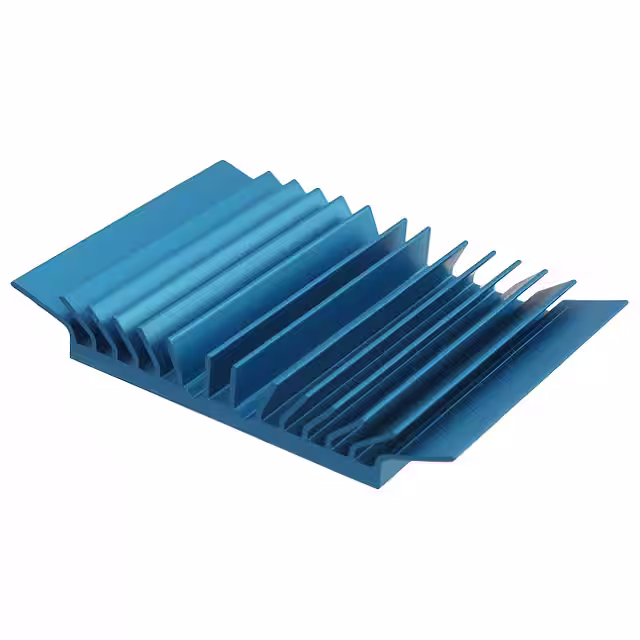

ATS-52375B-C0-R0HEATSINK 37.5X37.5X7.5MM W/O TIM |
3,037 |
|
- |
maxiFLOW | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Not Included) | Square, Angled Fins | 1.476" (37.50mm) | 1.476" (37.50mm) | - | 0.295" (7.50mm) | - | 4.90°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|

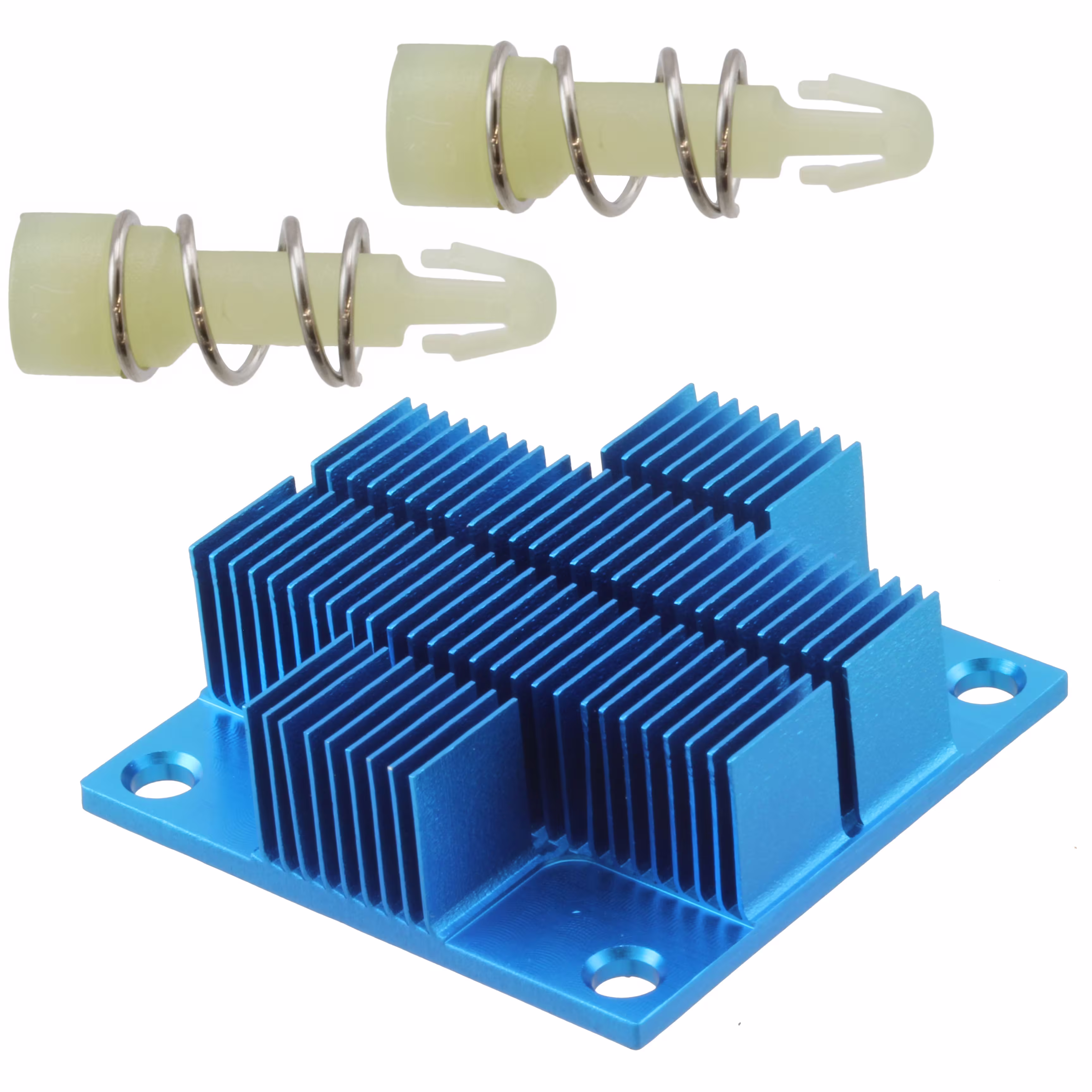

ATS-P1-104-C2-R1HEATSINK 40X40X12.7MM XCUT T766 |
100 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.500" (12.70mm) | - | 25.23°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS035035020-SF-11SHEATSINK 35X35X20MM |
3,243 |
|
Datasheet |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Not Included) | Square, Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 0.787" (20.00mm) | - | 3.63°C/W @ 200 LFM | - | Aluminum | Black Anodized |
