Heat Sinks
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Package Cooled | Attachment Method | Shape | Length | Width | Diameter | Fin Height | Power Dissipation @ Temperature Rise | Thermal Resistance @ Forced Air Flow | Thermal Resistance @ Natural | Material | Material Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
SK 185 37,5 MEExtruded Heatsink |
1,000 |
|
- |
SK 185 | Bulk | Active | Board Level, Extrusion | - | - | Rectangular | 1.476" (37.50mm) | 2.559" 65.00mm) | - | 0.709" (18.00mm) | 11.36W @ 80°C | 1.98°C/W | 7.04°C/W | Aluminum | Natural Anodized |
|
|
SK 652 100 ALExtruded Heatsink |
1,000 |
|
- |
SK 652 | Bulk | Active | Board Level, Extrusion | - | - | Rectangular | 3.937" (100.00mm) | 0.827" (21.00mm) | - | 0.394" (10.00mm) | 4.08W @ 80°C | 5.43°C/W | 19.6°C/W | Aluminum | - |
|
|
SK 104 38,1 STC TO 220Extruded Heatsink for PCB mounti |
1,000 |
|
Datasheet |
SK 104 | Bulk | Active | Board Level, Extrusion | TO-220 | Clip | Rectangular | 1.500" (38.10mm) | 1.374" (34.90mm) | - | 0.500" (12.70mm) | 7.27W @ 80°C | 3.41°C/W | 11°C/W | Aluminum | Black Anodized |
|
|
SK 676 37,5 MEExtruded Heatsink |
1,000 |
|
- |
SK 676 | Bulk | Active | Board Level, Extrusion | - | - | Rectangular | 1.476" (37.50mm) | 0.472" (12.00mm) | - | 0.630" (16.00mm) | 8.32W @ 80°C | 2.71°C/W | 9.62°C/W | Aluminum | Natural Anodized |
|

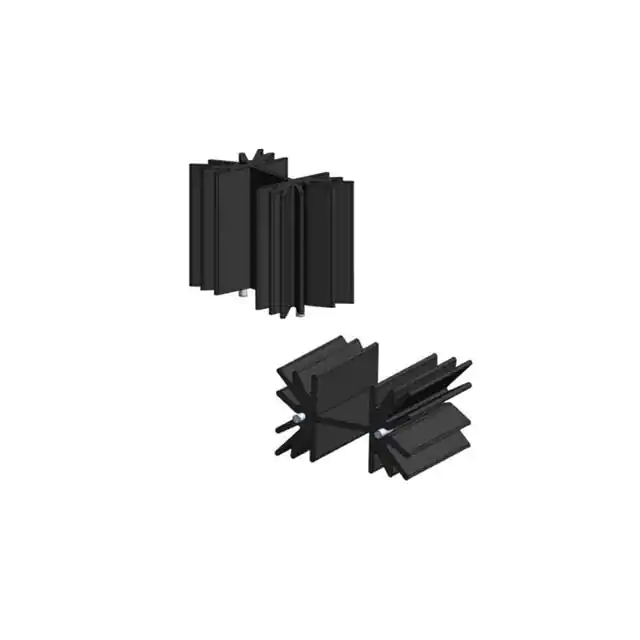

SAR155ASX30MMEXTRUDED HEATSINK 155MM X 30MM |
500 |
|
Datasheet |
155AS | Box | Active | Board Level | TO-220 | PC Pin | Rectangular, Fins | 1.181" (30.00mm) | 1.654" (42.00mm) | - | 1.000" (25.40mm) | - | - | - | Aluminum | Black Anodized |
|
|
FK 271 MI 247 H SIPFans, Blower, Thermal Management |
1,000 |
|
Datasheet |
FK 271 | Bulk | Active | Board Level, Horizontal | SIP | Clip and Solder Pin | Rectangular | 1.024" (26.00mm) | 0.906" (23.00mm) | - | 0.331" (8.40mm) | 4.0W | - | 20.20°C/W | Copper | - |
|
|
FK 271 MI 247 H TO 247Fans, Blower, Thermal Management |
1,000 |
|
Datasheet |
FK 271 | Bulk | Active | Board Level, Horizontal | TO-247 | Clip and Solder Pin | Rectangular | 1.024" (26.00mm) | 0.906" (23.00mm) | - | 0.331" (8.40mm) | 4.0W | - | 20.20°C/W | Copper | - |
|
|
FK 271 MI 247 H TO 218Fans, Blower, Thermal Management |
1,000 |
|
Datasheet |
FK 271 | Bulk | Active | Board Level, Horizontal | TO-218 | Clip and Solder Pin | Rectangular | 1.024" (26.00mm) | 0.906" (23.00mm) | - | 0.331" (8.40mm) | 4.0W | - | 20.20°C/W | Copper | - |
|
|
FK 271 MI 247 H TO 248Fans, Blower, Thermal Management |
1,000 |
|
Datasheet |
FK 271 | Bulk | Active | Board Level, Horizontal | TO-248 | Clip and Solder Pin | Rectangular | 1.024" (26.00mm) | 0.906" (23.00mm) | - | 0.331" (8.40mm) | 4.0W | - | 20.20°C/W | Copper | - |
|
|
SK 690 100 MEExtruded Heatsink |
1,000 |
|
- |
SK 690 | Bulk | Active | Board Level, Extrusion | - | - | Rectangular | 3.937" (100.00mm) | 0.472" (12.00mm) | - | 0.709" (18.00mm) | 8.08W @ 80°C | 2.79°C/W | 9.9°C/W | Aluminum | Natural Anodized |
|
|
SK 690 100 SAExtruded Heatsink |
1,000 |
|
- |
SK 690 | Bulk | Active | Board Level, Extrusion | - | - | Rectangular | 3.937" (100.00mm) | 0.472" (12.00mm) | - | 0.709" (18.00mm) | 8.89W @ 80°C | 2.79°C/W | 9°C/W | Aluminum | Black Anodized |
|
|
SK 688 25 MEExtruded Heatsink |
1,000 |
|
- |
SK 688 | Bulk | Active | Board Level, Extrusion | - | - | Rectangular | 0.984" (25.00mm) | 0.591" (15.00mm) | - | 0.236" (6.00mm) | 2.77W @ 80°C | 8.15°C/W | 28.93°C/W | Aluminum | Natural Anodized |
|
|
SK 701 37,5 ALExtruded Heatsink for lock-in re |
1,000 |
|
- |
SK 701 | Bulk | Active | Board Level, Extrusion | - | - | Rectangular | 1.476" (37.50mm) | 0.591" (15.00mm) | - | 0.984" (25.00mm) | 9.04W @ 80°C | 2.45°C/W | 8.85°C/W | Aluminum | - |
|
|
SK 694 50 ALExtruded Heatsink |
1,000 |
|
- |
SK 694 | Bulk | Active | Board Level, Extrusion | - | - | Rectangular | 1.969" (50.00mm) | 0.591" (15.00mm) | - | 0.551" (14.00mm) | 4.25W @ 80°C | 5.21°C/W | 18.82°C/W | Aluminum | - |
|
|
SK 697 25 ALExtruded Heatsink for lock-in re |
1,000 |
|
Datasheet |
SK 697 | - | Active | Board Level, Extrusion | - | - | Rectangular | 0.984" (25.00mm) | 1.181" (30.00mm) | - | 1.378" (35.00mm) | 14.29W @ 80°C | 1.55°C/W | 5.6°C/W | Aluminum | - |
|
|
SK 688 25 SAExtruded Heatsink |
1,000 |
|
- |
SK 688 | Bulk | Active | Board Level, Extrusion | - | - | Rectangular | 0.984" (25.00mm) | 0.591" (15.00mm) | - | 0.236" (6.00mm) | 3.04W @ 80°C | 8.15°C/W | 26.3°C/W | Aluminum | Black Anodized |
|
|
SK 576 25 SAExtruded Heatsink for lock-in re |
1,000 |
|
- |
SK 576 | Bulk | Active | Board Level, Extrusion | - | - | Rectangular | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 1.772" (45.00mm) | 19.05W @ 80°C | 1.3°C/W | 4.2°C/W | Aluminum | Black Anodized |
|
|
SK 516 15 S TO 218 TO 218Extruded Heatsink for PCB mounti |
1,000 |
|
- |
SK 516 | Bulk | Active | Board Level, Extrusion | TO-218 | - | Rectangular | 0.591" (15.00mm) | 0.827" (21.00mm) | - | 0.394" (10.00mm) | 2.82W @ 80°C | 8.8°C/W | 28.4°C/W | Aluminum | Black Anodized |
|
|
SK 448 75 SAExtruded Heatsink |
1,000 |
|
Datasheet |
SK 448 | Bulk | Active | Board Level, Extrusion | - | - | Rectangular | 2.953" (75.00mm) | 1.100" (27.95mm) | - | 0.492" (12.50mm) | 10.67W @ 80°C | 2.33°C/W | 7.5°C/W | Aluminum | Black Anodized |
|
|
SK 576 25 MEExtruded Heatsink for lock-in re |
1,000 |
|
- |
SK 576 | Bulk | Active | Board Level, Extrusion | - | - | Rectangular | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 1.772" (45.00mm) | 17.32W @ 80°C | 1.3°C/W | 4.62°C/W | Aluminum | Natural Anodized |
