Tactile Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Contact Rating @ Voltage | Actuator Type | Mounting Type | Actuator Height off PCB, Vertical | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Operating Force | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

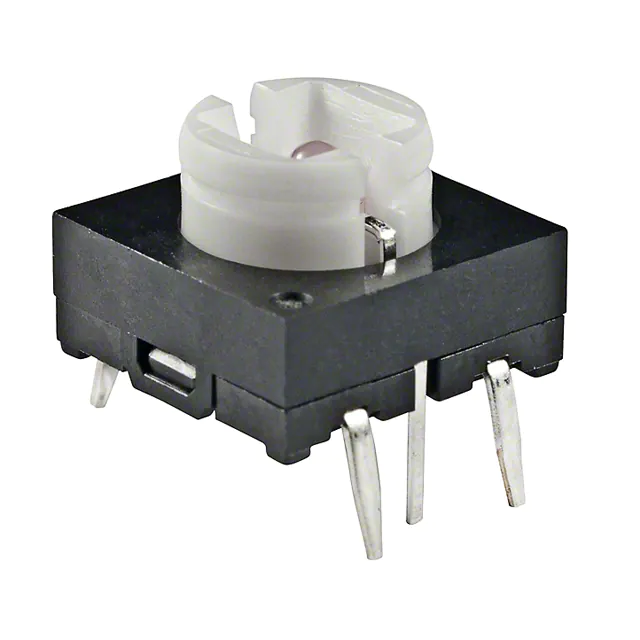

JB15LPCSWITCH TACTILE SPST-NO 0.05A 24V |
4,972 |
|
Datasheet |
JB | Tray | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Plunger for Cap | Through Hole | - | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Illuminated | LED, Red | 1.8 VDC | 176gf | IP67 - Dust Tight, Waterproof | Process Sealed | -25°C ~ 70°C |
|
JB15HAP-1GSWITCH TACT SPST-NO 0.125A 24V |
4,676 |
|
Datasheet |
JB | Tray | Active | SPST-NO | Off-Mom | 0.125A @ 24VDC | Square Button | Through Hole | 14.70mm | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Non-Illuminated | - | - | 265gf | IP67 - Dust Tight, Waterproof | Process Sealed | -25°C ~ 70°C |
|

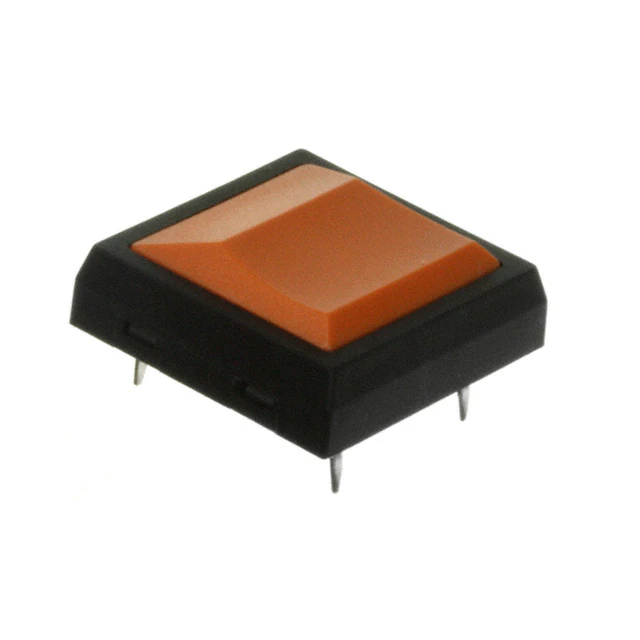

JF15SP3DSWITCH TACTILE SPST-NO 0.05A 24V |
4,609 |
|
Datasheet |
JF | Tray | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Square Button | Through Hole | 6.78mm | - | Top Actuated | PC Pin | 17.70mm x 17.70mm | Non-Illuminated | - | - | 196gf | - | Process Sealed | -25°C ~ 85°C |
|

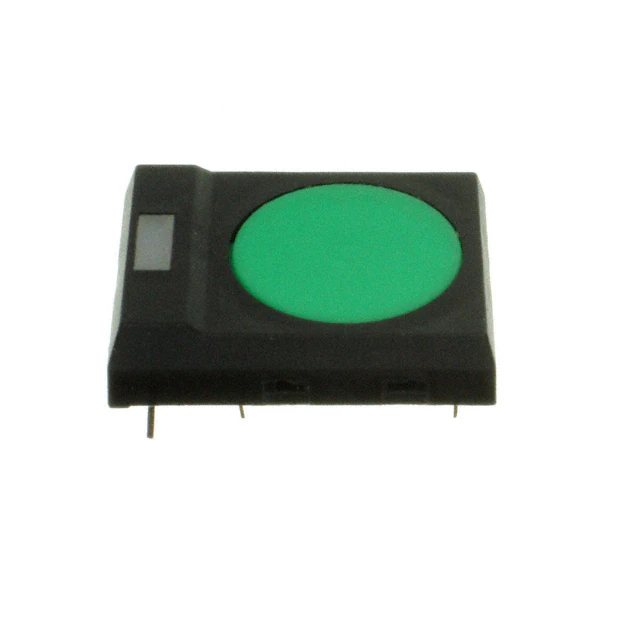

JF15RP2FCSWITCH TACTILE SPST-NO 0.05A 24V |
1,375 |
|
Datasheet |
JF | Box | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Round Button | Through Hole | 5.08mm | - | Top Actuated | PC Pin | 22.80mm x 17.70mm | Illuminated | LED, Red | 2 VDC | 300gf | - | Process Sealed | -25°C ~ 70°C |
|
JF15RP1HFSWITCH TACTILE SPST-NO 0.05A 24V |
1,833 |
|
Datasheet |
JF | Tray | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Square Button | Through Hole | 5.08mm | - | Top Actuated | PC Pin | 22.80mm x 17.70mm | Illuminated | LED, Green | 2 VDC | 300gf | - | Process Sealed | -25°C ~ 70°C |
|
|
JB15HAP-2ESWITCH TACT SPST-NO 0.125A 24V |
3,687 |
|
Datasheet |
JB | Tray | Active | SPST-NO | Off-Mom | 0.125A @ 24VDC | Square Button | Through Hole | 14.70mm | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Non-Illuminated | - | - | 265gf | IP67 - Dust Tight, Waterproof | Process Sealed | -25°C ~ 70°C |
|
|
JB15HKP-6HSWITCH TACT SPST-NO 0.125A 24V |
2,677 |
|
Datasheet |
JB | Tray | Active | SPST-NO | Off-Mom | 0.125A @ 24VDC | Square Button | Through Hole | 11.20mm | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Non-Illuminated | - | - | 265gf | IP67 - Dust Tight, Waterproof | Process Sealed | -25°C ~ 70°C |
|

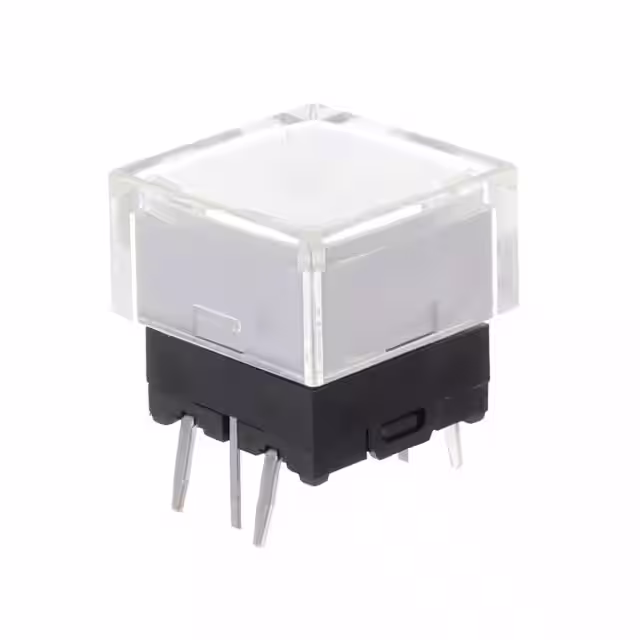

JB15LPF-JJSWITCH TACTILE SPST-NO 0.05A 24V |
3,282 |
|
Datasheet |
JB | Box | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Square Button | Through Hole | 11.20mm | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Illuminated | LED, Green | 2.1 VDC | 176gf | IP67 - Dust Tight, Waterproof | Process Sealed | -25°C ~ 70°C |
|
JB15HBPCSWITCH TACT SPST-NO 0.125A 24V |
3,845 |
|
Datasheet |
JB | Tray | Active | SPST-NO | Off-Mom | 0.125A @ 24VDC | Plunger for Cap | Through Hole | - | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Illuminated | LED, Red | 1.8 VDC | 265gf | IP67 - Dust Tight, Waterproof | Process Sealed | -25°C ~ 70°C |
|
JB15HLPCSWITCH TACT SPST-NO 0.125A 24V |
3,012 |
|
Datasheet |
JB | Tray | Active | SPST-NO | Off-Mom | 0.125A @ 24VDC | Plunger for Cap | Through Hole | - | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Illuminated | LED, Red | 1.8 VDC | 265gf | IP67 - Dust Tight, Waterproof | Process Sealed | -25°C ~ 70°C |
|

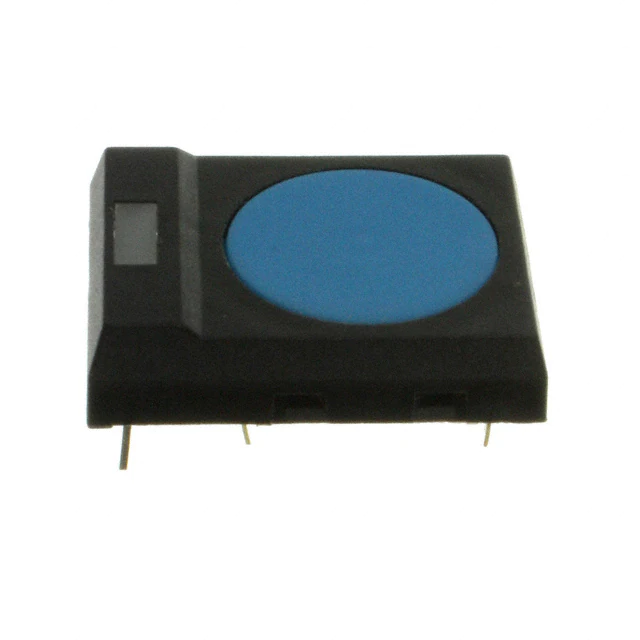

JF15RP2GFSWITCH TACTILE SPST-NO 0.05A 24V |
3,262 |
|
Datasheet |
JF | Box | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Round Button | Through Hole | 5.08mm | - | Top Actuated | PC Pin | 22.80mm x 17.70mm | Illuminated | LED, Green | 2 VDC | 300gf | - | Process Sealed | -25°C ~ 70°C |
|
JF15RP1CCSWITCH TACTILE SPST-NO 0.05A 24V |
1,933 |
|
Datasheet |
JF | Tray | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Square Button | Through Hole | 5.08mm | - | Top Actuated | PC Pin | 22.80mm x 17.70mm | Illuminated | LED, Red | 2 VDC | 300gf | - | Process Sealed | -25°C ~ 70°C |
|
|
JB15HAP-5HSWITCH TACT SPST-NO 0.125A 24V |
4,380 |
|
Datasheet |
JB | Bulk | Active | SPST-NO | Off-Mom | 0.125A @ 24VDC | Square Button | Through Hole | 14.70mm | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Non-Illuminated | - | - | 265gf | IP67 - Dust Tight, Waterproof | Process Sealed | -25°C ~ 70°C |
|
JF15RP3CCSWITCH TACTILE SPST-NO 0.05A 24V |
1,851 |
|
Datasheet |
JF | Tray | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Square Button | Through Hole | 6.78mm | - | Top Actuated | PC Pin | 22.80mm x 17.70mm | Illuminated | LED, Red | 2 VDC | 200gf | - | Process Sealed | -25°C ~ 70°C |
|
|
JB15HBPB-JBSWITCH TACT SPST-NO 0.125A 24V |
2,070 |
|
Datasheet |
JB | Box | Active | SPST-NO | Off-Mom | 0.125A @ 24VDC | Square Button | Through Hole | 14.70mm | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Illuminated | LED, White | - | 265gf | IP67 - Dust Tight, Waterproof | Process Sealed | -25°C ~ 70°C |
|
|
JB15HLPC-JBSWITCH TACT SPST-NO 0.125A 24V |
3,672 |
|
Datasheet |
JB | Tray | Active | SPST-NO | Off-Mom | 0.125A @ 24VDC | Square Button | Through Hole | 11.20mm | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Illuminated | LED, Red | 1.8 VDC | 265gf | IP67 - Dust Tight, Waterproof | Process Sealed | -25°C ~ 70°C |
|
|
JB15HBPE-BBSWITCH TACT SPST-NO 0.125A 24V |
4,596 |
|
Datasheet |
JB | Box | Active | SPST-NO | Off-Mom | 0.125A @ 24VDC | Square Button | Through Hole | 14.70mm | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Illuminated | LED, Yellow | 2 VDC | 265gf | IP67 - Dust Tight, Waterproof | Process Sealed | -25°C ~ 70°C |
|
|
JB15HBPE-BESWITCH TACT SPST-NO 0.125A 24V |
4,657 |
|
Datasheet |
JB | Tray | Active | SPST-NO | Off-Mom | 0.125A @ 24VDC | Square Button | Through Hole | 14.70mm | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Illuminated | LED, Yellow | 2 VDC | 265gf | IP67 - Dust Tight, Waterproof | Process Sealed | -25°C ~ 70°C |
|
JL15SKSBFP2SWITCH TACTILE SPST-NO 0.05A 24V |
3,418 |
|
Datasheet |
JL | Tray | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Square Button | Through Hole | 7.85mm | - | Top Actuated | PC Pin | 22.00mm x 22.00mm | Illuminated | LED, Green | 4.2 VDC | 300gf | - | - | -25°C ~ 50°C |
|
TS06-667-43-R-100-G-SMT-TRSWITCH TACTILE SPST-NO 0.05A 12V |
1,997 |
|
Datasheet |
TS06 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 4.30mm | - | Top Actuated | Gull Wing | 6.70mm x 6.00mm | Non-Illuminated | - | - | 100gf | - | - | -30°C ~ 80°C |
