Single Conductor Cables (Hook-Up Wire)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Wire Gauge | Conductor Strand | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Jacket (Insulation) Thickness | Length | Voltage | Operating Temperature | Jacket Color | Ratings | Features | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0105002LFLEX HEAT 260 SC 16/19AWG BU |
4,657 |
|
Datasheet |
ÖLFLEX® | Spool | Active | Hook-Up | 16 AWG | - | Copper, Silver Coated | Polytetrafluoroethylene (PTFE) | 0.081" (2.06mm) | - | - | - | -190°C ~ 200°C | Blue | - | - | - | - |
|
|
0105000LFLEX HEAT 260 SC 16/19AWG GNYE |
3,323 |
|
Datasheet |
ÖLFLEX® | Spool | Active | Hook-Up | 16 AWG | - | Copper, Silver Coated | Polytetrafluoroethylene (PTFE) | 0.081" (2.06mm) | - | - | - | -190°C ~ 200°C | Green, Yellow | - | - | - | - |
|
|
0105005LFLEX HEAT 260 SC 16/19AWG YE |
1,643 |
|
Datasheet |
ÖLFLEX® | Spool | Active | Hook-Up | 16 AWG | - | Copper, Silver Coated | Polytetrafluoroethylene (PTFE) | 0.081" (2.06mm) | - | - | - | -190°C ~ 200°C | Yellow | - | - | - | - |
|
|
0105003LFLEX HEAT 260 SC 16/19AWG BN |
1,248 |
|
Datasheet |
ÖLFLEX® | Spool | Active | Hook-Up | 16 AWG | - | Copper, Silver Coated | Polytetrafluoroethylene (PTFE) | 0.081" (2.06mm) | - | - | - | -190°C ~ 200°C | Brown | - | - | - | - |
|
|
44/0411-14-9HOOK-UP DL WALL STRND 14AWG WHT |
4,313 |
|
Datasheet |
- | Bulk | Active | Hook-Up, Dual Wall | 14 AWG | 19/27 | Copper, Tinned | Polyvinylidene Fluoride (PVDF) | 0.086" (2.18mm) | 0.0030" (0.076mm) | - | 600V | 135°C | White | - | - | - | - |
|
|
55/1112-26-9-9CBL 1COND STRND 26AWG 600V WHITE |
4,818 |
|
Datasheet |
- | Bulk | Active | Hook-Up, Shielded | 26 AWG | 19/38 | Copper, Silver Coated | Ethylene Tetrafluoroethylene (ETFE), Irradiated | 0.065" (1.65mm) | 0.008" (0.20mm) | - | 600V | 200°C | White | - | - | - | - |
|
|
82/0812-24-982/0812-24-9 |
2,153 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
0105105LFLEX HEAT 260 SC 16/19AWG WH |
3,313 |
|
- |
ÖLFLEX® | Spool | Active | Hook-Up | 16 AWG | - | Copper, Silver Coated | Polytetrafluoroethylene (PTFE) | 0.081" (2.06mm) | - | - | - | -190°C ~ 200°C | White | - | - | - | - |
|
|
55PC2211-16-2-2HOOK-UP DL STRND 16AWG RED |
1,104 |
|
Datasheet |
- | Bulk | Active | Hook-Up, Dual Wall, Shielded | 16 AWG | 19/29 | Copper, Tinned | Ethylene Tetrafluoroethylene (ETFE), Irradiated | 0.092" (2.34mm) | 0.007" (0.18mm) | - | 600V | 150°C | Red | - | - | - | - |
|
|
CS5135-000CBL 1COND STRND 22AWG 600V BLUE |
2,581 |
|
Datasheet |
- | Bulk | Active | Hook-Up, Shielded | 22 AWG | 154/44 | Copper, Tinned | Ethylene Tetrafluoroethylene (ETFE), Irradiated | 0.074" (1.88mm) | 0.007" (0.18mm) | - | 600V | -65°C ~ 150°C | Blue | - | - | - | - |
|
|
55AC6067-22-9-9-9CS2826CHOOK-UP DL STRND 22AWG WHT |
4,595 |
|
Datasheet |
- | Bulk | Active | Hook-Up, Dual Wall, Shielded | 22 AWG | 19/34 | Copper, Tinned | Ethylene Tetrafluoroethylene (ETFE), Irradiated | 0.050" (1.27mm) | 0.008" (0.20mm) | - | 600V | -55°C ~ 150°C | White | - | - | - | - |
|
|
38108 0105000HOOK-UP STRND 8AWG BLACK |
2,230 |
|
Datasheet |
- | Spool | Active | Hook-Up | 8 AWG | 133/29 | Copper, Tinned | Polyethylene (XLPE), Irradiated | 0.350" (8.89mm) | 0.089" (2.26mm) | 5000' (1524.0m) | 600V | -40°C ~ 90°C | Black | - | Thermoset Insulation, UV Resistant | - | - |
|
22759/41-10-9HOOK-UP DL WALL STRND 10AWG WHT |
4,369 |
|
Datasheet |
44A0111 | Bulk | Active | Hook-Up, Dual Wall | 10 AWG | 37/26 | Copper, Nickel Coated | Ethylene Tetrafluoroethylene (ETFE) | 0.134" (3.40mm) | - | - | 600V | -65°C ~ 200°C | White | - | - | Military | MIL-W-81044 and MIL-C-27500 |
|
|
82A0111-20-9HOOK-UP STRND 20AWG WHITE 1' |
2,154 |
|
Datasheet |
FlexLine 82A0111 | Spool | Discontinued at Digi-Key | Hook-Up | 20 AWG | 154/42 | Copper, Tinned | Ethylene Tetrafluoroethylene (ETFE) | 0.053" (1.35mm) | 0.004" (0.09mm) | 1.00' (0.30m) | 600V | -65°C ~ 150°C | White | - | - | - | MIL-W-22759 |
|
|
4160900/500MULTI-STANDARD SC 2.1 1X16 GNYE |
4,665 |
|
- |
ÖLFLEX® | Bulk | Active | Hook-Up | 6 AWG | 128/0.0161" | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.354" (8.99mm) | - | - | 600V | -40°C ~ 105°C | Green, Yellow | - | - | - | - |
|
44A0111-16-4-MXHOOK-UP DL STRND 16AWG YLW 5' |
3,862 |
|
Datasheet |
44A0111 | Spool | Discontinued at Digi-Key | Hook-Up, Dual Wall | 16 AWG | 19/29 | Copper, Tinned | Polyvinylidene Fluoride (PVDF) | 0.072" (1.83mm) | 0.0031" (0.080mm) | 5.00' (1.52m) | 600V | -65°C ~ 150°C | Yellow | - | - | - | MIL-W-81044 and MIL-C-27500 |
|

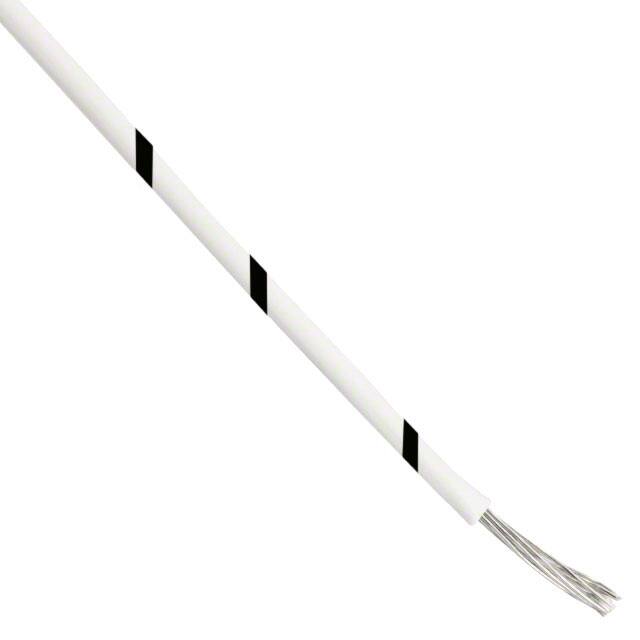

44A0811-10-90-1KFHOOK-UP DL STRND 10AWG WHT/BLACK |
4,314 |
|
Datasheet |
44A0811 | Bulk | Active | Hook-Up, Dual Wall | 10 AWG | 37/26 | Copper, Tinned | Polyvinylidene Fluoride (PVDF) | 0.155" (3.94mm) | 0.005" (0.13mm) | - | 600V | -65°C ~ 150°C | White, Black Stripe | - | - | - | MIL-W-81044 and MIL-C-27500 |
|
|
55A0112-10-9HOOK-UP STRND 10AWG 600V WHITE |
4,985 |
|
Datasheet |
55A0112 | Bulk | Active | Hook-Up | 10 AWG | 37/26 | Copper, Silver Coated | Ethylene Tetrafluoroethylene (ETFE), Irradiated | 0.128" (3.25mm) | - | - | 600V | -65°C ~ 150°C | White | - | - | - | MIL-W-22759 and MIL-C-27500 |
|
|
103145-000HOOK-UP STRND 12AWG 600V RED |
2,984 |
|
Datasheet |
- | Bulk | Active | Hook-Up | 12 AWG | 37/28 | Copper, Silver Coated | Ethylene Tetrafluoroethylene (ETFE), Irradiated | 0.103" (2.62mm) | 0.005" (0.13mm) | - | 600V | -65°C ~ 200°C | Red | - | - | - | - |
|
|
CN7376-000HOOK-UP STRND 12AWG 600V BLACK |
2,967 |
|
Datasheet |
- | Bulk | Active | Hook-Up | 12 AWG | 37/28 | Copper, Silver Coated | Ethylene Tetrafluoroethylene (ETFE), Irradiated | 0.103" (2.62mm) | 0.005" (0.13mm) | - | 600V | -65°C ~ 200°C | Black | - | - | - | - |
