RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

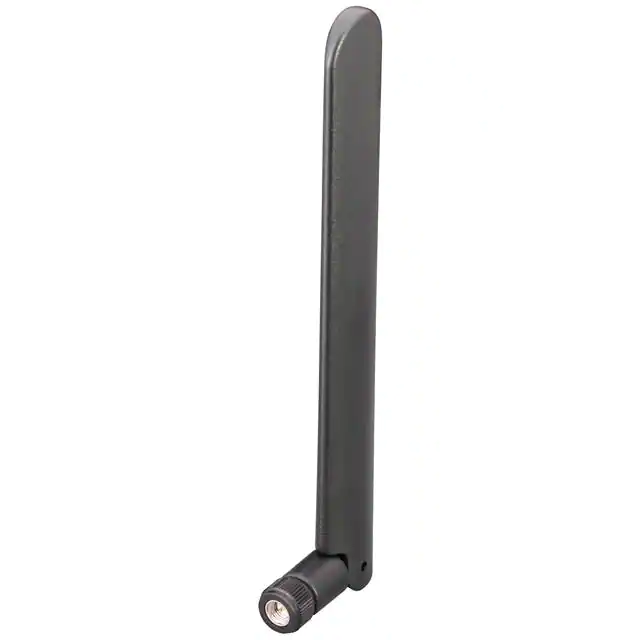

ANT-W63WS4-SMARF ANT 2.4/5/6GHZ WIFI6 TILT SMA |
1,259 |
|
Datasheet |
W63WSx | Bag | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4425GHz, 5.5GHz, 6.525GHz | 2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Blade, Tilt | 3 | 1.2, 1.6, 1.8 | - | 2.6dBi, 5.5dBi, 5.5dBi | 10 W | - | SMA Male | - | - | - | Connector Mount | 7.071" (179.60mm) | 802.11, 802.15.4, Bluetooth, U-NII, Wi-Fi 4, Wi-Fi 5, Wi-Fi 6, Wi-Fi 6E, Zigbee |
|

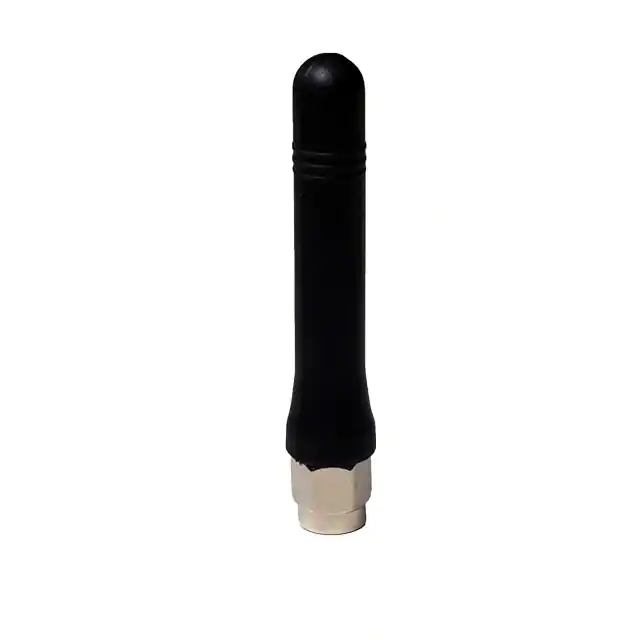

AEACAC054010-S915RF ANT 915MHZ WHIP STR SMA ML |
278 |
|
Datasheet |
AEAC | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 880MHz ~ 950MHz | Whip, Straight | 1 | 3 | - | 2dBi | - | - | SMA Male | - | - | - | Connector Mount | 1.807" (45.90mm) | ISM, LoRa, LPWAN, Sigfox |
|
W1698ANT EXT ISM868/915/2.4 SMA |
469 |
|
Datasheet |
Stubby Antenna | Tray | Active | Bluetooth, General ISM, WiFi | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 868MHz, 915MHz, 2.45GHz | 868MHz ~ 928MHz, 2.4GHz ~ 2.5GHz | Whip, Straight | 3 | 3 | - | 0.3dBi, 1.2dBi | 5 W | - | SMA | IP42 | - | - | Connector Mount | 1.953" (49.60mm) | Bluetooth, LoRa, Sigfox, Wi-Fi |
|
W1696ANT EXT 0.617-3.8GHZ SMA |
215 |
|
Datasheet |
Stubby Antenna | Tray | Active | Cellular | Wide Band | 788.5MHz, 2.2GHz, 3.6GHz | 617MHz ~ 960MHz, 1.71GHz ~ 2.69GHz, 3.4GHz ~ 3.8GHz | Whip, Straight | 3 | - | -5dB, -4dB | -0.5dBi, 1dBi, 0dBi | 5 W | - | SMA | IP42 | - | - | Connector Mount | 1.953" (49.60mm) | LTE |
|
ANT-916-CW-RCL-SMA915MHZ RGHT ANG DIPOLE WHIP SMA |
621 |
|
Datasheet |
RCL | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 930MHz | Whip, Right Angle | 1 | 1.8 | -10.9dB | 4.2dBi | 5 W | - | SMA Male | - | - | - | Connector Mount | 3.846" (97.70mm) | ISM, LPWA |
|

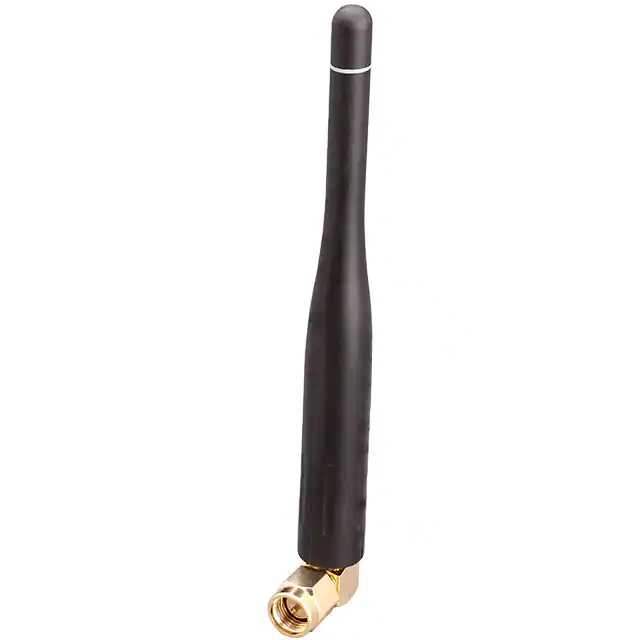

ANT-868-CW-RCL-SMA868MHZ RGHT ANG DIPOLE WHIP SMA |
540 |
|
Datasheet |
RCL | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz | 862MHz ~ 876MHz | Whip, Right Angle | 1 | 1.9 | -10.2dB | 4.1dBi | 5 W | - | SMA Male | - | - | - | Connector Mount | 3.846" (97.70mm) | ISM, LPWA |
|
|
ANT-W63-FPC-SAH50UFANT WIFI6/6E FPC SQR 50MM UFL |
728 |
|
Datasheet |
ANT-W63-FPC-SAH | Bag | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5225GHz, 6.5375GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.895GHz, 5.95GHz ~ 7.125GHz | Flat Patch | 3 | 2.4, 3.4 | - | 0.6dBi, 7.2dBi, 6.3dBi | 2 W | Cable - 50mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.004" (0.10mm) | 802.11b/g/-c/ax, Bluetooth, ISM, U-NII, Wi-Fi, Zigbee™ |
|

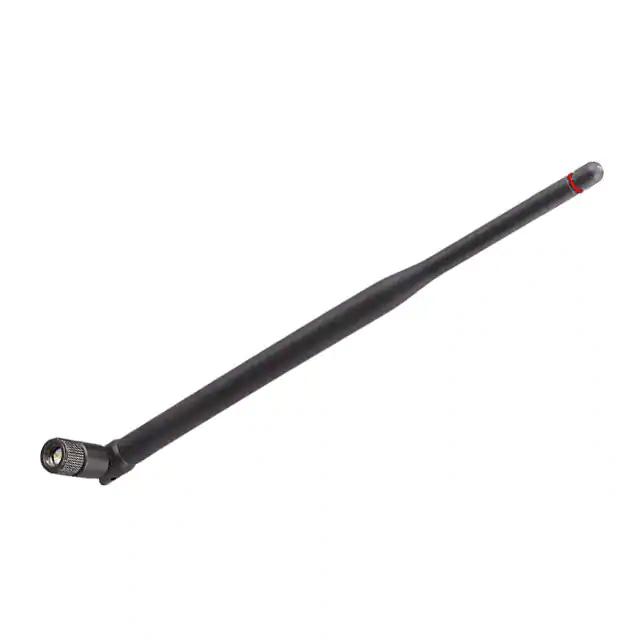

ANT-433-OC-LG-SMA433MHZ TILT/SWIV DIPOLE WHIP SMA |
718 |
|
Datasheet |
OC | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 433MHz | 430MHz ~ 435MHz | Whip, Tilt | 1 | 2.1 | 9dB | 0.7dBi | 10 W | - | SMA Male | - | - | - | Connector Mount | 7.620" (193.50mm) | ISM, LPWA |
|

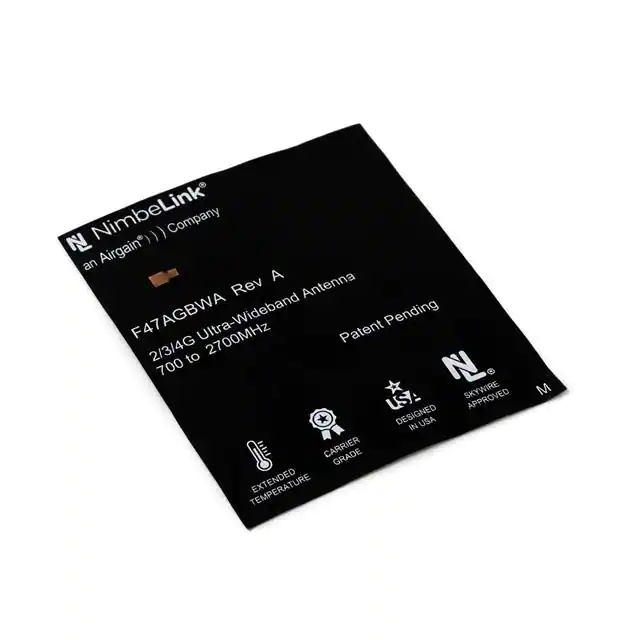

F47AGCHA-G150ULTE FLEX ANTENNA |
2,143 |
|
Datasheet |
- | Bag | Active | Cellular | - | - | - | - | - | 10 | - | 3dBi | - | - | U.FL | - | - | - | - | - | - |
|

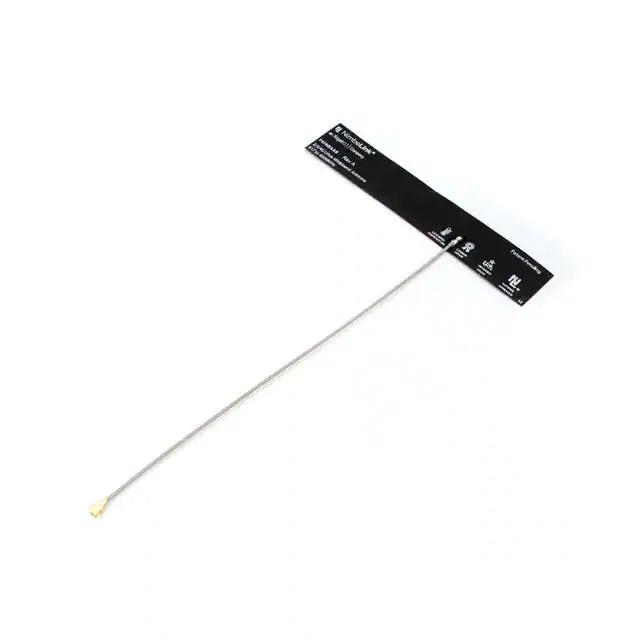

F47NBAAB-G150ULTE FLEX ANTENNA |
1,821 |
|
Datasheet |
Profile Contour | Bag | Active | Cellular | - | - | 698MHz ~ 960MHz, 1.55GHz ~ 1.61GHz, 1.7GHz ~ 2.7GHz | FlexPIFA | 4 | 01:02.5 | - | 2.9dBi, 2.5dBi, 3.7dBi, 2.9dBi | - | Cable - 150mm | U.FL | - | - | - | Adhesive | - | 2G, 3G, 4G, LTE |
|

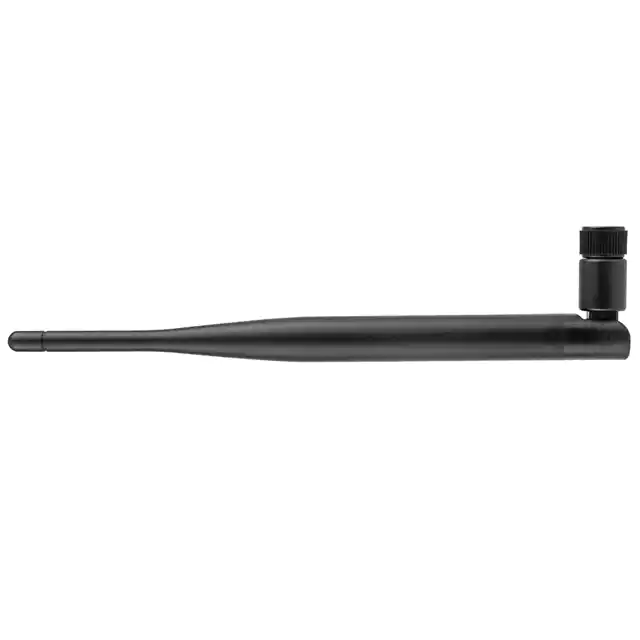

2161960001MOLEX LORA EXTERNAL ANTENNA_M |
1,930 |
|
Datasheet |
216196 | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 866MHz | 856MHz ~ 876MHz | Whip, Tilt | 1 | - | -11dB | 2.5dBi | - | - | SMA Male | - | - | - | Connector Mount | 7.717" (196.00mm) | ISM, LoRa |
|
FXP14.09.0100ARF ANT 850MHZ/900MHZ FLAT PATCH |
152 |
|
Datasheet |
- | Bag | Active | Cellular | Wide Band | 850MHz, 900MHz, 1.7GHz, 1.8GHz, 1.9GHz, 2.1GHz | - | Flat Patch | 6 | 2.5 | -7dB, -12dB, -8dB, -9dB, -9dB, -8dB | 2dBi, 1.5dBi, 3dBi, 2.5dBi, 2dBi, 2.5dBi | - | - | MMCX Male | - | - | - | Adhesive | 0.004" (0.10mm) | CDMA, GSM |
|
ANT-2.4-CW-RCS-SMARF ANT 2.4GHZ WHIP RA SMA MALE |
4,444 |
|
Datasheet |
RCS | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.35GHz ~ 2.5GHz | Whip, Right Angle | 1 | 1.9 | - | -0.2dBi | - | - | SMA Male | - | - | - | Connector Mount | 2.106" (53.50mm) | Bluetooth, Thread, Wi-Fi, Zigbee™ |
|

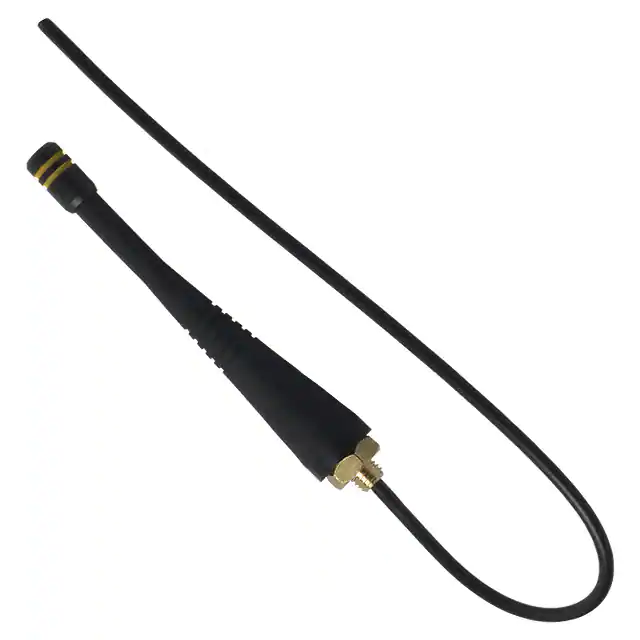

ANT-916-PW-QWRF ANT 916MHZ WHIP STR CAB PAN |
243 |
|
Datasheet |
PW | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 865MHz ~ 965MHz | Whip, Straight | 1 | 1.9 | - | 1.8dBi | - | Cable - 216mm | Solder | - | - | - | Panel Mount | 3.150" (80.00mm) | ISM, LoRa, Sensor Networks, SigFox |
|

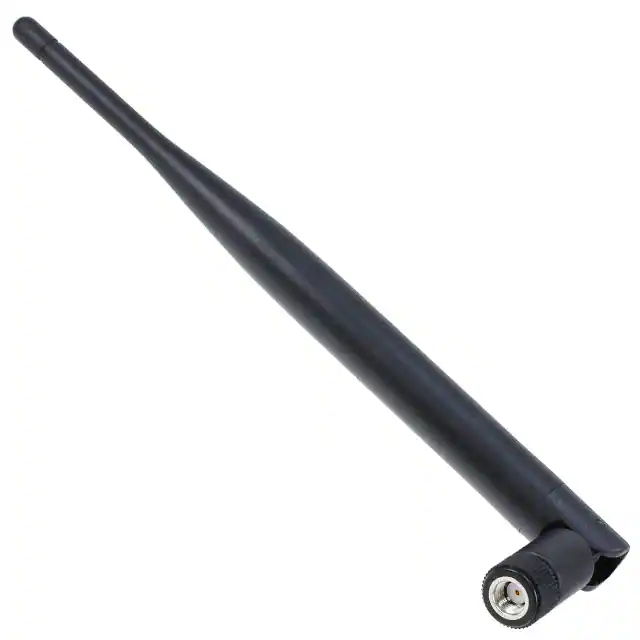

W1038RF ANT 2.4GHZ WHIP TILT 6.6" |
816 |
|
Datasheet |
- | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Whip, Tilt | 1 | 2 | -10dB | 3.8dB | - | - | RP-SMA Male | - | - | - | Connector Mount | 7.760" (197.10mm) | Bluetooth, WLAN, Zigbee™ |
|

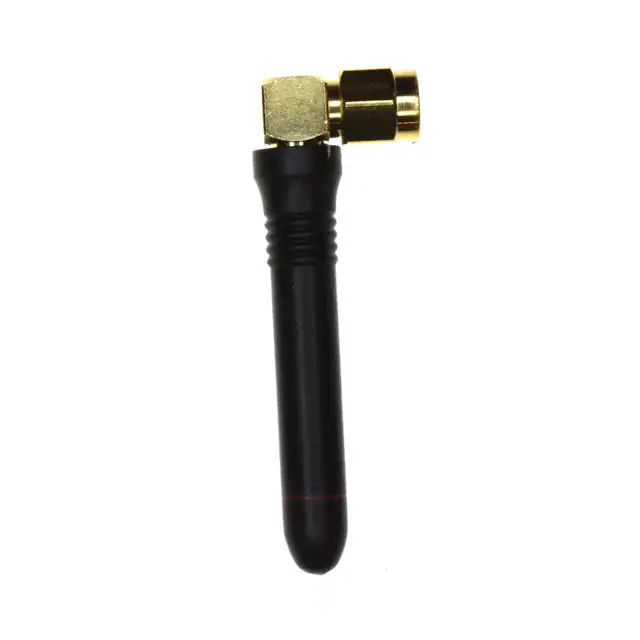

ANT-433-CW-RCSRF ANT 433MHZ WHIP RA RP-SMA MAL |
183 |
|
Datasheet |
RCS | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 433MHz | 425MHz ~ 440MHz | Whip, Right Angle | 1 | 2 | - | -2.9dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 2.106" (53.50mm) | Alarms, ISM, Remote Control, Security Systems |
|
|
W5017RF ANT 868MHZ/915MHZ WHIP STR |
129 |
|
Datasheet |
- | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 868MHz, 915MHz | 868MHz ~ 928MHz | Whip, Straight | 1 | - | -8dB | 2dBi | - | - | SMA Male | IP65 | - | - | Connector Mount | 7.047" (179.00mm) | - |
|
|
AEMF1005X-HLTE 5G WIDEBAND EXTERNAL RA WHIP |
937 |
|
Datasheet |
AEMF | Bag | Active | Cellular/LTE | Wide Band | 788.5MHz, 2.05GHz, 3.85GHz, 5.2GHz | 617MHz ~ 6GHz | Whip, Tilt | 4 | 3 | - | 0.1dBi, 3.6dBi, 5.1dBi, 4.8dBi | 5 W | Swivel Connetor | RP-SMA Male, SMA Male | - | - | - | Connector Mount | 6.811" (173.00mm) | 5G, LTE-M, Cat M, Cat M1, NB-IoT, IOT, CBRS |
|

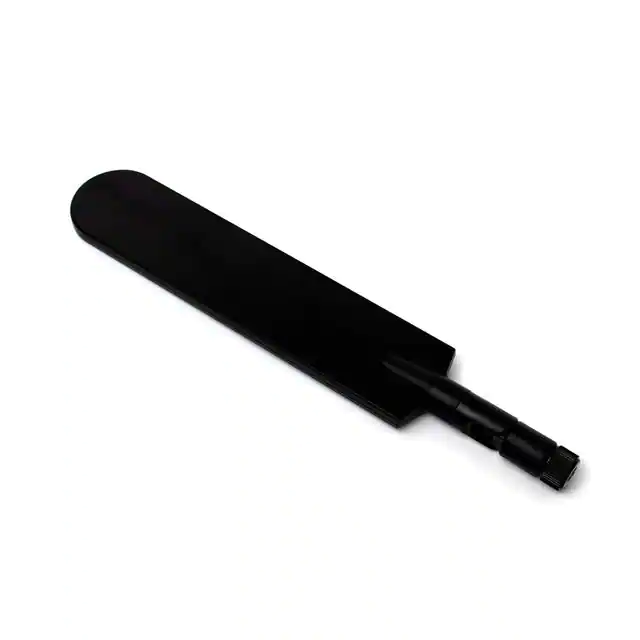

ET47AGBNADIPOLE ANTENNA |
1,197 |
|
Datasheet |
- | Bag | Active | Cellular | Ultra Wide Band | - | 703MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.4GHz, 2.5GHz ~ 2.69GHz | Whip, Straight | 4 | - | - | -0.2dBi, 1.9dBi, 3.5dBi, 3.7dBi, 1.5dBi, 2.4dBi, 2.6dBi, 4.7dBi, 5.6dBi | - | - | SMA | - | - | - | - | 8.106" (205.90mm) | Cellular, LTE |
|

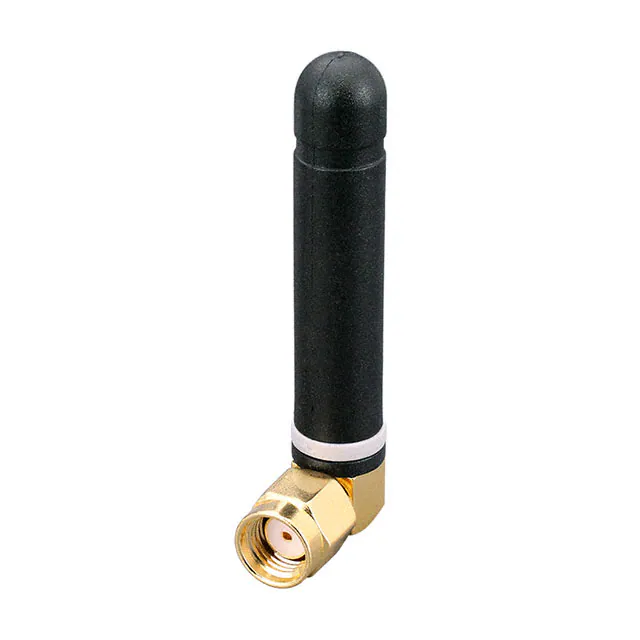

ANT-868-CW-RAHRF ANT 868MHZ WHIP RA RP-SMA MAL |
360 |
|
Datasheet |
RAH | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz | 833MHz ~ 903MHz | Whip, Right Angle | 1 | 1.9 | - | 0.6dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 1.850" (47.00mm) | ISM, LoRa, Sensor Networks, SigFox |
