RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
APCH5951C02-3000SGNSS+LTE COMBINATION ANTENNA |
1,365 |
|
- |
- | Bag | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
B66RF ANT 120MHZ WHIP STR NMO BASE |
1,282 |
|
Datasheet |
- | Bulk | Obsolete | - | VHF (f < 300MHz) | 120MHz | 66MHz ~ 174MHz | Whip, Straight | 1 | 2 | - | 0dB | - | - | NMO | - | - | - | Base Mount | 51.000" (129.54cm) | - |
|

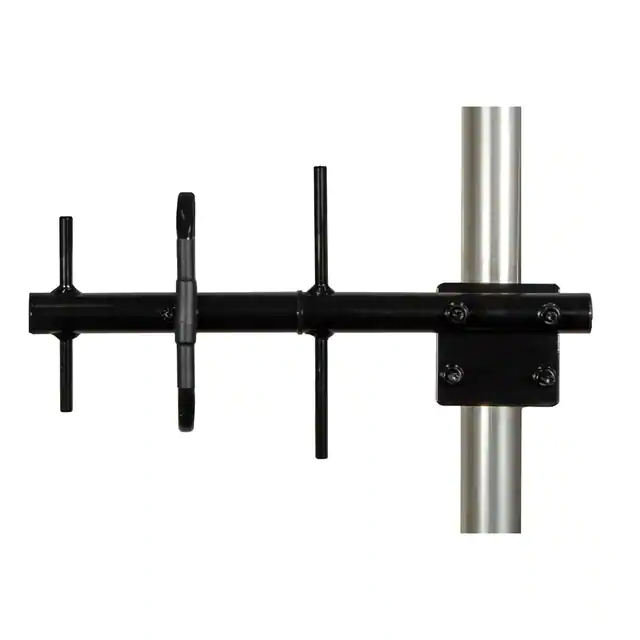

PE51YA10197 DBI 880-960MHZ HD YAGI N (F) |
3,115 |
|
Datasheet |
- | Bag | Active | Cellular, General ISM, WiFi | UHF (300MHz ~ 1GHz) | 904MHz, 944MHz | 880MHz ~ 928MHz, 928MHz ~ 960MHz | Yagi | 2 | 1.5 | - | 7dBi, 7.5dBi | 150 W | Cable - 914.4mm | N Type Female | IP55 | - | - | Bracket Mount | 13.400" (340.36mm) | GSM, ISM, LPWAN, LoRA, LTE-M, NB-IoT, IoT, M2M, WLAN |
|
|
MUF3003300-325 MHZ, 3DB GAIN, CHROME |
1,314 |
|
- |
- | Bulk | Obsolete | General ISM | UHF (300MHz ~ 1GHz) | 312.5MHz | 300MHz ~ 325MHz | Whip, Straight | 1 | 1.5 | - | 3dB | 200 W | - | - | - | - | - | Base Mount | - | General Purpose |
|
|
TRA7603RF ANT 815MHZ DOME NMO BASE MT |
1,726 |
|
Datasheet |
Phantom® | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 815MHz | 760MHz ~ 870MHz | Dome | 1 | - | - | 3dBi | 150 W | - | NMO | - | - | - | Base Mount | 2.700" (68.58mm) | - |
|
|
MUF3505S350-400,5DB,CCC,SPR,CHR |
3,689 |
|
Datasheet |
MUF | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 375MHz | 350MHz ~ 400MHz | Whip, Straight | 1 | 1.5 | - | 5dB | 200 W | - | - | - | - | - | Base Mount | 32.000" (812.80mm) | General Purpose |
|
|
HG5419PANTPANEL 5.4-5.8GHZ 19DBI |
4,265 |
|
- |
HG | Bag | Active | Cellular, General ISM, WiFi | SHF (f > 4GHz) | 5.66GHz | 5.47GHz ~ 5.85GHz | Panel | 1 | 1.5 | - | 19dBi | 50 W | - | N Type Female | - | - | - | Mast Mount | 1.370" (34.80mm) | 802.11a, ISM, WiMax, Wi-Fi, WLAN |
|
|
A24-HBMM-P6IRF ANT 2.4GHZ WHIP TILT MMCX 6" |
1,260 |
|
- |
- | Bulk | Active | - | UHF (2GHz ~ 3GHz) | 2.4GHz | - | Whip, Tilt | 1 | - | - | 2.1dBi | - | - | MMCX Male | - | - | - | Connector Mount | - | - |
|
|
2J7583MJOYSTICK 5GNR/4GLTE/3G/2G STRONG |
4,505 |
|
Datasheet |
- | Active | Cellular | Wide Band | 788.5MHz, 2.059GHz, 4.15GHz, 5.538GHz | 617MHz ~ 960MHz, 1.43GHz ~ 2.69GHz, 3.3GHz ~ 5GHz, 5.15GHz ~ 5.93GHz | Whip, Straight | 4 | 1.9, 3.1, 3.6 | -5.1dB, -8.9dB, -11.7dB, -15.1dB | 0.3dBi, 3.4dBi, 1.5dBi, 0.1dBi | 35 W | Cable - 3m | SMA Male | IP67, IP69 | - | - | Magnetic | 3.150" (80.00mm) | 2G, 3G, 4G, 5G, LTE | |
|
|
SB24006ANTENNA 2.4-2.GHZ |
1,747 |
|
Datasheet |
- | Bag | Active | Cellular | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Blade | 1 | - | -10dB | 2.14dBi | 3 W | Cable - 1.8288m | - | - | - | - | Surface Mount | 0.750" (19.05mm) | 4G, LTE |
|

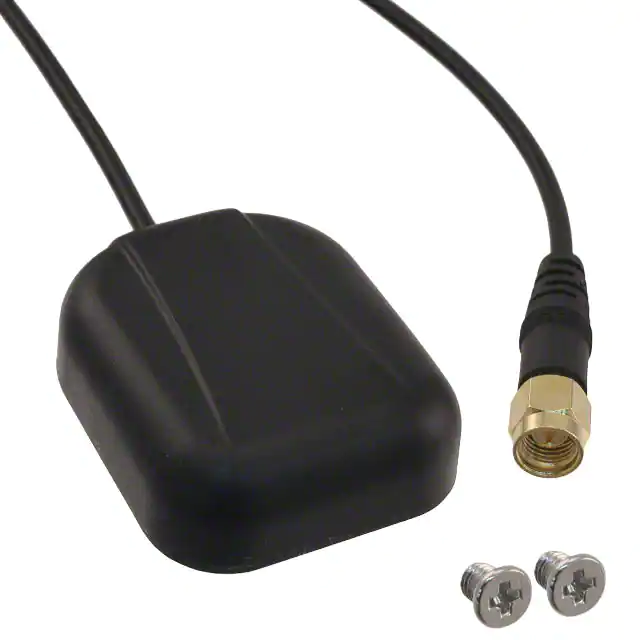

ANT-GPS-SH-SMARF ANT 1.575GHZ MOD SMA MALE 3M |
2,219 |
|
Datasheet |
SH | Bulk | Obsolete | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.570GHz ~ 1.580GHz | Module | 1 | 1.5 | - | 5dB | - | LNA | SMA Male | - | - | - | Magnetic, Chassis Mount | 0.492" (12.50mm) | GPS |
|
TRAB24003RF ANT 2.4GHZ DOME NMO BASE 2.7" |
4,854 |
|
Datasheet |
Phantom® | Bulk | Active | Cellular, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Dome | 1 | 2 | - | 3dBi | 100 W | - | NMO | - | - | - | Base Mount | 2.300" (58.42mm) | GSM, Wi-Fi |
|

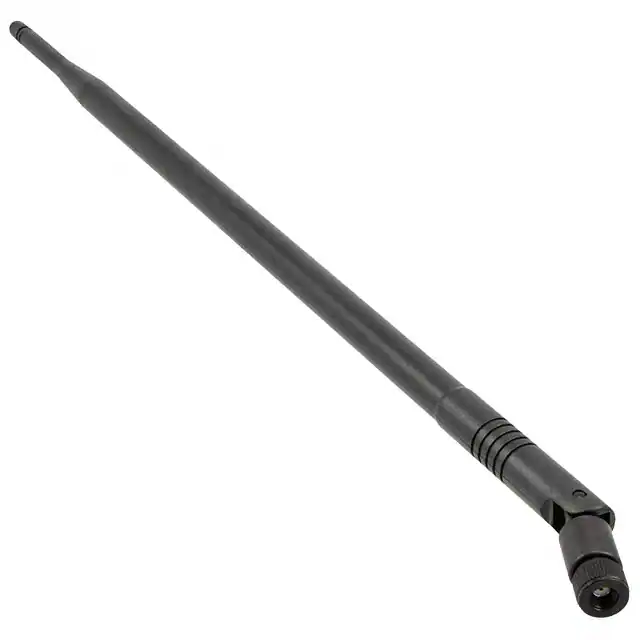

RFDPA391300SBAB8G1RF ANT 2.4GHZ WHIP TILT RP-SMA |
4,615 |
|
Datasheet |
- | Bulk | Active | - | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Whip, Tilt | 1 | 2 | -10dB | 9dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 15.433" (392.00mm) | - |
|
ANT-GPS-SE-SMARF ANT 1.575GHZ MOD SMA MALE MAG |
3,512 |
|
Datasheet |
SE | Bulk | Obsolete | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | - | Module | 1 | 2 | - | 33dBi | - | - | SMA Male | - | - | - | Magnetic, Chassis Mount | 0.551" (14.00mm) | GPS |
|
ANT-8/9-IPW2-NPRF ANT 868/915MHZ WHIP N PLUG |
2,717 |
|
Datasheet |
IPW | Bag | Obsolete | General ISM | UHF (300MHz ~ 1GHz) | 868MHz, 915MHz | 862MHz ~ 876MHz, 902MHz ~ 930MHz | Whip, Straight | 2 | 1.9, 1.7 | -10.2dB, -11.7dB | 0.6dBi, 1.5dBi | 2 W | - | N Type Male | IP67 | - | - | Connector Mount | 5.200" (132.00mm) | 802.11ah, HaLow, ISM, LoRaWAN, LPWA, Sigfox, Wi-Fi |
|
|
B2002NRF ANT 212MHZ WHIP STR NMO BASE |
2,049 |
|
Datasheet |
- | Bulk | Obsolete | - | VHF (f < 300MHz) | 212MHz | 200MHz ~ 225MHz | Whip, Straight | 1 | 2 | - | 2.4dBi | - | - | NMO | - | - | - | Base Mount | 31.500" (800.10mm) | - |
|
|
BB4303RF ANT 440MHZ WHIP STR NMO BASE |
1,096 |
|
Datasheet |
- | Bulk | Obsolete | - | UHF (300MHz ~ 1GHz) | 440MHz | 430MHz ~ 450MHz | Whip, Straight | 1 | 2 | - | 3dBi | - | - | NMO | - | - | - | Base Mount | 14.000" (355.60mm) | - |
|
|
KIT1012-200ANTKIT QW450+MB8M |
2,333 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
16379.2GSM-ANTENNA |
3,376 |
|
Datasheet |
* | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
KD19FREQANT ANT. 406-512 MHZ WHIP 1/4W |
4,881 |
|
- |
- | Bag | Active | Cellular | UHF (300MHz ~ 1GHz) | 459MHz | 406MHz ~ 512MHz | Whip, Straight | 1 | 2 | -10dB | - | - | - | - | - | - | - | Connector Mount | 6.000" (152.40mm) | DCS, ISM, GSM, PCS |
