RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MWU4002SRF ANT 380-520MHZ WHIP NMO |
1,432 |
|
Datasheet |
Chrome Coil | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 450MHz | 380MHz ~ 520MHz | Whip, Straight | 1 | 2 | 9.54dB | 2dB | 200 W | - | NMO | - | - | - | NMO Mount | 10.840" (275.34mm) | LMR/TETRA/P25 |
|
AGPSHP35MMMSMARF ANT 1.575GHZ MODULE SMA MAGN |
3,829 |
|
Datasheet |
- | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.574GHz ~ 1.576GHz | Module | 1 | 1.5 | - | 4dBic | - | Cable - 431.8mm, LNA | SMA | - | - | - | Magnetic | 0.547" (13.90mm) | GNSS, GPS |
|
3674.000.00ID ISC ANT40/30-U.FL-A HF ANT |
1,975 |
|
- |
- | Box | Active | - | - | - | 13.56MHz | PCB Trace | - | - | - | - | 1 W | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | - | 1.181" (30.00mm) | - |
|
KG3E825UDON GLASS, ENCLOSED, 3 DB, 806 - |
2,414 |
|
Datasheet |
- | Bag | Active | - | UHF (300MHz ~ 1GHz) | 851MHz | 806MHz ~ 896MHz | Whip, Straight | 1 | - | - | 5.14dBi | 60 W | - | - | - | - | - | Magnetic | 13.000" (330.20mm) | - |
|
|
3673.000.00ID ISC.ANT100/100-U.FL-A HF |
1,143 |
|
- |
- | Box | Active | - | - | - | 13.56MHz | PCB Trace | - | - | - | - | 1 W | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | - | 3.937" (100.00mm) | - |
|

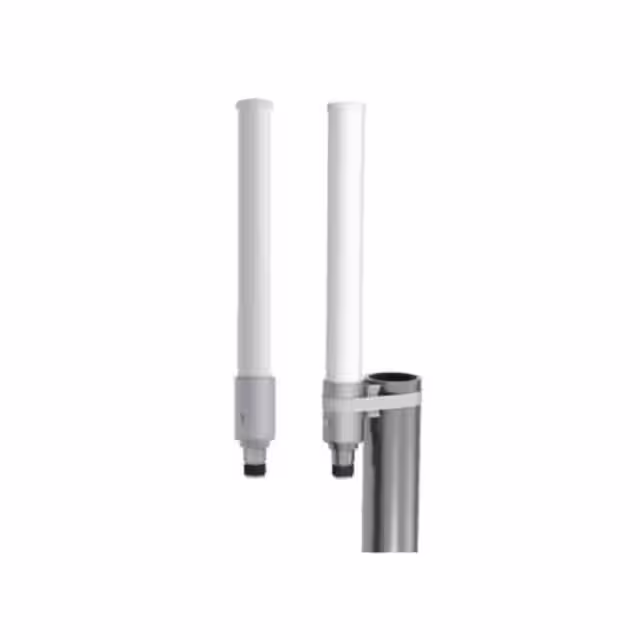

OC69421-FNMOMNI, 698-4200MHZ, 1.5/4/5 DBI,N |
1,848 |
|
Datasheet |
- | Bulk | Active | Cellular | Wide Band | 829MHz, 1.85GHz, 2.045GHz, 2.3GHz, 2.595GHz, 3.75GHz | 698MHz ~ 960MHz, 1.71GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz, 2.1GHz ~ 2.5GHz, 2.5GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz | Whip, Straight | 6 | 2, 2.5 | - | 1.5dBi, 3.5dBi, 3.5dBi, 3.5dBi, 3.5dBi, 5dBi | 20 W | - | N Type Male | - | - | - | Bracket Mount | 9.764" (248.00mm) | 4G, 5G, CBRS |
|
33-2600-07IRIDIUM ANTENNA, SMA FEMALE JACK |
1,476 |
|
Datasheet |
Accutenna® | Bulk | Active | - | UHF (1GHz ~ 2GHz) | 1.621GHz | 1.616GHz ~ 1.6265GHz | Dome | 1 | 1.8 | - | 4.25dBi | - | - | SMA Female | IP67 | - | - | Magnetic | 0.591" (15.00mm) | General Purpose |
|
33-2408-05-0150EMBEDDED, GPS L1+GLONASS L1, PRE |
2,952 |
|
Datasheet |
Accutenna® | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.59GHz | 1.574GHz ~ 1.606GHz | Ceramic Patch | 1 | 1.8 | - | 4.25dBi | - | Cable - 150mm, LNA | MCX Male | - | - | - | Adhesive | 0.307" (7.80mm) | GLONASS, GPS |
|

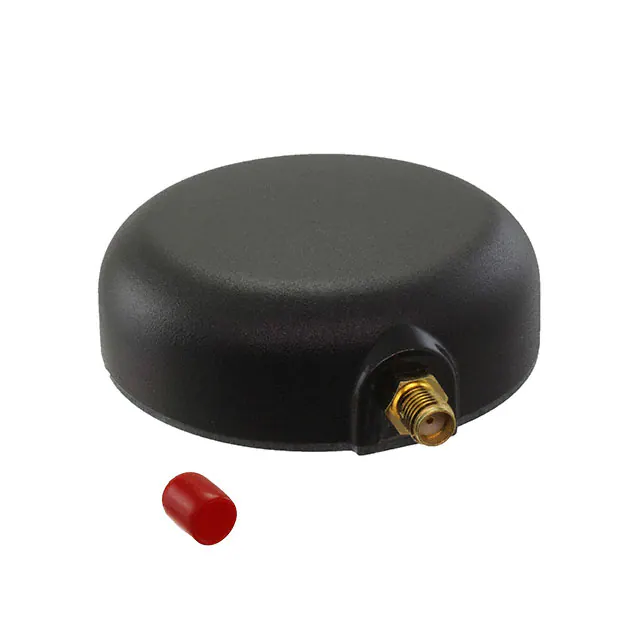

33-2600A-07IRIDIUM ANTENNA - ACTIVE RECEIVE |
1,331 |
|
Datasheet |
Accutenna® | Bulk | Active | - | UHF (1GHz ~ 2GHz) | 1.6207GHz | 1.615GHz ~ 1.6265GHz | Dome | 1 | 1.5 | - | 4.5dBi | - | LNA | SMA Female | IP67 | - | - | Magnetic | 0.591" (15.00mm) | General Purpose |
|
|
PCSD.06.APCS.06.A ON EVALUATION BOARD |
4,757 |
|
Datasheet |
- | Bag | Active | Cellular | Wide Band | 750.5MHz, 859MHz, 920MHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.595GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.69GHz | Chip | 7 | - | - | -0.21dBi, 0.61dBi, 0.77dBi, 2.92dBi, 3.05dBi, 3.17dBi, 3.72dBi | 5 W | - | Solder | - | - | - | Surface Mount | 0.118" (3.00mm) | CDMA, DCS, EDGE, GPRS, GSM, HSDPA, PCS, UMTS, WCDMA |
|
|
33-2708-00-0150EMBEDDED, BEIDOU B1/GPS L1/GALIL |
1,238 |
|
Datasheet |
Accutenna® | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.5815GHz | 1.557GHz ~ 1.606GHz | Ceramic Patch | 1 | 1.8 | - | 4.75dBi | - | Cable - 150mm, LNA | SMA Male | - | - | - | Adhesive | 0.307" (7.80mm) | GLONASS, GPS |
|
ANT-PGNSS ANTENNA GPS GLONASS |
4,802 |
|
Datasheet |
- | Bulk | Active | Navigation | - | - | - | Module | - | - | - | - | - | Cable - 3.05m | - | - | - | - | - | - | Beidou, Galileo, GLONASS, GNSS, GPS |
|
BB4505CNSRF ANT 460MHZ WHIP STR NMO BASE |
2,921 |
|
Datasheet |
- | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 460MHz | 450MHz ~ 470MHz | Whip, Straight | 1 | 2 | - | 5dBi | 100 W | - | NMO | - | - | - | Base Mount | 32.250" (819.15mm) | - |
|
ANT-WS-A-NF-09RF ANT 2.4GHZ WHIP STR N FEM |
3,015 |
|
Datasheet |
- | Bulk | Active | WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Whip, Straight | 1 | 1.3 | - | 9dBi | - | - | N Type Female | - | - | - | Bracket Mount | - | Wi-Fi |
|
33-1825-05-0150EMBEDDED, LIGHTWEIGHT GPS L1/L5 |
3,668 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | Cable - 150mm | MCX Male | - | - | - | Chassis Mount | - | General Purpose |
|
ANT-WS-A-NF-09-150RF ANT 2.4GHZ WHIP STR N FEM |
4,297 |
|
Datasheet |
- | Bulk | Active | WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Whip, Straight | 1 | 1.3 | - | 9dBi | - | - | N Type Female | - | - | - | Bracket Mount | - | Wi-Fi |
|
|
60012014IN1 BAT ANTENNA - 2XLTE, GNSS, |
1,483 |
|
Datasheet |
AirLink® - Accessory | Box | Active | Cellular, Navigation, WiFi | Wide Band | 2.4GHz, 3.349GHz, 5GHz | 698MHz ~ 6GHz | Module | 3 | - | - | - | - | Cable - 3m | - | - | - | - | Adhesive | - | GNSS, LTE, Wi-Fi |
|

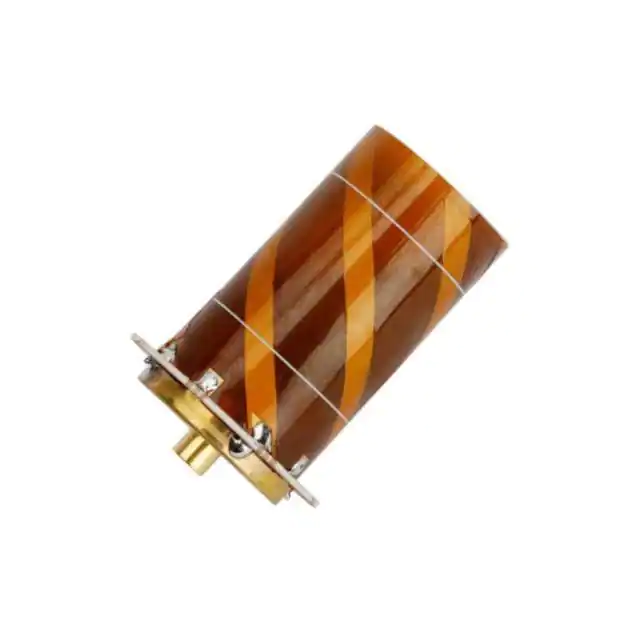

33-HC771E-28SINGLE BAND |
1,524 |
|
Datasheet |
- | Box | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.5825GHz | 1.559GHz ~ 1.606GHz | Helical | 1 | 1.8 | - | 2dBic, 3dBic, 3.5dBic | - | LNA, Filter | MCX | - | - | - | Panel Mount | 1.524" (38.70mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|

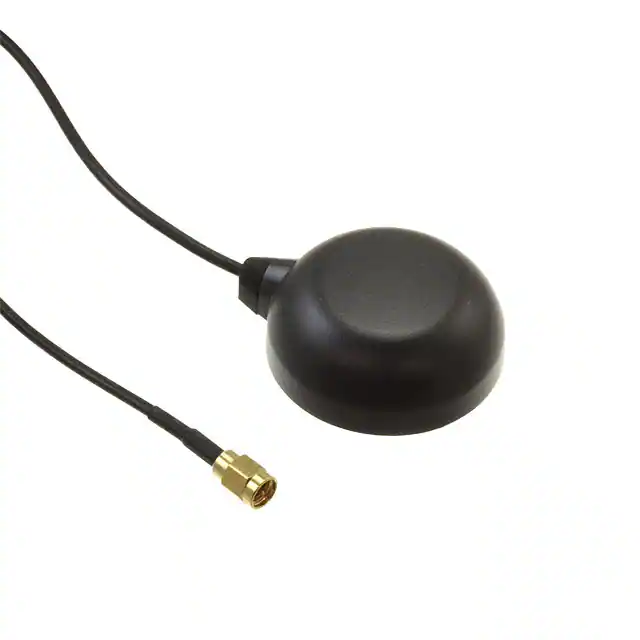

33-8825-00-3000LIGHTWEIGHT GPS L1/L5 + GLONASS |
2,171 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | Cable - 3m | SMA Male | - | - | - | - | - | General Purpose |
|

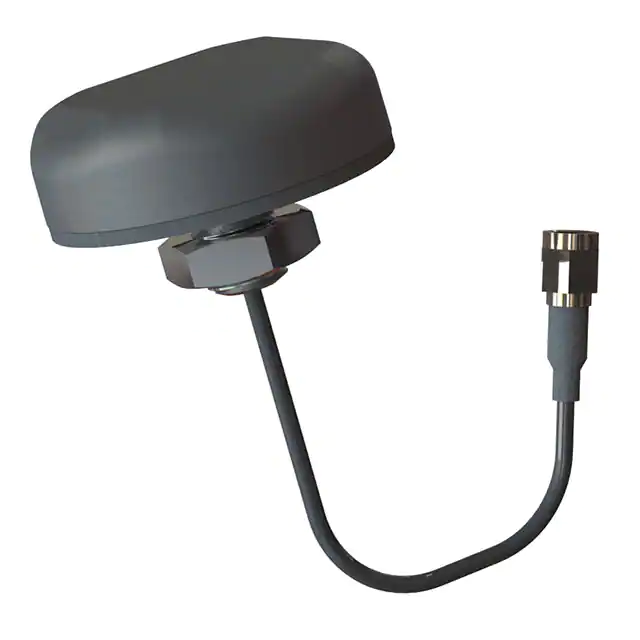

GNS1559MPF-100SMAMASSET TRACKING GNSS PUCK ANT |
1,893 |
|
Datasheet |
GNS1559MPF | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHZ, 1.601GHz | 1.559GHz ~ 1.606GHz | Puck | 3 | 2.1, 2.4, 1.8 | - | 30.7dBic, 31.9dBic, 31.5dBic | - | Cable - 1m | SMA Male | IP67 | - | - | Panel Mount | 0.587" (14.90mm) | BEIDOU, GLONASS, GPS, LTE |
