RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AEACBD059015-C3GSWRF ANT GPS/GSM/WIFI COMB |
1,949 |
|
Datasheet |
AEAC | Bulk | Active | Cellular, Navigation, WiFi | Wide Band | 892MHz, 1.575GHz, 1.94GHz, 2.442GHz | 824MHz ~ 960MHz, 1.574GHz ~ 1.576GHz, 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.484GHz | Dome | 4 | 1.5, 2 | - | 2dBi, 3dBi | - | - | SMA Male | IP65, IP67 | - | - | Adhesive, Magnetic | 0.591" (15.00mm) | 2G, 3G, GPS, GSM, Wi-Fi |
|
AN_GSM_023L-LP4G/3G/LTE Antenna 700-2700MHz Cy |
2,222 |
|
Datasheet |
- | Bulk | Active | Cellular | Wide Band | 829MHz, 2.2GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.69GHz | Dome | 2 | 3 | - | 2dBi, 2dBi | - | - | SMA | - | - | - | Screw | 2.969" (75.40mm) | 3G, 4G, LTE |
|
|
2J4983PEAGLE 5GNR/4GLTE/3G/2G ADHESIVE |
3,405 |
|
Datasheet |
- | Bag | Active | Cellular | Wide Band | 788.5MHz, 2.058GHz, 4.15GHz, 5.537GHz | 617MHz ~ 960MHz, 1.427GHz ~ 2.69GHz, 3.3GHz ~ 5GHz, 5.15GHz ~ 5.925GHz | Module | 4 | 1.8, 2.3, 2.8 | -12.3dB, -8.6dB, -8.2dB, -7.6dB | 2.2dBi, 3.5dBi, 3dBi, 0.5dBi | 25 W | Cable - 3m | SMA Male | IP67, IP69 | - | - | Adhesive | 0.602" (15.30mm) | 2G, 3G, 4G, 5G, Cat-M, CBRS, IoT, LPWA, LTE, NB-IoT, NR |
|
|
2J2115K-868-B07HBAYONET 868MHZ/SIGFOX/LORA/LPWA/ |
1,907 |
|
Datasheet |
- | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 871.5MHz | 868MHz ~ 875MHz | Whip, Straight | 1 | 2 | - | 2.2dBi | 50 W | - | FME Male | - | - | - | Wall Mount | 8.622" (219.00mm) | ISM |
|
|
001-0002-LRF ANT 900MHZ WHIP TILT RP-SMA |
1,700 |
|
Datasheet |
- | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 900MHz | 902MHz ~ 928MHz | Whip, Tilt | 1 | 2.5 | - | 2dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 8.268" (210.00mm) | - |
|

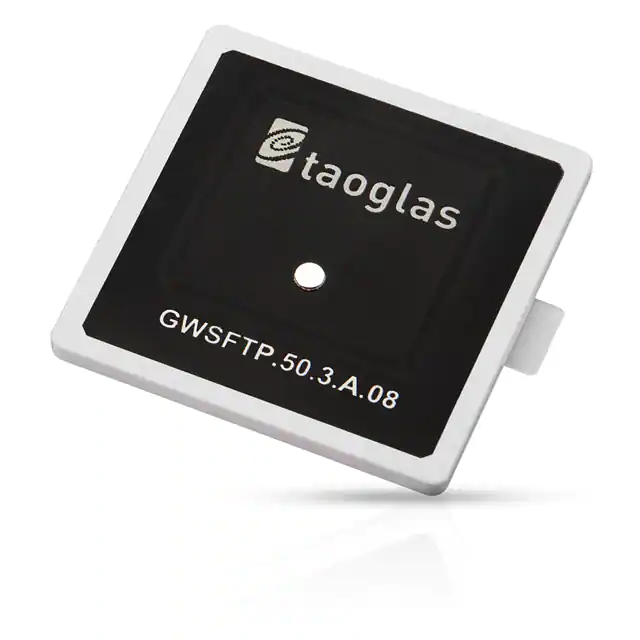

GWSFTP.50.3.A.08GPS L1 & WI-FI SINGLE FEED 50MM |
4,695 |
|
Datasheet |
- | Tray | Not For New Designs | Navigation, WiFi | UHF (1GHz ~ 2GHz), UHF (2GHz ~ 3GHz) | 1.575GHz, 2.45GHz | 1.574GHz ~ 1.576GHz, 2.4GHz ~ 2.5GHz | Ceramic Patch | 2 | - | -7dB, -10dB | 1.6dBi, 0.1dBi | - | - | Pin | - | - | - | Adhesive | 0.118" (3.00mm) | GPS, Wi-Fi |
|
SLPT2400NMOHFWRF ANT 2.4GHZ BLADE NMO BASE MT |
3,781 |
|
Datasheet |
Shadow | Bulk | Active | Cellular, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Dome | 1 | 1.5 | - | 5dBi | - | - | NMO | IP67 | - | - | Base Mount | 2.624" (66.66mm) | LTE, WLAN |
|
|
AN_W_401BMASWELL WIFI7 IP67 WATERPROOF |
1,112 |
|
Datasheet |
- | Bulk | Active | WiFi | Wide Band | 4.65GHz | 2.1GHz ~ 7.2GHz | Ceramic Patch | 1 | 1.5 | - | 4dBi | - | Cable - 3m | RP-SMA | IP67 | - | - | Adhesive, Screw | 1.043" (26.50mm) | Wi-Fi |
|

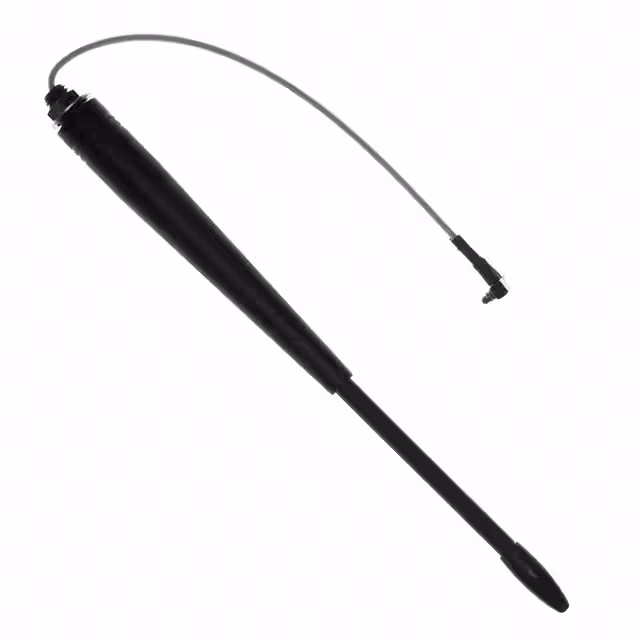

0600-00025RF ANT 915MHZ WHIP STR MMCX PAN |
1,544 |
|
Datasheet |
- | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | Whip, Straight | 1 | 2 | - | 2dBi | - | - | MMCX | - | - | - | Panel Mount | 7.204" (182.99mm) | - |
|

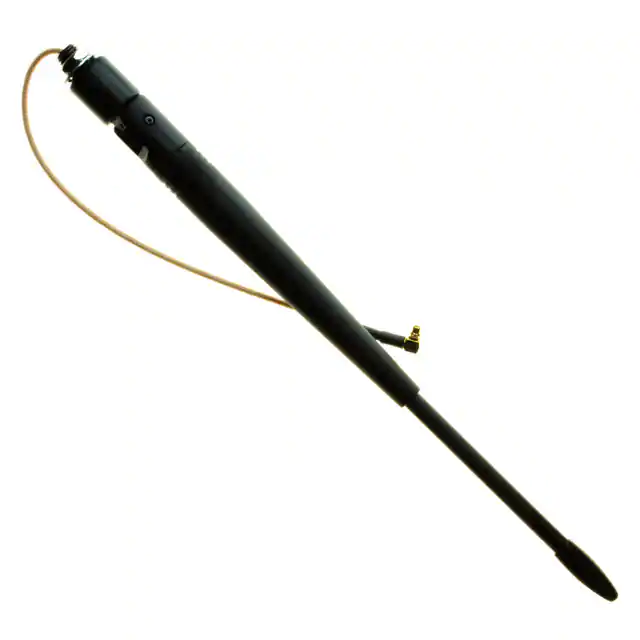

0600-00019RF ANT 915MHZ WHIP TILT MMCX PAN |
2,776 |
|
Datasheet |
- | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | Whip, Tilt | 1 | 2 | - | 2dBi | - | - | MMCX | - | - | - | Panel Mount | 7.200" (182.88mm) | - |
|

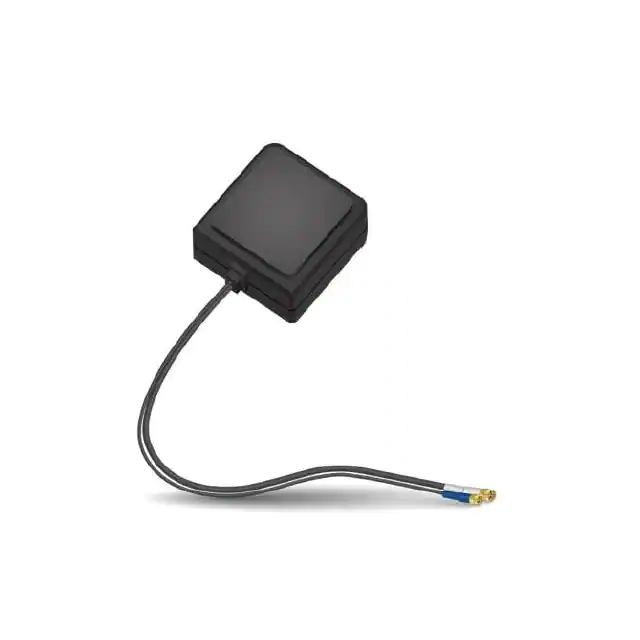

X1005248-GDA2SA10A2ANTENNA GNSS/DSRC |
2,932 |
|
Datasheet |
- | Box | Active | Navigation | Wide Band | 1.561GHz, 1.575GHz, 1.602GHz, 5.885GHz | 5.85GHz ~ 5.92GHz | Module | 4 | 2 | - | 2dBi, 3dBi, 3.5dBi, 3.8dBi | - | Cable - 1m, LNA | SMA Male (2) | IPX5 | - | - | Adhesive | 0.787" (20.00mm) | DSRC, GNSS |
|
|
H2P13648110100PB50DMS (49.5X49.5X8MM); GPS(L1+ |
3,369 |
|
Datasheet |
- | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.176GHz, 1.575GHz | - | Ceramic Patch | 1 | - | -10dB | 6.1dBi, 4.5dBi | - | - | - | - | - | - | Adhesive | 0.406" (10.30mm) | BeiDou, Galileo, GLONASS, GNSS, GPS, QZSS |
|
|
2J2102K-B07HBAYONET 2.4/5.0/WIFI/SIGFOX/LORA |
2,321 |
|
Datasheet |
- | Bag | Active | General ISM, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.422GHz | 2.41GHz ~ 2.49GHz, 4.925GHz ~ 5.925GHz | Whip, Straight | 2 | 1.9 | -10dB | 2.9dBi, 4dBi | 25 W | Cable - 3m | SMA Male | - | - | - | Wall Mount | 8.622" (219.00mm) | ISM, Wi-Fi, Zigbee™ |
|

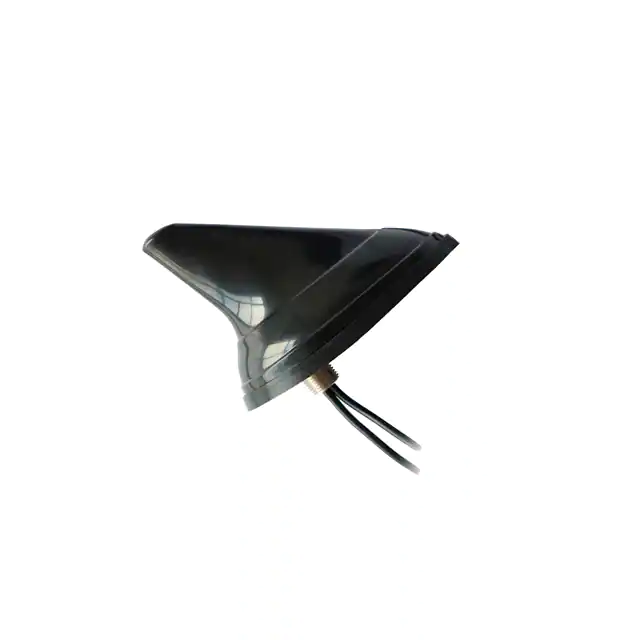

AN_GPS_GSM_012LM2 COMBO ANTENNA SCREW Mount |
2,080 |
|
Datasheet |
- | Bulk | Active | Cellular, Navigation | Wide Band | 829MHz, 1.575GHz, 1.94GHz | 824MHz ~ 960MHz, 1.574GHz ~ 1.576GHz, 1.71GHz ~ 2.17GHz | Dome | 3 | 1.5, 2 | - | 2dBi, 5dBic | - | Cable - 5m, LNA | SMA Male (2) | IP65, IP66, IP67 | - | - | Screw Mount | 3.028" (76.90mm) | 4G, GPS, GSM, LTE |
|
AN.GNSS.L1.PCB.02MASWELL HIGH PERFORMANCE GNSS PL |
2,568 |
|
Datasheet |
- | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.581GHz | 1.56GHz ~ 1.602GHz | Flat Patch | 1 | 1.5 | - | 6dBic | - | Cable - 100mm | SMA Male | - | - | - | Surface Mount | 3.071" (78.00mm) | Beidou, Gaileo, Glonass, GNSS, GPS |
|
318020652LORA FIBERGLASS ANTENNA KIT; 902 |
1,738 |
|
- |
- | Bulk | Discontinued at Digi-Key | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | Whip, Straight | 1 | - | - | 3dBi | - | - | N Type Male | - | - | - | Connector Mount | 14.173" (360.00mm) | LoRa |
|
ST-CA7002700-PTNFRF ANT MULT-BAND CEILING MT OMNI |
4,658 |
|
- |
* | Box | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
2J2124K-B07HBAYONET 4GLTE/3G/2G WIDEBAND WAL |
1,320 |
|
Datasheet |
- | Bag | Active | Cellular | Wide Band | 829MHz, 1.94GHz, 2.6GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.5GHz ~ 2.7GHz | Whip, Straight | 3 | 2.5, 2.7, 2.8 | -7.4dB, -6.7dB, -6.5dB | 3dBi, 2.3dBi, 0.7dBi | 25 W | Cable - 3m | SMA Male | - | - | - | Wall Mount | 8.622" (219.00mm) | 2G, 3G, 4G, LTE |
|

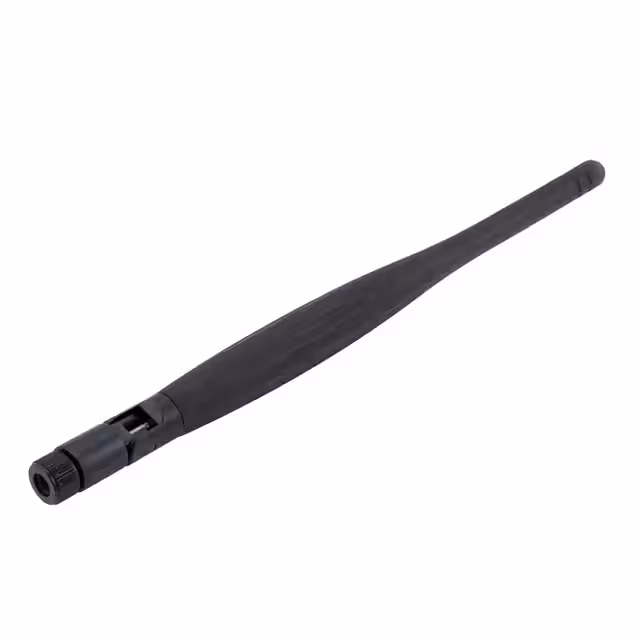

PE51RD10083DBI RBR DUCK 806-960MHZ RPSMA |
4,874 |
|
Datasheet |
- | Bag | Active | Cellular, General ISM | UHF (300MHz ~ 1GHz) | 910MHz | 860MHz ~ 960MHz | Blade, Tilt/Swivel | 1 | 2 | - | 3dBi | 50 W | - | RP-SMA | - | - | - | Connector Mount | 8.620" (218.95mm) | LPWAN, LoRA, IoT, M2M, ISM |
|
|
W4120GNSS5000ANT EXTERNAL GNSS GLASS MOUNT S |
4,627 |
|
Datasheet |
Low Profile Blade | Bulk | Active | Cellular, Navigation | Wide Band | 883MHz, 1.561GHz, 1.575GHz, 1.602GHz, 1.94GHz | 806MHz ~ 960MHz, 1.559GHz ~ 1.563GHz, 1.574GHz ~ 1.576GHz, 1.598GHz ~ 1.606GHz, 1.71GHz ~ 2.17MHz | Blade | 3 | 2, 2.5 | - | 1dBi, 1.7dBi, 2.9dBi, 30dBi | - | Cable - 5m, LNA, Filter | SMA Male | IP67 | - | - | Adhesive | 0.543" (13.80mm) | 3G, Beidou, Galileo, GLONASS, GNSS, GPS |
