RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

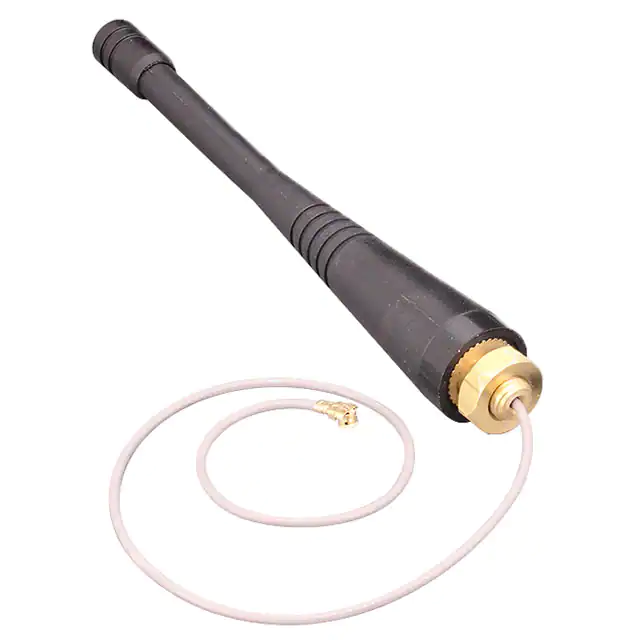

ANT-B13-PW-QW-UFLRF ANT LTE B13 WHIP STR CAB PAN |
4,831 |
|
Datasheet |
PW | Bag | Active | Cellular | UHF (300MHz ~ 1GHz) | 765MHz | 740MHz ~ 790MHz | Whip, Straight | 1 | 1.9 | - | 1.7dBi | 10 W | Cable - 216mm, O-Ring Compatible | U.FL (UMCC), I-PEX MHF1 | - | - | - | Panel Mount | 3.874" (98.40mm) | Cellular, LTE, NB-IoT, UMTS |
|

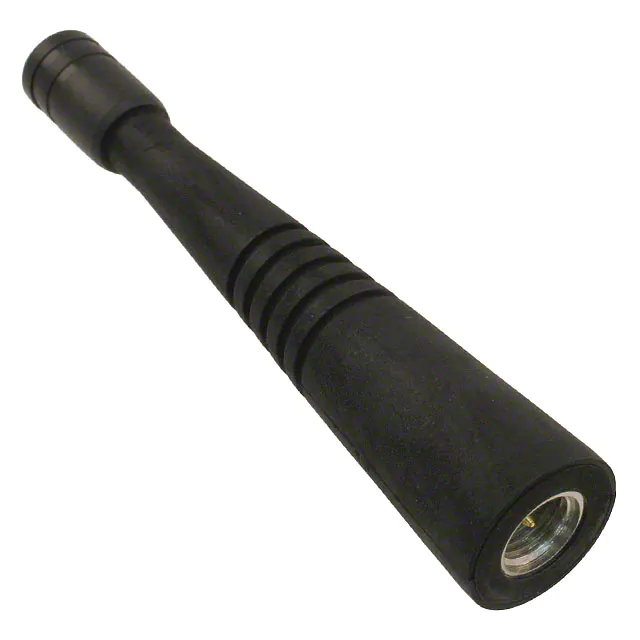

WXC2400SMRF ANT 2.4GHZ WHIP STR SMA MALE |
3,967 |
|
Datasheet |
WXC | Bulk | Active | - | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Whip, Straight | 1 | - | - | - | - | - | SMA Male | - | - | - | Connector Mount | - | - |
|

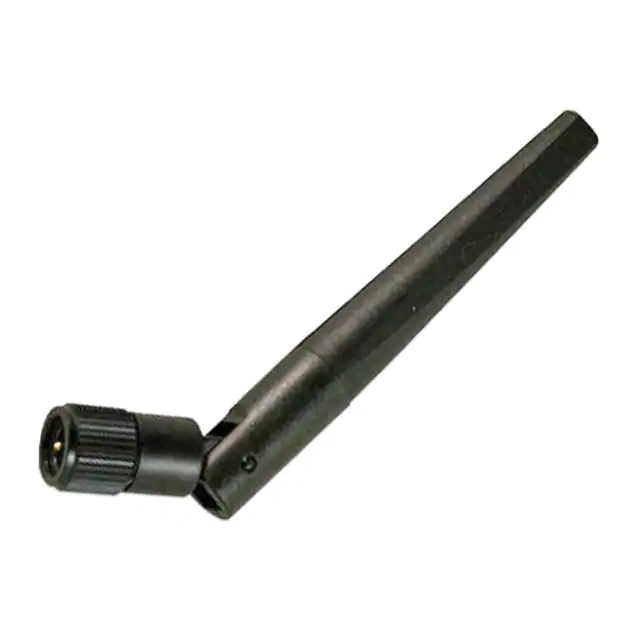

PRO-EX-332RF ANT 2.4GHZ WHIP TILT SMA MALE |
4,052 |
|
Datasheet |
External Antenna | Bulk | Active | - | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.48GHz | Whip, Tilt | 1 | 2 | - | 3dBi | - | - | SMA Male | - | - | - | Connector Mount | 3.268" (83.00mm) | - |
|

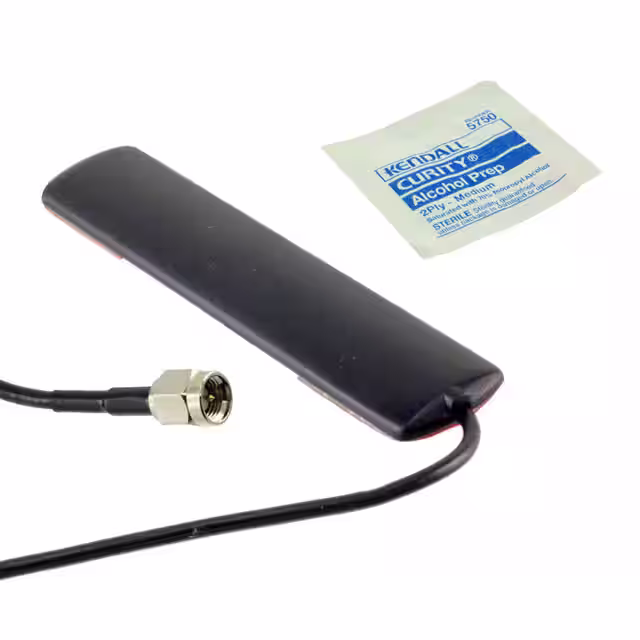

ANT-DB1-VDP-SMARF ANT 892MHZ/1.85GHZ FLAT BAR |
1,719 |
|
Datasheet |
VDP | Bag | Active | - | Wide Band | 892MHz, 1.85GHz, 2.45GHz | 824MHz ~ 960MHz, 1.71GHz ~ 1.99GHz, 2.4GHz ~ 2.48GHz | Flat Bar | 3 | 1.5, 1.9, 1.9 | - | -1.8dBi, -1.7dBi, -1.3dBi | - | Cable - 3m | SMA Male | - | - | - | Adhesive | 0.177" (4.50mm) | - |
|

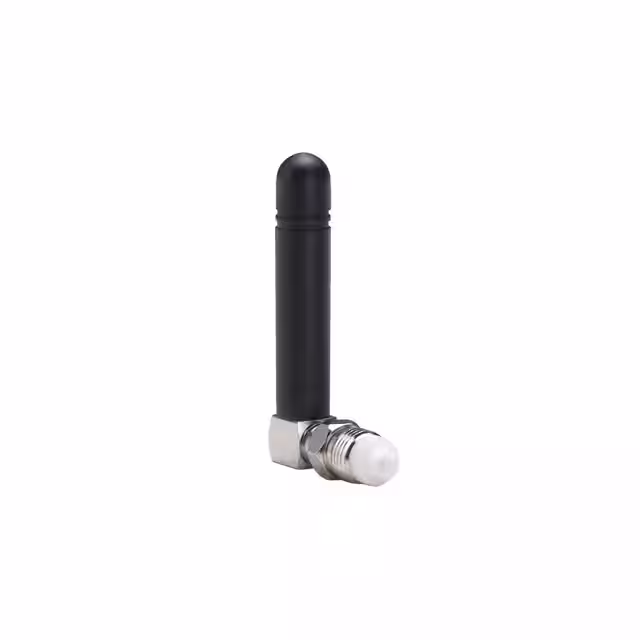

TG.22.0222RF ANT 850MHZ/900MHZ WHIP RA |
2,321 |
|
Datasheet |
- | Bag | Not For New Designs | Cellular, General ISM | Wide Band | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Whip, Right Angle | 5 | 3, 2, 2, 2, 3 | -5dB, -10dB, -10dB, -10dB, -5dB | -0.37dBi, -0.13dBi, 3.35dBi, 4dBi, 4.08dBi | 5 W | - | FME Female | - | - | - | Connector Mount | 1.772" (45.00mm) | DCS, GSM, PCS, WCDMA |
|
DELTA22/X/SMAM/S/S/20433MHZ ISM BAND 115MM SMALL ANTE |
1,779 |
|
Datasheet |
Delta 22 | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 433MHz | - | Whip, Tilt | 1 | 1.5 | - | 2dBi | 50 W | - | SMA Male | - | - | - | Connector Mount | 4.528" (115.00mm) | ISM |
|
APAMSTJ-138RF ANT 440MHZ/850MHZ WHIP STR |
2,859 |
|
Datasheet |
APAMS | Bulk | Active | Bluetooth, Cellular, WiFi | Wide Band | 440MHz, 850MHz, 868MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.4GHz | 380MHz ~ 2.4GHz | Whip, Straight | 8 | 3 | - | 2.2dBi | - | Cable - 2.5m | SMA Male | - | - | - | Adhesive | 0.262" (6.65mm) | AMPS, Bluetooth, DCS, GSM, PCS, Tetra, UMTS, Wi-Fi |
|
|
QW470-LRF ANT 480MHZ WHIP STR NMO 5.75" |
3,325 |
|
Datasheet |
- | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 480MHz | 470MHz ~ 490MHz | Whip, Straight | 1 | 2 | - | 0dB | - | - | NMO | - | - | - | Base Mount | 5.750" (146.05mm) | - |
|

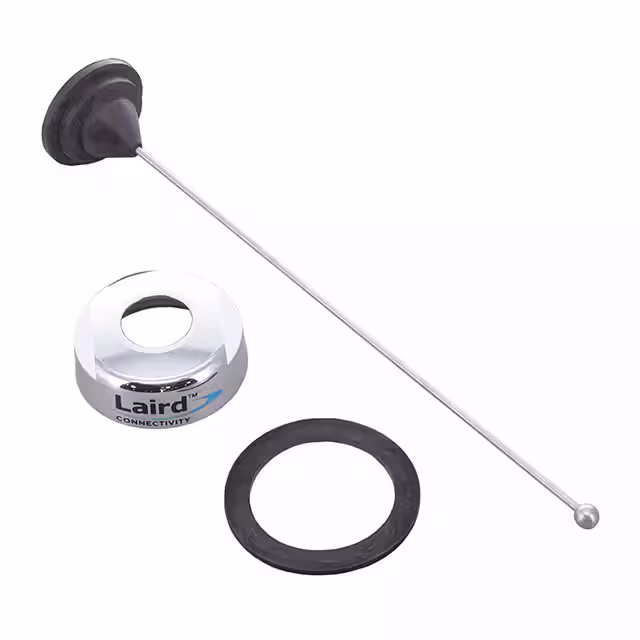

QW490RF ANT 501MHZ WHIP STR NMO 5.5" |
1,327 |
|
Datasheet |
- | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 501MHz | 490MHz ~ 512MHz | Whip, Straight | 1 | 2 | - | 0dB | - | - | NMO | - | - | - | Base Mount | 5.500" (139.70mm) | - |
|

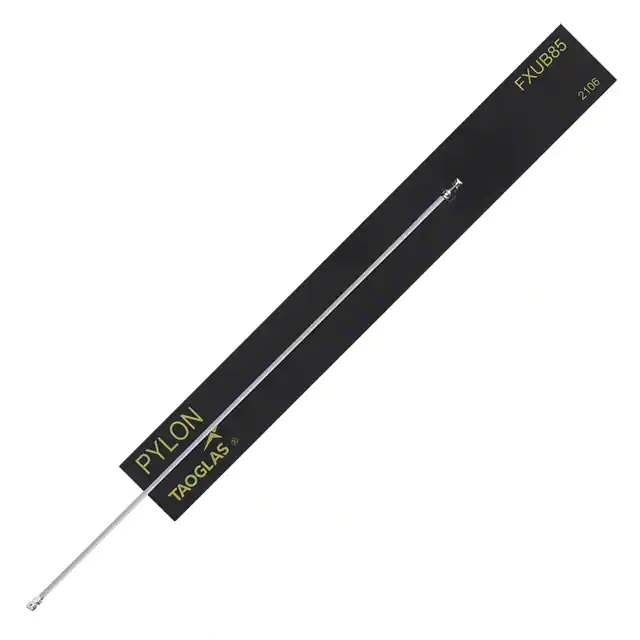

FXUB85.54.0150CULTRA WIDE BAND FLEX ANTENNA 600 |
4,894 |
|
Datasheet |
Pylon | Bulk | Active | Cellular, WiFi | Wide Band | 788.5MHz, 1.4725GHz, 1.955GHz, 2.495GHz, 4.15GHz, 5.5375GHz, 6.525GHz | 617MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 5GHz, 5.15GHz ~ 5.925GHz, 5.925GHz ~ 7.125GHz | Flat Patch | 7 | - | -6dB, -7dB, -8dB, -11dB, -15dB | 2.1dBi, 2.4dBi, 1.9dBi, 1.8dBi, 5.3dBi, 5.6dBi, 4.5dBi | 5 W | Cable - 150mm | I-PEX MHF4L | - | - | - | Adhesive | 0.012" (0.30mm) | 3G, 4G, 5G, LTE, Wi-Fi |
|
|
W200WHIP, 1/4 WAVE, 136 - 960 MHZ, . |
1,315 |
|
- |
* | Bag | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

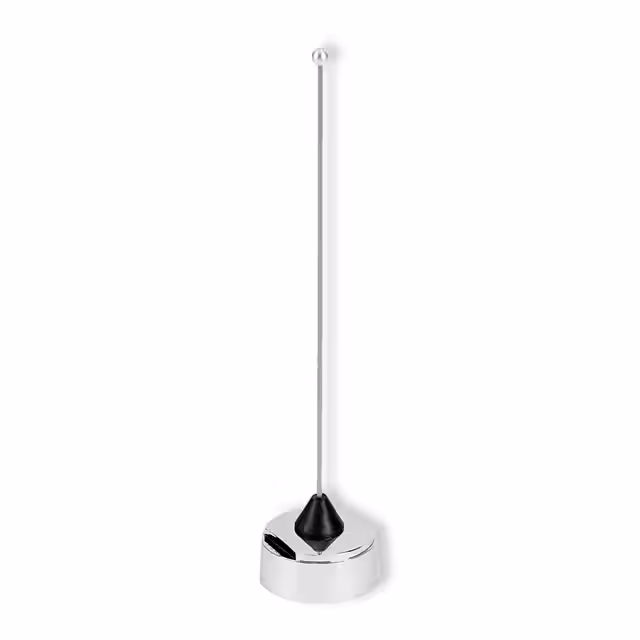

NMOQW450STAINLESS BASE / WHIP, UNITY, 45 |
3,625 |
|
Datasheet |
- | Bag | Active | - | UHF (300MHz ~ 1GHz) | 460MHz | 450MHz ~ 470MHz | Whip, Straight | 1 | - | - | 2dBi | 200 W | - | NMO | - | - | - | Magnetic | 7.000" (177.80mm) | - |
|

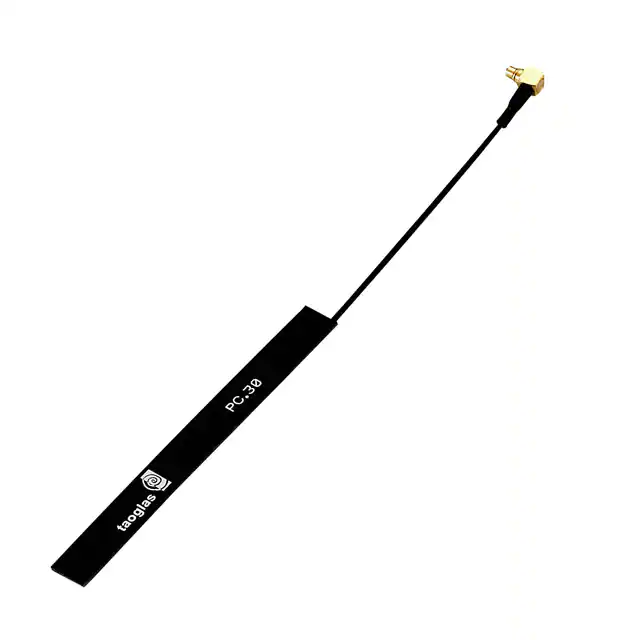

PC30.09.0100ARF ANT 850MHZ/900MHZ FLAT PATCH |
4,371 |
|
- |
- | Bag | Active | Cellular | Wide Band | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Flat Patch | 5 | 2, 2.3, 0.5, 2.3, 2.2 | -18dB, -18dB, -12dB, -16dB, -12dB | 0.8dBi, -1dBi, 0dBi, 0.9dBi, 2dBi | 10 W | Cable - 100mm | MMCX Male | - | - | - | Bracket Mount | 0.031" (0.80mm) | CLR, DCS, GSM, PCS, UMTS |
|
NMOQW144STAINLESS BASE / WHIP, UNITY, 14 |
2,811 |
|
Datasheet |
- | Bag | Active | - | VHF (f < 300MHz) | 148MHz | 144MHz ~ 152MHz | Whip, Straight | 1 | - | - | 2dBi | 200 W | - | NMO | - | - | - | Magnetic | 19.000" (482.60mm) | - |
|

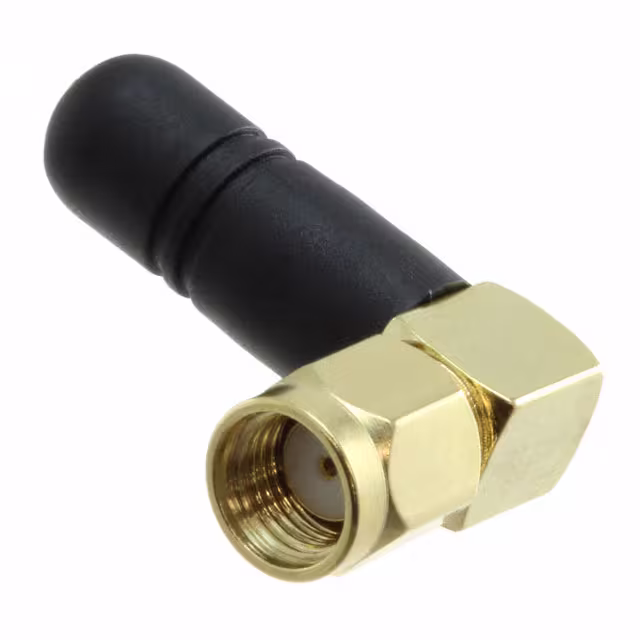

DELTA25/X/SMAM/RP/RA/35RF ANT 2.5GHZ WHIP RA MALE 28MM |
4,543 |
|
Datasheet |
- | Bulk | Active | Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.5GHz | 2.4GHz ~ 2.5GHz | Whip, Right Angle | 1 | 2 | - | 0dBi | 1 W | - | RP-SMA Male | - | - | - | Connector Mount | 1.102" (28.00mm) | Bluetooth, Wi-Fi |
|
TD.10.5113TD.10 TRITON 5DBI DSRC 5.9GHZ DI |
4,356 |
|
Datasheet |
- | Bag | Active | General ISM | SHF (f > 4GHz) | 5.8875GHz | 5.85GHz ~ 5.925GHz | Whip, Tilt | 1 | 2 | -10dB | 5.88dBi, 6.67dBi | - | - | SMA Male | - | - | - | Connector Mount | 6.654" (169.00mm) | DSRC |
|

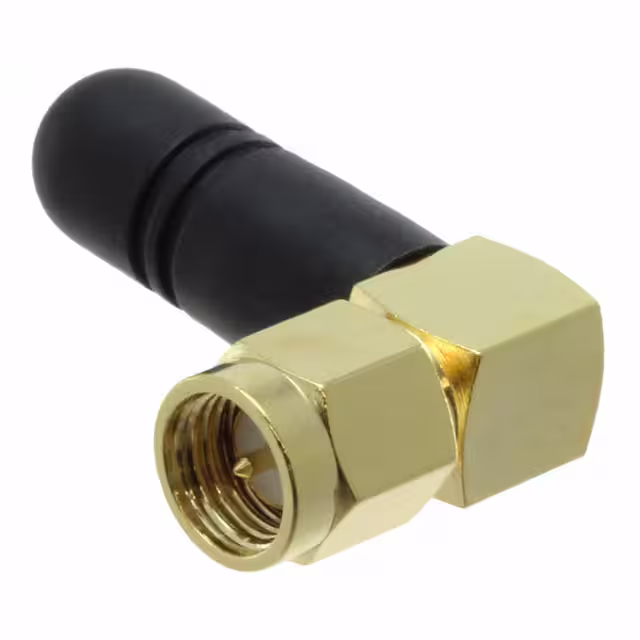

DELTA25/X/SMAM/S/RA/35RF ANT 2.5GHZ WHIP RA MALE 28MM |
1,899 |
|
Datasheet |
- | Bulk | Active | Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.5GHz | 2.4GHz ~ 2.5GHz | Whip, Right Angle | 1 | 2 | - | 0dBi | 1 W | - | SMA Male | - | - | - | Connector Mount | 1.102" (28.00mm) | Bluetooth, Wi-Fi |
|

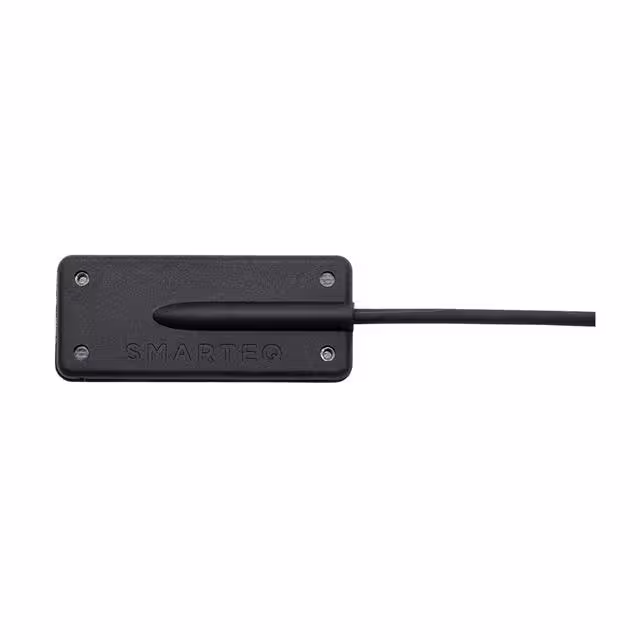

710629RF ANT 2.4425GHZ BLADE SMA ADH |
4,003 |
|
Datasheet |
MiniBlade | Box | Active | Cellular, WiFi | Wide Band | 2.4425GHz, 3.6GHz, 5.425GHz, 6.525GHz | 2.4GHz ~ 2.485GHz, 3.4GHz ~ 3.8GHz, 4.9GHz ~ 5.95GHz, 5.925GHz ~ 7.125GHz | Blade | 4 | 2, 3 | - | 3.8dBi, 5dBi, 7dBi, 5dBi | - | Cable - 500mm | SMA | - | - | - | Adhesive | 0.260" (6.60mm) | 5G, CBRS, Wi-Fi 6E |
|
ANT-433-MHW-RPS-LRF ANT 433MHZ WHIP CTR CAB 180" |
1,051 |
|
Datasheet |
MHW | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 433MHz | 413MHz ~ 453MHz | Whip, Center-Fed Double | 1 | 1.9 | - | 1.2dBi | - | Cable - 4.6m | RP-SMA Male | - | - | - | Adhesive | 5.709" (145.00mm) | Alarms, ISM, Remote Control, Security Systems |
|
ANT-433-WRT-RPSRF ANT 433MHZ DOME RP-SMA PNL MT |
1,096 |
|
Datasheet |
WRT | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 400MHz, 410MHz | 425MHz ~ 441MHz | Dome | 1 | 1.9 | - | -0.9dBi | - | Cable - 216mm | RP-SMA Male | - | - | - | Panel Mount | 1.063" (27.00mm) | Alarms, ISM, Remote Control, Security Systems |
