RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

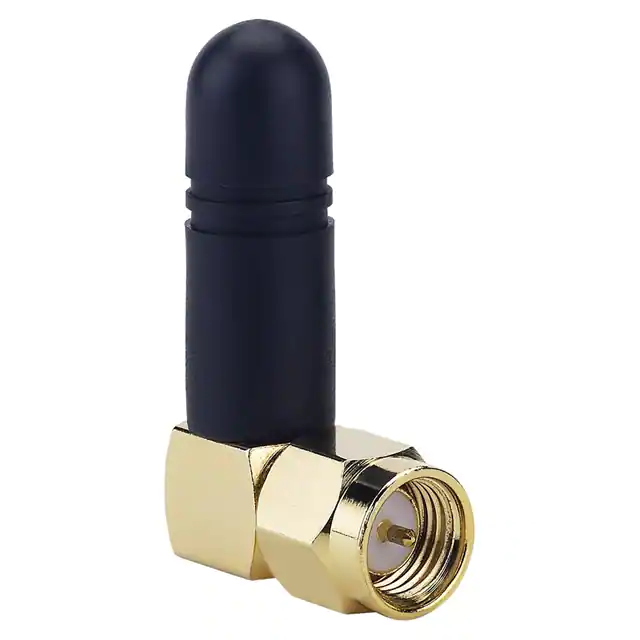

GW.26.0112.HTRF ANT 2.4GHZ WHIP RA SMA MALE |
3,294 |
|
Datasheet |
- | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Whip, Right Angle | 1 | - | - | 0dBi | 1 W | - | SMA Male | - | - | - | Connector Mount | 1.122" (28.50mm) | Bluetooth, WLAN, Zigbee™ |
|
76002114ANTENNA - 3G/4G/5G (MULTIBAND 6M |
4,852 |
|
Datasheet |
IX20 | Bulk | Active | Cellular | Wide Band | 788.5MHz, 3.715GHz | 617MHz ~ 960MHz, 1.43GHz ~ 6GHz | Whip, Tilt | 2 | - | - | 1.2dBi, 5.5dBi | - | - | SMA Male | - | - | - | Connector Mount | 9.016" (229.00mm) | 3G, 4G, LTE |
|
|
YB0009AA2IN1 COMBO ANT SCRWMNT LTE&GNSS |
2,724 |
|
Datasheet |
- | Bag | Active | Cellular, Navigation | Wide Band | 892MHz, 1.561GHz, 1.575GHz, 2.2GHz | 824MHz ~ 1GHz, 1.558GHz ~ 1.566GHz, 1.572GHz ~ 1.58GHz, 1.71GHz ~ 2.7GHz | Dome | 4 | 2 | - | 3dBi, 1dBi, 1dBi, 3dBi | - | Cable - 310mm, LNA | SMA Male | IP66 | - | - | Screw Mount | 1.890" (48.00mm) | Bluetooth, GNSS, GPS, LTE, Wi-Fi |
|

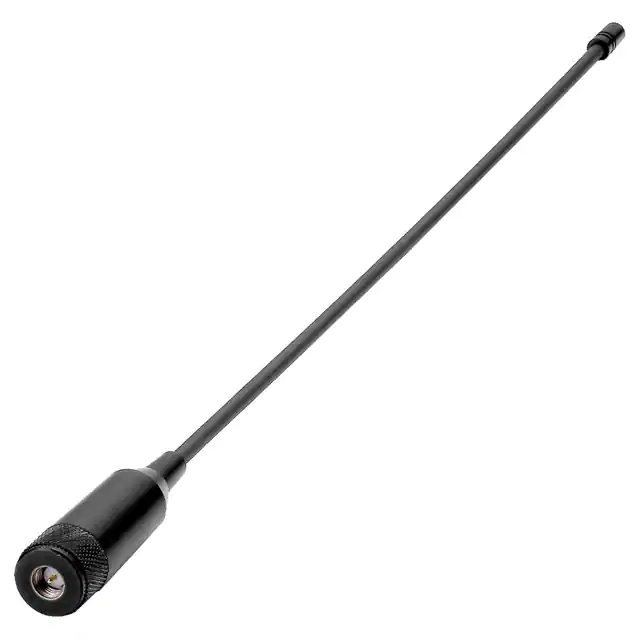

FW.80.SMA.MRF ANT 169MHZ WHIP STR SMA MALE |
2,051 |
|
Datasheet |
- | Bag | Active | - | VHF (f < 300MHz) | 169MHz | - | Whip, Straight | 1 | - | - | 0dBi | - | - | SMA Male | IP67 | - | - | Connector Mount | 13.976" (355.00mm) | - |
|
710418RF ANT 739MHZ BLADE SMA MALE ADH |
2,798 |
|
Datasheet |
SmartBlade™ LTE | Box | Active | Cellular | Wide Band | 739MHz, 875MHz, 1.4685GHz, 1.94GHz, 2.445GHz, 3.6GHz | 698MHz ~ 780MHz, 790MHz ~ 960MHz, 1.427GHz ~ 1.51GHz, 1.71GHz ~ 2.17GHz, 2.2GHz ~ 2.69GHz, 3.4GHz ~ 3.8GHz | Blade | 6 | 2, 2.2, 3 | - | 1.5dBi, 2.5dBi, 3dBi, 4.5dBi, 5.5dBi, 2.5dBi | 10 W | Cable - 2.5m | SMA Male | IP65 | - | - | Adhesive | 0.173" (4.40mm) | 2G, 3G, 4G, 5G, LTE |
|

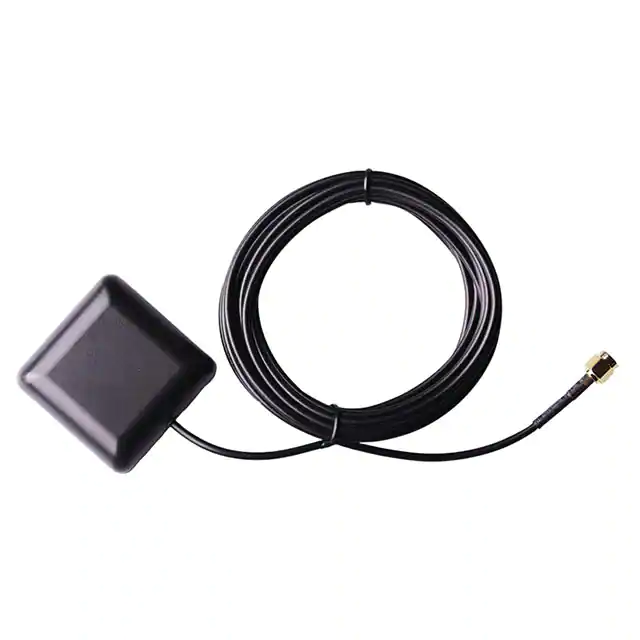

MIKROE-3373GPS ACTIVE EXTERNAL ANTENNA |
3,416 |
|
Datasheet |
- | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | - | Module | 1 | 1.5 | - | 3dBi | - | Cable - 3m, LNA | SMA Male | - | - | - | Magnetic | 0.594" (15.10mm) | GPS, GNSS |
|
GA.130.201111GA.130.201111 SHANGHAI MAGNETIC |
4,756 |
|
Datasheet |
- | Bag | Active | Cellular, General ISM | Wide Band | 752MHz, 859MHz, 920MHz, 1.795GHz, 1.875GHz, 2.045GHz, 2.495GHz | 698MHz ~ 2.7GHz | Module | 7 | - | 10dB | 1.13dBi, 0.8dBi, 0.69dBi, 0.37dBi, 1.15dBi, 1.32dBi, 3.07dBi | 10 W | Cable - 2m | SMA Male | IP65 | - | - | Adhesive | 5.630" (143.00mm) | DCS, GSM, LTE, PCS, UMTS |
|

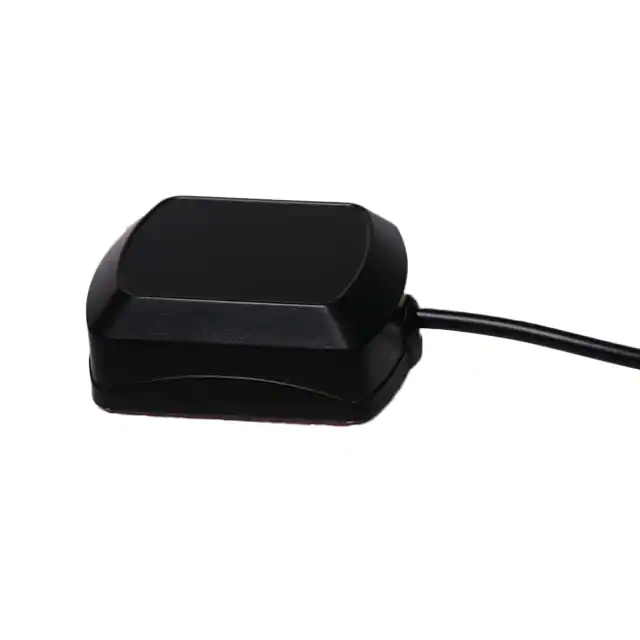

AECP0401G4ZS-3000SRF ANT 1561/1575/1602MHZ MOD SMA |
4,214 |
|
Datasheet |
AECP | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.5815GHz | 1.561GHz ~ 1.602GHz | Puck | 1 | 1.5, 2 | - | 5dBic | - | Cable - 3m, LNA, Filter | SMA Male | IP67 | - | - | Magnetic | 0.598" (15.20mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|

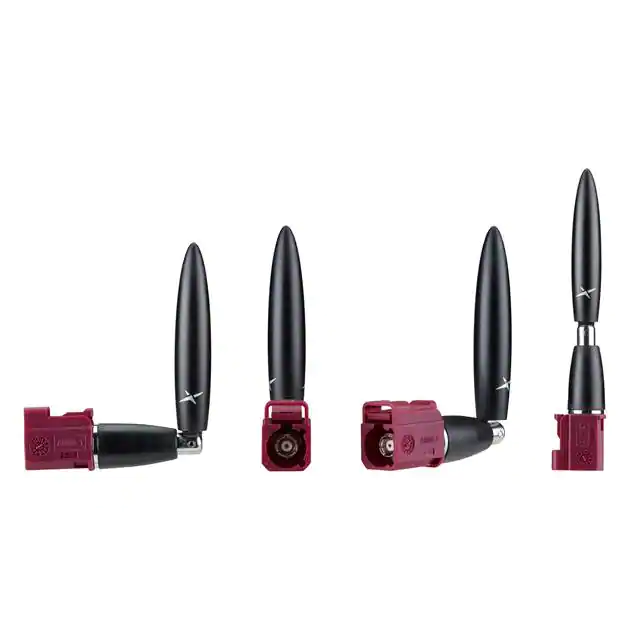

TG.66.0723TG.66 WITH FAKRA CODE D |
3,066 |
|
Datasheet |
- | Bag | Active | Cellular, WiFi | Wide Band | 657.5MHz, 761MHz, 892MHz, 1.4725GHz, 1.955GHz, 2.495GHz, 4.15GHz, 5.5375GHz | 617MHz ~ 698MHz, 698MHz ~ 824MHz, 824MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 5GHz, 5.15GHz ~ 5.925GHz | Whip, Tilt | 8 | - | - | 1.9dBi, 1.4dBi, 2.6dBi, 2.6dBi, 2.4dBi, 2dBi, 2.8dBi, 2.7dBi, 2.4dBi, 4.2dBi, 1.3dBi, 4.4dBi, 4.8dBi, 4.3dBi, 1.1dBi, 2.7dBi | 10 W | - | SMA Male | - | - | - | Connector Mount | 2.795" (71.00mm) | 3G, 4G, 5G, LTE, Wi-Fi |
|
FXP612.07.0095ARF ANT FLAT PATCH IPEX MHFI ADH |
4,613 |
|
Datasheet |
- | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | - | - | Flat Patch | 3 | 1.3 | -23dB | 4dBi | 5 W | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | - | Beidou, GLONASS, GPS |
|
MA9-5NRF ANT 900MHZ WHIP STR N FEM 16" |
3,033 |
|
Datasheet |
- | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 900MHz | 900MHz | Whip, Straight | 1 | 1.5 | - | 5.5dBi | - | - | N Type Female | - | - | - | Connector Mount | 16.000" (406.40mm) | - |
|
|
AFXP.125.07.0095AACTIVE MULTI-BAND GNSS FLEXIBLE |
1,969 |
|
Datasheet |
- | Bulk | Active | Navigation | Wide Band | 1.176GHz, 1.561GHz, 1.575GHz, 1.603GHz | - | Flat Patch | 4 | 1 | - | -3.73dBi, -0.71dBi, -0.63dBi, -0.13dBi | - | Cable - 95mm, LNA, Filter | I-PEX MHF1 (U.FL) | - | - | - | Adhesive | 0.091" (2.30mm) | BeiDou, Galileo, GLONASS, GNSS, GPS, IRNSS, QZSS, SBAS |
|

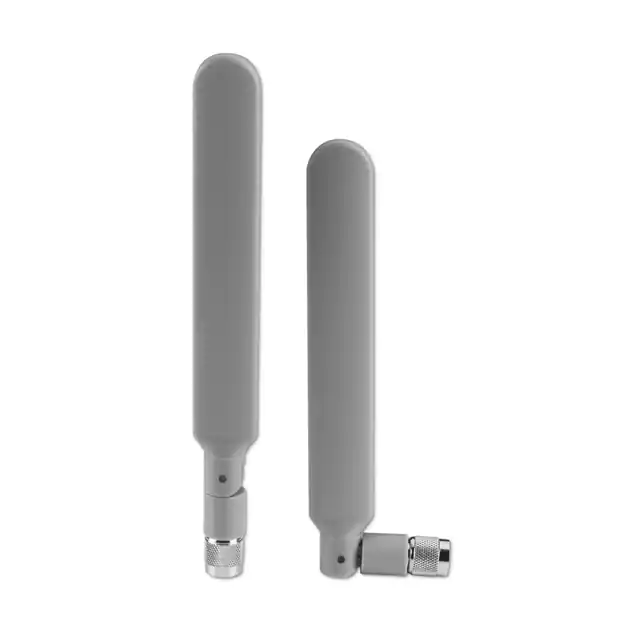

SPDA17RP918DIPOLE - CENTER FED, 890 - 960 M |
1,004 |
|
Datasheet |
- | Bag | Active | - | UHF (300MHz ~ 1GHz) | 925MHz | 890MHz ~ 960MHz | Blade, Tilt | 1 | - | - | - | - | - | RP-TNC Male | - | - | - | Connector Mount | 8.000" (203.20mm) | - |
|

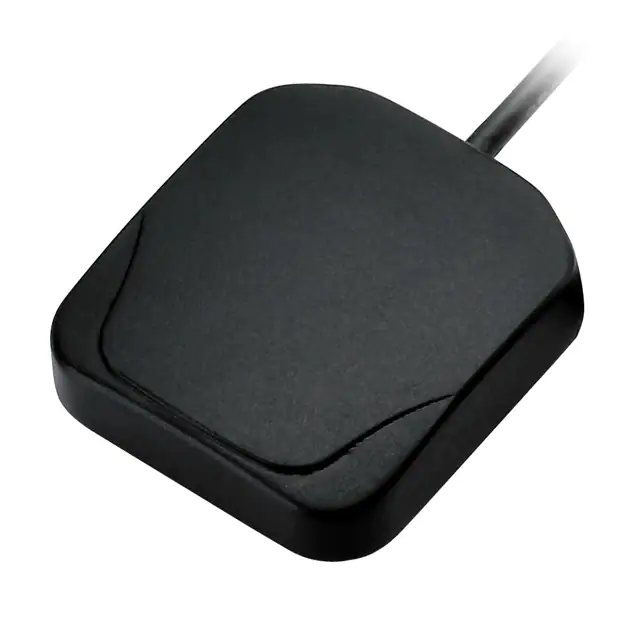

AA.166.A.301111AA.166.A.301111 ULYSSES MINIATUR |
3,679 |
|
Datasheet |
- | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.559GHz, 1.561GHz, 1.575GHz, 1.592GHz, 1.602GHz | 1.574GHz ~ 1.576GHz, 1.597GHz ~ 1.607GHz | Module | 5 | 5 | -3dB | 1.92dBi, 2.34dBi, 0.34dBi, 2.1dBi, 1.81dBi | - | Cable - 3m, LNA, Filter | SMA Male | IP67 | - | - | Magnetic | 0.394" (10.00mm) | Beidou, Galileo, GLONASS, GPS |
|
|
HG2403RD-RSFANTRUBBER DUCK 2.4GHZ 3DBI |
3,242 |
|
Datasheet |
HG | Bag | Active | General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Whip, Tilt | 1 | 2 | - | 3dBi | 30 W | - | RP-SMA | - | - | - | Connector Mount | 5.400" (137.16mm) | 802.11b/g, ISM, Wi-Fi, WLAN |
|
|
HG2405RD-RSPANT 2.4GHZ 5.5DBI RP SMA |
3,375 |
|
Datasheet |
HG | Bag | Active | Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Whip, Tilt | 1 | 2 | - | 5.5dBi | - | - | RP-SMA | - | - | - | Connector Mount | 8.000" (203.20mm) | 802.11b/g, Bluetooth, ISM, Wi-Fi, WLAN |
|
|
DBA6171C3-BSMAMDIPOL,SMAM,SWIVEL,617-7125MHZ,OU |
2,030 |
|
Datasheet |
- | Box | Active | Cellular | Wide Band | 657.5MHz, 829MHz, 1.516GHz, 1.955GHz, 2.5GHz, 3.75GHz, 5.575GHz | 617MHz ~ 698MHz, 698MHz ~ 960MHz, 1.427GHz ~ 1.606GHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.7GHz, 3.3GHz ~ 4.2GHz, 5.15GHz ~ 6GHz | Whip, Straight | 7 | 2, 2.3, 2.5, 3.5 | - | 0dBi, 1dBi, 1dBi, 2.1dBi, 2.1dBi, 3.9dBi, 4.4dBi | 5 W | - | SMA Male | IP67 | - | - | Connector Mount | 7.283" (185.00mm) | 4G, 5G, LTE |
|

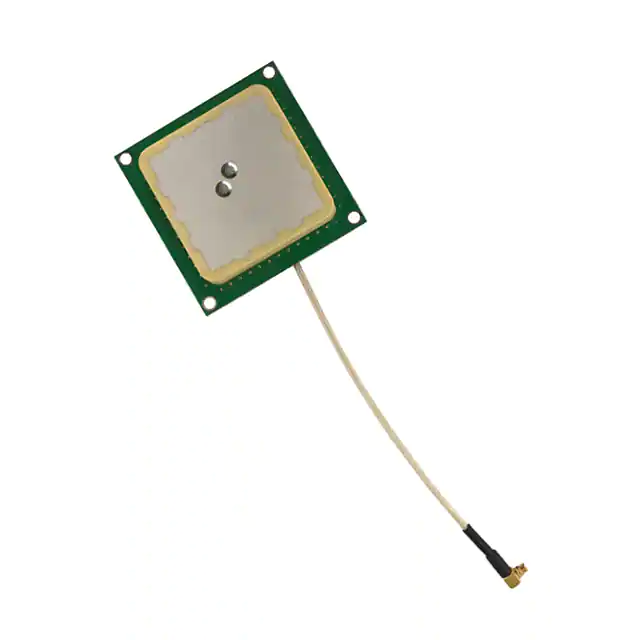

ARRKP5062-S915BRF ANT 915MHZ CER PATCH MMCX SMD |
4,846 |
|
Datasheet |
ARRKP | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | Ceramic Patch | 1 | 2 | -10dB | 3dBi | - | - | MMCX | - | - | - | Surface Mount | 0.244" (6.20mm) | General Purpose |
|
S1551AH-868SRF ANT 868MHZ WHIP TILT SMA MALE |
1,198 |
|
Datasheet |
- | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz | 867MHz ~ 869MHz | Whip, Tilt | 1 | 2 | - | 2dBi | - | - | RP-SMA Male | IP67 | - | - | Connector Mount | 8.035" (204.10mm) | ISM |
|
ANT-916-ID-2000-RPSRF ANT 916MHZ WHIP STR BRK MT 2M |
3,501 |
|
Datasheet |
- | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 895MHz ~ 945MHz | Whip, Straight | 1 | 1.9 | - | 1.6dBi | - | Cable - 2m | RP-SMA Male | IP67 | - | - | Bracket Mount | 4.906" (124.60mm) | ISM, LoRa, Sensor Networks, SigFox |
