RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

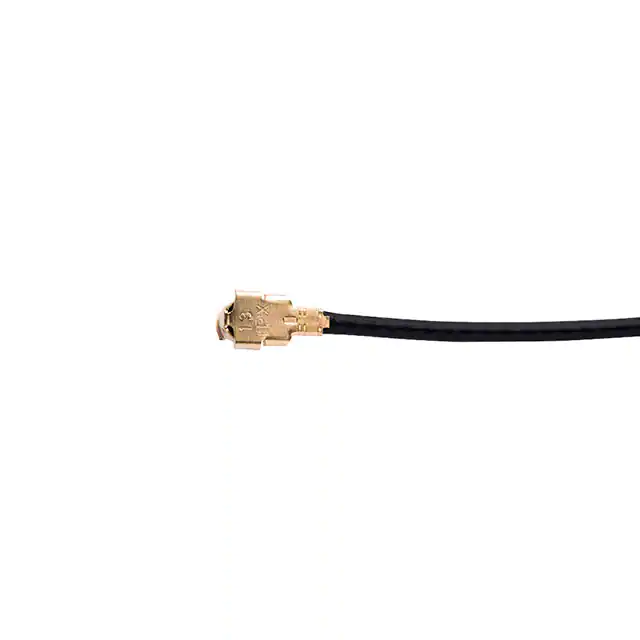

2143860001WI-FI/BLUETOOTH EXT ANTENNA I-PE |
113 |
|
Datasheet |
214386 | Bag | Obsolete | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz | Whip, Tilt | 2 | - | -10dB | 5.2dBi, 3.3dBi | - | Cable - 100mm | I-PEX MHF | - | - | - | Connector Mount | 4.094" (104.00mm) | Bluetooth, Wi-Fi, Zigbee™ |
|

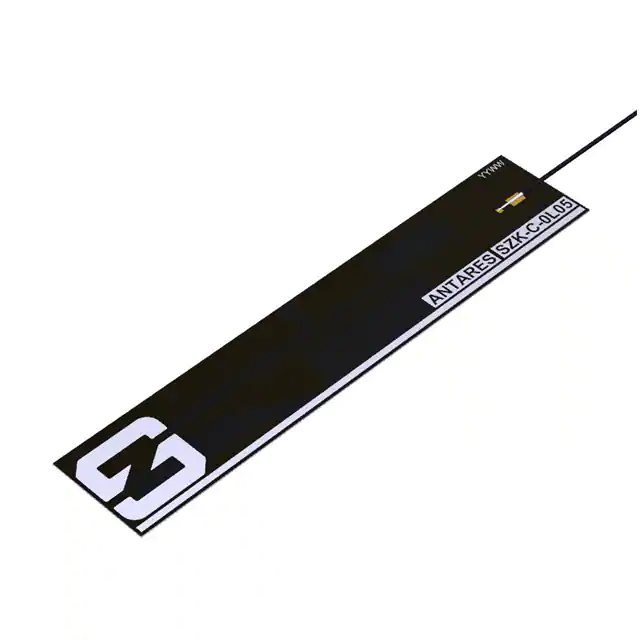

SZK-C-0L055G ANT PCB TRACE IPEX |
500 |
|
Datasheet |
ANTARES | Bulk | Active | Cellular | Wide Band | 657.5MHz, 748MHz, 892MHz, 1.94GHz, 2.35GHz, 2.595GHz, 3.55GHz | 617MHz ~ 960MHz, 1.427GHz ~ 1.66GHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.4GHz, 2.5GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz, 4.4GHz ~ 5GHz | PCB Trace | 7 | 4.7, 1.52, 1.65, 1.85 | -4dB, -13dB, -12dB, -10dB | 3.2dBi, 3.1dBi, 3.7dBi, 4.5dBi | - | - | U.FL (UMCC), I-PEX MHFII | - | - | - | Adhesive | 0.008" (0.20mm) | 5G, 4G, 2G, CDMA, DCS, EDGE, GPRS, GSM, HSPA, IMT, LTE, PCS, UMTS, WCDMA |
|
2195889-2EXTERNAL ANT, SMA, 600-6000MHZ |
4,868 |
|
Datasheet |
* | Bag | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
2195889-1TERMINAL ANT, 5G, SMA, 600-6000M |
3,447 |
|
Datasheet |
* | Bag | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
GMX-221ASA3BANT LPWA WHIP RA SMA MALE |
999 |
|
Datasheet |
221 | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz, 915MHz | 862MHz ~ 876MHz, 902MHz ~ 930MHz | Whip, Right Angle | 2 | 2.4, 2.0 | -7.7dB, -9.5dB | 1.1dBi, 1.8dBi | 1 W | - | SMA Male | - | - | - | Connector Mount | 1.850" (47.00mm) | ISM, LoRaWAN, LPWA, SigFox |
|
|
TMX-221ARS3BANT WIFI 6E WHIP RP-SMA FEMALE |
896 |
|
Datasheet |
221 | Bag | Active | WiFi | Wide Band | 2.45GHz, 5.5GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Whip, Right Angle | 3 | 1.5, 2.5, 3 | -14dB, -7.4dB, -6dB | 1.1dBi, 3dBi, 3.5dBi | 1 W | - | RP-SMA Female | - | - | - | Connector Mount | 1.850" (47.00mm) | 802.11ax, U-NII, Wi-Fi 4, Wi-Fi 5, Wi-Fi 6, Wi-Fi 6E |
|
|
TWX-241BRS3BANT WIFI 6E WHIP RP-SMA FEMALE |
963 |
|
Datasheet |
241 | Bag | Active | WiFi | Wide Band | 2.45GHz, 5.5GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Whip, Tilt | 3 | 1.3, 1.4, 2.1 | -17.7dB, -15.6dB, -9dB | 2.1dBi, 3.1dBi, 3.3dBi | 1 W | - | RP-SMA Female | - | - | - | Connector Mount | 4.252" (108.00mm) | 802.11ax, U-NII, Wi-Fi 4, Wi-Fi 5, Wi-Fi 6, Wi-Fi 6E |
|
1001932PT-AC10L0100ANTENNA ASSY, WLAN T 100 |
981 |
|
Datasheet |
- | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5GHz | 2.4GHz ~ 2.585GHz, 5.15GHz ~ 5.825GHz | PCB Trace | 2 | 2 | - | 2.5dBi, 4.4dBi | 500 mW | Cable - 100mm | U.FL | - | - | - | Adhesive | 0.063" (1.60mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
|
SRF3W077-100RF ANT 2.45/5.4/6.525GHZ FPC |
177 |
|
Datasheet |
FlexiiANT® | Bulk | Active | WiFi | Wide Band | 2.45GHz, 5.4GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.9GHz, 5.925GHz ~ 7.125GHz | FPC | 3 | 1.3, 1.5, 1.6 | -16dB, -13dB, -12dB | 2.8dBi, 3.2dBi, 4.4dBi | - | Cable - 100mm | I-PEX MHF | - | - | - | Adhesive | 0.006" (0.15mm) | 802.11a/b/g/j/-c/ax, Wi-Fi |
|

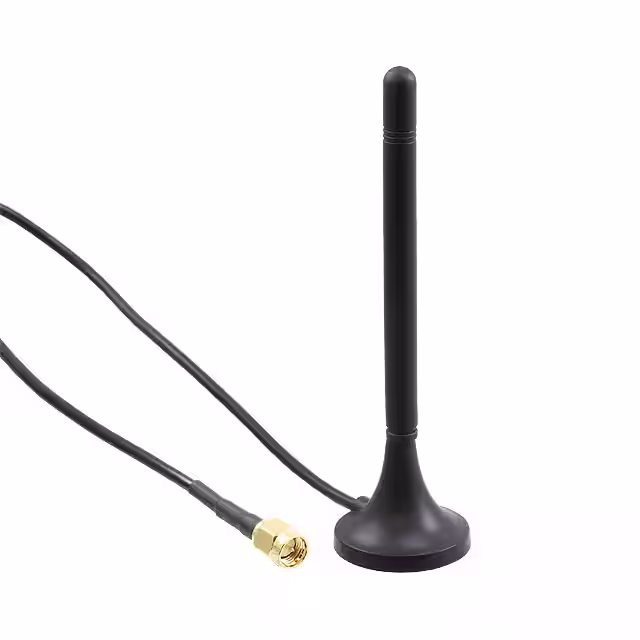

APAMS-131RF ANT 900MHZ/1.8GHZ WHIP STR |
1,632 |
|
Datasheet |
APAMS | Bulk | Obsolete | - | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 900MHz, 1.8GHz | 890MHz ~ 960MHz, 1.71GHz ~ 1.88GHz | Whip, Straight | 2 | 2 | - | 3dBi | - | - | SMA Male | - | - | - | Base Mount | 4.291" (109.00mm) | - |
|
|
TAMP118WI-FI 6 EXTERNAL OMNI ANTENNA WI |
250 |
|
Datasheet |
- | Bag | Active | WiFi | Wide Band | 2.45GHz, 5.5GHz, 6.5GHz | 2.4GHz ~ 2.5GHz, 5.1GHz ~ 5.9GHz, 6GHz ~ 7GHz | Whip, Straight | 3 | - | - | 3.32dBi, 3.28dBi, 2.78dBi | - | - | SMA Male | IP54 | - | - | Connector Mount | 6.157" (156.40mm) | Wi-Fi |
|

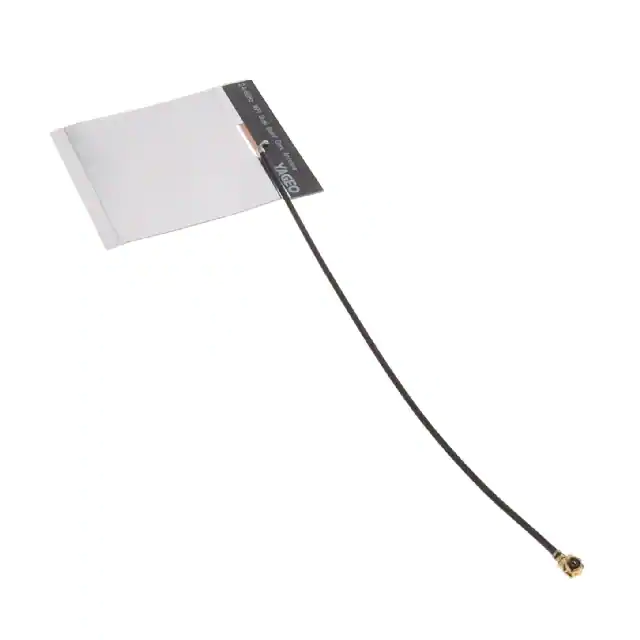

ANTX100P002B24553RF ANT 2.45GHZ/5.3685GHZ PCB |
3,427 |
|
Datasheet |
- | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.3685GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.587GHz | PCB Trace | 2 | 2.5 | - | 0.7dBi, 1.9dBi | 1 W | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.022" (0.55mm) | Bluetooth, Wi-Fi, Zigbee™ |
|
NN01-105EZCONNECT - 105 |
106 |
|
Datasheet |
EZConnect™ | Tape & Reel (TR) | Obsolete | 802.15.4, General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | Chip | 1 | 2 | - | 1.7dBi | - | - | Solder | - | - | - | Surface Mount | 0.031" (0.80mm) | ISM, ZigBee™ |
|
SGP.1575.25.4.D.02RF ANT 1.575GHZ CER PATCH SLD |
4,821 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.564GHz ~ 1.586GHz | Ceramic Patch | 1 | 1.5 | -10dB | 1dBic | - | - | Solder | - | - | - | Surface Mount | 0.212" (5.38mm) | GPS |
|

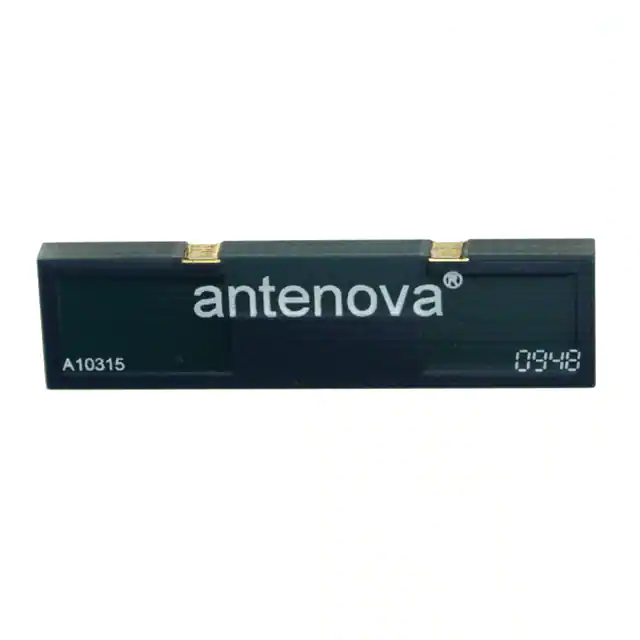

A10315RF ANT 850/900MHZ PCB TRACE SLD |
6,409 |
|
Datasheet |
Reflexus | Tape & Reel (TR) | Obsolete | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 850MHz, 900MHz, 1.8GHz, 1.9GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | PCB Trace | 5 | 2.3 | -8dB | 2dBi, 3.7dBi | - | - | Solder | - | - | - | Surface Mount | 0.126" (3.20mm) | GSM, UMTS |
|
|
GHX-328XSA3BANT LPWA WHIP SMA PLUG MALE |
969 |
|
Datasheet |
328 | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz, 915MHz | 862MHz ~ 876MHz, 902MHz ~ 930MHz | Whip, Straight | 2 | 1.6, 1.7 | -12.7dB, -11.7dB | 2.7dBi, 2.7dBi | 1 W | - | SMA Male | - | - | - | Connector Mount | 1.811" (46.00mm) | ISM, LoRaWAN, LPWA, SigFox |
|
ACAR3005-S8242G/3G/GSM CERAMIC CHIP ANT |
1,325 |
|
Datasheet |
ACAR | Tape & Reel (TR) | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 892MHz, 1.94GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Chip | 2 | 3 | - | -0.18dBi, 0.1dBi, 0.55dBi, 0.77dBi, 1.78dBi, 2.08dBi, 2.12dBi, 2.7dBi, 3.03dBi, 3.12dBi | - | - | Solder | - | - | - | Surface Mount | 0.197" (5.00mm) | 2G, 3G, DCS, GSM, PCS, UMTS |
|
NN01-104SLIM REACH XTEND 2.4 GHZ |
175 |
|
Datasheet |
Slim Reach Xtend™ | Tape & Reel (TR) | Obsolete | Bluetooth | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Chip | 1 | 2 | - | 1.1dBi | - | - | Solder | - | - | - | Surface Mount | 0.035" (0.90mm) | 802.11b/g/n, Bluetooth, WLAN, Zigbee™ |
|
|
W3224ANT CERAMIC PATCH 18X18X4MM GPS/ |
129 |
|
Datasheet |
Ceramic Patch | Tape & Reel (TR) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.602GHz | 1.574GHz ~ 1.576GHz, 1.598GHz ~ 1.606GHz | Ceramic Patch | 2 | - | -10dB | 2dBi, 2.5dBi | - | - | Solder | - | - | - | Surface Mount | 0.157" (4.00mm) | GLONASS, GPS |
|
|
ZWX-721XSA2BANT 5G BLADE SMA PLUG MALE |
993 |
|
Datasheet |
721 | Bag | Active | Cellular | Wide Band | 657.5MHz, 829MHz, 2.2GHz, 3.75GHz, 4.7GHz, 5.5GHz | 617MHz ~ 698MHz, 698MHz ~ 960MHz, 1.71GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz, 4.4GHz ~ 5GHz, 5.15GHz ~ 5.85GHz | Blade, Tilt | 7 | 2, 2.9, 2.7, 2, 3.3 | -9.5dB, -6.2dB, -6.8dB, -9.5dB, -5.4dB | 2.1dBi, 4.4dBi, 2.8dBi, 3.7dBi, 4.8dBi | 1 W | - | SMA Male | - | - | - | Connector Mount | 5.906" (150.00mm) | 2G, 3G, 4G, 5G, LTE |
