Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TCSD-20-D-25.00-01-N-R2MM DOUBLE ROW FEMALE IDC ASSEMB |
3,668 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket, Reversed | 40 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 2.08' (635.00mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
SFSD-20-28-H-99.99-S.050 SOCKET DISCRETE CABLE ASSEM |
1,707 |
|
Datasheet |
Tiger Eye™ SFSD | Bulk | Active | Socket to Individual Wire Leads | 40 | 2 | 0.050" (1.27mm) | - | 8.33' (2.54m) | Polarizing Key | Black, Individual | Unshielded | - | Crimp | Gold | 30.0µin (0.76µm) |
|
|
TFSD-16-30-G-08.00-T-NUS.050" TIGER EYE DOUBLE ROW DISCR |
4,534 |
|
Datasheet |
Tiger Eye™ TFSD | Bulk | Active | Socket to Plug | 32 | 2 | 0.050" (1.27mm) | - | 0.667' (203.20mm, 8.00") | - | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
M3BRK-2418RIDC CABLE - MSR24K/MC24M/MPR24K |
4,549 |
|
Datasheet |
- | Bulk | Active | Socket to Plug | 24 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | Strain Relief (Socket); Polarizing Key, Strain Relief (Plug) | Multiple, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
M3DRK-2418RIDC CABLE - MKR24K/MC24M/MPR24K |
4,142 |
|
Datasheet |
- | Bulk | Active | Socket to Plug | 24 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | Polarizing Key, Strain Relief | Multiple, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
FFMD-17-D-34.00-01.050 CABLE PLUG |
2,065 |
|
- |
Tiger Eye™ FFMD | Bulk | Active | Plug to Plug | 34 | 2 | 0.050" (1.27mm) | 0.025" (0.64mm) | 2.83' (863.60mm) | - | Gray, Ribbon | Unshielded | - | IDC | Tin | - |
|
|
SFSD-20-30-G-03.94-DS-NDS.050 SOCKET DISCRETE CABLE ASSEM |
4,899 |
|
Datasheet |
Tiger Eye™ SFSD | Bulk | Active | Socket to Socket | 40 | 2 | 0.050" (1.27mm) | - | 0.328' (100.00mm, 3.94") | Flange, Polarizing Key | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
TCMD-06-T-96.00-012MM DOUBLE ROW MALE IDC ASSEMBLY |
1,299 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Socket to Plug | 12 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
FFSD-13-D-28.00-01-N-R.050" LOW PROFILE TIGER EYE IDC |
2,800 |
|
Datasheet |
Tiger Eye™ FFSD | Bulk | Active | Socket to Socket, Reversed | 26 | 2 | 0.050" (1.27mm) | 0.025" (0.64mm) | 2.33' (711.20mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 10.0µin (0.25µm) |
|
|
MMTD-10-20-S-96.00-S.100" MINI MATE DOUBLE ROW DISCR |
1,104 |
|
Datasheet |
Mini Mate® MMTD | Bulk | Active | Plug to Plug | 20 | 2 | 0.100" (2.54mm) | - | - | - | Black, Individual | Unshielded | - | Crimp | Gold | 30.0µin (0.76µm) |
|
|
FMTP-06-D-03.85-01.050" TIGER EYE IDC TWISTED PAIR |
4,120 |
|
Datasheet |
Tiger Eye™ FMTP | Bulk | Active | Plug to Plug | 12 | 2 | 0.050" (1.27mm) | 0.025" (0.64mm) | - | - | Multiple, Twisted Pair (Round) | Unshielded | - | IDC | Gold | 10.0µin (0.25µm) |
|
|
TFSS-25-28-G-10.00-D-NUS.050" TIGER EYE SINGLE ROW DISCR |
4,290 |
|
Datasheet |
Tiger Eye™ TFSS | Bulk | Active | Plug to Plug | 25 | 1 | 0.050" (1.27mm) | - | 0.833' (254.00mm, 10.00") | - | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
SFSD-16-28-G-30.00-D-NUS.050 SOCKET DISCRETE CABLE ASSEM |
4,087 |
|
Datasheet |
Tiger Eye™ SFSD | Bulk | Active | Socket to Socket | 32 | 2 | 0.050" (1.27mm) | - | 2.50' (762.00mm) | Polarizing Key | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
TFSDT-30-28-G-03.00-SL.050" TIGER EYE DOUBLE ROW DISCR |
2,569 |
|
Datasheet |
Tiger Eye™ TFSDT | Bulk | Active | Plug to Individual Wire Leads | 60 | 2 | 0.050" (1.27mm) | - | 0.250' (76.20mm, 3.00") | Friction Lock | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
TFSD-10-28-G-30.00-TR-NDS.050" TIGER EYE DOUBLE ROW DISCR |
3,582 |
|
Datasheet |
Tiger Eye™ TFSD | Bulk | Active | Socket to Plug | 20 | 2 | 0.050" (1.27mm) | - | 2.50' (762.00mm) | Latch Holder | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
IDSD-35-D-15.00-GSLIM BODY DOUBLE-ROW IDC SOCKET |
1,205 |
|
Datasheet |
IDSD | Bulk | Active | Socket to Socket | 70 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|

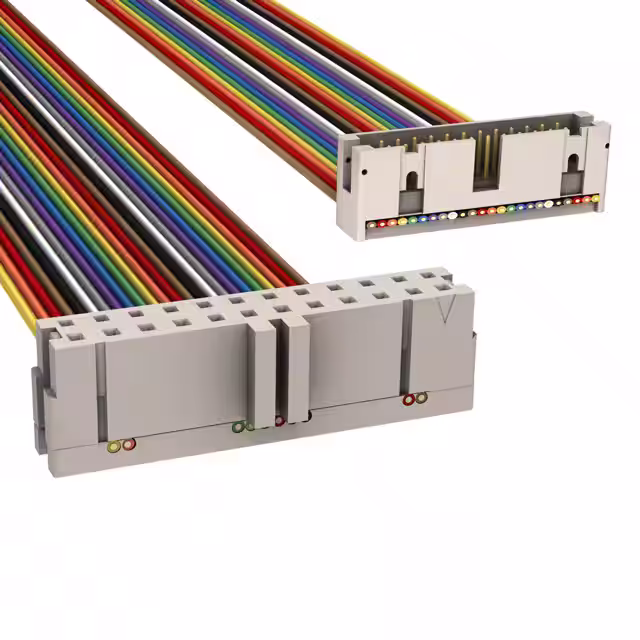

M3TKK-2436RIDC CABLE - MSD24K/MC24M/MPK24K |
2,278 |
|
Datasheet |
- | Bulk | Active | Socket to Plug | 24 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key | Multiple, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
FFMD-14-D-16.00-01-S.050 CABLE PLUG |
2,777 |
|
- |
Tiger Eye™ FFMD | Bulk | Active | Plug to Plug | 28 | 2 | 0.050" (1.27mm) | 0.025" (0.64mm) | 1.33' (406.40mm) | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
SFSD-20-30-G-04.00-DS-NUSDOUBLE ROW DISCRETE WIRE ASSEMBL |
2,053 |
|
Datasheet |
Tiger Eye™ SFSD | Bulk | Active | Socket to Socket | 40 | 2 | 0.050" (1.27mm) | - | - | - | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
SMSD-15-24C-F-06.00-D-KDX.100" MINI MATE UNIVERSAL DOUBLE |
4,932 |
|
Datasheet |
Mini Mate® SMSD | Bulk | Active | Socket to Socket | 30 | 2 | 0.100" (2.54mm) | - | - | Polarizing Key | Multiple, Individual | Unshielded | - | Crimp | Gold | - |
