Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SMSD-10-24C-L-48.00-D-KUS.100" MINI MATE UNIVERSAL DOUBLE |
3,636 |
|
Datasheet |
Mini Mate® SMSD | Bulk | Active | Socket to Socket | 20 | 2 | 0.100" (2.54mm) | - | - | Polarizing Key | Multiple, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
SFSD-25-30-G-24.00-DR-NDX.050 SOCKET DISCRETE CABLE ASSEM |
3,585 |
|
Datasheet |
Tiger Eye™ SFSD | Bulk | Active | Socket to Socket | 50 | 2 | 0.050" (1.27mm) | - | 2.00' (609.60mm) | Latch Lock, Polarizing Key | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
SFSD-25-28-G-24.00-DR-NDX.050 SOCKET DISCRETE CABLE ASSEM |
2,017 |
|
Datasheet |
Tiger Eye™ SFSD | Bulk | Active | Socket to Socket | 50 | 2 | 0.050" (1.27mm) | - | 2.00' (609.60mm) | Latch Lock, Polarizing Key | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
SFSD-25-28-G-24.00-DR-NUS.050 SOCKET DISCRETE CABLE ASSEM |
2,330 |
|
Datasheet |
Tiger Eye™ SFSD | Bulk | Active | Socket to Socket | 50 | 2 | 0.050" (1.27mm) | - | 2.00' (609.60mm) | Latch Lock, Polarizing Key | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
TFSD-20-28-F-08.00-T-NDS.050" TIGER EYE DOUBLE ROW DISCR |
4,598 |
|
Datasheet |
Tiger Eye™ TFSD | Bulk | Active | Socket to Plug | 40 | 2 | 0.050" (1.27mm) | - | 0.667' (203.20mm, 8.00") | - | Black, Individual | Unshielded | - | Crimp | Gold | 3.00µin (0.076µm) |
|
|
PMSD-15-16-K-18.00-S.165" POWER MATE DOUBLE ROW DISC |
3,001 |
|
Datasheet |
Power Mate® PMSD | Bulk | Active | Socket to Individual Wire Leads | 30 | 2 | 0.165" (4.19mm) | - | - | Polarizing Key | Black, Individual | Unshielded | - | Crimp | Tin | - |
|
|
S2SDT-15-30-L-10.00-D-NUS2.00 MM TIGER EYE DOUBLE ROW DIS |
4,212 |
|
Datasheet |
Tiger Eye™ S2SDT | Bulk | Active | Socket to Socket | 30 | 2 | 0.079" (2.00mm) | - | - | - | Blue, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
TFSD-20-28-F-08.00-T-NUS.050" TIGER EYE DOUBLE ROW DISCR |
3,059 |
|
Datasheet |
Tiger Eye™ TFSD | Bulk | Active | Socket to Plug | 40 | 2 | 0.050" (1.27mm) | - | 0.667' (203.20mm, 8.00") | - | Black, Individual | Unshielded | - | Crimp | Gold | 3.00µin (0.076µm) |
|
|
FFMD-25-T-13.00-01-N-R.050 CABLE PLUG |
1,659 |
|
- |
Tiger Eye™ FFMD | Bulk | Active | Socket to Plug, Reversed | 50 | 2 | 0.050" (1.27mm) | 0.025" (0.64mm) | 1.08' (330.20mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Tin | - |
|

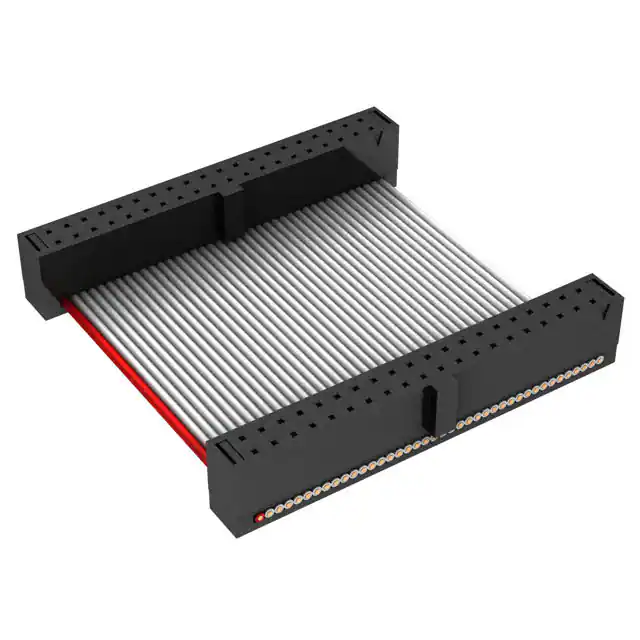

FFSD-20-D-09.00-01-N-RW.050 X .050 C.L. FEMALE IDC ASSE |
2,119 |
|
Datasheet |
Tiger Eye™ FFSD | Bulk | Active | Socket to Socket | 40 | 2 | 0.050" (1.27mm) | 0.025" (0.64mm) | 0.750' (228.60mm, 9.00") | Polarizing Key, Reverse Wiring | Gray, Ribbon | Unshielded | - | IDC | Gold | 10.0µin (0.25µm) |
|
|
TCSD-05-D-79.00-01-N-P042MM DOUBLE ROW FEMALE IDC ASSEMB |
4,616 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 6.58' (2.01m) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
SFSD-16-28-H-14.00-SL.050 SOCKET DISCRETE CABLE ASSEM |
3,724 |
|
Datasheet |
Tiger Eye™ SFSD | Bulk | Active | Socket to Individual Wire Leads | 32 | 2 | 0.050" (1.27mm) | - | 1.17' (355.60mm) | Friction Lock, Polarizing Key | Black, Individual | Unshielded | - | Crimp | Gold | 30.0µin (0.76µm) |
|
|
SFSD-25-28-H-60.00-S.050 SOCKET DISCRETE CABLE ASSEM |
3,774 |
|
Datasheet |
Tiger Eye™ SFSD | Bulk | Active | Socket to Individual Wire Leads | 50 | 2 | 0.050" (1.27mm) | - | 5.00' (1.52m) | Polarizing Key | Black, Individual | Unshielded | - | Crimp | Gold | 30.0µin (0.76µm) |
|
|
PMSD-15-206-K-20.00-S.165" POWER MATE DOUBLE ROW DISC |
2,698 |
|
Datasheet |
Power Mate® PMSD | Bulk | Active | Socket to Individual Wire Leads | 30 | 2 | 0.165" (4.19mm) | - | - | Polarizing Key | Black, Individual | Unshielded | - | Crimp | Tin | - |
|
|
PMSDT-10-24-K-12.00-D-LDX.165" POWER MATE DOUBLE ROW DISC |
1,169 |
|
Datasheet |
Power Mate® PMSDT | Bulk | Active | Socket to Socket | 20 | 2 | 0.165" (4.19mm) | - | - | Polarizing Key | Blue, Individual | Unshielded | - | Crimp | Tin | - |
|
|
S1SD-20-28-GF-20.00-LMICRO MATE DOUBLE ROW DISCRETE W |
4,753 |
|
Datasheet |
Micro Mate™ S1SD | Bulk | Active | Socket to Individual Wire Leads | 40 | 2 | 0.039" (1.00mm) | - | - | Latch Lock | Black, Individual | Unshielded | - | Crimp | Gold | 3.00µin (0.076µm) |
|
M3AKK-2636JIDC CABLE - MSC26K/MC26G/MPK26K |
3,258 |
|
Datasheet |
- | Bulk | Active | Socket to Plug | 26 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|

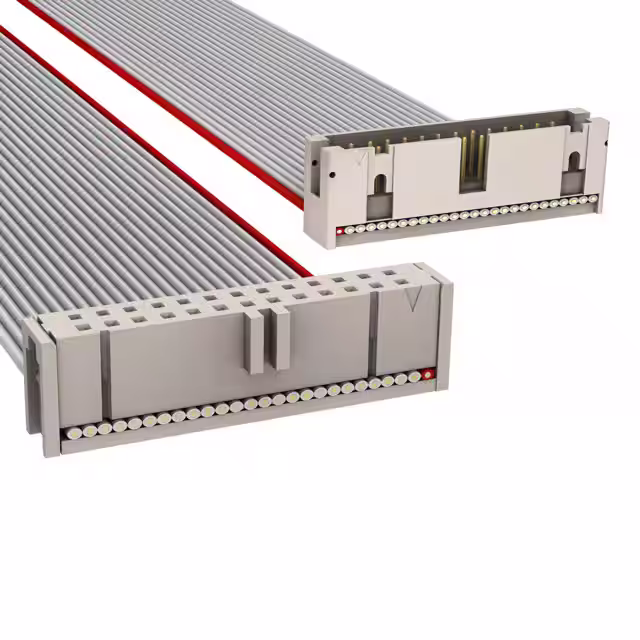

M3CKK-2636JIDC CABLE - MKC26K/MC26G/MPK26K |
1,031 |
|
Datasheet |
- | Bulk | Active | Socket to Plug | 26 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
M3AWK-2636JIDC CABLE - MSC26K/MC26G/MPL26K |
2,381 |
|
Datasheet |
- | Bulk | Active | Socket to Plug | 26 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Flange, Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
M3CWK-2636JIDC CABLE - MKC26K/MC26G/MPL26K |
3,812 |
|
Datasheet |
- | Bulk | Active | Socket to Plug | 26 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key (Socket); Flange, Polarizing Key (Plug) | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
